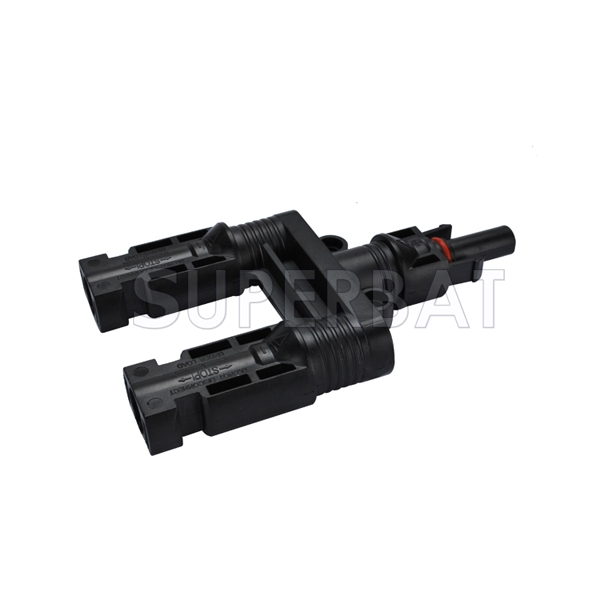

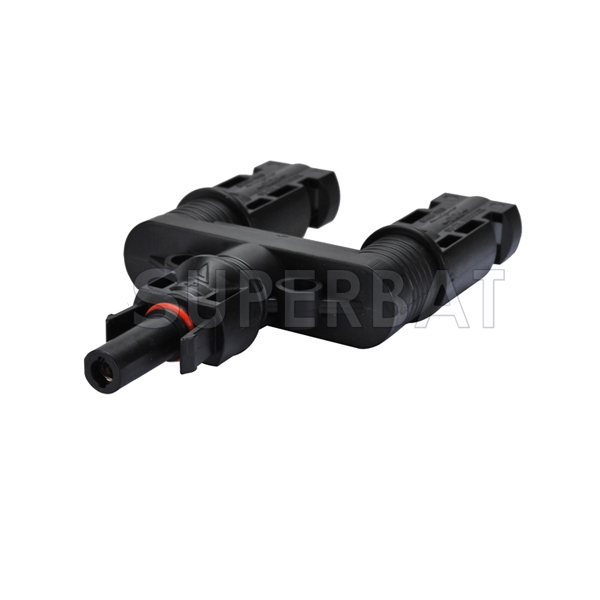

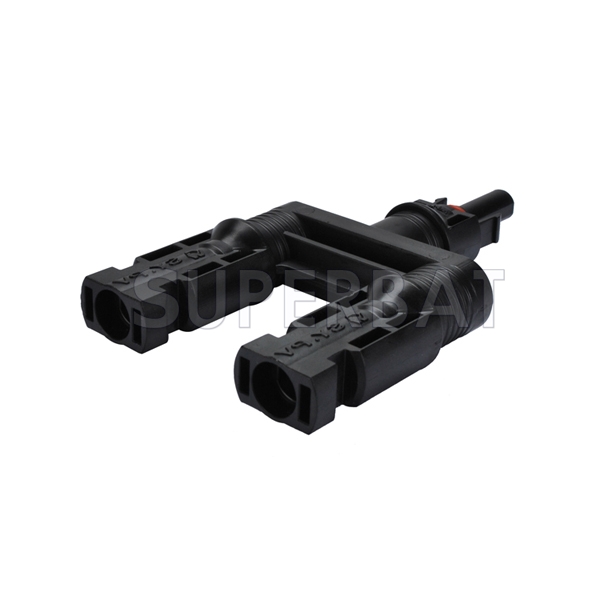

MC4 T BRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIY
MC4 T BRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIY
Unit Price: $7.80
sku:MC4-JJK-2327
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $7.80 $7.02 $6.32 $5.69 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Rated Voltage : TUV 1000V DC/ UL600V DC
Rated current : 20A-30A
Suitable cable cross section : 2.5mm2 ~ 6.0mm2 / 14AWG ~ 10AWG
Pin dimension : Ø4.0mm
Proof voltage : TUV 6000V AC(1 MIN)/ UL 2200V DC (1MIN)
Polution degree : 2
Protection class : Class 2
Contact Material : Copper, Tin plated,PPO
Contact Resistance : ≤ 5mΩ
Degree of protection : IP 67
Withdrawal Force : ≥ 50N
Insertion force : ≤ 50N
Temprature range : -40˚ C~+85˚ C
Flame class : UL94V-0



Package included:
1pcs MC4 T Branch Adapter ONE Female to TWO Male
