Compatible Carrier Network: Verizon, AT&T, T-Mobile, Sprint and etc; Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz; Gain: 7dBi; Direction: Omni-directional; Feature: Strong Magnetic Base Mounting; Cable Length: 3m; Connector: Dual SMA Male Connector;

Adhesive and magnetic mounting methods for easy and convenient installation

Braided mesh protects coax from mechanical abrasion and increases service life.

Compatible with 4G LTE Mobile Router, Mobile Broadband Modem Hotspot, CPE Router, Cellular Gateway, Vehicle Car Truck RV Bus Van Mobile Cellular;

Compatible with Industrial 4G LTE Router, Cellular IoT Gateway, 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Metering and SMS Alarm, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker, Cellular Temperature Humidity Sensor Monitoring System, GSM Alarm System, Wireless Security Sensor Motion Detector Alert;

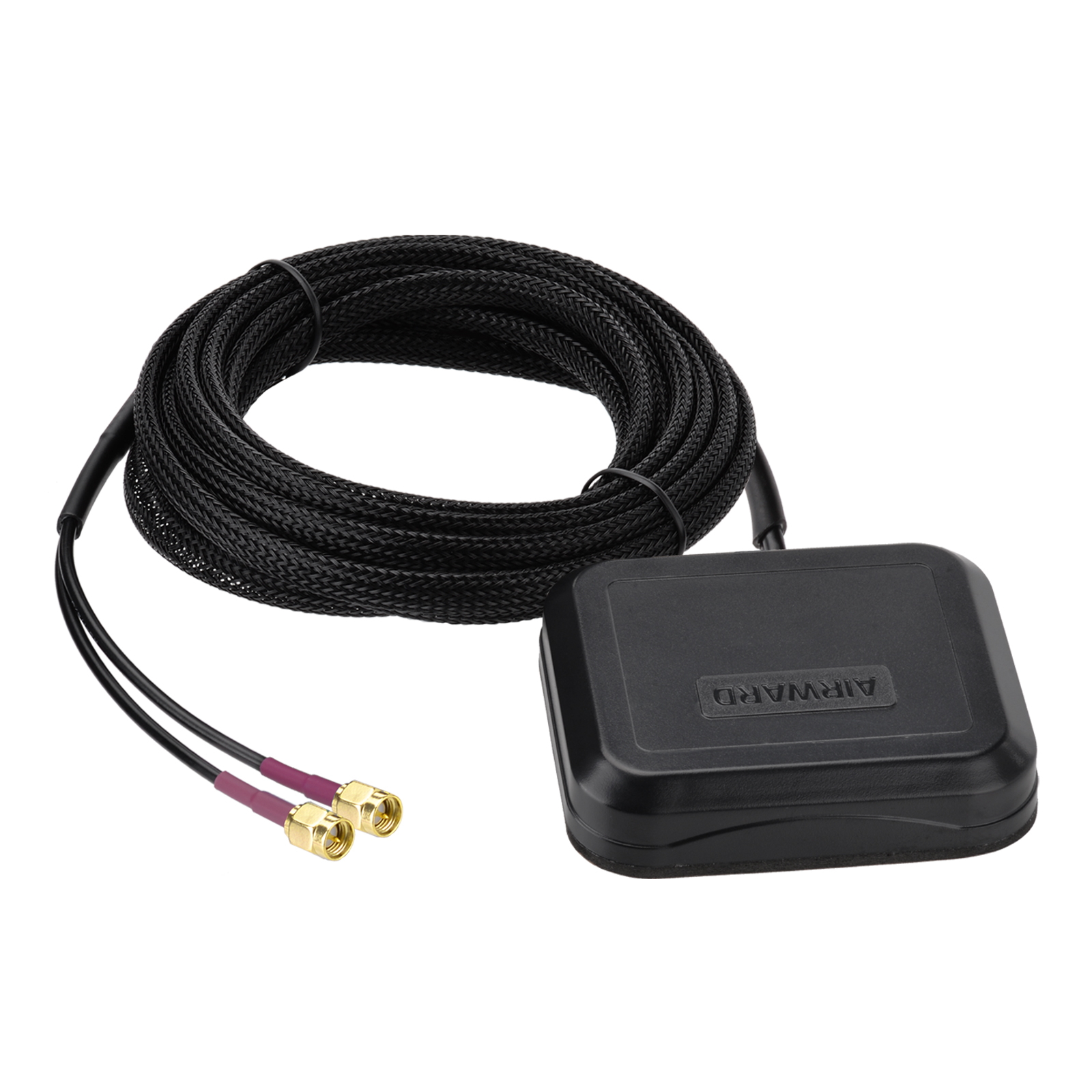

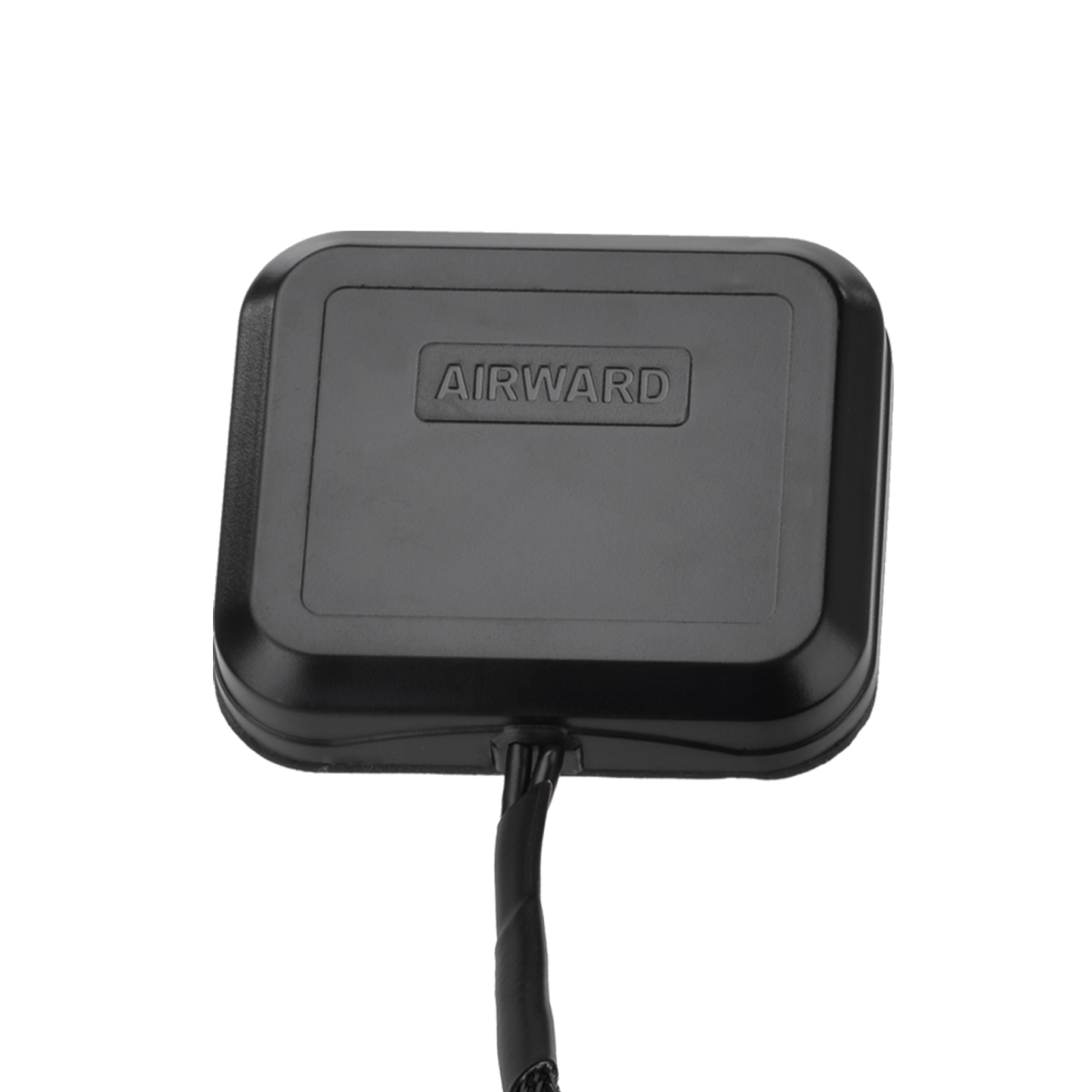

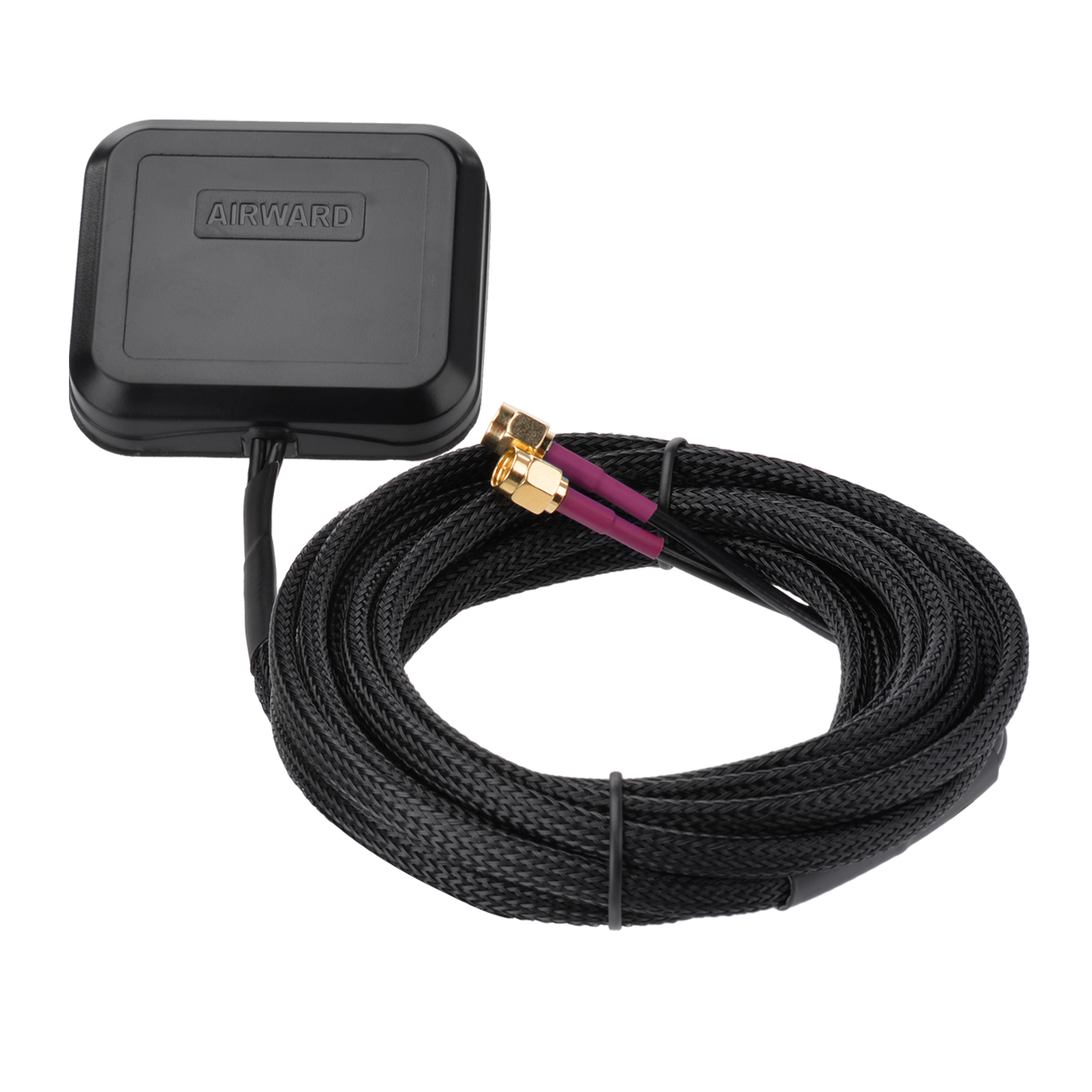

Low Profile 4G LTE MIMO Omni-directional Dual SMA Male Antenna for Huawei Sierra Netgear ZTE Novatel D-Link 4G LTE Wireless Router

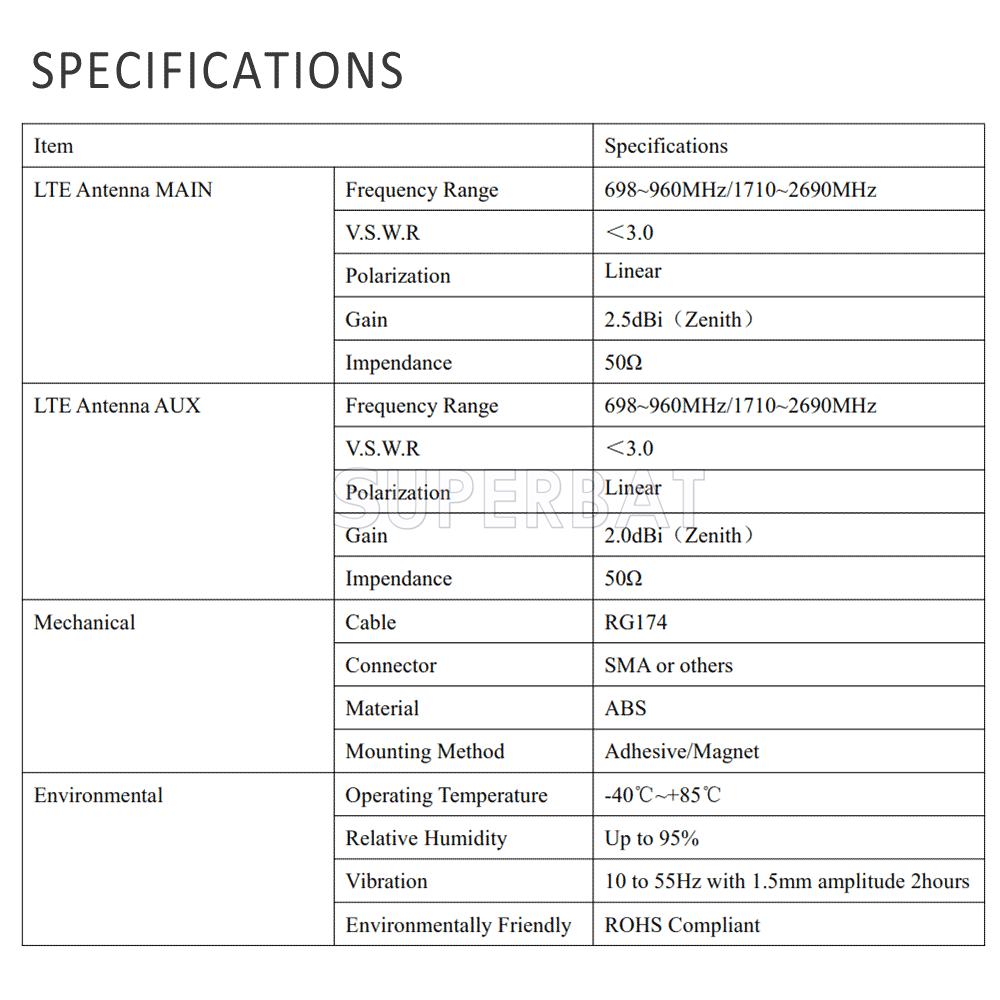

4G LTE Antenna MAIN Specification:

Frequency Range: 698~960/1710~2690MHz

V.S.W.R: ＜3.0

Polarization: Linear

Gain: 2.5dBi

Impendance: 50ohm

Weight: 150g

4G LTE Antenna AUX Specification:

Frequency Range: 698~960/1710~2690MHz

V.S.W.R: ＜3.0

Polarization: Linear

Gain: 2.0dBi

Impendance: 50ohm

Mechanical:

Cable: RG174

Cable Length: 3 Meters

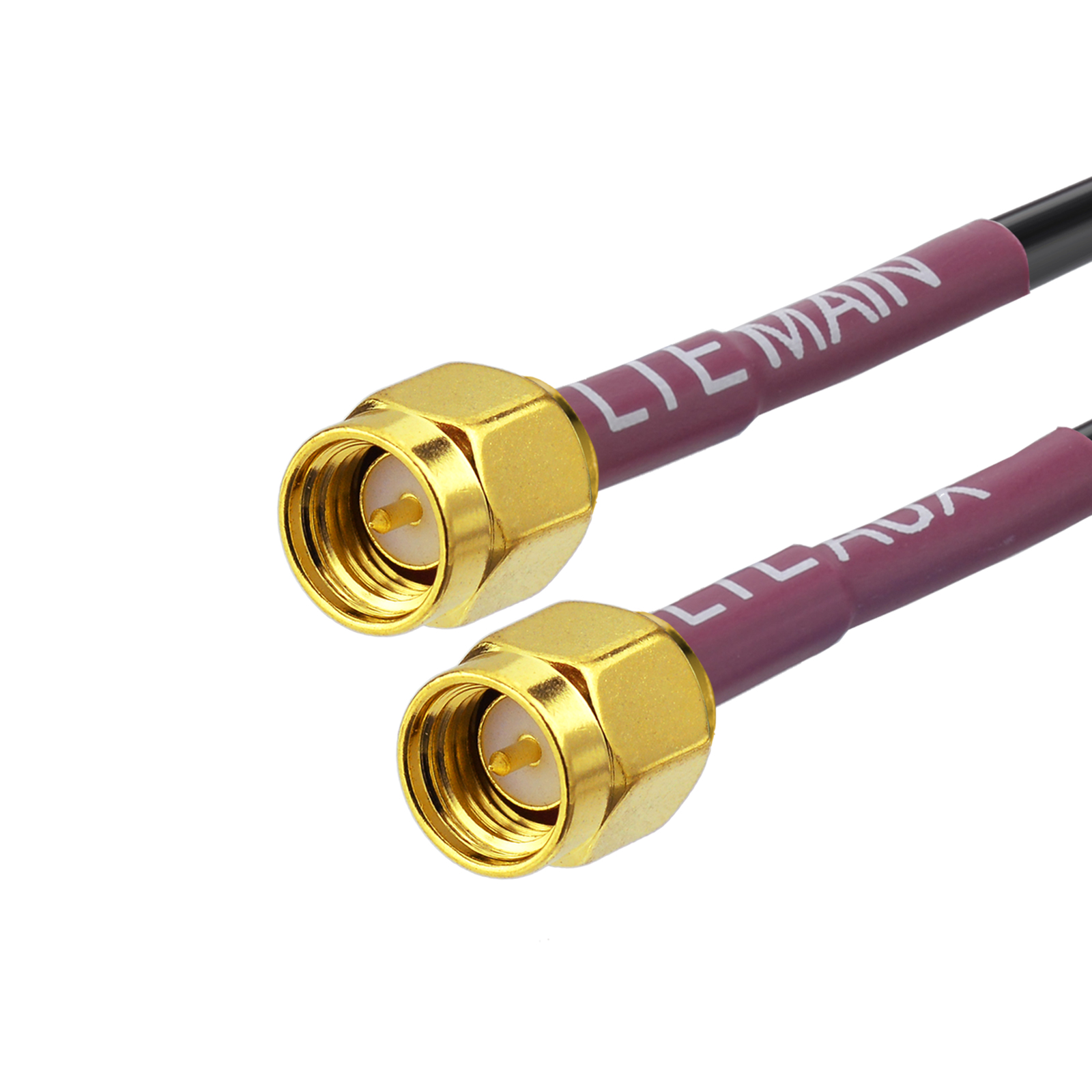

Connector: SMA Male Connector

Material: ABS

Mounting Method: Adhesive

Environmental:

Operating Temperature: -40℃~+85℃

Relative Humidity: Up to 95%

Ingress Protection: IP66

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant

Package Content: 1 x MINO LTE 4G Antenna
