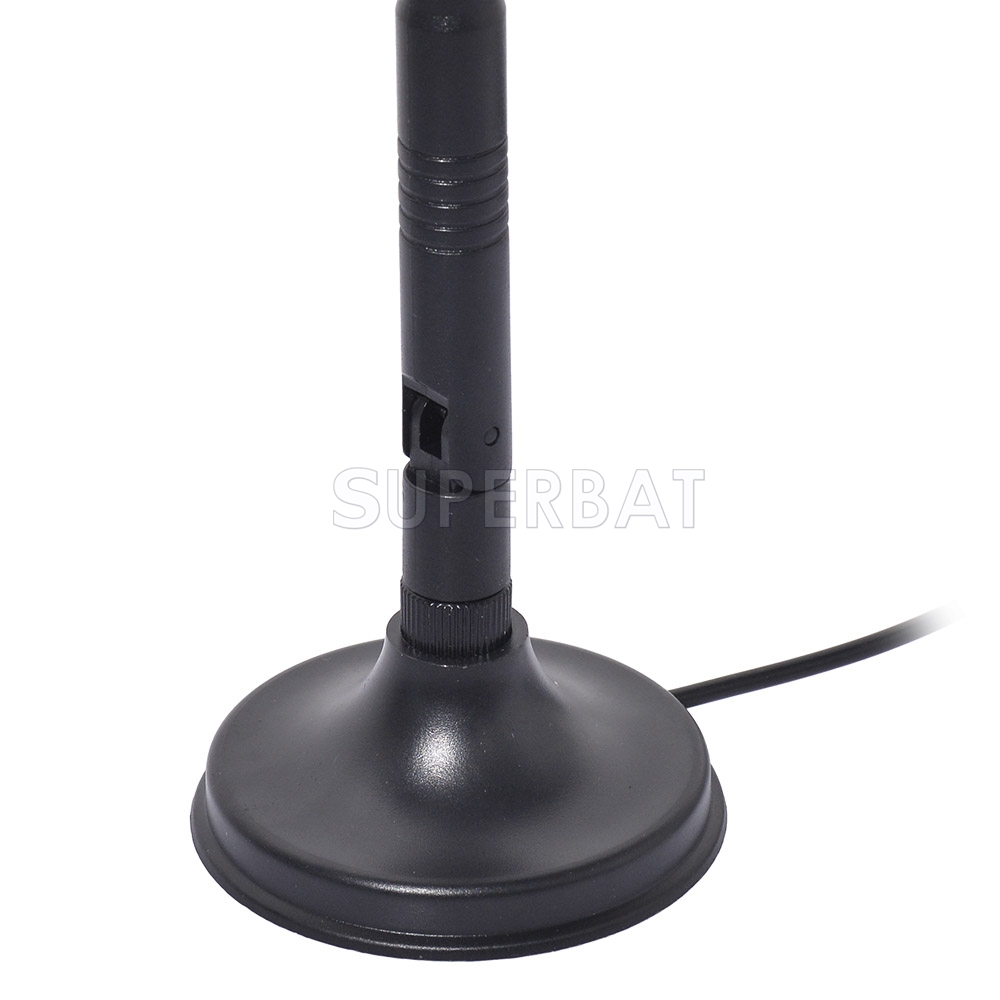

Hight Gain 12DBi GSM/UMTS/HSPA/CDMA/3G antenna for 3G UDB Modems/Routers/Devices
Unit Price: $18.20
sku:3A1-1273-S01SP-120-250
End connector
quantity 1 - 9 10 - 49 50 - 99 100 - 999 1000+
Price Each $18.20 $16.74 $14.74 $13.29 ASK
saving% 0% 8% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Magnetic Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170MHz Gain: 12dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 2.5M Weight: 127g

Frequency Range(MHz):850-960/1710-2170
    GSM/GPRS/EDGE 850/900/1800/1900MHz
    HSUPA/HSDPA/UMTS 2100MHz/900MHz
    CDMA 1900 MHz
    VSWR ≤1.5
    Gain: 12dbi
    Max Input power(W): 60
    Input Impedance(Ω): 50
    Polarization Type: Vertical
    Antenna Length(mm): 430
    Cable Length(mm): 2.5M
    Cable Type: RG174 default

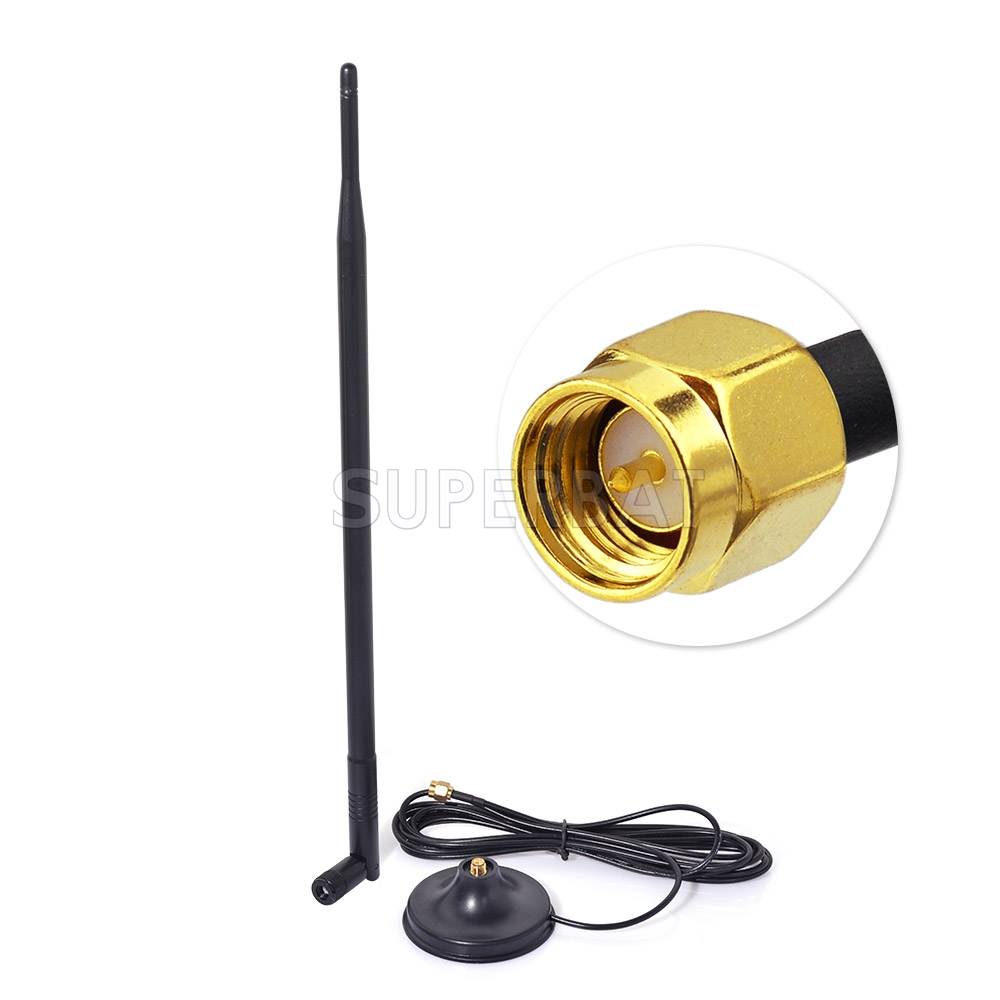

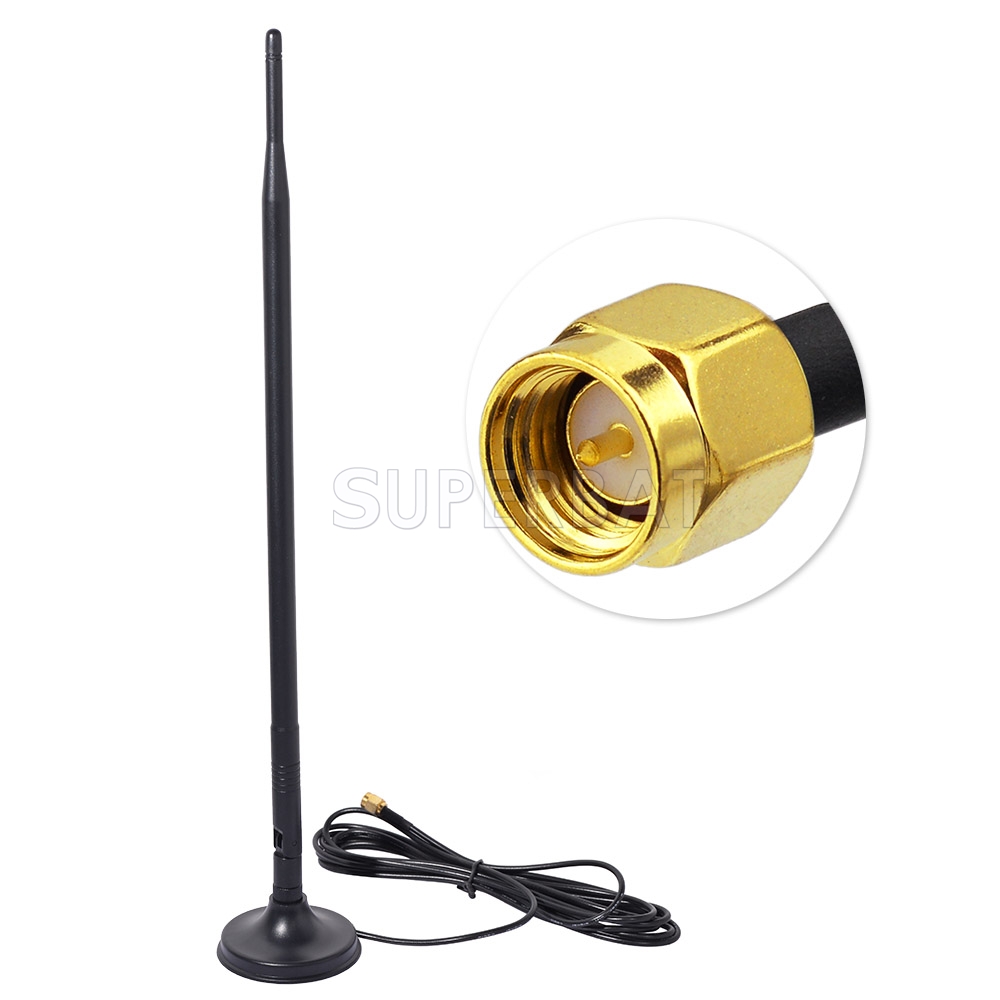

    Connector Type: SMA or customized

SSMB/CRC9/TS9/MCX/FME/MC-Card/MS-147..and so on ,please give us notes if the connector is chosen!
    Housing: Black
    Weight:178g
    Storage Temperature: -45'c to +75'c
    Operating Temperature: -45'c to+75'c

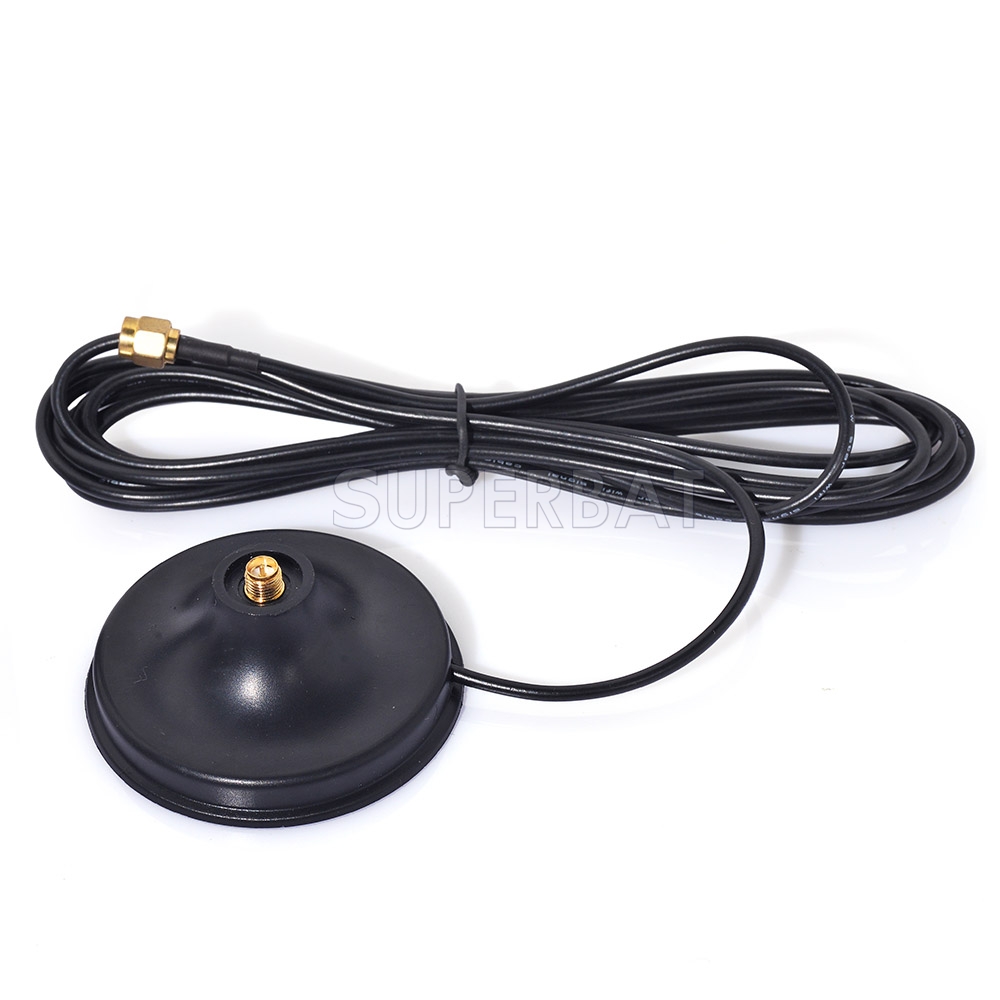

    Base Mounting Connector:SMA connector

    Weight: 127g



Instructions:

    Power off wireless device
    Plug connector into antenna port on wireless device
    Power on wireless device
    For best performance place antenna as close to exterior window as possible



Installation Tips:

    Antenna should be mounted vertically to maximize performance
    Antenna should not be mounted against metal
