Four-System Coverage: The four system full frequency GNSS antenna, supports GPS, BeiDou, GLONASS and GALILEO, meeting the compatibility and matching of multiple systems, and is plug and play.

Precision Design: Designed for fast and accurate positioning, it performs well even in complex environments, and featuring an ultra-thin flying saucer shape to reduce wind resistance.

Sturdy Structure: High-quality materials, with explosion-proof cracking, UV resistance, waterproof level up to IP67, etc., to ensure long-lasting durability and reliability in harsh environments.

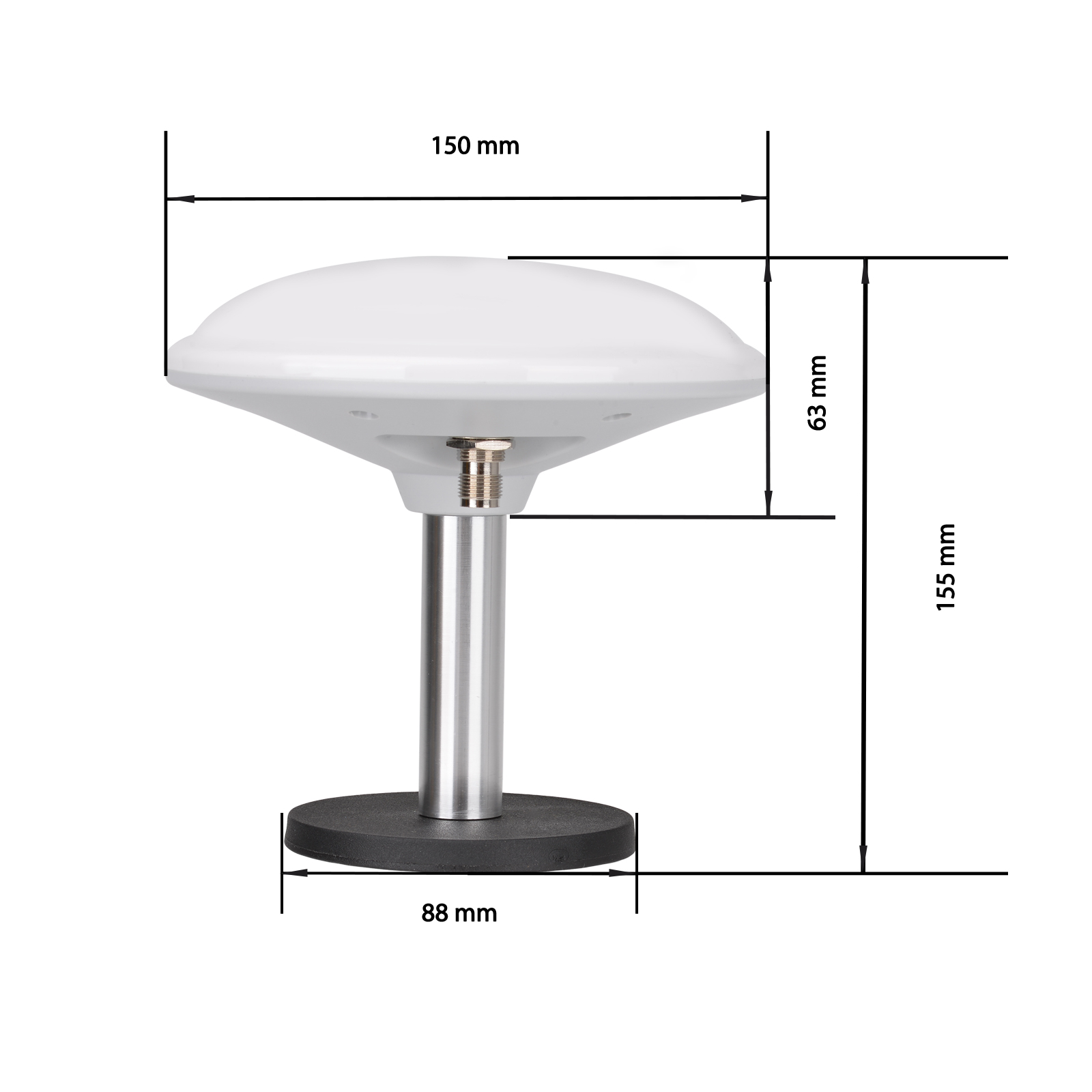

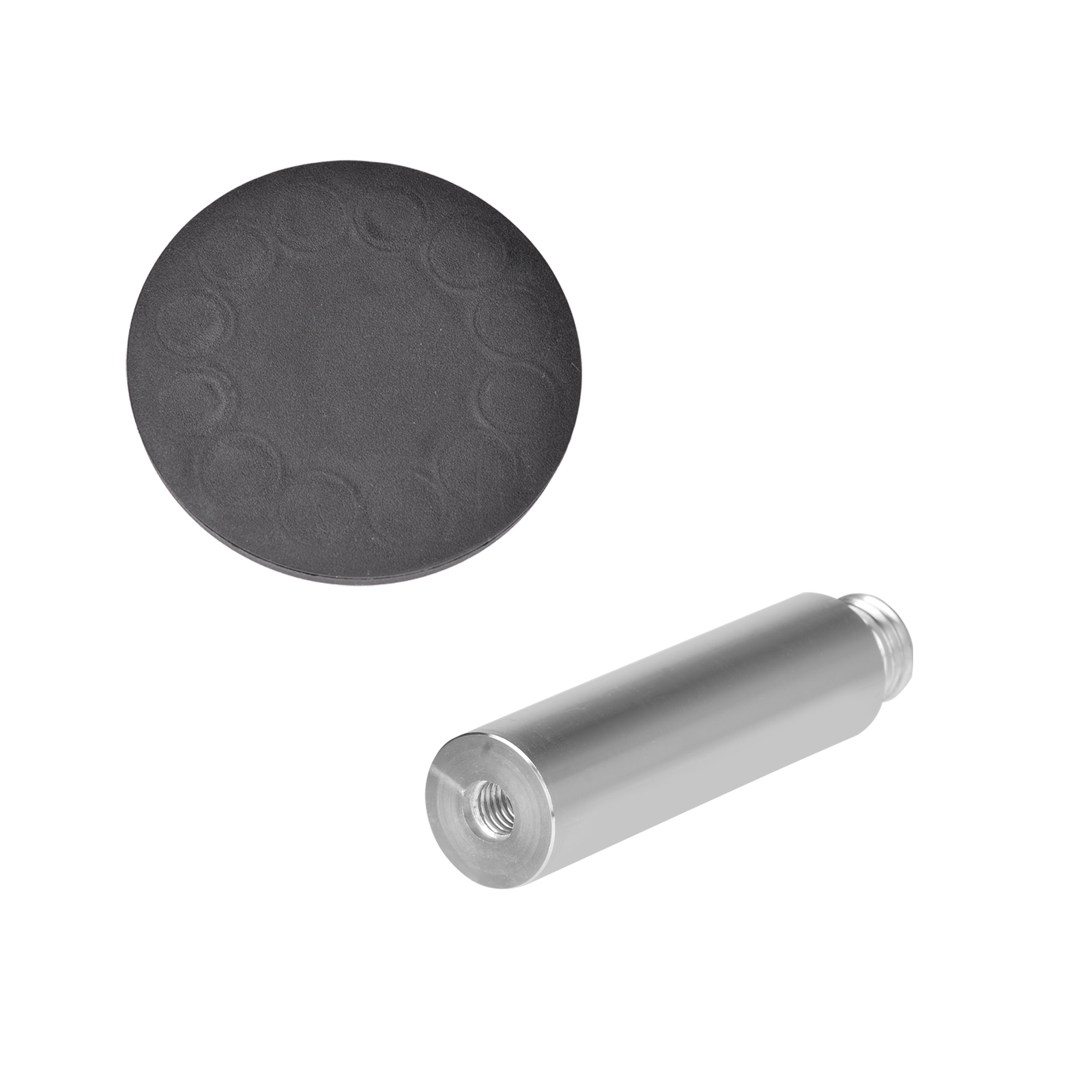

Easy Installation: With an 8.8 cm /3.46 inch diameter strong magnetic base, it is easy to install and allows for secure and flexible placement on various surfaces.

Application: Widely used in vehicle positioning, smart agriculture, unmanned aerial vehicle positioning, container operations at ports, driving test systems, environmental measurement, surveying and mapping, maritime applications, and other scenarios.

Frequency: 170MHz - 240MHz (Band III) 1452MHz - 1492MHz (L-Band); Impedance: 50 Ohm; Polarization: right-handed circular polarization; VSWR: ≤ 2.0; Connector: TNC Female.

Package Content: 1 x Antenna

Specification:
Working Frequency: 170MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band);
Impedance:50 Ohm;
Polarization:right-handed circular polarization;
Gain:5.5dB;
VSWR:≤ 2.0;
Connector:TNC Female;

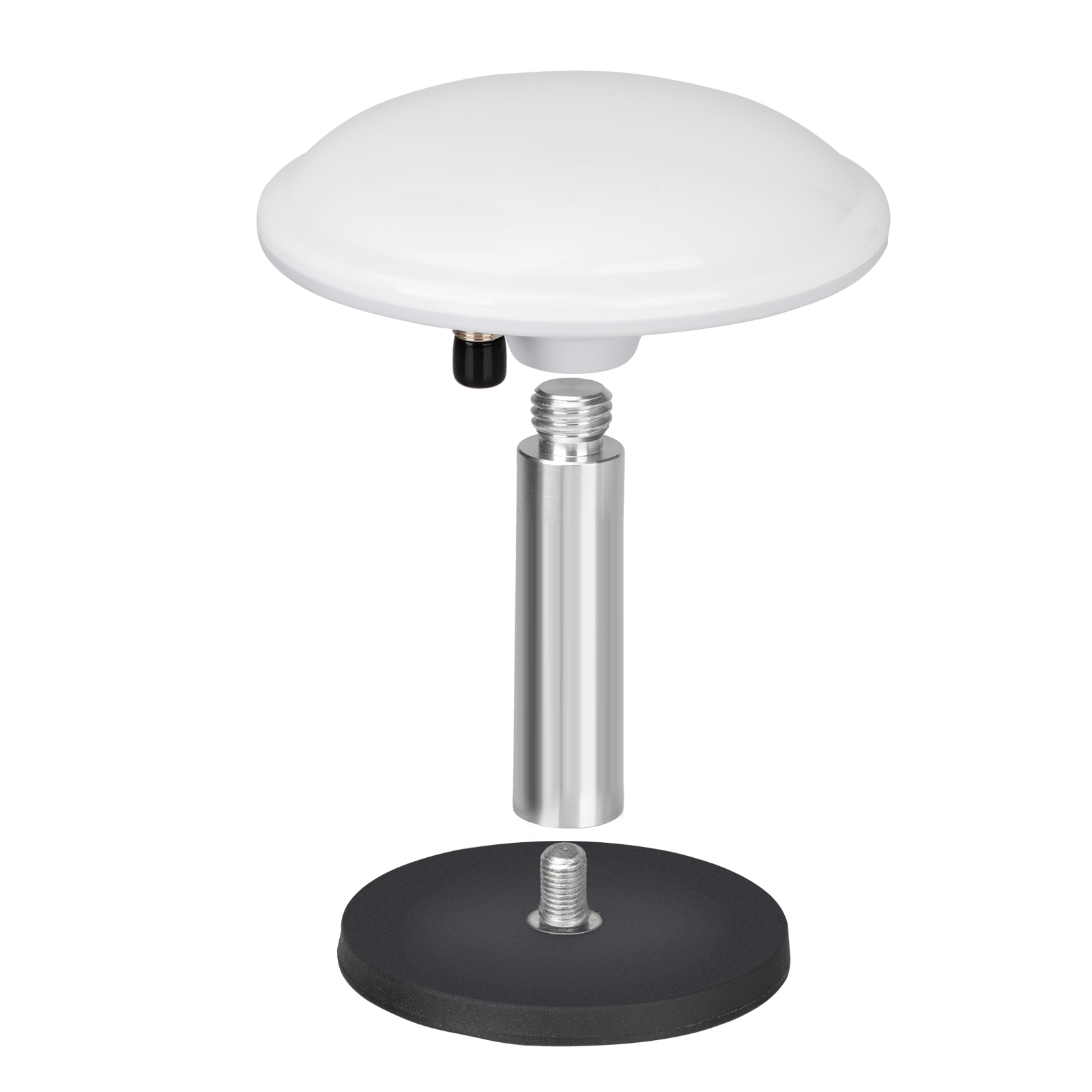

Installation: Magnetic mounting;
Weight:706g;
Operating Temperature：-35℃ ～ +80℃;
Storage Temperature：-40℃ ～ +85℃ ;
Package Content: 1 x Antenna;
