Product Description

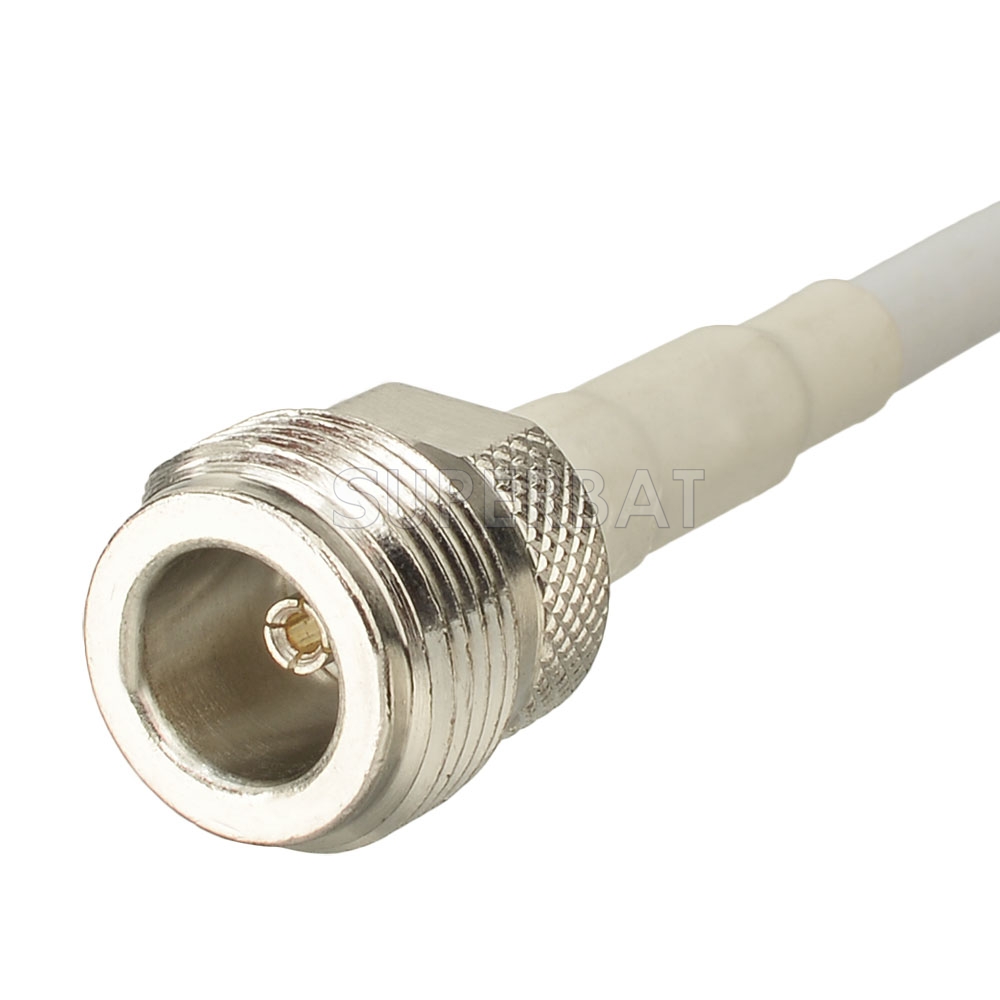

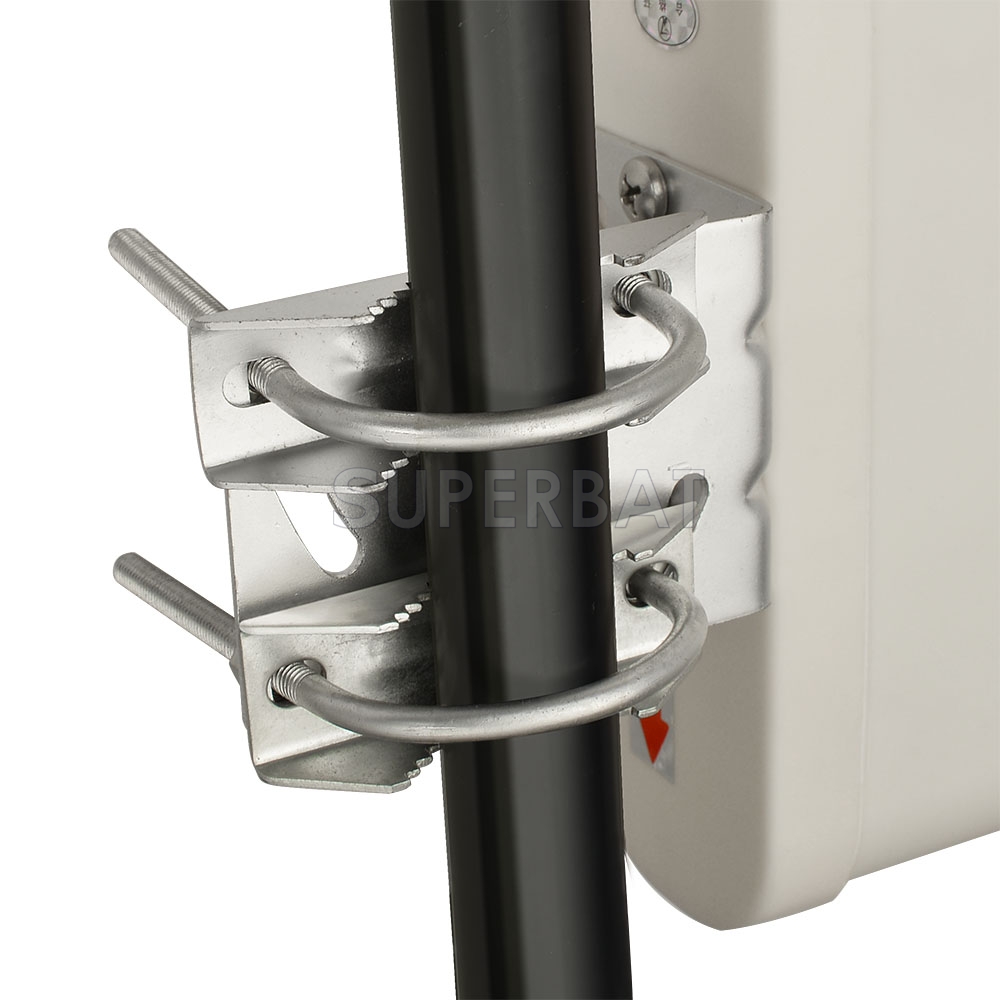

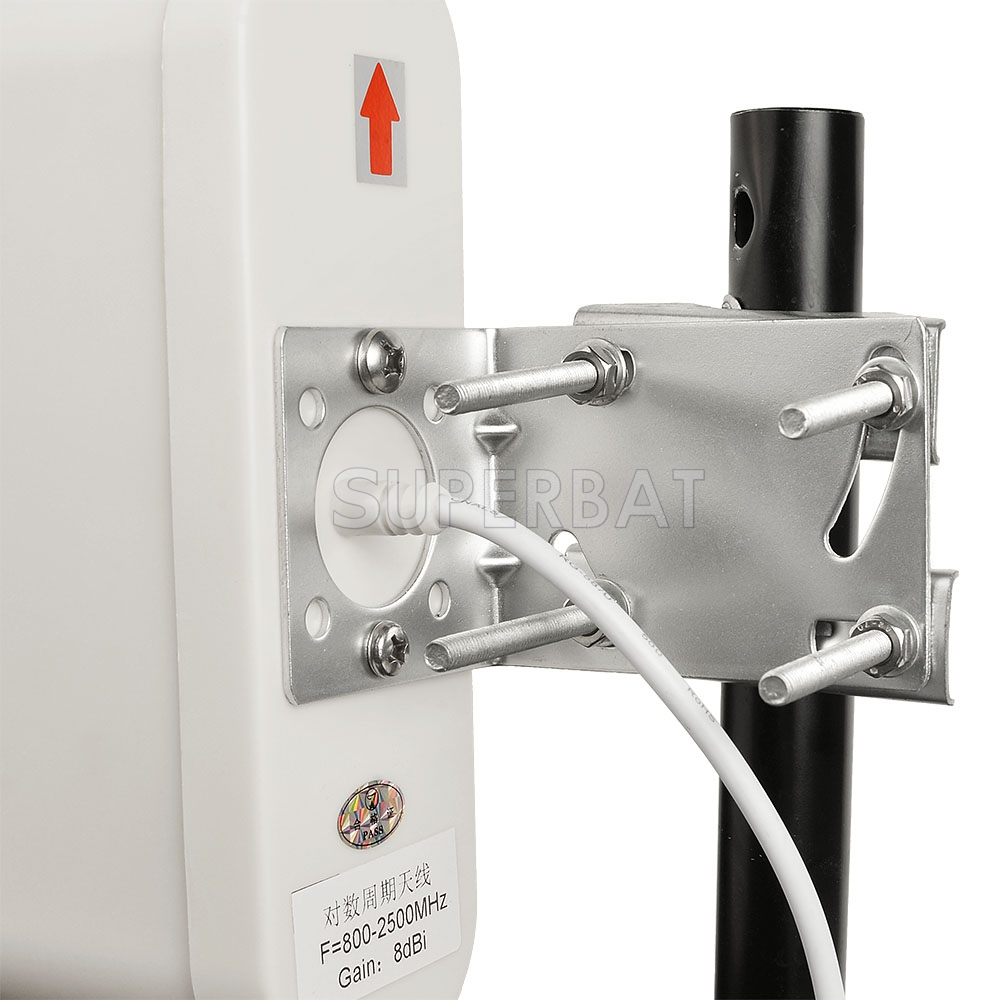

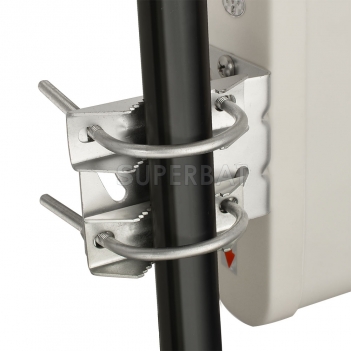

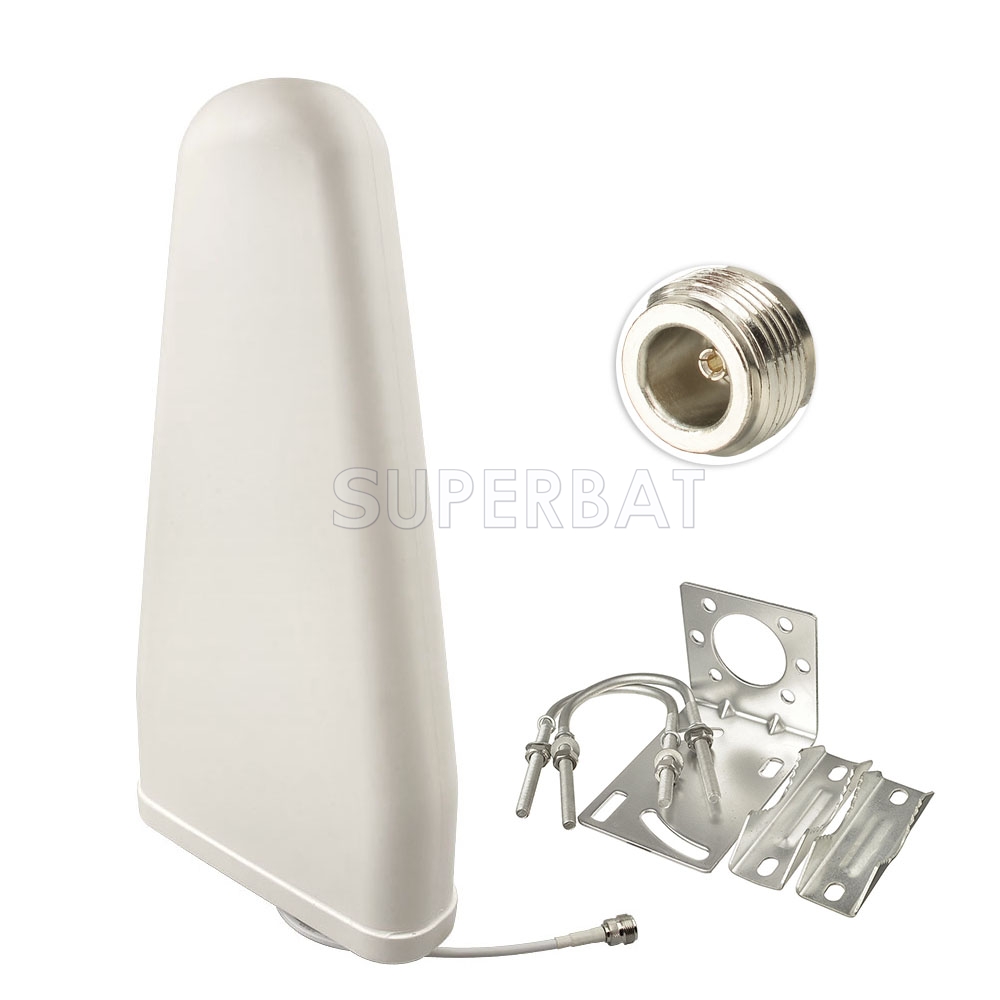

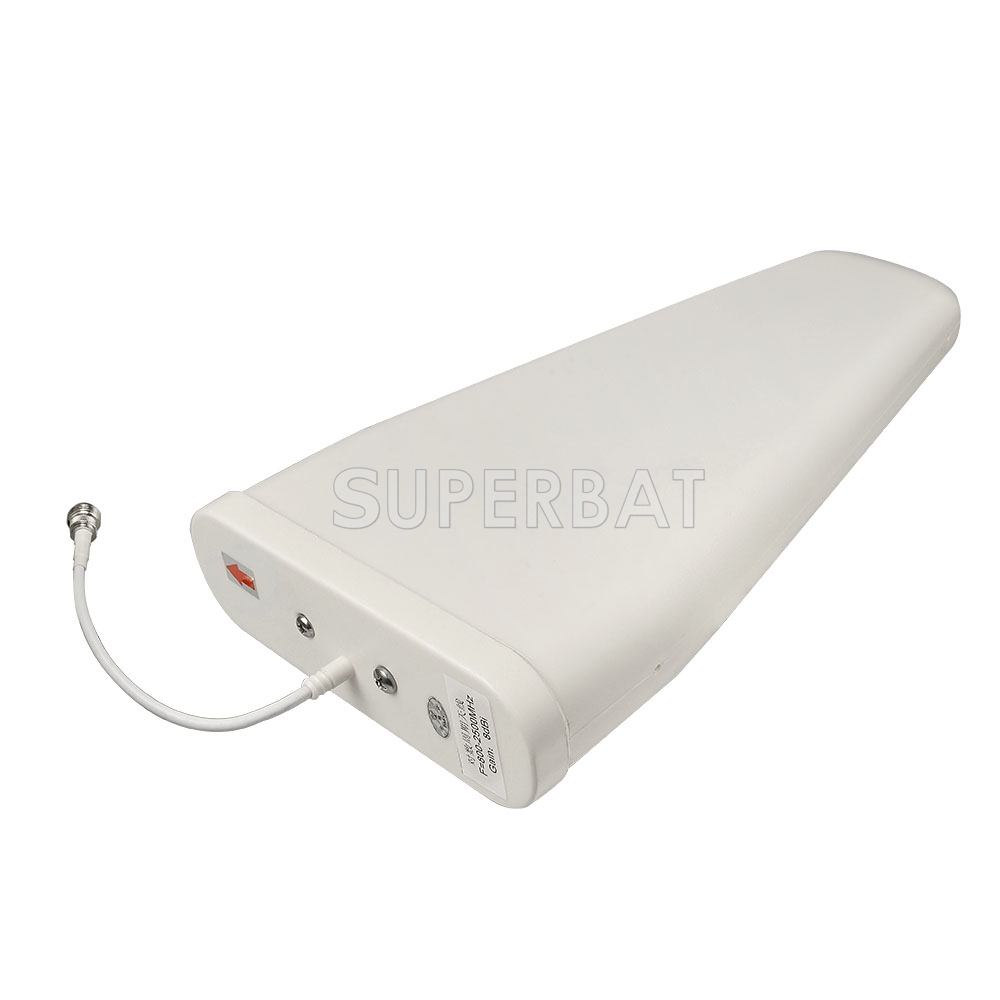

This directional ultra wideband log periodic antenna covers a very wide frequency range with high gain. It covers both cellular, PCS and WiFi worldwide frequencies. This antenna can be used indoors or outdoors and comes complete with all components needed for pole mounting or wall mounting (does not include the pole. The sealed housing is UV stabilized ABS plastic. The pigtail is 6" outdoor rated cable terminated with an N Female connector.
Product Features
Greatly Improves Wireless Internet and Mobile Phone service in rural and marginal signal areas.
Advanced Panel Designed for Excellent Wireless Range and Performance
Elegant appearance, simple installation , stable performance.
Good performance in anti-vibration and resistant to aging.
Can be installed indoor or outdoor pole mount.
Works with most Wireless Devices with removable external antennas
Great for Caravan and Camper owners and Out-back travelers.
Mines, Dongas and Geo-technical contractors.
Locations in hills country where local 3G signal is week due to terrain.
Farms and Stations too far from Mobile phone towers.
Technical Details
Frequency Range(MHz):800~2500MHZ
VSWR ≤2.0
Gain: 8dbi
Max Input power(W): 100
Bandwidth:360
Input Impedance(Ω): 50
Polarization Type: Vertical
Radiation: omnidirectional
Cable Length(cm): 20-25cm
Antenna Connector: N jack or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!
Connectivity
USB 3G Dongles (modem).
3G and NextG Mobile Phones.
3G Industrial Routers.
Rural/Regional/Metro services using the band specified.
GSM, 3G, WCDMA, UMTS, HSDPA, HSUPA and HSPA+(4G)
3G/4G-LTE/WiMax/WiFi Internet Access.
Remote, 3G IP Cameras surveillance and control.
Supplied with a Male SMA fitting.
Additional (see our products range) Modem Adapter available to suit your modem's external antenna port.
For Fixed Wireless, Outdoor and Indoor or Semi-Mobile installs, please
select from our range of semi-rigid and flexible LMR240 and LMR195
UltraFlex low-loss coax extension cable to connect your modem
