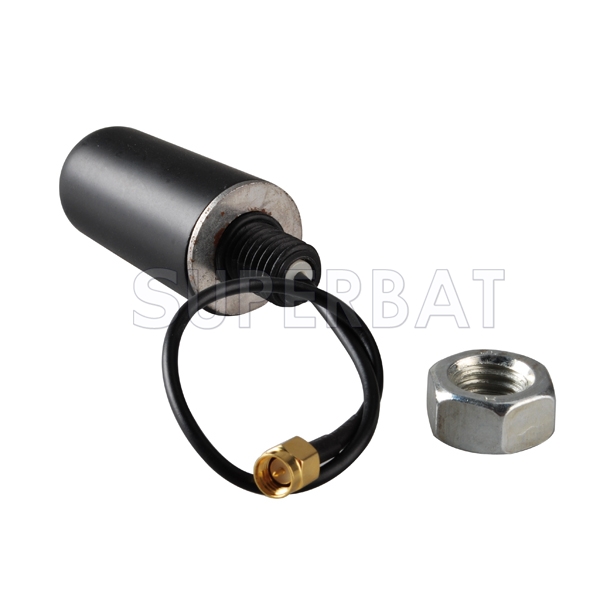

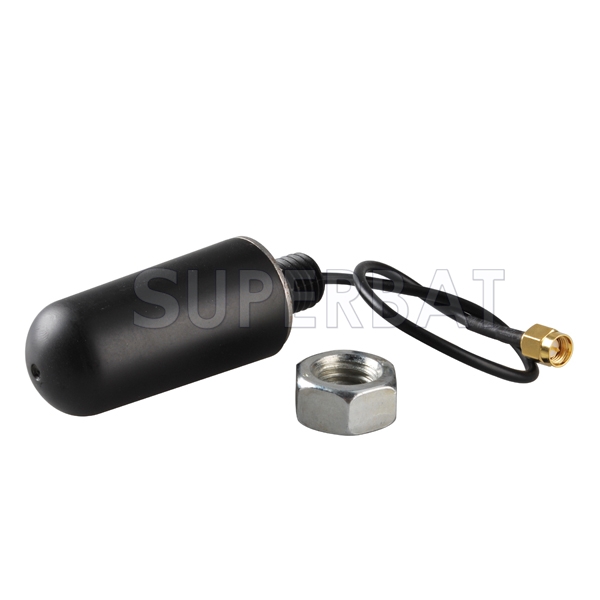

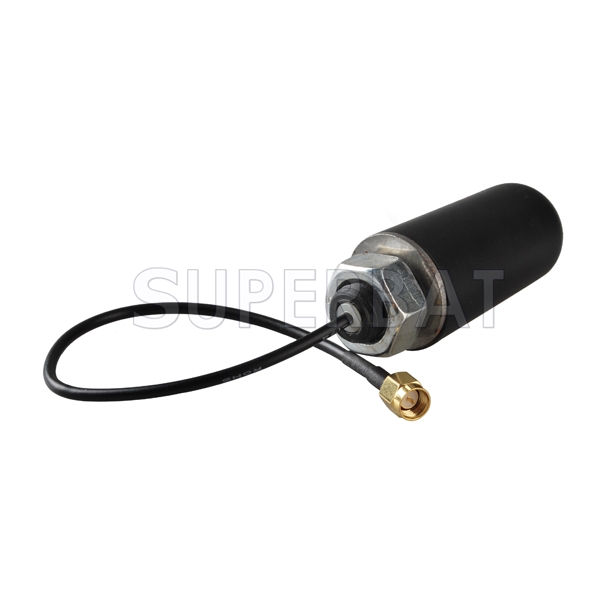

GSM Antenna 890-960/1710-1880MHz Vertical SMA Plug 2Dbi
GSM Antenna 890-960/1710-1880MHz Vertical SMA Plug 2db
Unit Price: $10.92
sku:GM3-2654-S01SP-020-30
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $10.92 $10.37 $9.28 $8.63 ASK
saving% 0% 5% 15% 21% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: GSM/GPRS/EDGE/CDMA Antenna Frequency: 890-960/1710-1880MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 2dBi Radiation: Omnidirectional V.S.W.R: ≤2.0 Cable Type: RG174 Cable Length: 30cm Weight: 71g

Electrical Specifications:
Frequency Range:890-960/1710-1880MHz
Gain: 2dBi
VSWR: ≤2.0
Polarization: Vertical
Impedance: 50Ω
Maximum Input Power: 50W
Cable type: RG174
Cable length: 30CM
Connector :SMA Plug defalut
Option :SMA/SSMB/MCX/FME/BNC/TNC/and so on.,please give us notes if the connector is chosen !
Operating Temperature:-40℃ to+80℃

Weight: 71g


Applications:
Mobile Antenna is designed for the spread spectrum communication system.
This antenna has good VSWR.
The light structure and small dimension makes it easy to install.
The performance of it is stable.
It also has excellent shockproof and anti-aging performance
