Coverage: 50-200 square meters
Up-link Frequency: 890-915MHz（optional）
Down-link Frequency: 935-960MHz （optional）
Size (H x W x D)：240 x 175 x 30 mm
Coverage：50-200 Square meters
A 50 dB GSM Cell Phone Repeater
An outdoor 10dbi yagi antenna with 10 meter cable
An indoor 3dB omni-directional antenna SMA Plug connector

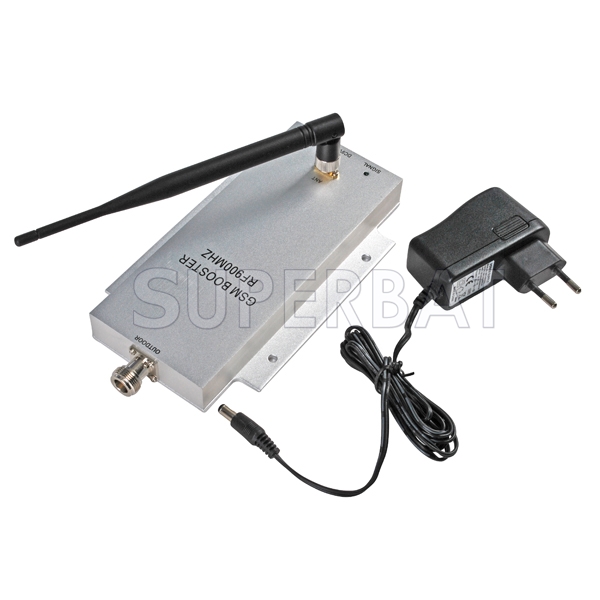

A 220V AC power adapter for the Repeater unit
How to set

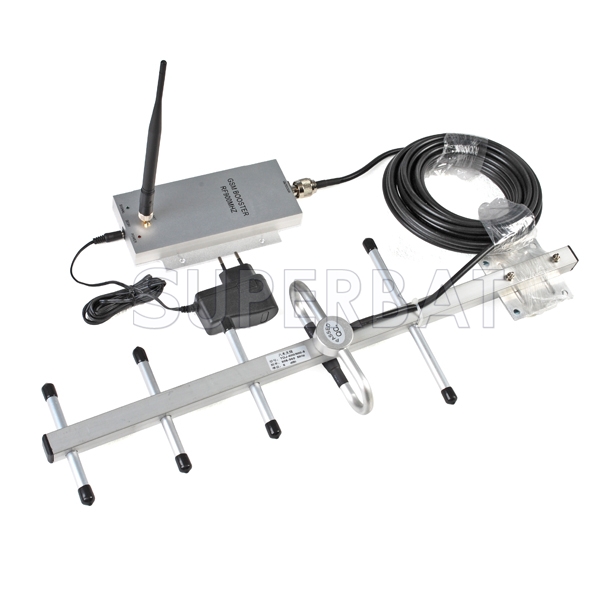

The item includes everything you need for the installation: a Repeater, an outdoor high gain antenna , an indoor antenna, cables and an AC power supply adapter.

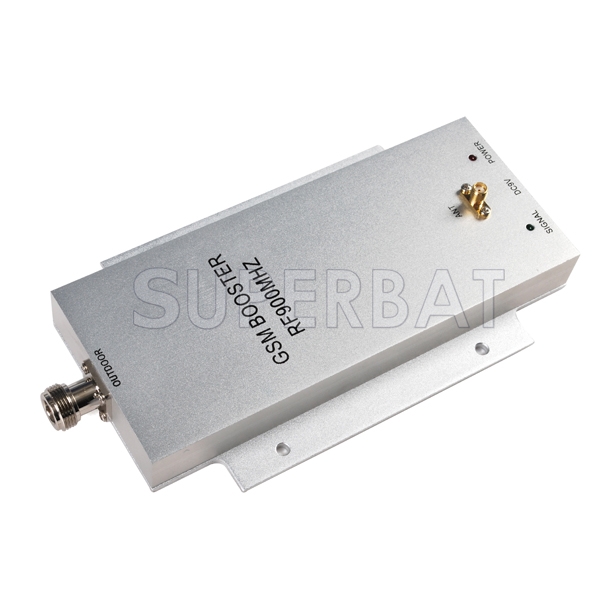

The Repeater has three connectors: 1. a DC connector for a DC 12V input. 2. A SMA-Type RF connector for connecting to an indoor antenna. 3. A N-Type connector for connecting to an outdoor antenna.
The installation is simple and no configuration or tuning is required. Install the Yagi and aerial antennas outdoor and indoor respectively, connect the cables and power, and go!
How Large An Improved Cellular Signal Coverage Area
The 50dB amplifier kit was scaled for areas such as an office up to 200 square meter. With a very good outside signal, improved cellular coverage may be found in several rooms closest to the desktop antenna. For larger areas, contact us for other larger Amplifiers.
The amplifier small, practical, mainly for small customers, family, hotels, basements, car parks, offices and other occasions. Strong signal, simple to install is the most prominent feature of this amplifier, the various performance close to the large professional standards, a variety of indicators and technical indicators are considered expansion of the international leading level, in considering the ultra-high performance while taking into account low price.
