A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals,The repearter device features easy installation&operation,build-in indoor antenna and no interference.It could aslo improve indoor electromagnetism environments,protrat cellular batery life and reduce radiation of cellphones.A mobile phone repeater is ideal for house ,home,office use.
Technical Specifications
Up-link Frequency: 824-849MHz,Down-link Frequency: 869-894MHz
Power : -70 to -40 dBm / FA(1.23Mhz)
Gain:Up Link: 60/± 5DB, Down Link: 65/± 5DB
Max Output Power :Up Link:23dBm/ ± 3dBm Total power , Down Link:27dBm/ ± 3dBm Total power
Seclusion :More than 65 DB
Impedance: 50 ohm
Power supply : AC110/220V (used AC/DC adapter 12Vdc)
Compact Design :Indoor Use
Diemension: 220x 140x 40 mm
Package included:

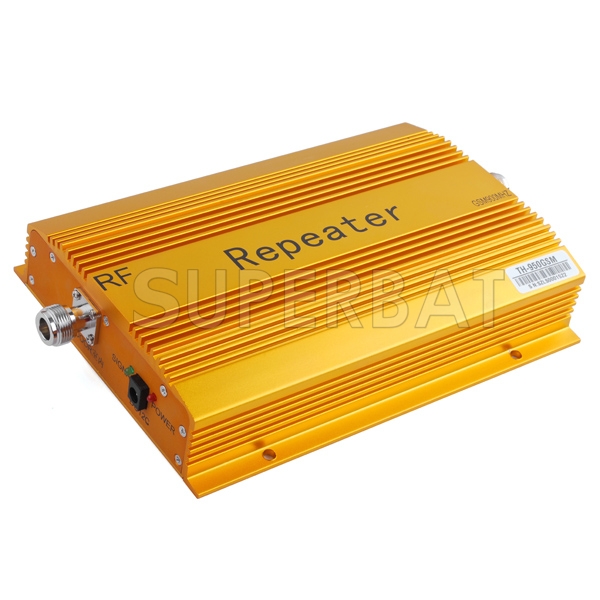

A 65 dB GSM Cell Phone Signal Repeater

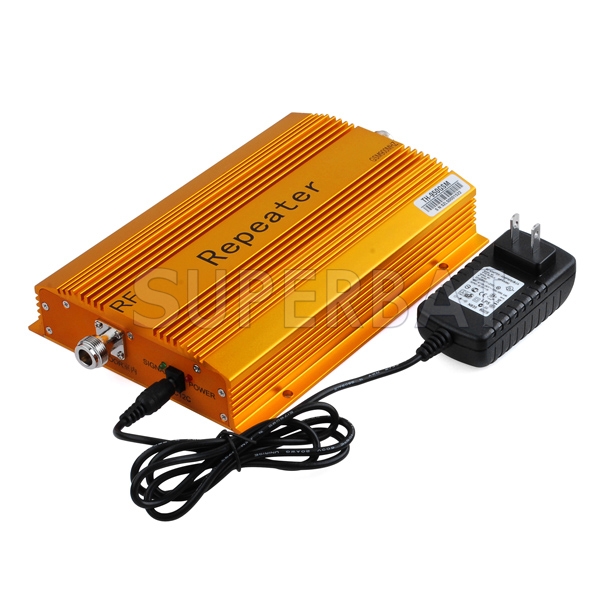

A 220V AC power adapter for the Repeater unit
The device featured by easy installation &operation and no interference.It is the ideal device for boost mobile phone signal .A moobile phone repeater could also improve indoor ctronmagnetism environments ,protract cellular battery lif and reduce radiation of cellphones.
Installation Approaches
Fix up outdoor antenna reception on housetop and point to signal tower.

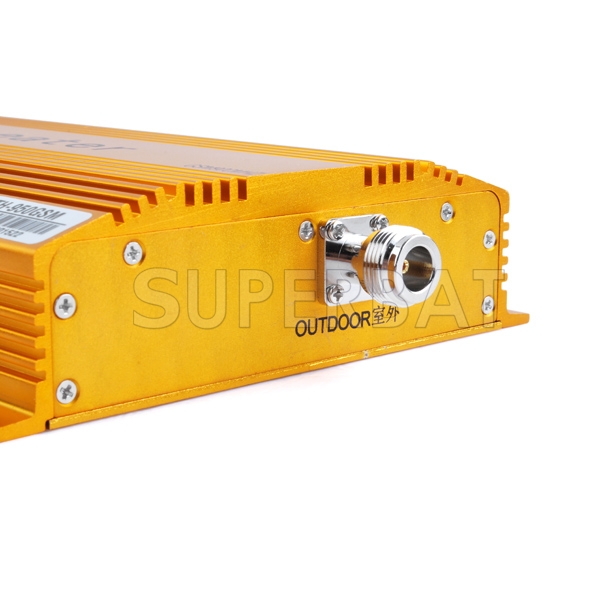

Connect outdoor antenna to “outdoor” port in repeater machine through cable.

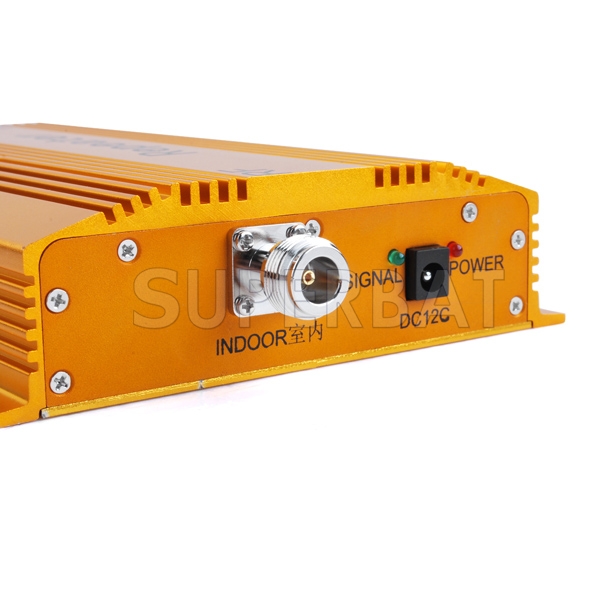

Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
Plug power adaptor into AC power socket and finish installation.
If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
If can not call out, please adjust the direction of outdoor antenna.
If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20 meters at least, with a wall between and not in a same horizontal line.
Accessories Selection
Outdoor antenna use 7 unit yagi type antenna, indoor antenna use board or rooftop antenna and signal wire use coaxial-cable.
