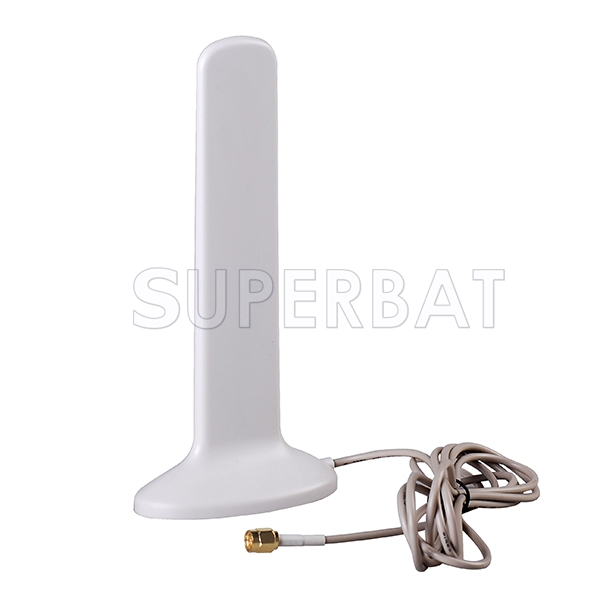

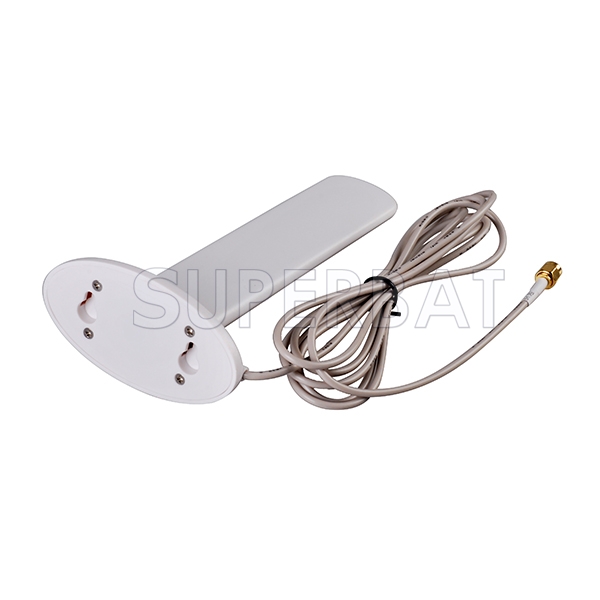

GSM 3G 4G LTE Dual Band Antenna 698-960/1710-2690MHZ 16dBi SMA plug 2M cable Booster Signal
GSM 3G 4G LTE Dual Band Antenna 698-960/1710-2690MHZ 16dBi SMA plug 2M cable Booster Signal
Unit Price: $18.00
sku:4A1-2766-S01SP-160-200
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $18.00 $17.10 $15.30 $14.22 ASK
saving% 0% 5% 15% 21% -
Real Time Availability
Stock: 9998
Quantity: Units

Antenna Type: Desktop Network: 4G/LTE Antenna Frequency: 698-960/1710-2690MHZ Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 16dbi Radiation: Omnidirectional V.S.W.R: <2.5 Cable Type: RG174 Cable Length: 2m Weight: 120g
  1. Frequency: 698-960/1710-2690MHZ
    2.VSWR:<2.5
    3.Gain:  16dbi
    4.Polarization Type: Vertical
    5.Maximum Imput Power: 10W
    6.Input Impedance: 50 Ohms nominal

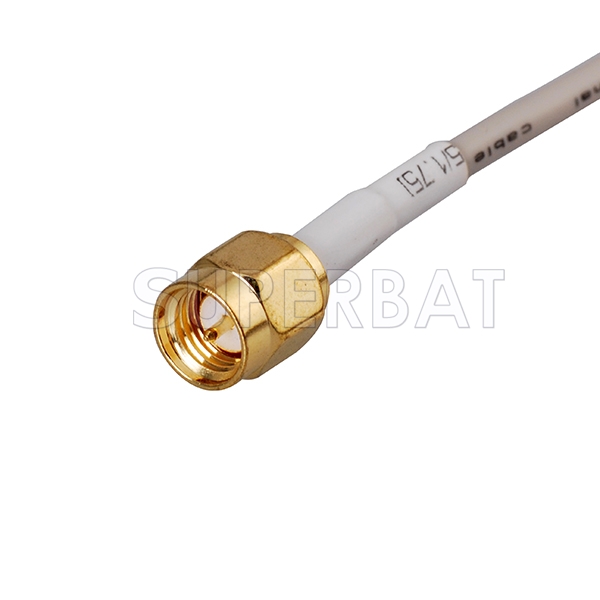

    7.Antenna Connector: SMA or customized
    Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

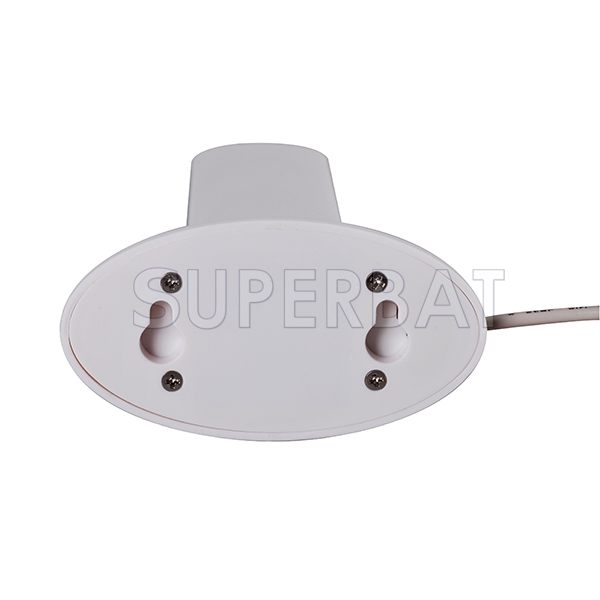

    8.Sucker: ø5cm
    9.Cable length: 2 m
    10.Install the Way:Adsorption
    11.Dimensions: 170mm * 83mm * 50mm
    12.Weight: 120g
