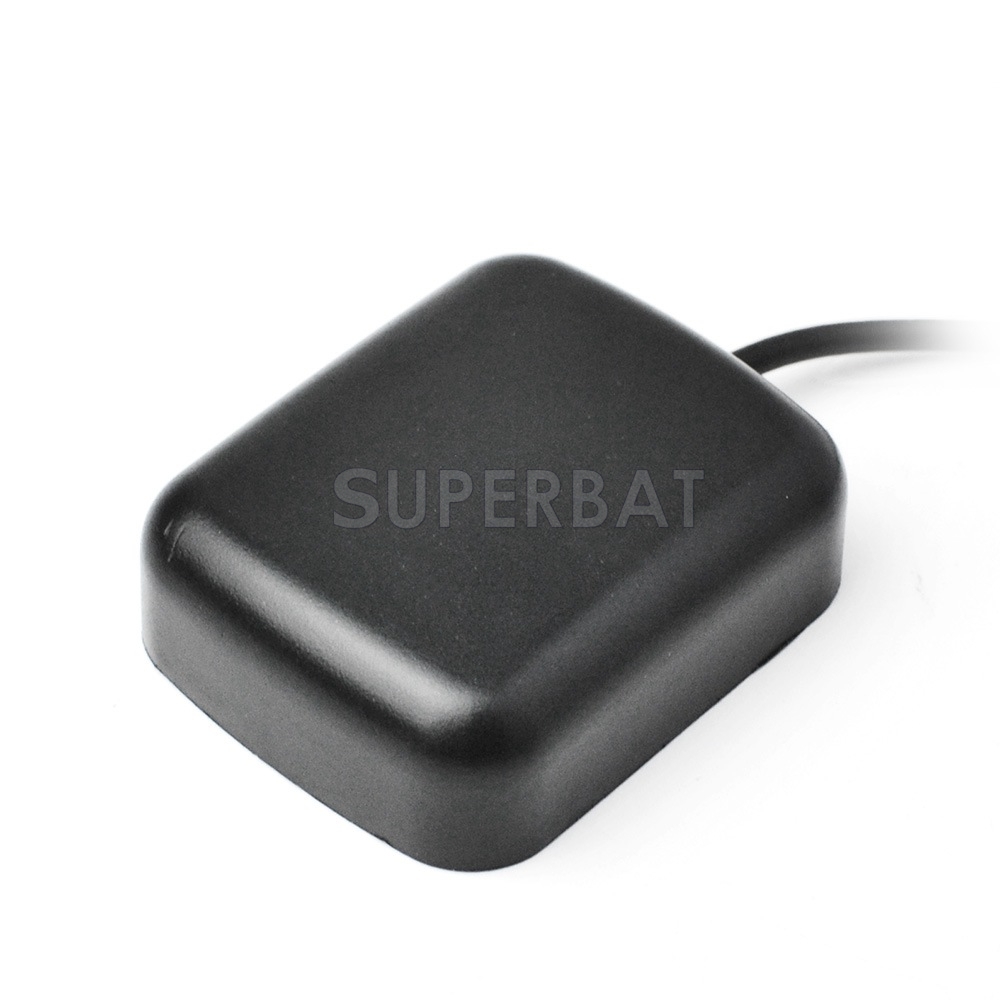

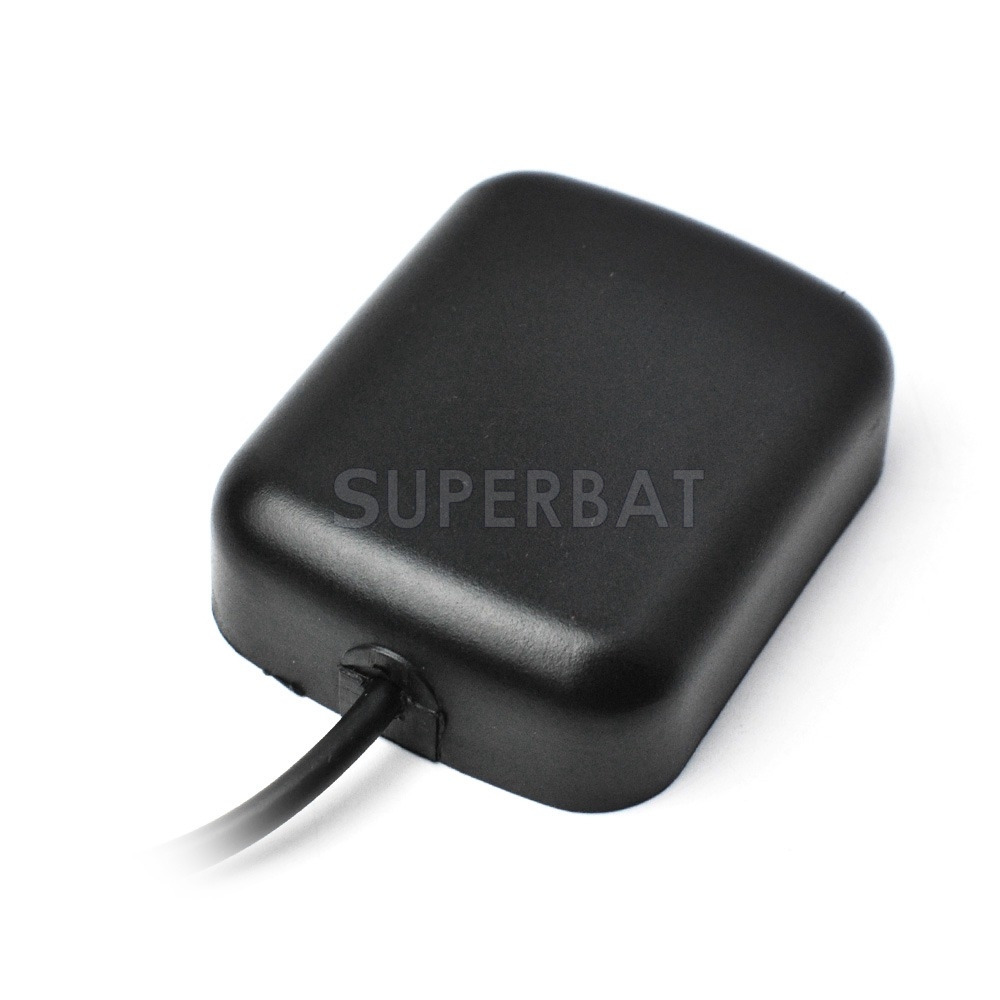

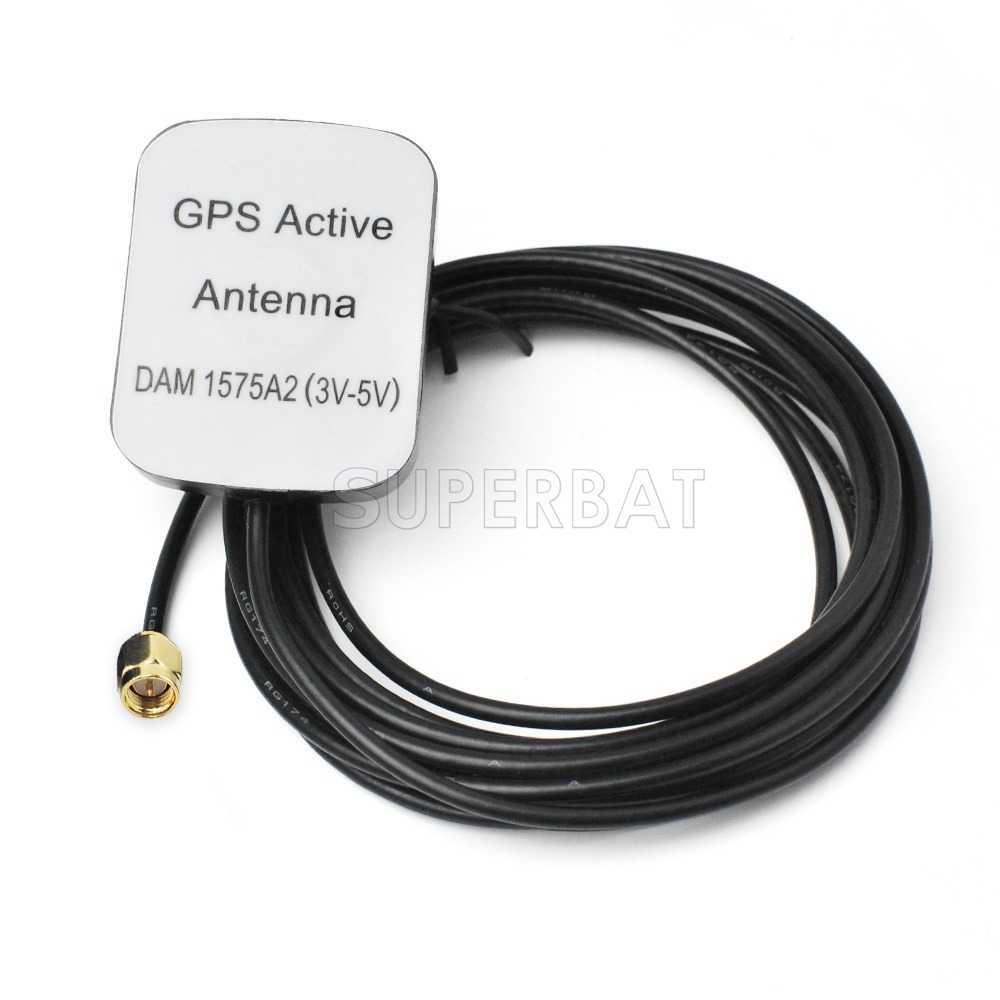

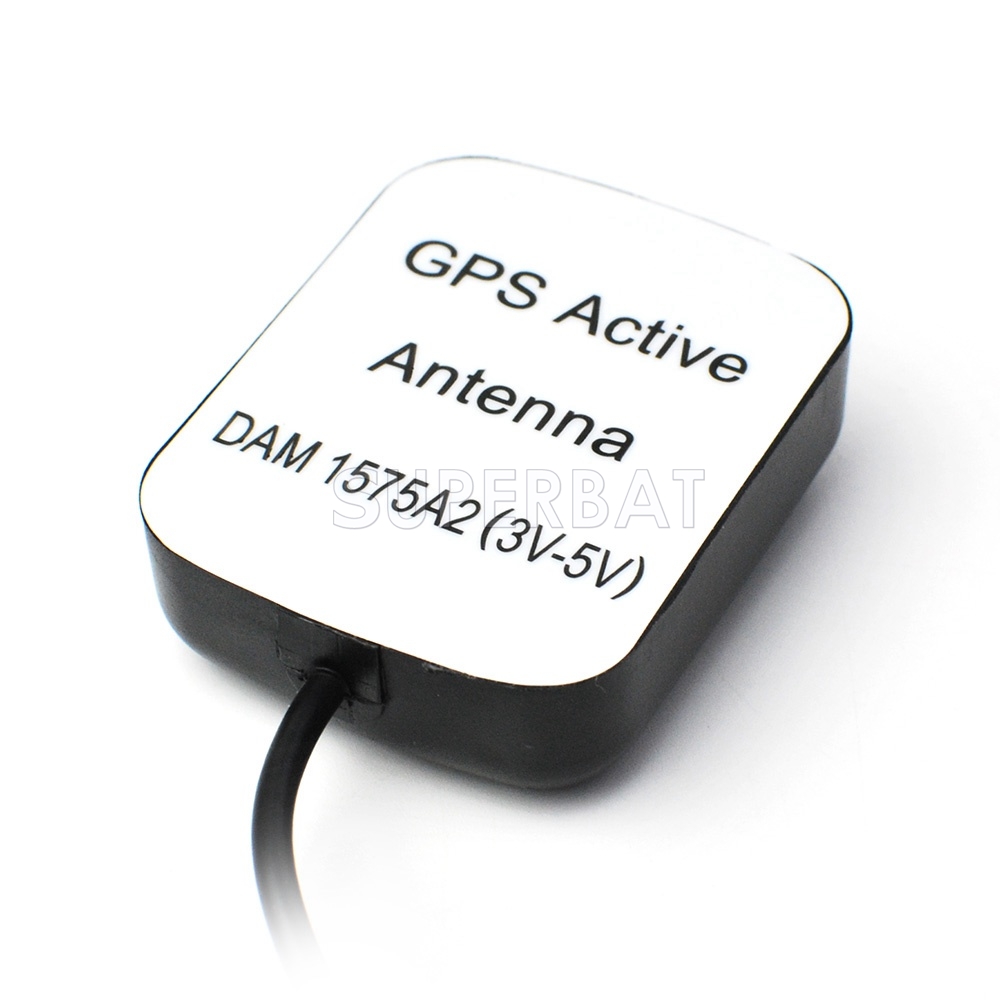

GPS active Antenna with SMA Plug connector RG174 3 meter, gps antenna
GPS active Antenna with SMA Plug connector RG174 3 meter, gps antenna
Unit Price: $9.92
sku:GA35-300-S01SP
Cable Length
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $9.92 $9.42 $8.43 $7.84 ASK
saving% 0% 5% 15% 21% -
Real Time Availability
Stock: 9995
Quantity: Units

End connector: SMA Connector Style: Straight

i)Dielectric Antenna
Frequency: 1575.42MHZ
Center Frequency:1575.42±5MHz
V.S.W.R: <1.5
Band Width: 50 MHz Min. at -10dB
Impendence: 50 ohm
Peak Gain : 5dBic Min/1574MHz. 4dBic Min/1602~1616MHz
Gain Coverage:≥- 4dBic at -90°~90°(over75% volume)
Power Handling : 1 watt
Polarization : RHCP



(ii)LNA
LNA Gain(Without cable): 32dB Typical
Noise Figure: 1.5dB
V.S.W.R <1.5
DC Voltage: 3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current: 10mA Max



(iii)Mechanical
Weight:75g
Size: 49 ×39×15.8mm
Cable Length: RG174 3meters or other

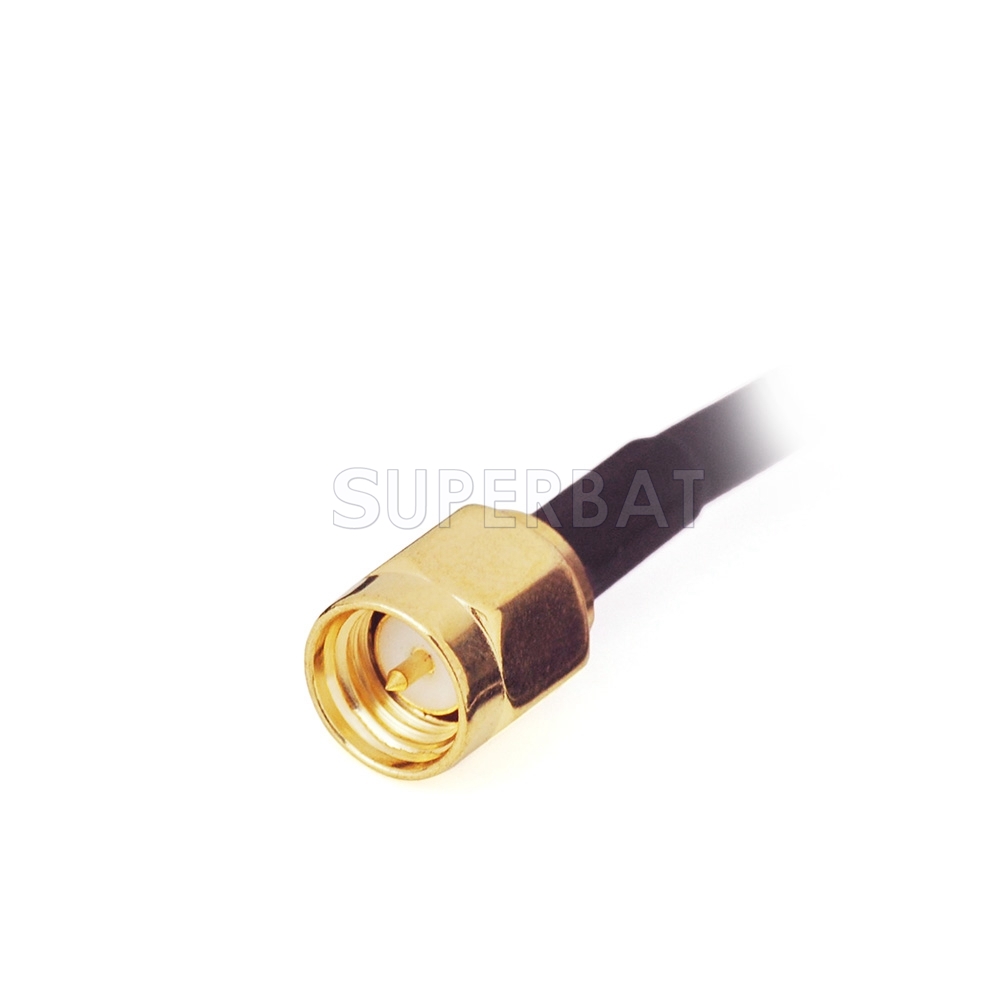

Connector :SMA Plug default SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or other
Mounting: Magnetic base
Housing: Black



(iv)Environmental
Working Temp: -40℃~+85℃
Storage Temp: -45℃~+100℃
Vibration: Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity: Humidity95%~100%RH
Weatherproof 100%Waterproof
