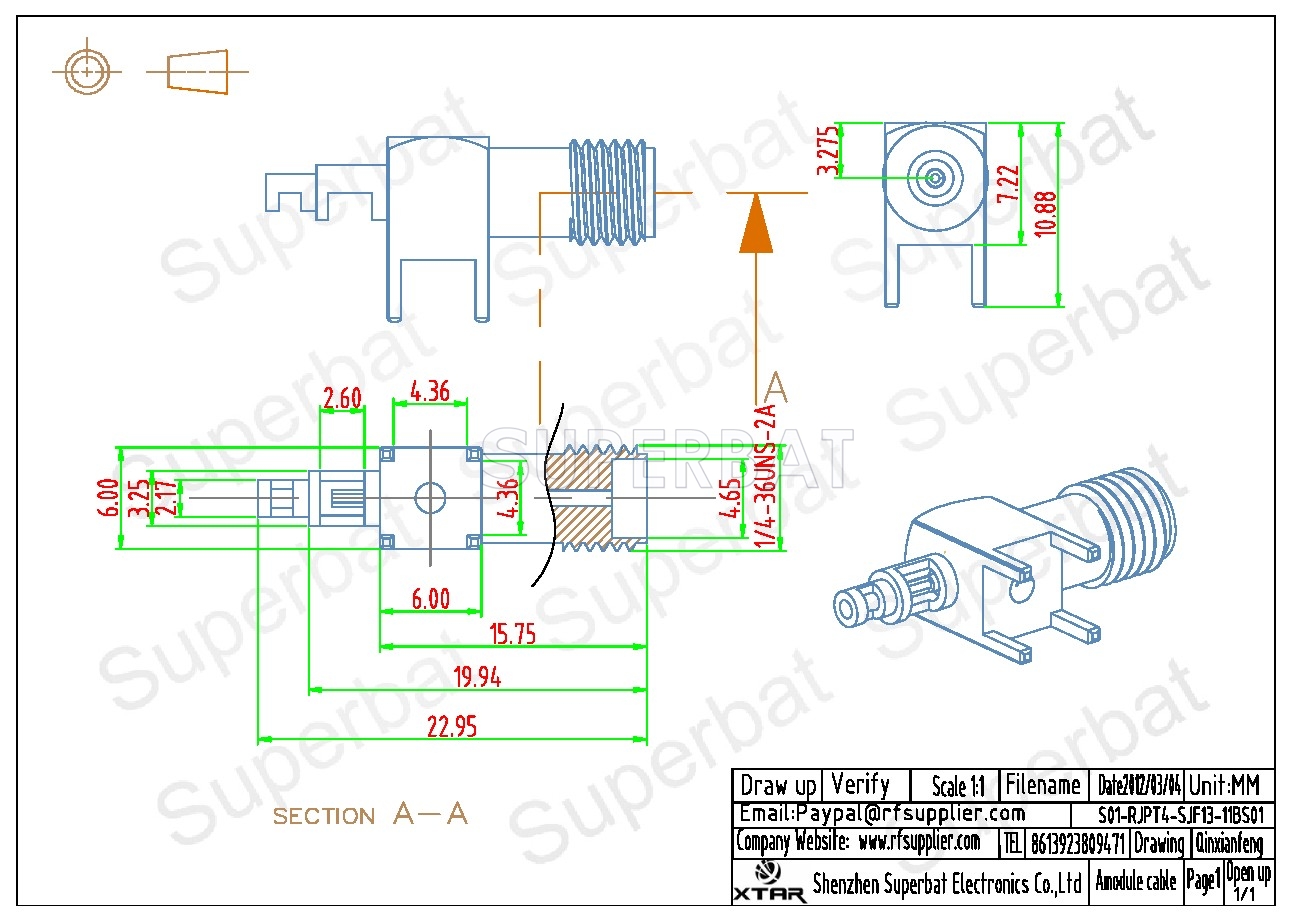

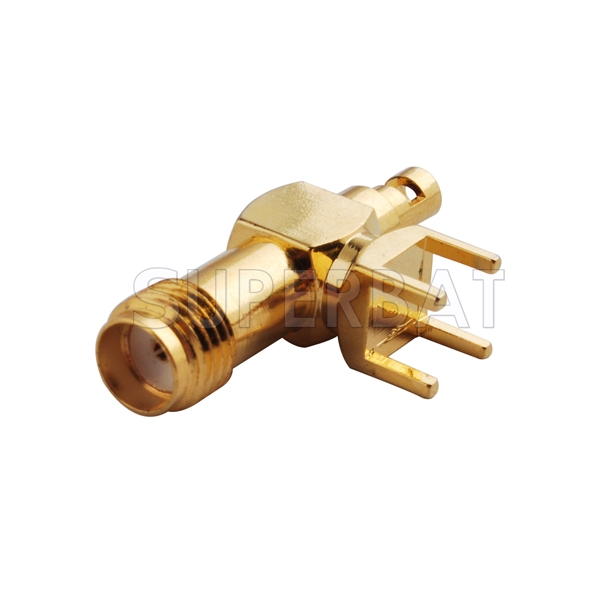

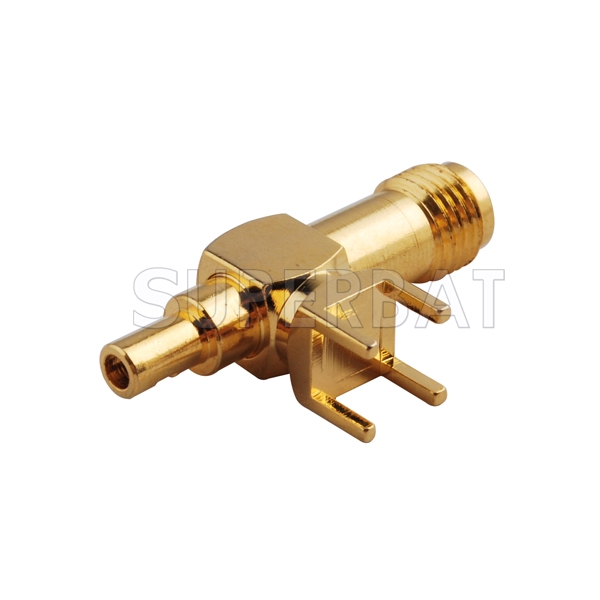

Gold plated SMA Female Jack Right Angle PCB Mount Connector for 1.13 Cable
Gold plated SMA Female Jack Right Angle PCB Mount Connector for 1.13 Cable
Unit Price: $2.44
sku:S01-RJPT4-SJF13-11BS01
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.44 $2.20 $1.98 $1.78 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 1978
Quantity: Units

Series: SMA Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Interface Type: 1.13mm , 1.37mm , RG178 Body Style: Right Angle Mount Method: Solder Impedance: 50 Attachment Method: Crimp Body Material: Brass Body Plating: Gold Dielectric Type: PTFE Frequency Range: 3GHz

Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design.

For phase array radar, test equipment, ILS landing systems and other instrumentation using phase matching techniques, SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Built in accordance with MIL-C-39012 and CECC 22110/169, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.

Features and Benefits

Light weight, compact and vibration proof design
Low cost commercial grade (Brass SMA) available in nickel or gold plating
Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables

Applications

Base stations
Antennas
Telecommunications
Instrumentation
PC/LAN
