Specifications:

Amplifier

Frequency Range：DAB:174~240MHz，  AM:520~1710KHz ， FM:87.8~108MHz

Working Voltage: 9.0v~16.0v

Working Current: 30mA~60mA

Gain:DAB:18±2dB

        AM/FM:-2±2dB

Impendance: 50Ω

V.S.W.R:＜3.0:1

Mechanical

Cable：RG174

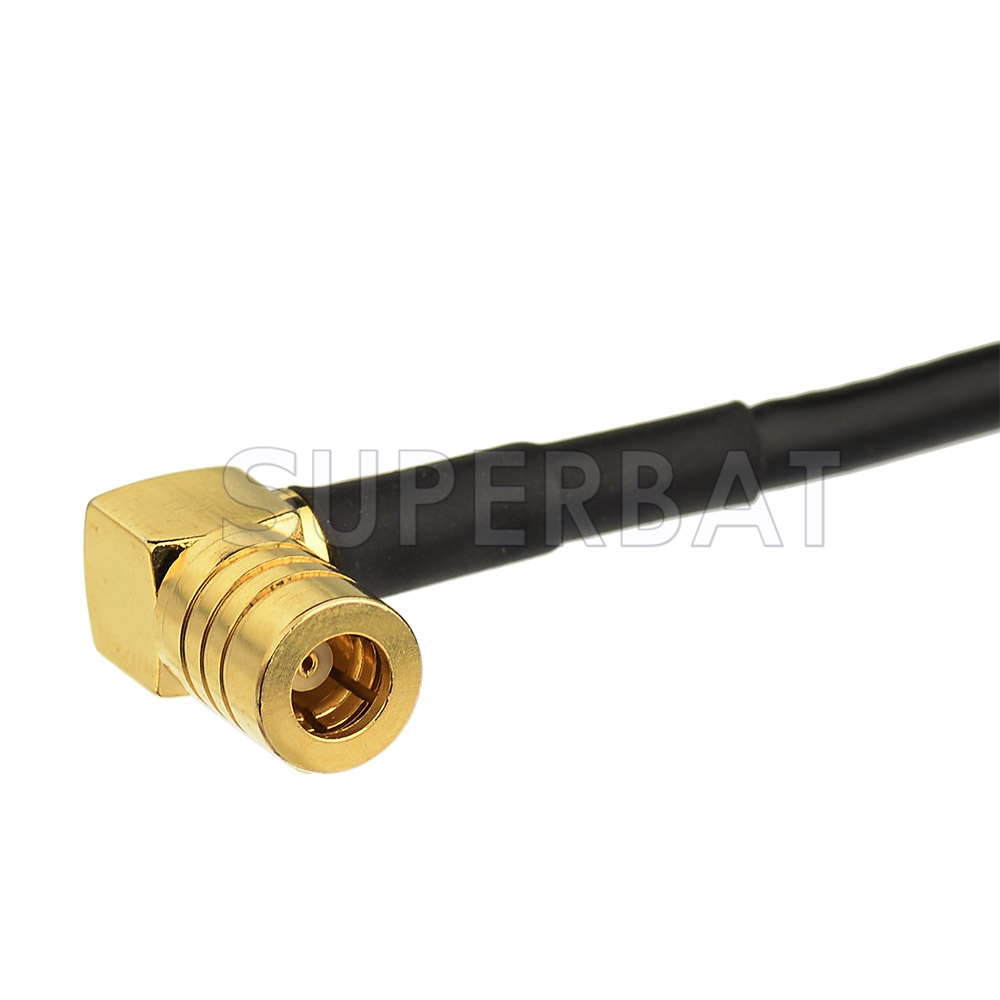

Connector：Car Antenna Plug&Socket  SMB

Fuse：500mA

PCB：FR4

Plastic Housing：ABS

Environmental

Store Temperature ：-35℃~+90℃

Operating Temperature ：-40℃~+85℃

Relative Humidity：Up to 75%

Vibration：10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly：ROHS Compliant

Advantages

Converts existing FM/AM aerials so that they can be used with DAB radios.

DAB/DAB+/DMB-A compatible

Uses existing FM/AM aerial.

Retains original appearance of vehicle

Small, neat and hidden.

Listing Suitable for the following DAB radios

Alpine DAB except Ezi-DAB

Beat  DAB except 400 & 485

Blaupunkt  DAB

Caliber Caliber DAB except PMT-700D

C-KO DAB

Clarion Clarion  DAB except DAB302E

Clarity CCE203-DAB

Grundig DAB

JVC DAB

Kenwood  DAB

Kinetic All in-Car DAB

pioneer All in-car DAB except GEX-P900DAB

philips CEM.....series

pure Highway H240Di H260D

Sonichi SB50-DAB

Sony DAB
