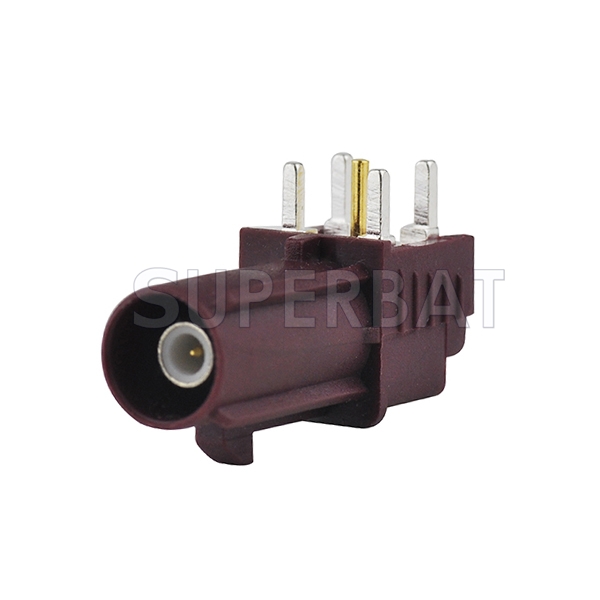

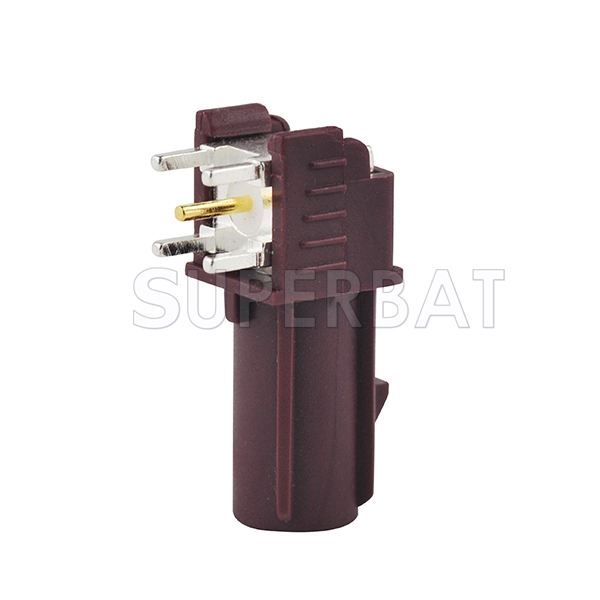

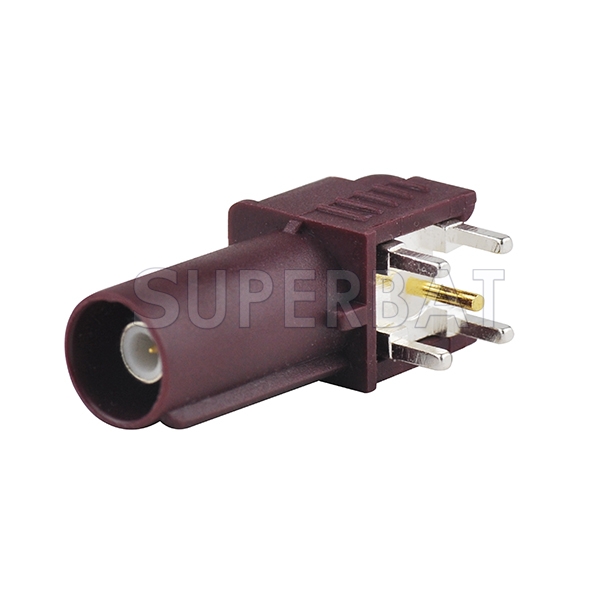

Fakra SMB Plug PCB mount angled connector Purple for GSM Car connector
Fakra SMB Plug PCB mount angled connector Purple for GSM Car connector
Unit Price: $3.46
sku:F03-RAPT4-D1
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $3.46 $3.11 $2.80 $2.52 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: FAKRA Termination Type: PCB Gender: Plug , Male Polarity: Standard Body Style: Right Angle Impedance: 50 Attachment Method: Solder Coding: D

FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly

FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications .FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered.



Product Type:Fakra SMB ConnectorImpedance:50Ω nominal
Application:wireless and GPSFrequency Range:DC-4GHz
Product Type:PCB mountV.S.W.R:1.3 Max
Center Contact:Brass (material)Insulation Resistance:1000 MΩ min
Body:Brass (material)Contact Resistance:<40 m
Center Contact:Gold-platedDielectric Withstanding Voltage:>800 VRMS(Interface only)
Body:Nickel-platedTemperature Range:-40 / +100℃
ShellPA66RoHSYes
InsulatorTEFLONFakra Code DPurple color



Application:

1 Automotive
Audio, navigation, infotainment
Bluetooth
GPS

2 Commercial Vehicle
Audio, navigation, infotainment
Bluetooth

3 Consumer
GPS

4 Military/Aerospace
GPS

5 Smart Phones and Mobile Devices
GPS

6 Telecommunications
Bluetooth
GPS tracking, positioning and navigation devices
