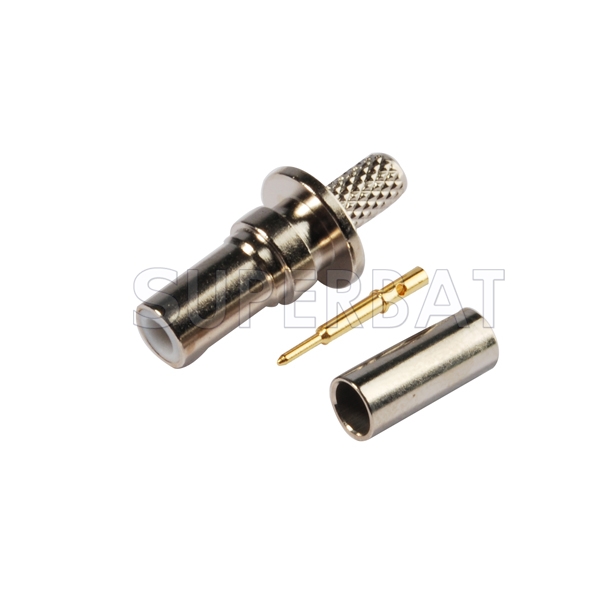

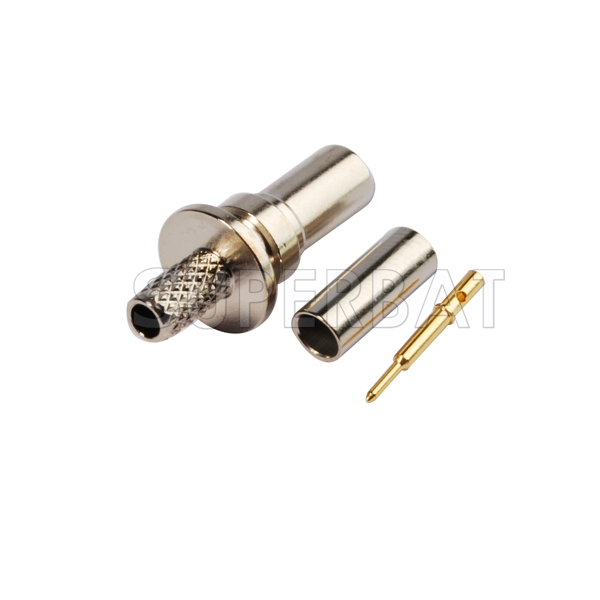

Fakra SMB Male Jack Straight Crimp Connector for RG316 RG174
Fakra SMB Male Jack Straight Crimp Connector for RG316 RG174
Unit Price: $2.56
sku:S05-SJ316-41BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.56 $2.30 $2.07 $1.87 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 1978
Quantity: Units

Series: SMB Termination Type: Coaxial Cable Gender: Jack , Male Polarity: Reverse Polarity Interface Type: LMR-100 , RG174 , RG316 Body Style: Straight Impedance: 50 Attachment Method: Crimp Body Material: Brass Body Plating: Gold Dielectric Type: PTFE Frequency Range: 3GHz

The SMB interface features a snap-on coupling mechanism and is available in 50 Ohm and 75 Ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 19 GHz and utilize die cast components on non-critical areas to provide a low-cost solution.

Features and Benefits
Selective plating provides corrosion resistance finish as well as good solder-ability characteristics
Various plating options in nickel, gold, and tin lead
SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force making this is ideal for mating a high number of connectors on a pair of PCB’s

Applications
Base Stations
Antennas
Radio Boards
PC/LAN
GPS
