F Type Female Jack Crimp Coaxial Connector 75 Ohm for RG59
Unit Price: $0.76
Real Time Availability
Quantity: Units

Series: F Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Interface Type: RG59 Body Style: Straight Impedance: 75 Attachment Method: Crimp Body Material: Brass Body Plating: Nickel Frequency Range: DC-3GHz

Note: This connector is custom one ,the MOQ is 1000 pcs.

The F-Type connector series is a high performance, cost competitive threaded connector series. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.

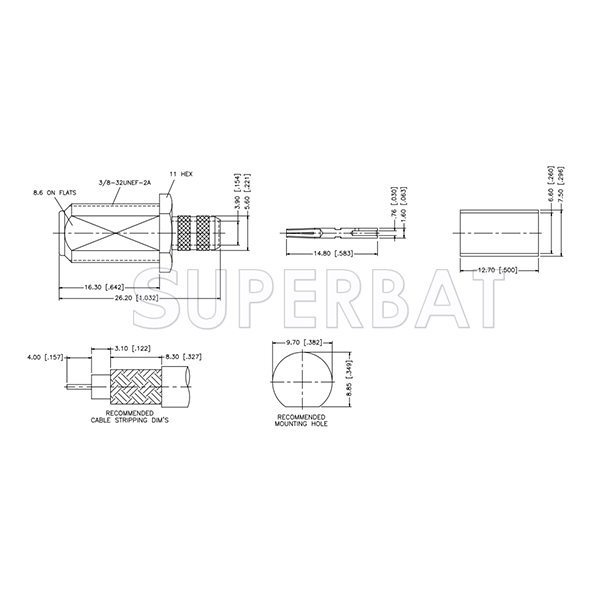

F-Type is a 75 Ω connector featuring 30 dB return loss at 1GHz. Additionally, these connectors accept .022-.042 in. diameter conductors and comply with a 3/8-32 thread specification.
The F-Type connector is a threaded alternative to the slide-on G-Type connector.

Features and Benefits
Patent pending contact design provides truly cylindrical coaxial contact and provides superior RF performance and excellent insertion/withdrawal characteristics
30 dB return loss at 1GHz ensures high performance specification that outperforms competition
Multiple PCB mount packages: surface mount, edge mount, right angle and straight, meets many customer application needs
Accommodates .022-.043 in. diameter conductor sizes. One connector accommodates a wide range of cable sizes, reducing part numbers

Head End Equipment
Set Top Boxes
High Speed Cable Modems
Hybrid Fiber Coax Networks
