Specifications:

Bar Length: Approx. 23 cm

Base: 58 x 45x 270 mm

Antenna Angle: Approximately 75 °

Supply Voltage：12V DC

Current Consumption：40mA

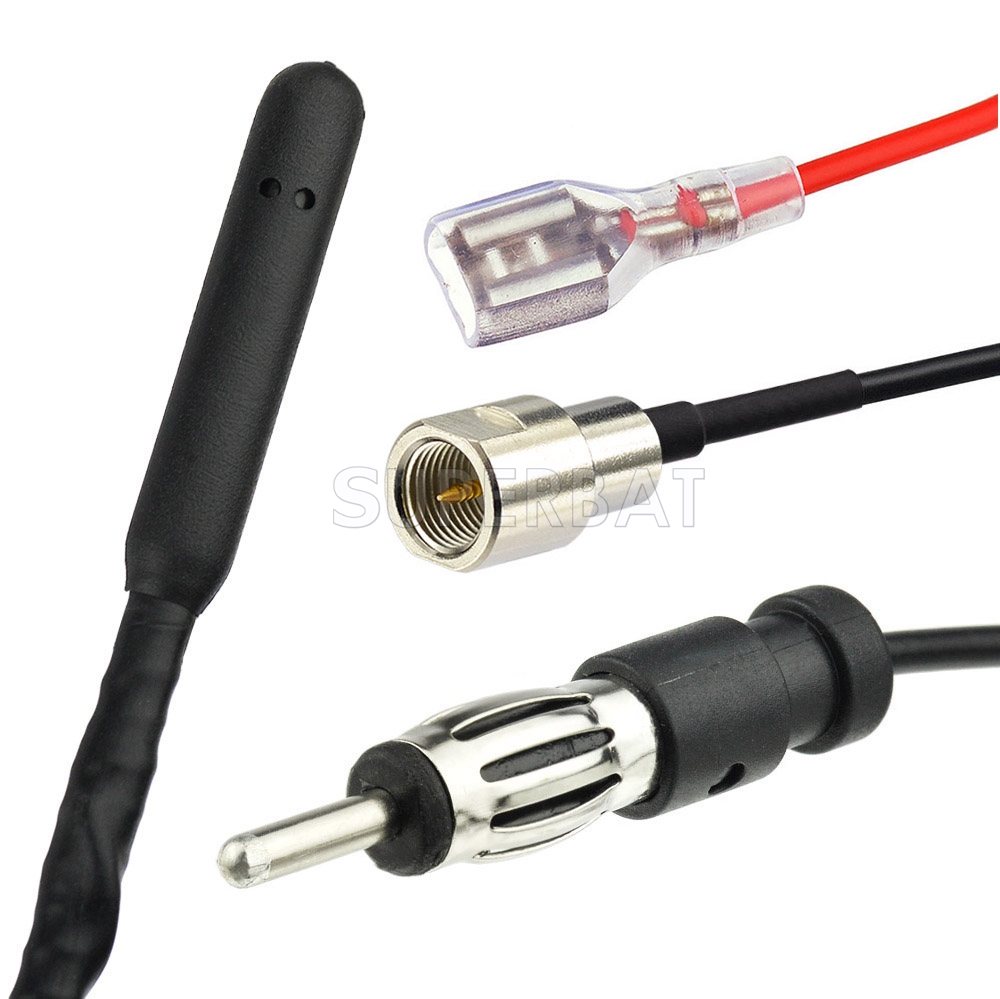

DAB connector: FME

FM /AM connector:DIN

Mechanical Cable: RG174

Cable Length:5M

Mounting Method:Screw

Impedance: 50 ohm

Working Frequency: 170MHz～240MHz (Band III)

                   1452MHz～1492MHz (L-Band)

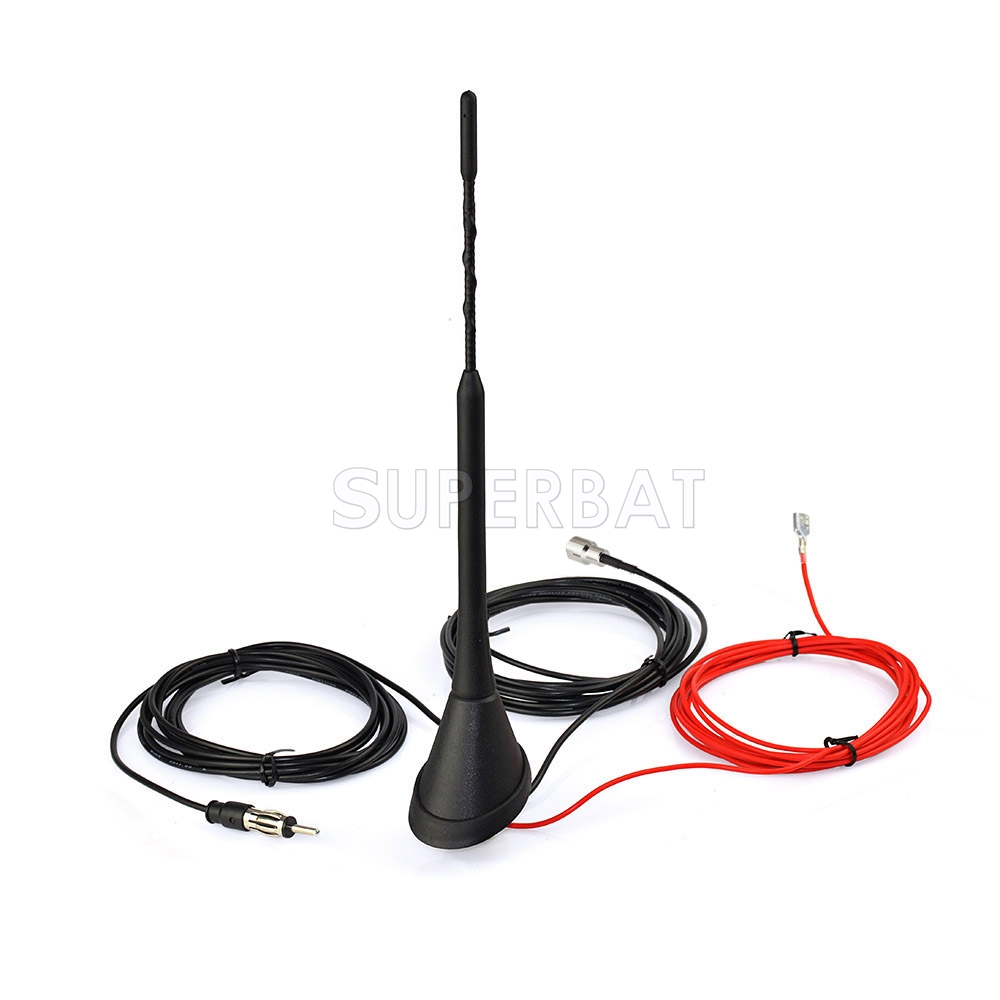

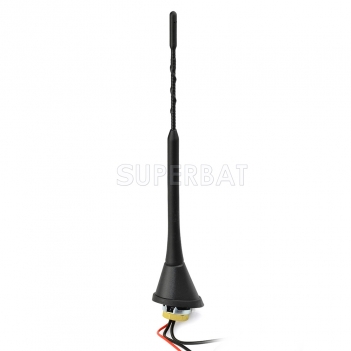

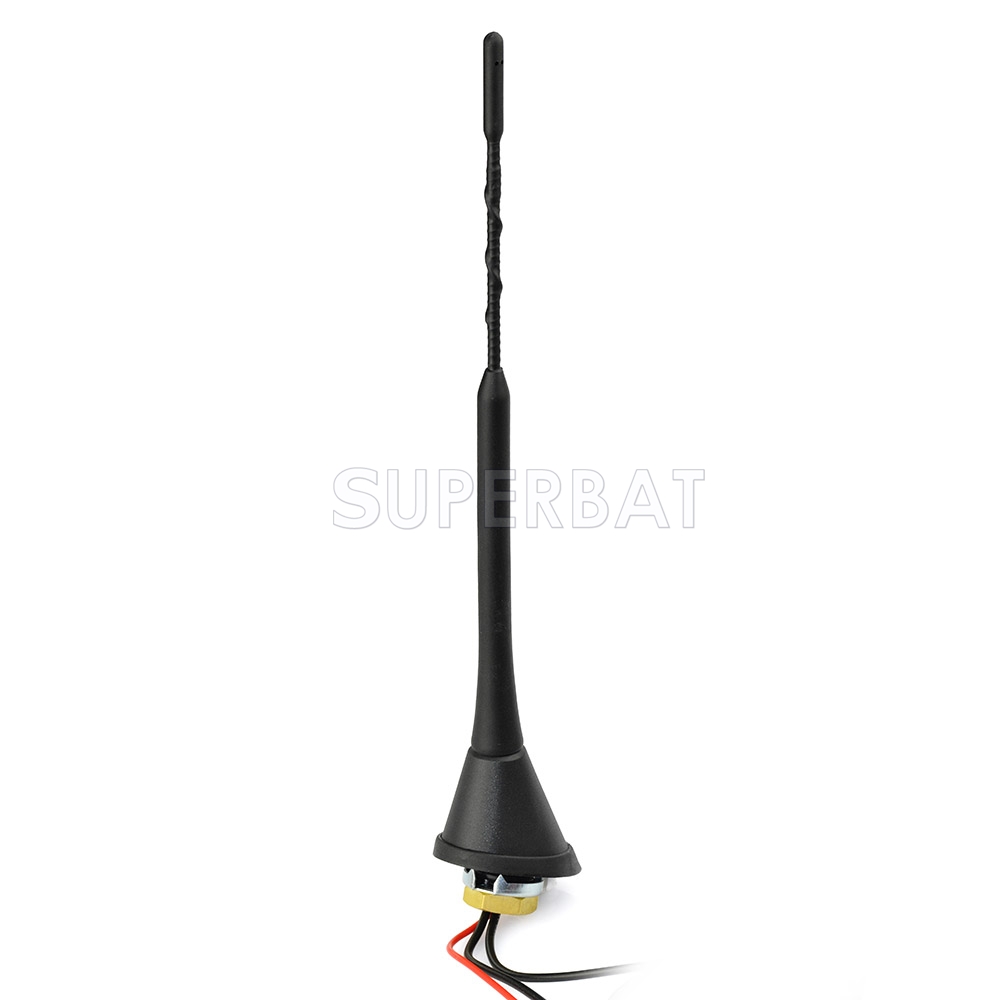

Package included:1pcs DAB car Aerial

Advantages:

High quality, top performance, roof mount, amplified DAB/FM/AM car aerial.

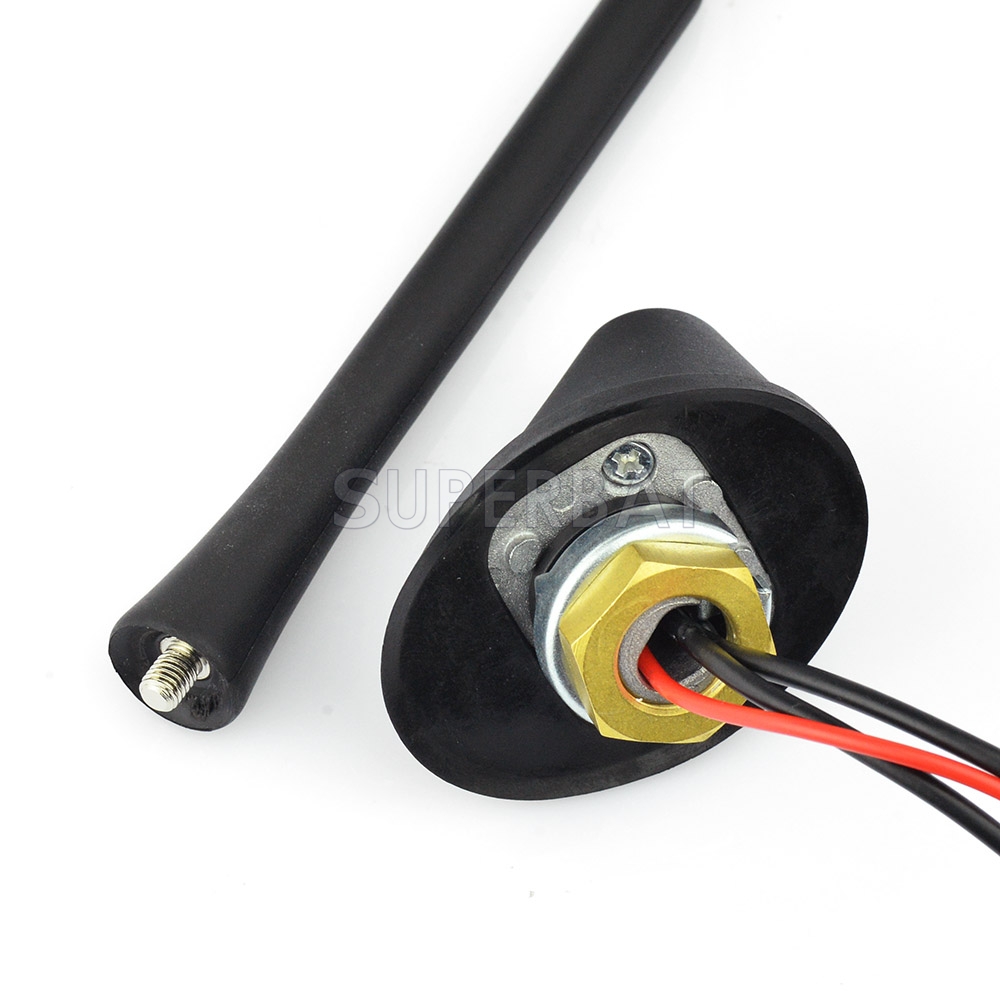

Mast easily unscrews for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance).

If your vehicle currently has a built-in-the glass or similar FM/AM aerial, installing the 'DAB/FM/AM bundle will probably improve your FM/AM reception as well.

Cautions:

UNSUITABLE for replacement of bee-sting aerials incorporating GSM, GPS or rear-screen washer jet (some Vauxhalls etc).

Must not be mounted on a panel whose underside is exposed to the elements.

5m DAB cable is captive, i.e. permanently attached.

Max panel thickness: 2.5mm.
