Specifications:

DAB

Frequency:174MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)

Impedence :50 Ω

Amplification：20dB

VSWR:≤2.0:1

Connector :Fakra“G” Male

power supply:+12v

Cable:30cm RG174

Aerial Replacement Cable :Fakra-SMA RG174 5m

GPS

Frequency:1575.42MHz

Impedence :50 Ω

Amplification:28±3db

VSWR:≤1.5:1

Gain:32dbi

Connector: FAKRA“C” Male

Cable:30cm RG174

Aerial Extension Cable :Fakra-Fakra  RG174 5m

FM

Frequency: 87.5-108 MHz

Impedence : 50 Ω

Amplification:20dB

VSWR:≤2.5:1

Connector:FAKRA“B” Male

power supply:+12v

Cable:30cm RG174

Aerial Replacement Cable :FARKA-DIN  RG174 5m

Voltage : 12v direct feed for both DAB an FM

Current Consumption : 50mA

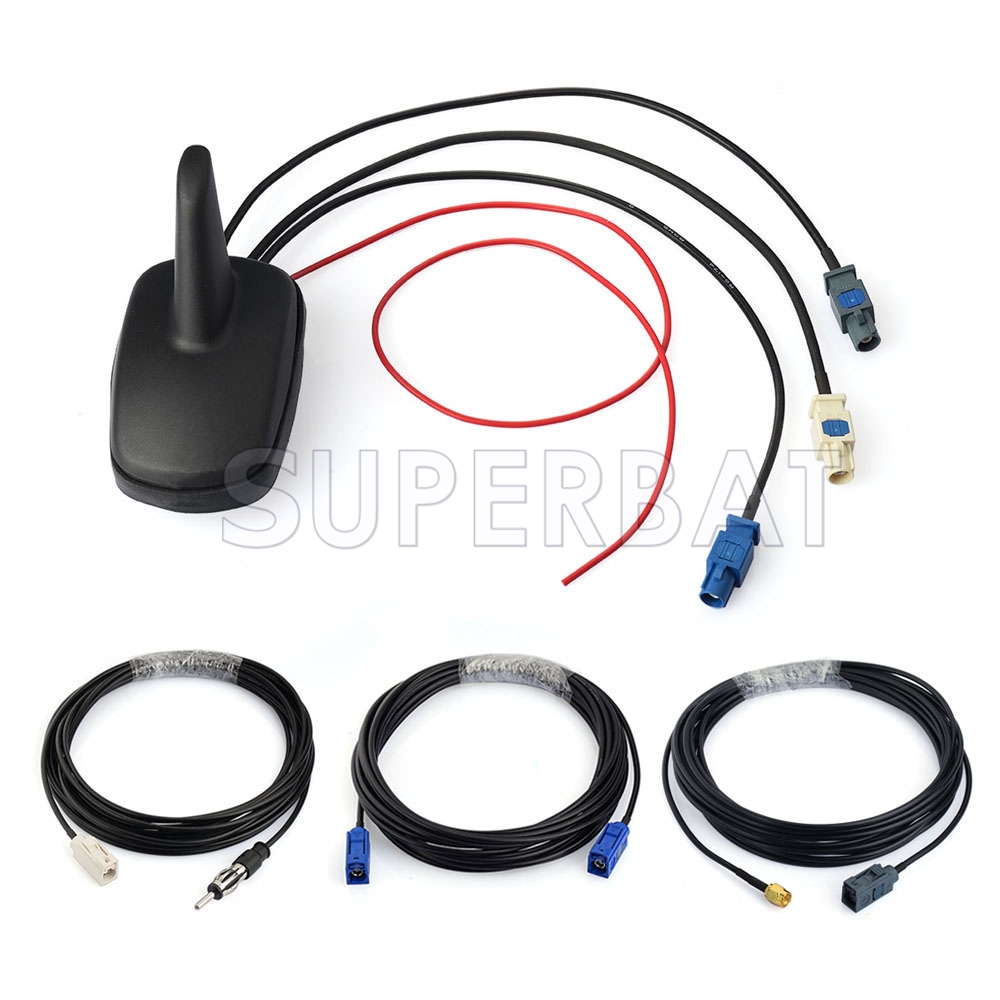

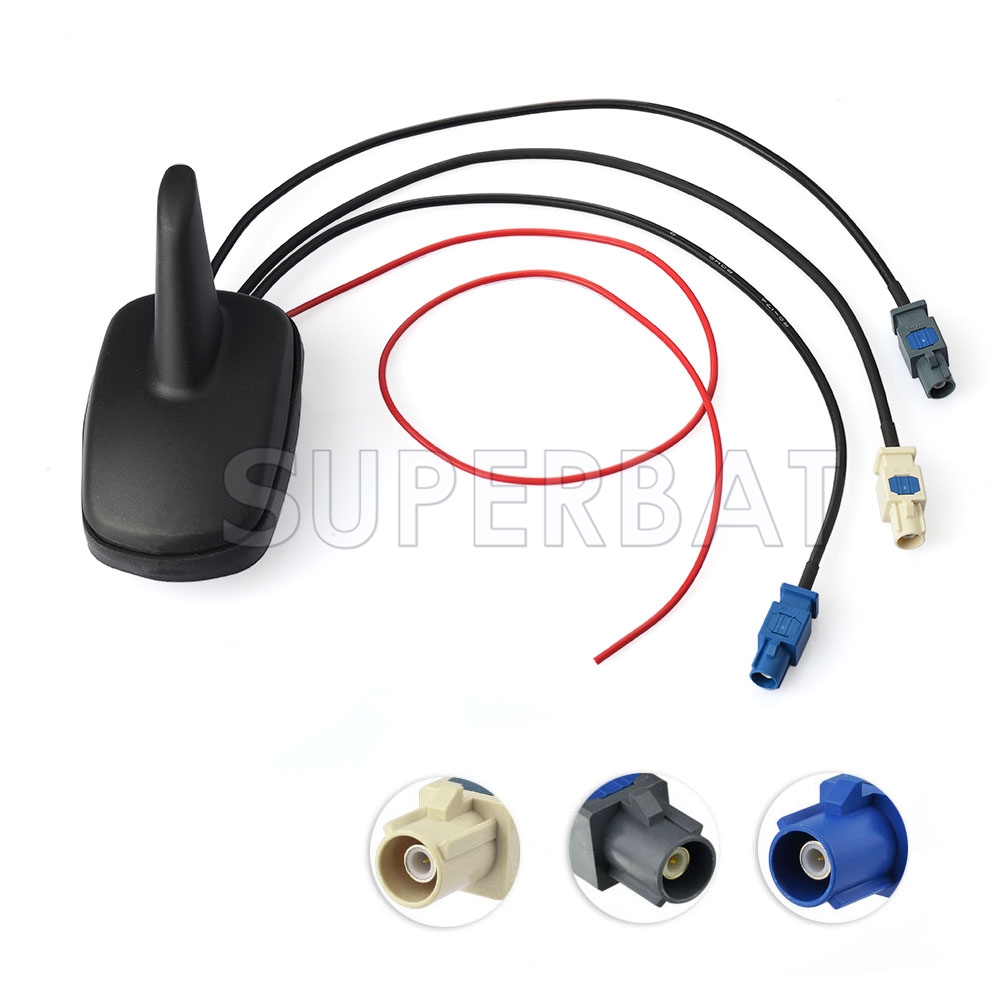

Package included:1pca DAB/FM/GPS Amplified aerial

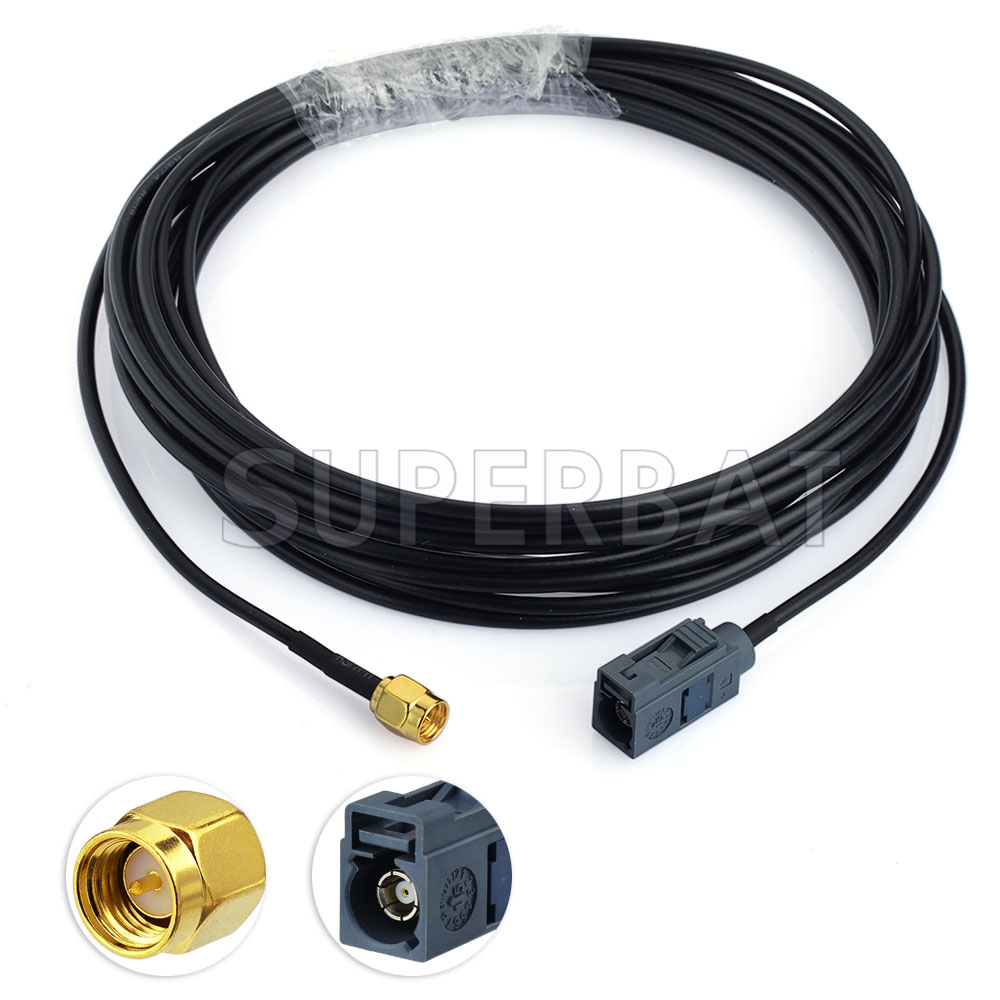

                 1pcs Fakra to SMA 5m Aerial Replacement Cable

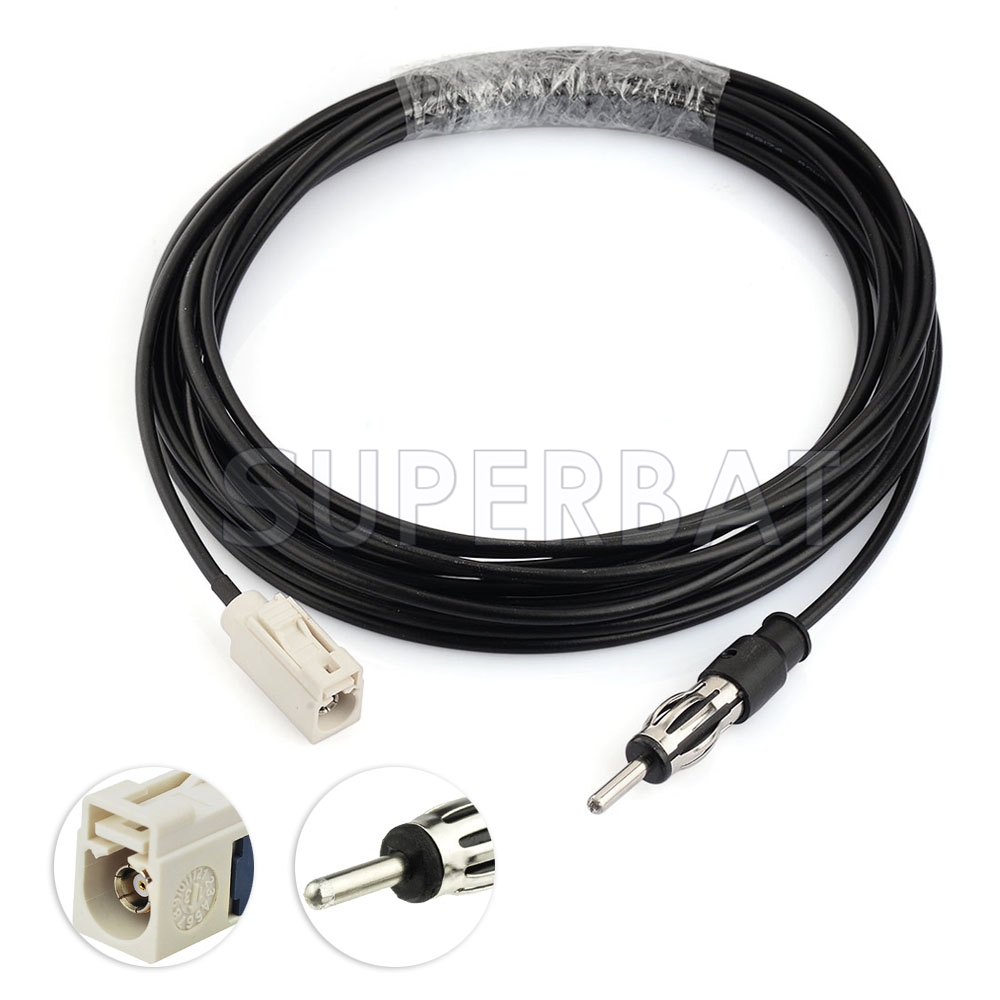

                 1pcs Fakra to DIN 5m Aerial Replacement Cable

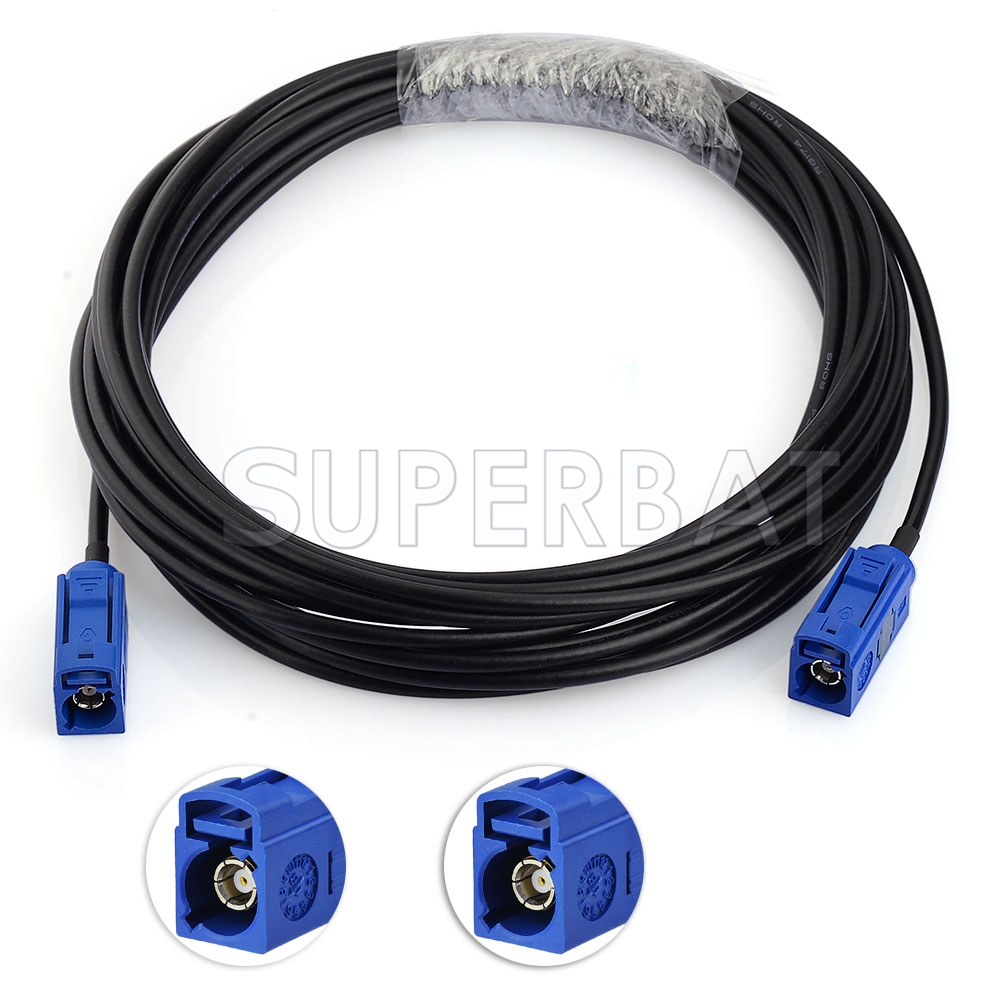

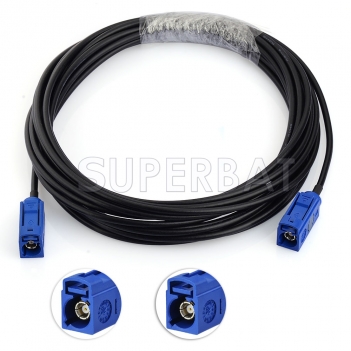

                 1pcs Fakra to Fakra 5m Aerial Extension Cable

Advantages:

Very neat and stylish.

Roof mount DAB car radio aerial.

No need to unscrew mast for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance)

Vandal resistant.

Amplified

Listing Suitable for the following DAB radios：

AutoDAB All models

Beat 400 485

Clarion DAB302E

Connects 2 CTDAB-2

Dual DAB CAR1

Goodmans GFMTDBA10

In-Phase All in- car DAB except ProDAB

Alpine Ezi-DAB

pure Highway 300Di

Cautions:

DAB / FM / GPS only.

FM reception good, but not up to a top quality, full rod aerial.

Not designed for AM reception; will nevertheless receive strong MW signals.

Mounting surface must be flat to within 1.5mm.

Must not be mounted on a panel whose underside is exposed to the elements.

Max panel thickness: 2.5mm
