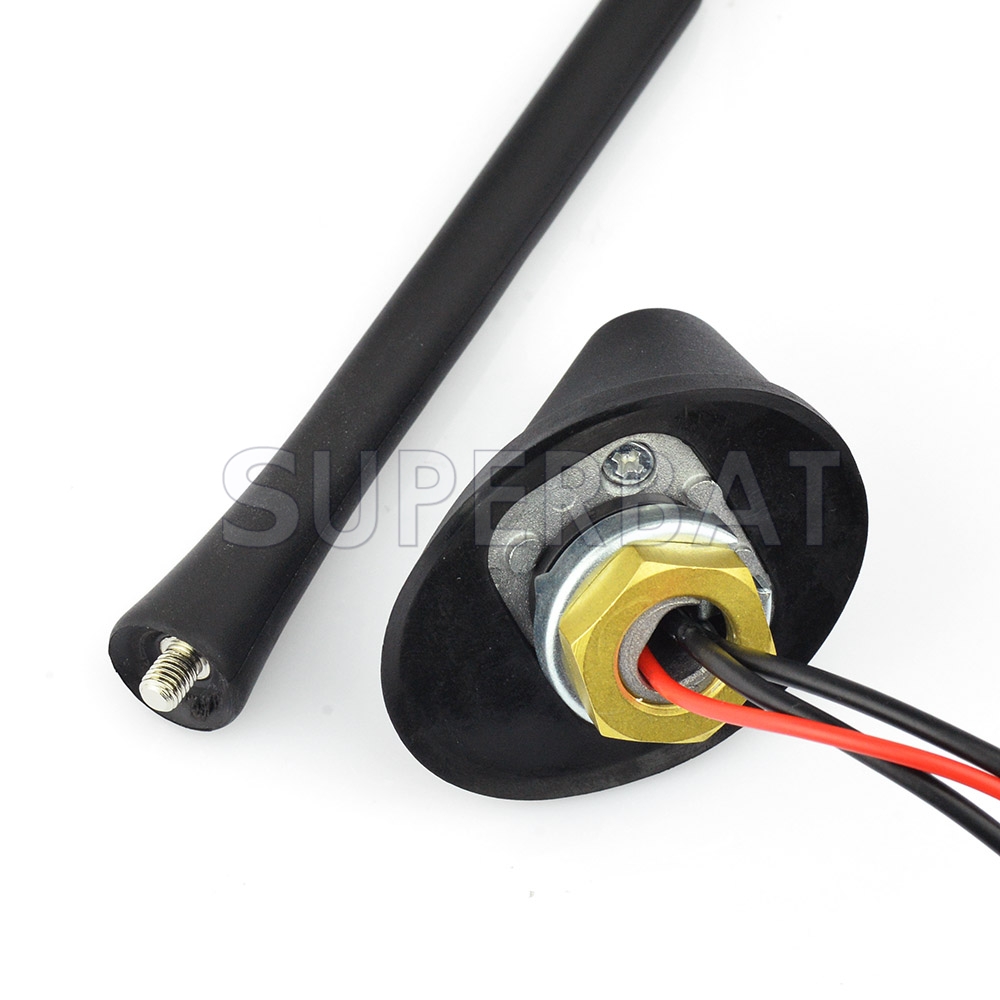

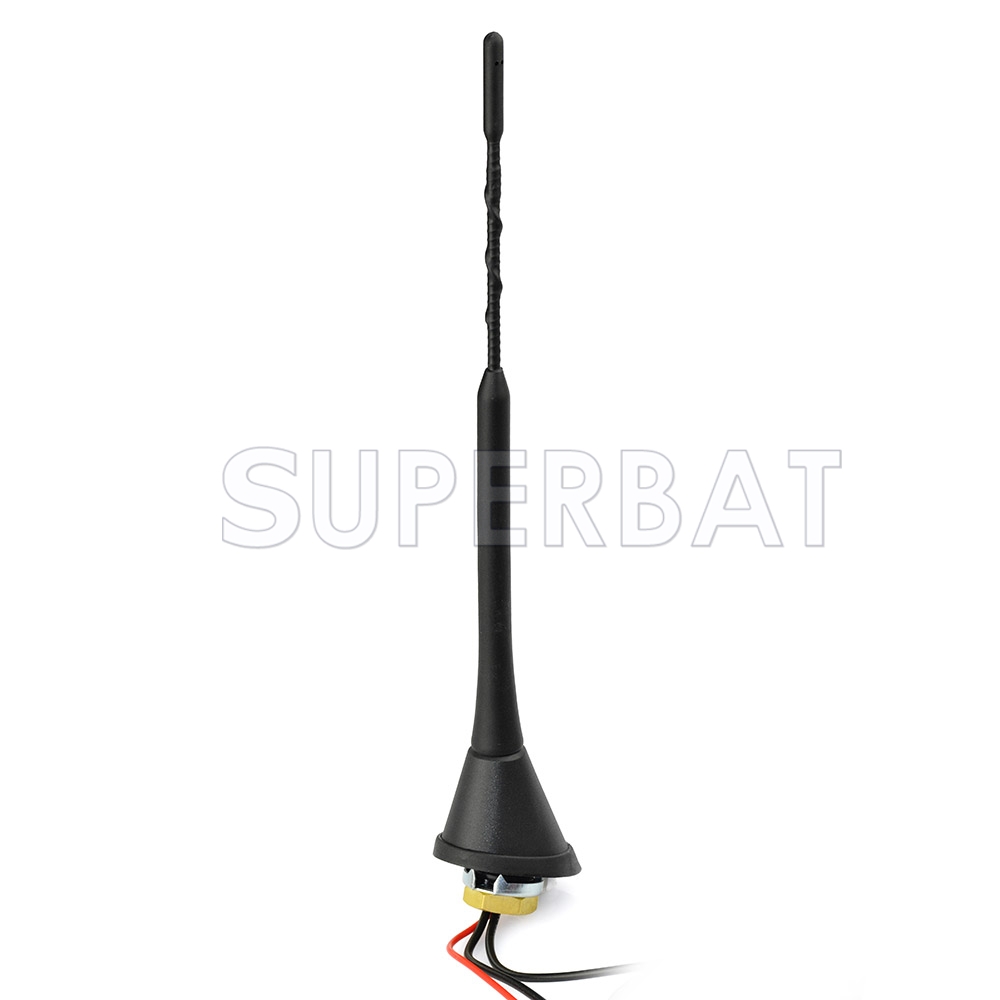

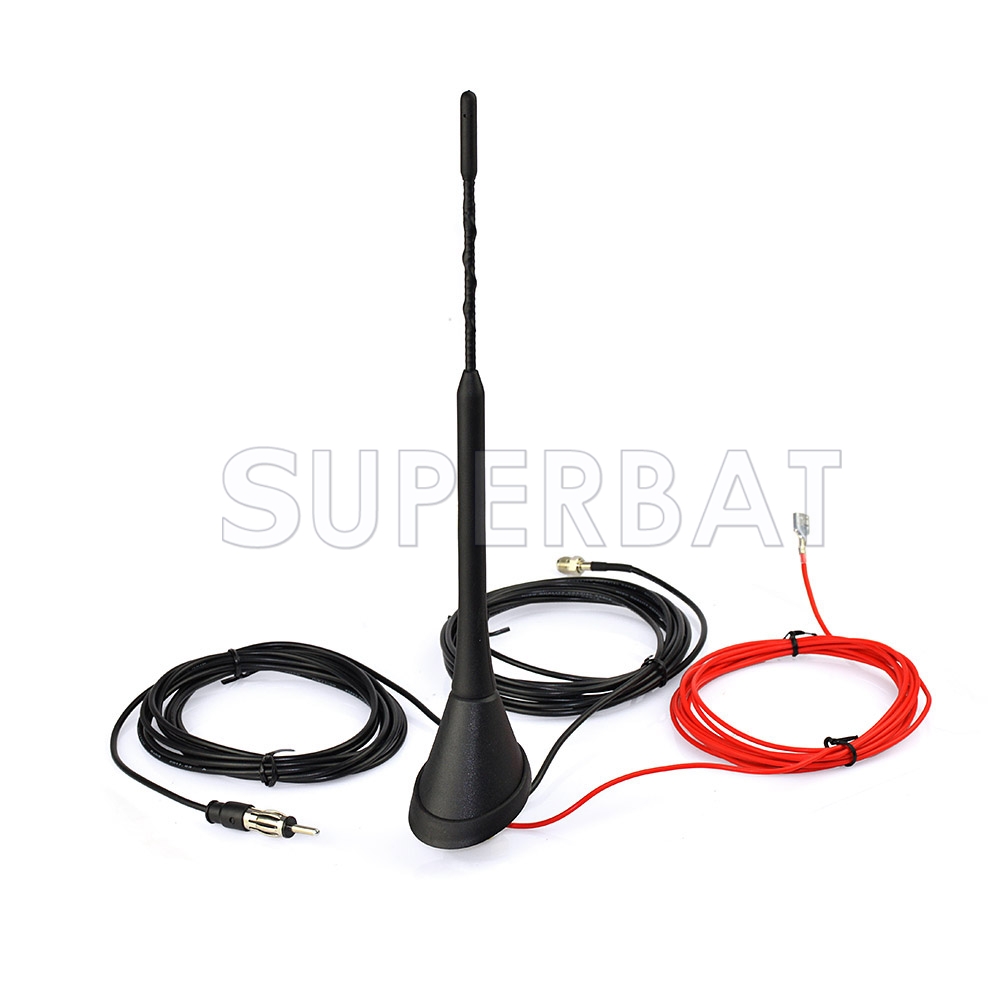

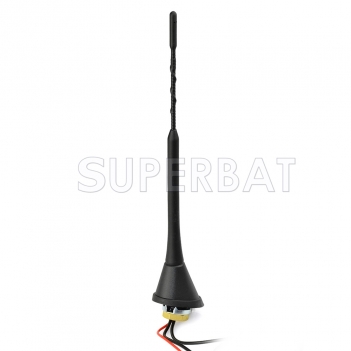

DAB/DAB+ Radio Car Aerial Antenna Mast FME Amplified roof mount antenna
Highly competitive high performance roof mount DAB and AM/FM antenna.
Roof mounted Combined FM + DAB antenna. This allows the factory roof aerial to be replaced to work with both DAB and FM avoiding the need for adding additional DAB aerials.
the amplifier built into the aerial increases the signal for both DAB and FM allowing reception even in areas that would usually have a poor radio reception.
Unit Price: $25.09
sku:DB1-2415-D02SP-F02SJ-500
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $25.09 $23.84 $22.58 $21.33 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 9999
Quantity: Units

Specifications:

Bar Length: Approx. 23 cm

Base: 58 x 45x 270 mm

Antenna Angle: Approximately 75 °

Supply Voltage:12V DC

Current Consumption:40mA

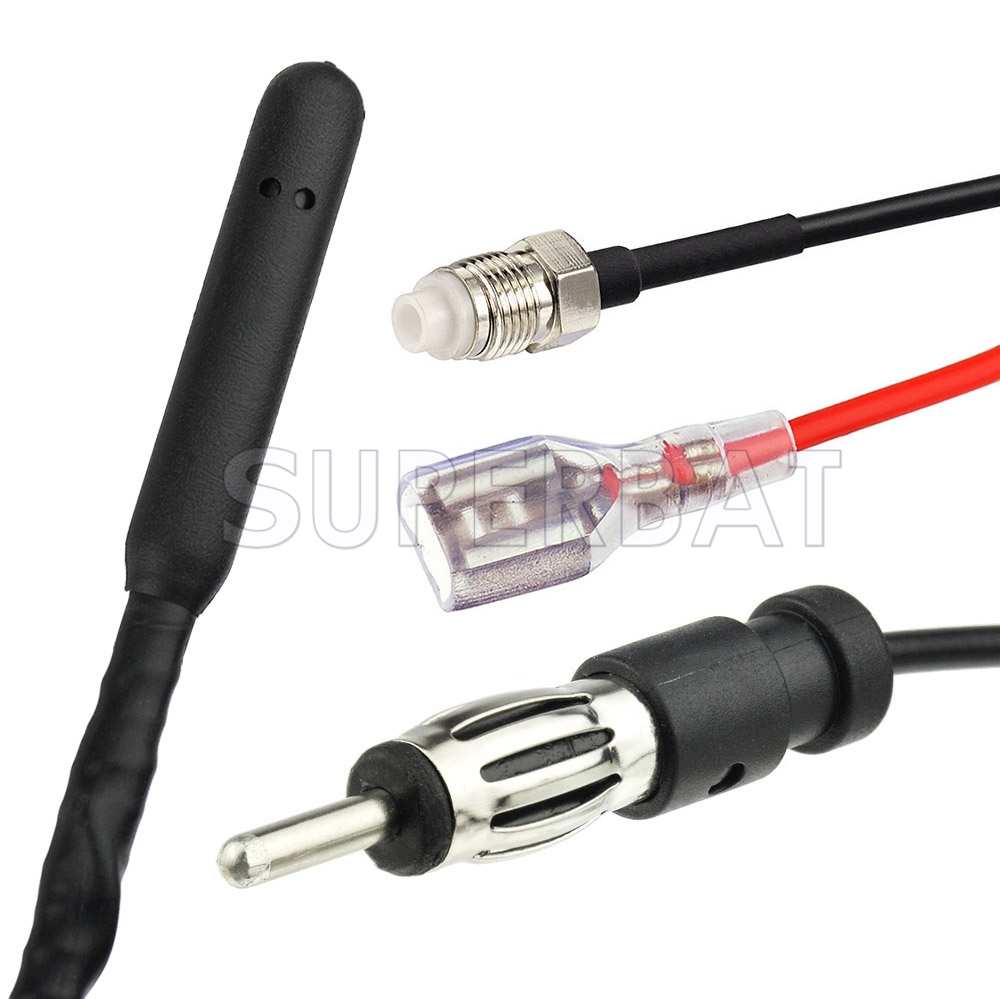

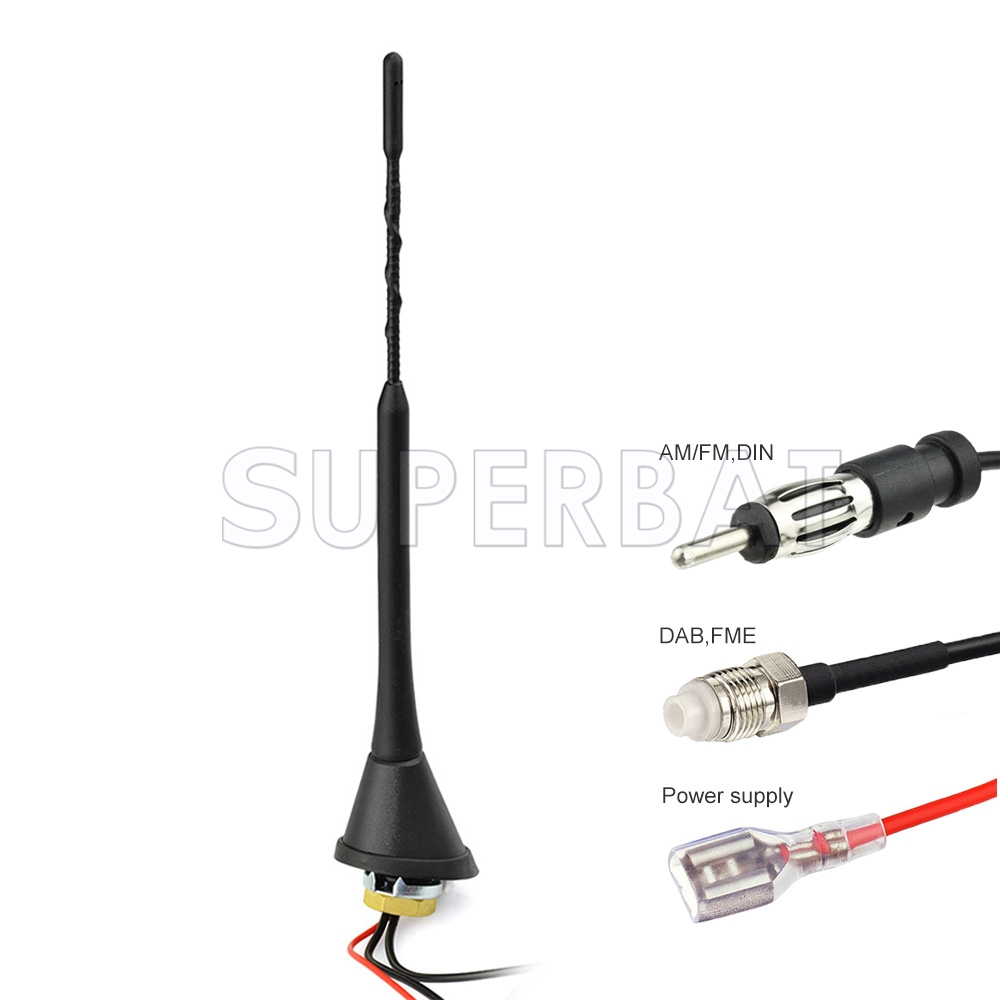

DAB connector: FME(F)

FM /AM connector:DIN

Mechanical Cable: RG174

Cable Length:5M

Mounting Method:Screw

Impedance: 50 ohm

Working Frequency: 170MHz~240MHz (Band III)

                   1452MHz~1492MHz (L-Band)

Package included:1pcs DAB car Aerial



Advantages:

High quality, top performance, roof mount, amplified DAB/FM/AM car aerial.

Mast easily unscrews for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance).

If your vehicle currently has a built-in-the glass or similar FM/AM aerial, installing the 'DAB/FM/AM bundle will probably improve your FM/AM reception as well.



Cautions:

UNSUITABLE for replacement of bee-sting aerials incorporating GSM, GPS or rear-screen washer jet (some Vauxhalls etc).

Must not be mounted on a panel whose underside is exposed to the elements.

5m DAB cable is captive, i.e. permanently attached.

Max panel thickness: 2.5mm.
