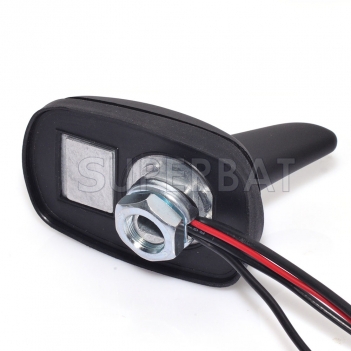

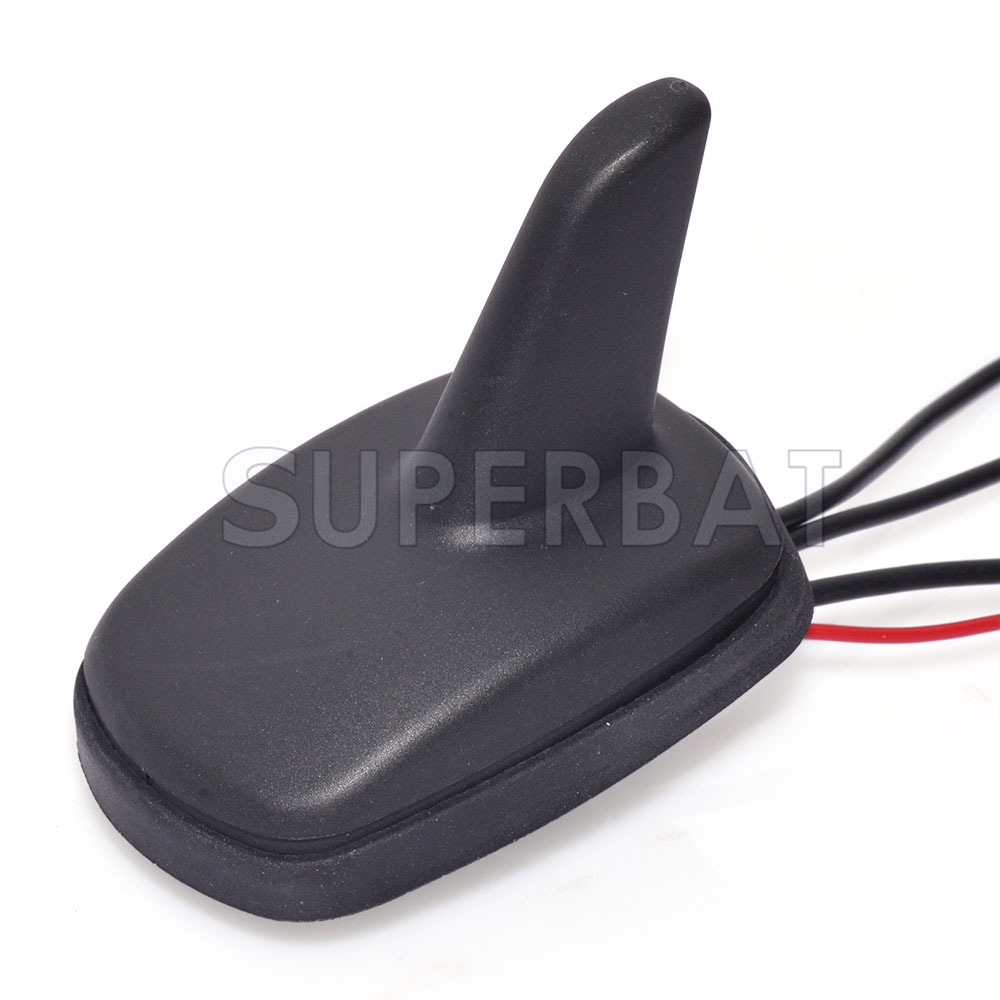

DAB/DAB+/GPS/FM/AM car digital radio Amplified aerial Roof mount Antenna Roof mount Antenna for AutoDAB
DAB/DAB+/GPS/FM/AM car digital radio Amplified aerial Roof mount Antenna Roof mount Antenna for AutoDAB
Unit Price: $36.29
sku:GA42-500-F03CSJ-D02SP-S01SP
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $36.29 $34.48 $32.66 $30.85 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

Specifications:

DAB

Frequency:174MHz~240MHz (Band III)

Impedence :50 Ω

Amplification:20dB

VSWR:≤2.0:1

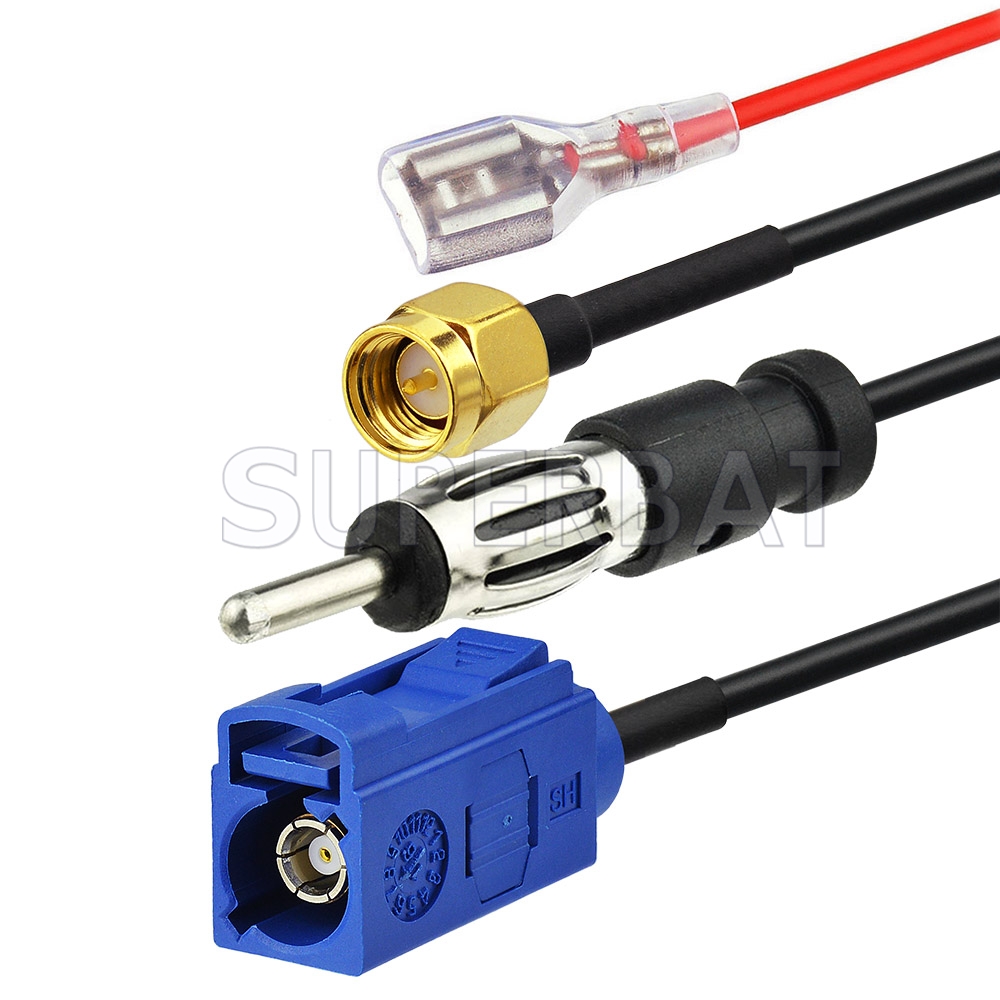

Connector :SMA Male

Cable:5m RG174


GPS

Frequency:1575.42MHz

Impedence :50 Ω

Amplification:28±3db

VSWR:≤1.5:1

Gain:32dbi

Connector: FAKRA“C” Female

Cable: 5m RG174


FM

Frequency: 87.5-108 MHz

Impedence : 50 Ω

Amplification:20dB

VSWR:≤2.5:1

Connector:DIN Male

Cable: 5m RG174


Voltage : 12v direct feed for both DAB an AM/FM

Current Consumption : 50mA

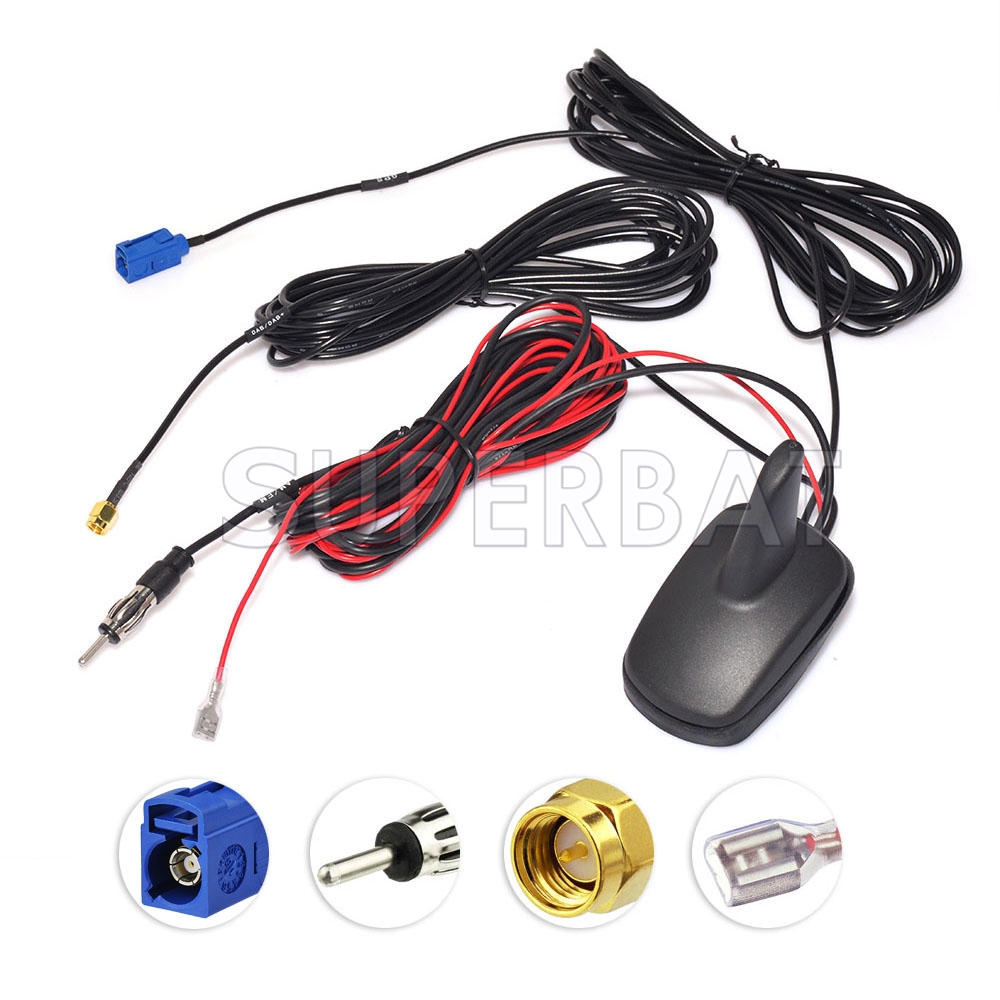

Package included:5m DAB/FM Car Aerial GPS


Advantages:

Very neat and stylish.

Roof mount DAB car radio aerial.

No need to unscrew mast for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance)

Vandal resistant.

Amplified


Listing Suitable for the following DAB radios:

AutoDAB All models

Beat 400 485

Clarion DAB302E

Connects 2 CTDAB-2

Dual DAB CAR1

Goodmans GFMTDBA10

In-Phase All in- car DAB except ProDAB


Cautions:

DAB / FM / GPS only.

FM reception good, but not up to a top quality, full rod aerial.

Not designed for AM reception; will nevertheless receive strong MW signals.

Mounting surface must be flat to within 1.5mm.

Must not be mounted on a panel whose underside is exposed to the elements.

Max panel thickness: 2.5mm
