Specifications:

DAB

Frequency:174MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)

Impedence :50 Ω

VSWR:≤2.0:1

Connector :FARKA“G” Male

power supply extema:+12v

Cable:30cm RG174

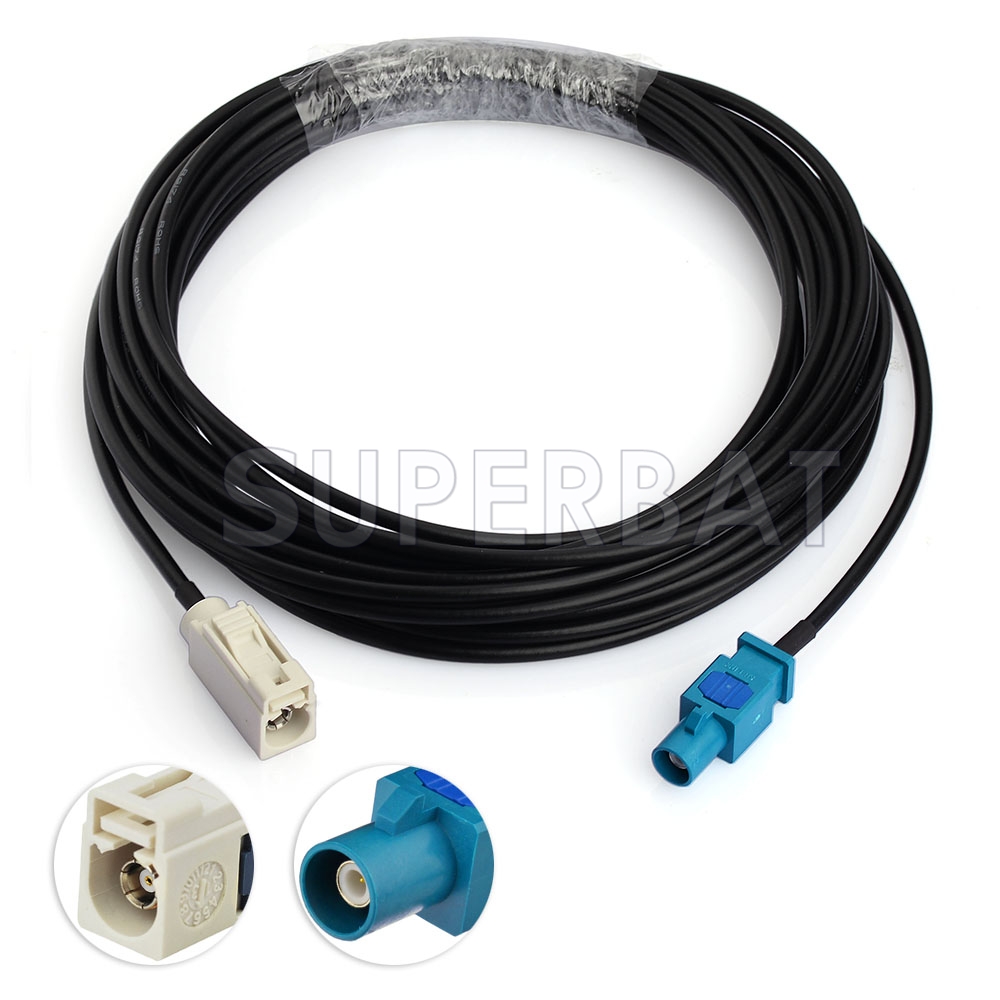

Aerial Replacement Cable :Fakra"G"-Fakra"Z" RG174 5m

FM

Frequency: 87.5-108 MHz

Impedence : 50 Ω

VSWR:≤2.5:1

Connector:FAKRA“B” Male

power supply extemal:+12v

Cable: 30cm RG174

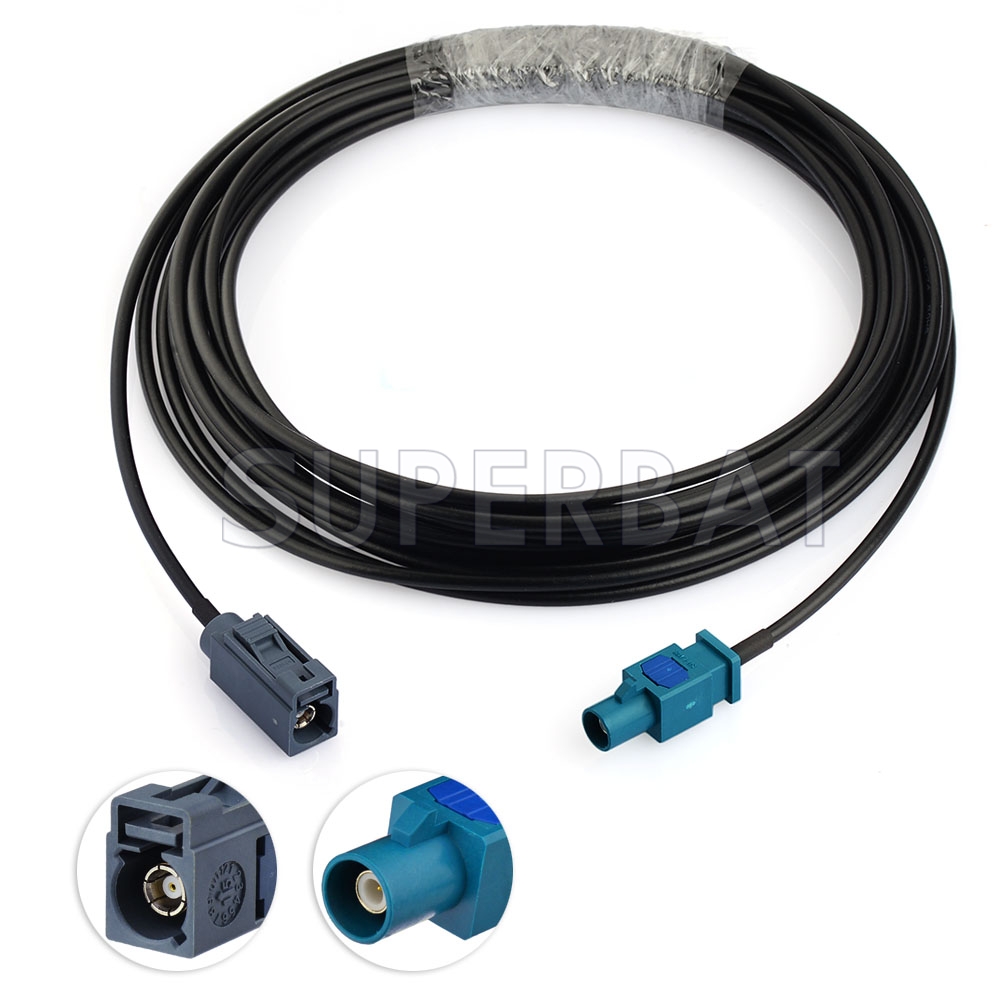

Aerial Replacement Cable :FARKA"B"-FAKRA"Z" RG174 5m

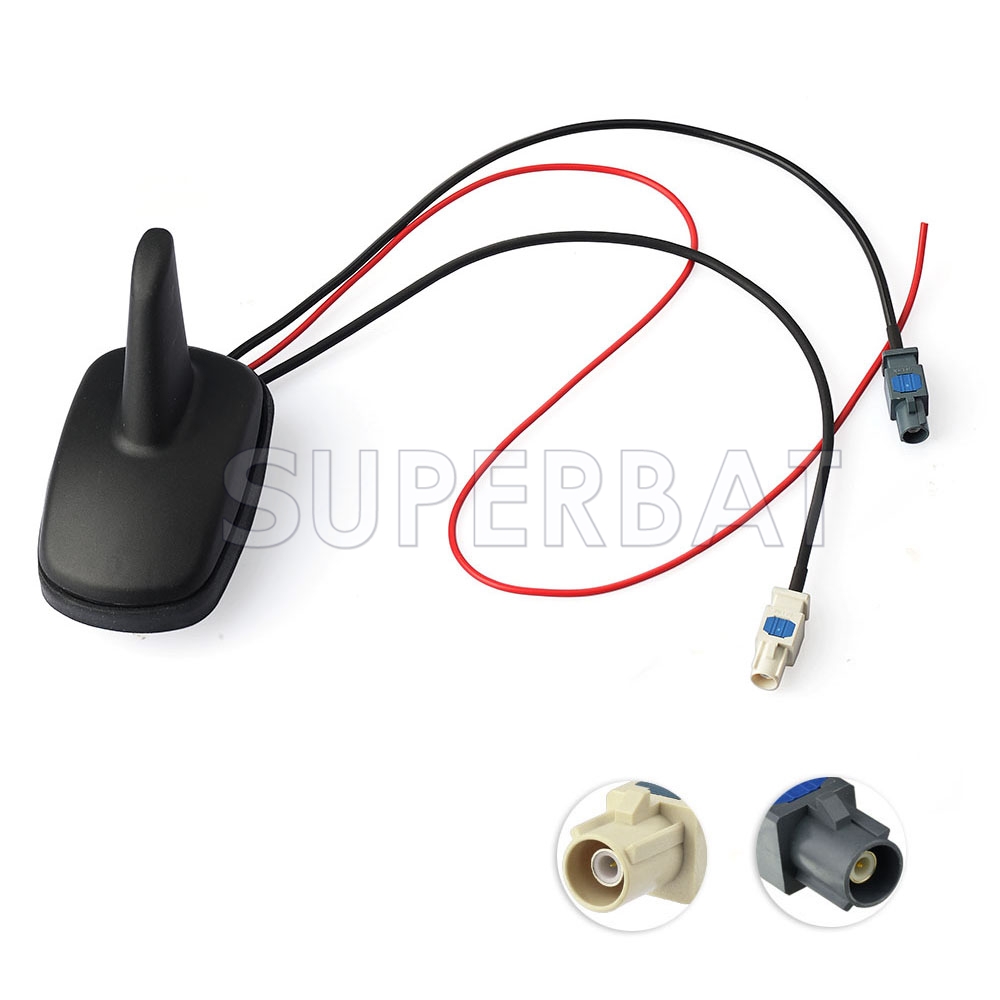

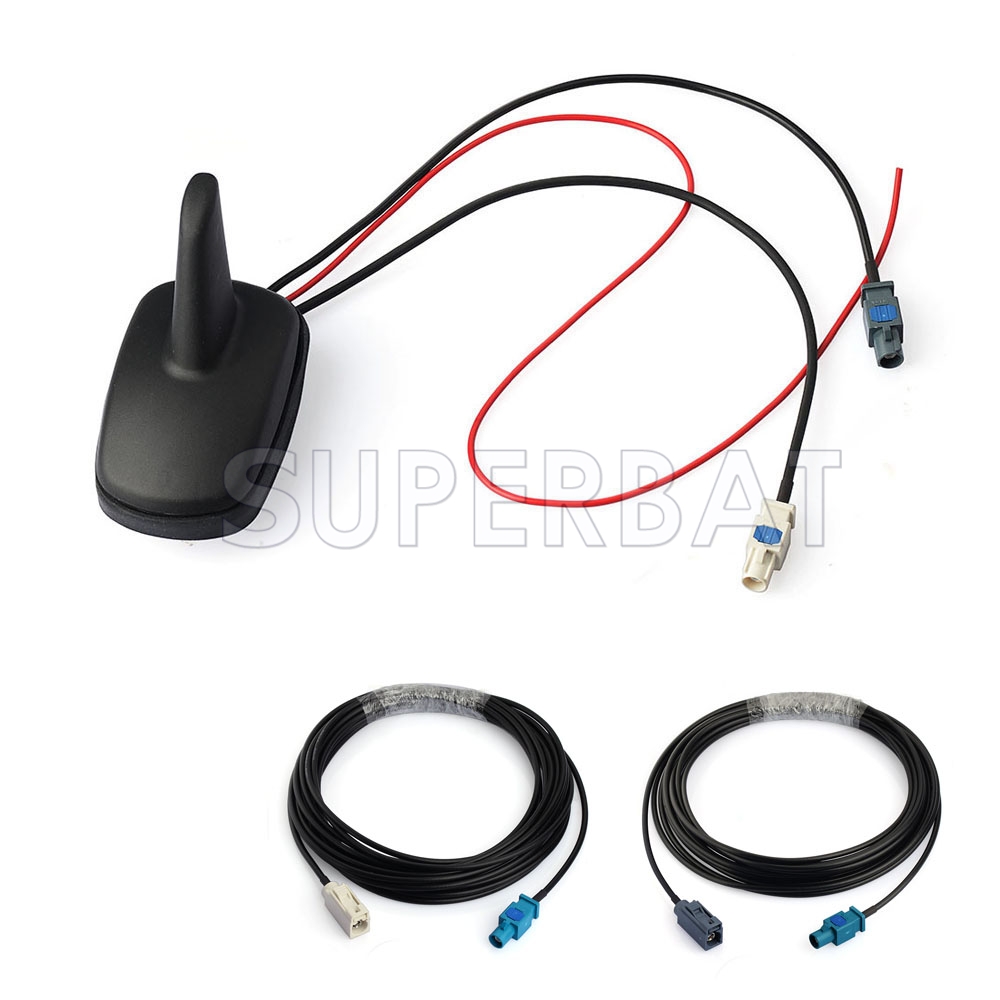

Package included:1pcs DAB/FM Car Aerial

                 1pcs Fakra"G" to Fakra"Z" 5m Aerial Replacement Cable

                 1pcs Fakra"B" to Fakra"Z" 5m Aerial Replacement Cable

Advantages:

Very neat and stylish.

Roof mount DAB car radio aerial.

No need to unscrew mast for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance)

Vandal resistant.

Amplified.

Listing Suitable for the following DAB radios：

Alpine Ezi-DAB

pure Highway 300Di

Cautions:

DAB / FM only.

FM reception good, but not up to a top quality, full rod aerial.

Not designed for AM reception; will nevertheless receive strong MW signals.

Mounting surface must be flat to within 1.5mm.

Must not be mounted on a panel whose underside is exposed to the elements.

Max panel thickness: 2.5mm
