Specifications:

DAB

Frequency:174MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)

Impedence :50 Ω

VSWR:≤2.0:1

Connector :FARKA“G” Male

power supply extema:+12v

Cable:30cm RG174

Aerial Replacement Cable :Fakra-SMB RG174 5m

FM

Frequency: 87.5-108 MHz

Impedence : 50 Ω

VSWR:≤2.5:1

Connector:FAKRA“B” Male

power supply extemal:+12v

Cable: 30cm RG174

Aerial Replacement Cable :Fakra-DIN  RG174 5m

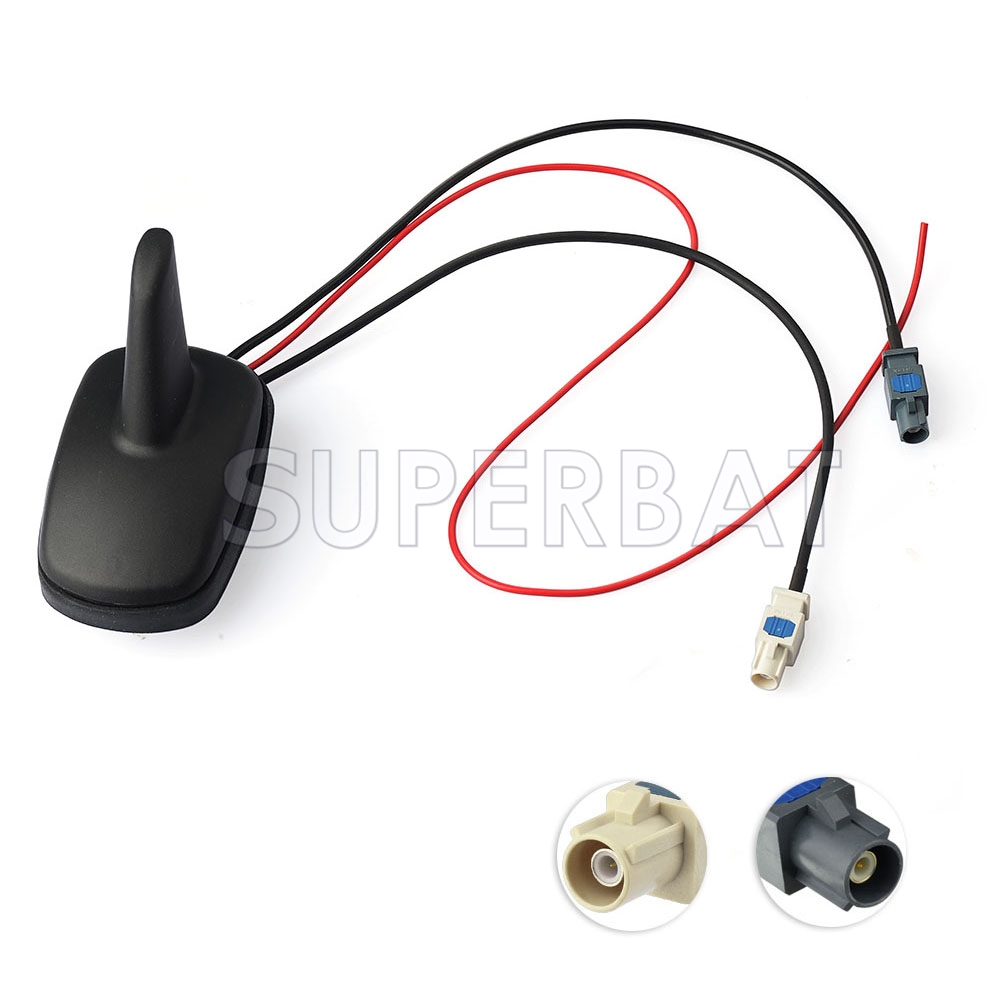

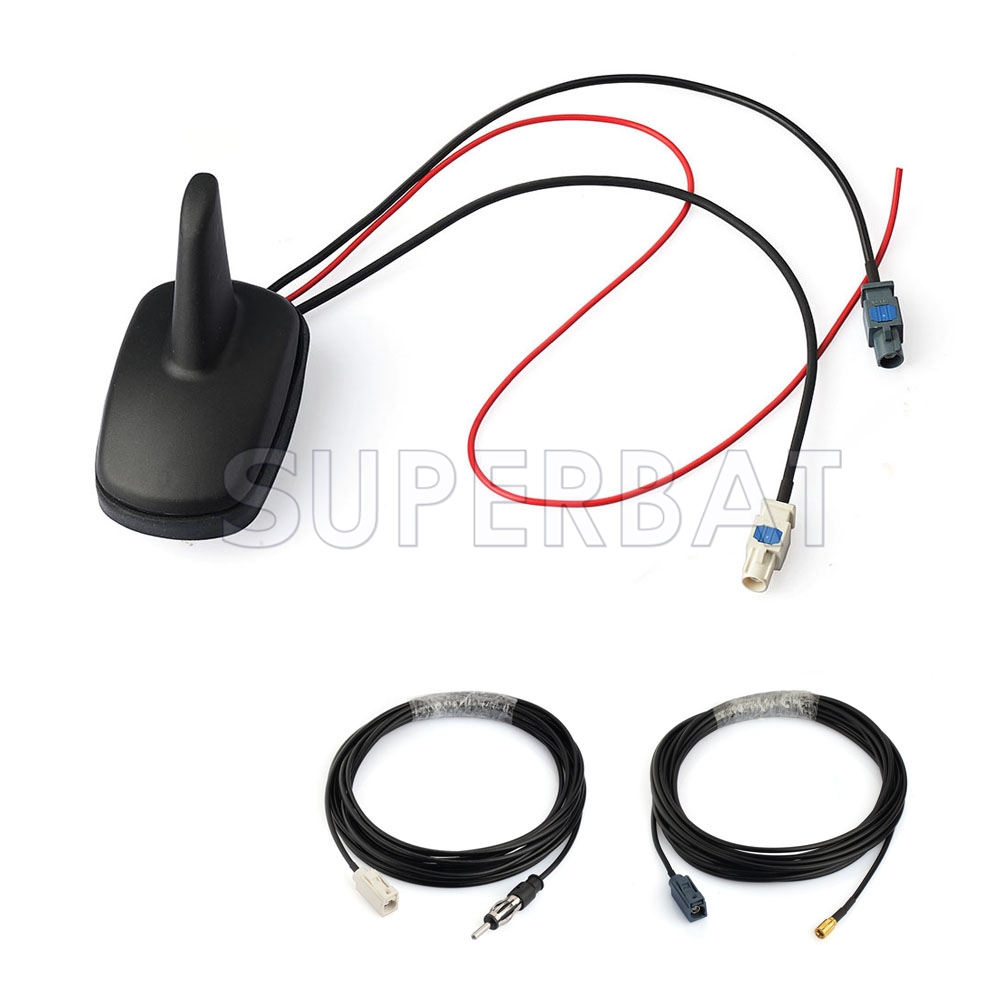

Package included:1pcs DAB/FM Car Aerial

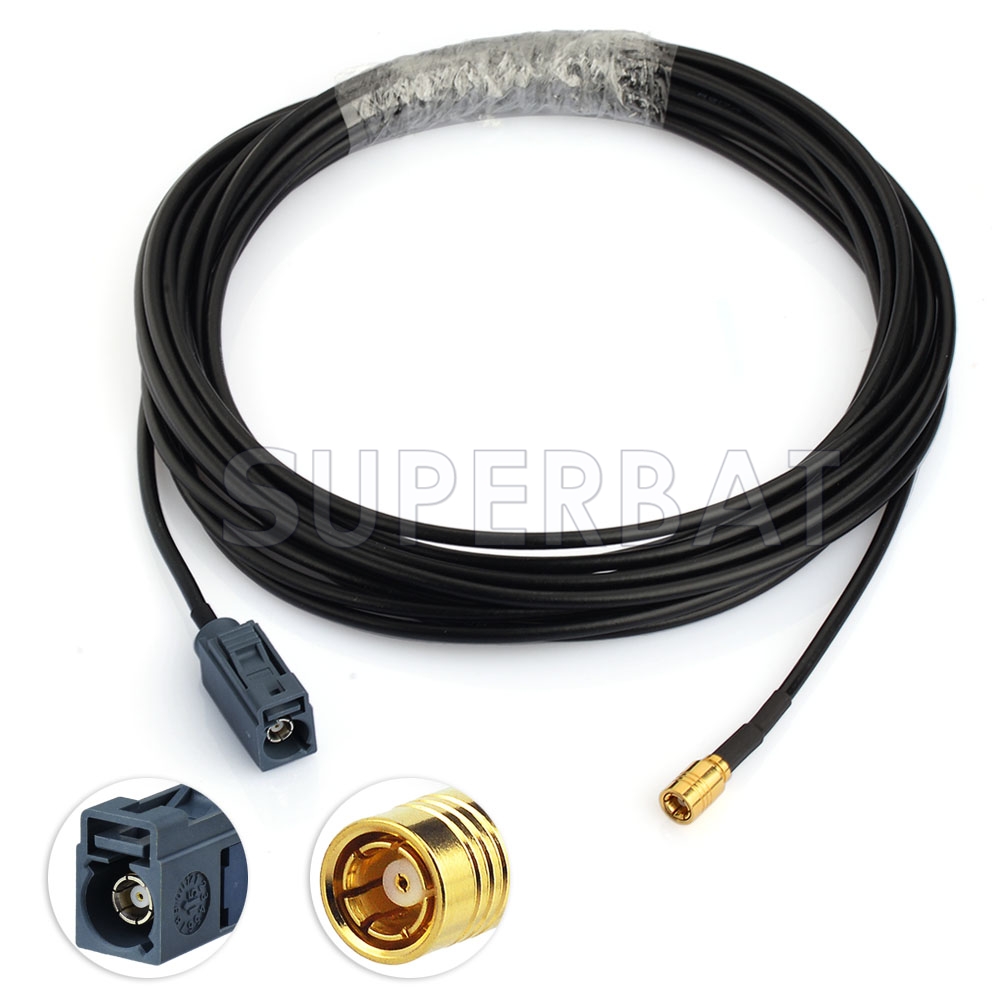

                 1pcs Fakra to SMB 5m Aerial Replacement Cable

                 1pcs Fakra to DIN 5m Aerial Replacement Cable

Advantages:

Very neat and stylish.

Roof mount DAB car radio aerial.

No need to unscrew mast for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance)

Vandal resistant.

Amplified.

Listing Suitable for the following DAB radios：

Alpine Ezi-DAB

pure Highway 300Di

Alpine All in-car DAB except Ezi-DAB

Beat ALL in-car DAB except 400 & 485

Blaupunkt All in-car DAB

Caliber Caliber ALL in-car DAB except PMT-700D

C-KO All in-car DAB

Clarion Clarion ALL in-car DAB except DAB302E

Clarity CCE203-DAB

Grundig All in-car DAB

JVC All in- car DAB

Kenwood All in- car DAB

Kinetic All in-Car DAB

pioneer All in-car DAB except GEX-P900DAB

philips CEM.....series

pure Highway H240Di H260D

Sonichi SB50-DAB

Sony All in-car DAB

Cautions:

DAB / FM only.

FM reception good, but not up to a top quality, full rod aerial.

Not designed for AM reception; will nevertheless receive strong MW signals.

Mounting surface must be flat to within 1.5mm.

Must not be mounted on a panel whose underside is exposed to the elements.

Max panel thickness: 2.5mm
