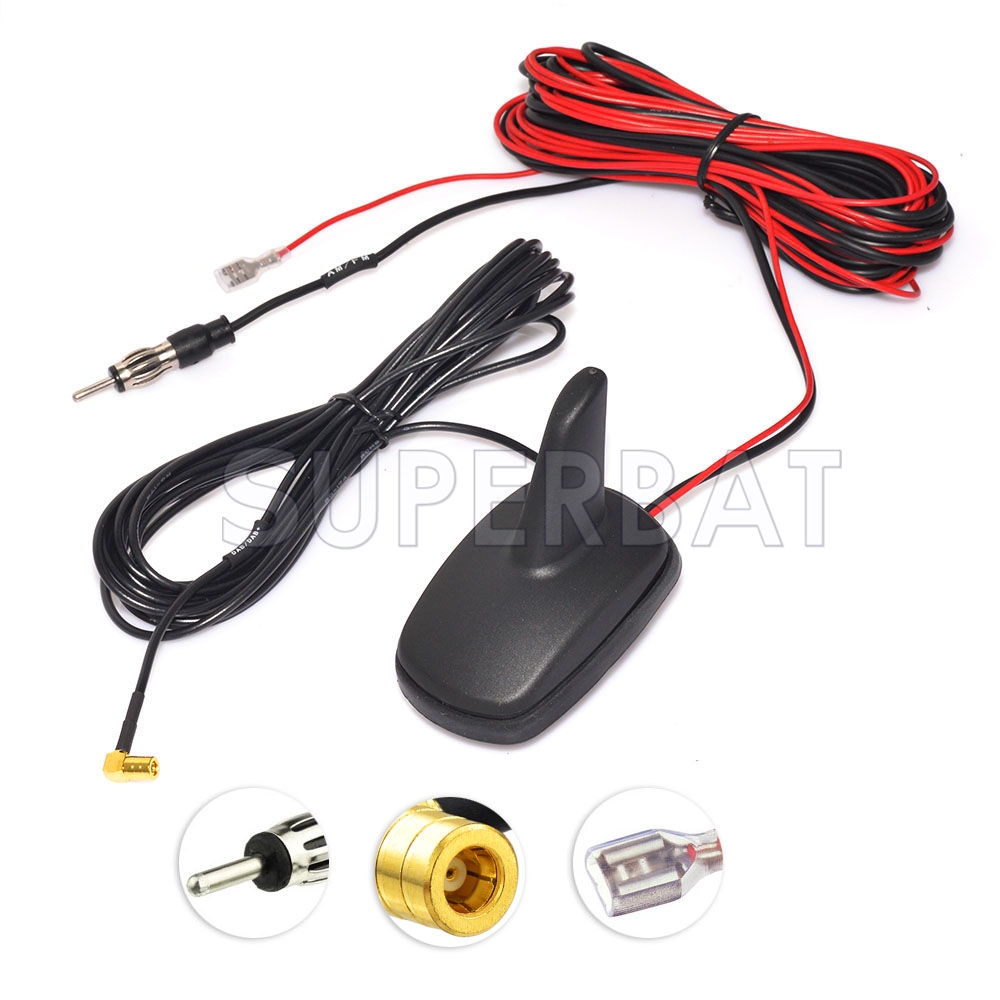

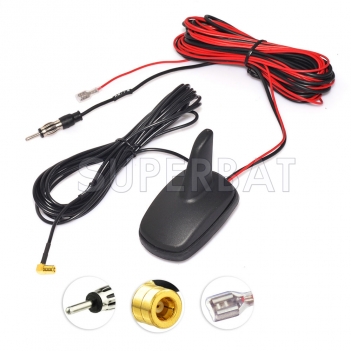

DAB/DAB+/FM/AM car digital radio aerial Roof mount Antenna with Amplified SMB Connector
DAB/DAB+/FM/AM car digital radio aerial Roof mount Antenna with Amplified SMB Connector
Unit Price: $26.59
sku:DB1-0112-D02SP-S05RA-500
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $26.59 $25.26 $23.93 $22.60 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 9999
Quantity: Units

Specifications:

DAB

Frequency:174MHz~240MHz (Band III)

Impedence :50 Ω

VSWR:≤2.0:1

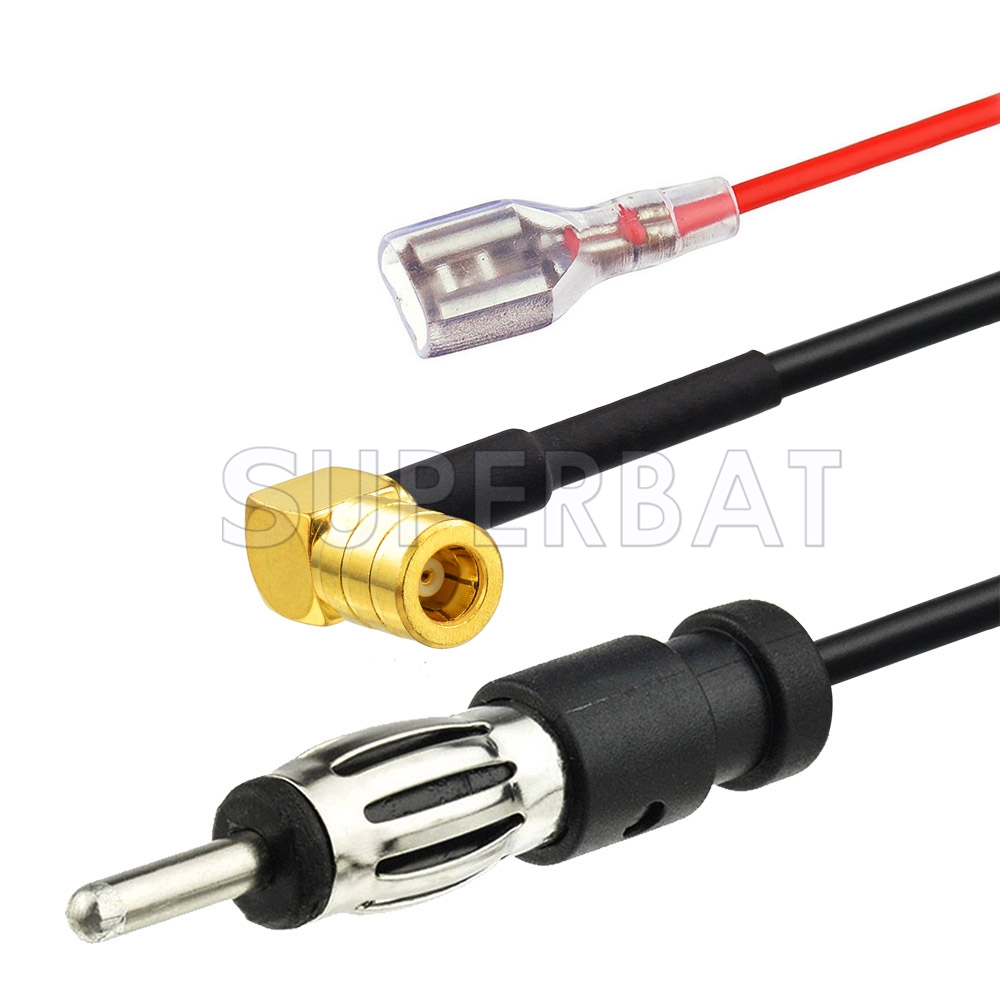

Connector :SMB Female

Cable:5m RG174


FM

Frequency: 87.5-108 MHz

Impedence : 50 Ω

VSWR:≤2.5:1

Connector:DIN Male

Cable: 5m RG174


Voltage : 12v direct feed for both DAB an AM/FM

Current Consumption : 50mA

Package included:5m DAB/FM Car Aerial


Advantages:

Very neat and stylish.

Roof mount DAB car radio aerial.

No need to unscrew mast for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance)

Vandal resistant.

Amplified.


Listing Suitable for the following DAB radios:

Alpine All in-car DAB except Ezi-DAB

Beat ALL in-car DAB except 400 & 485

Blaupunkt All in-car DAB

Caliber Caliber ALL in-car DAB except PMT-700D

C-KO All in-car DAB

Clarion Clarion ALL in-car DAB except DAB302E

Clarity CCE203-DAB

Grundig All in-car DAB

JVC All in- car DAB

Kenwood All in- car DAB

Kinetic All in-Car DAB

pioneer All in-car DAB except GEX-P900DAB

philips CEM.....series

pure Highway H240Di H260D

Sonichi SB50-DAB

Sony All in-car DAB


Cautions:

DAB / FM only.

FM reception good, but not up to a top quality, full rod aerial.

Not designed for AM reception; will nevertheless receive strong MW signals.

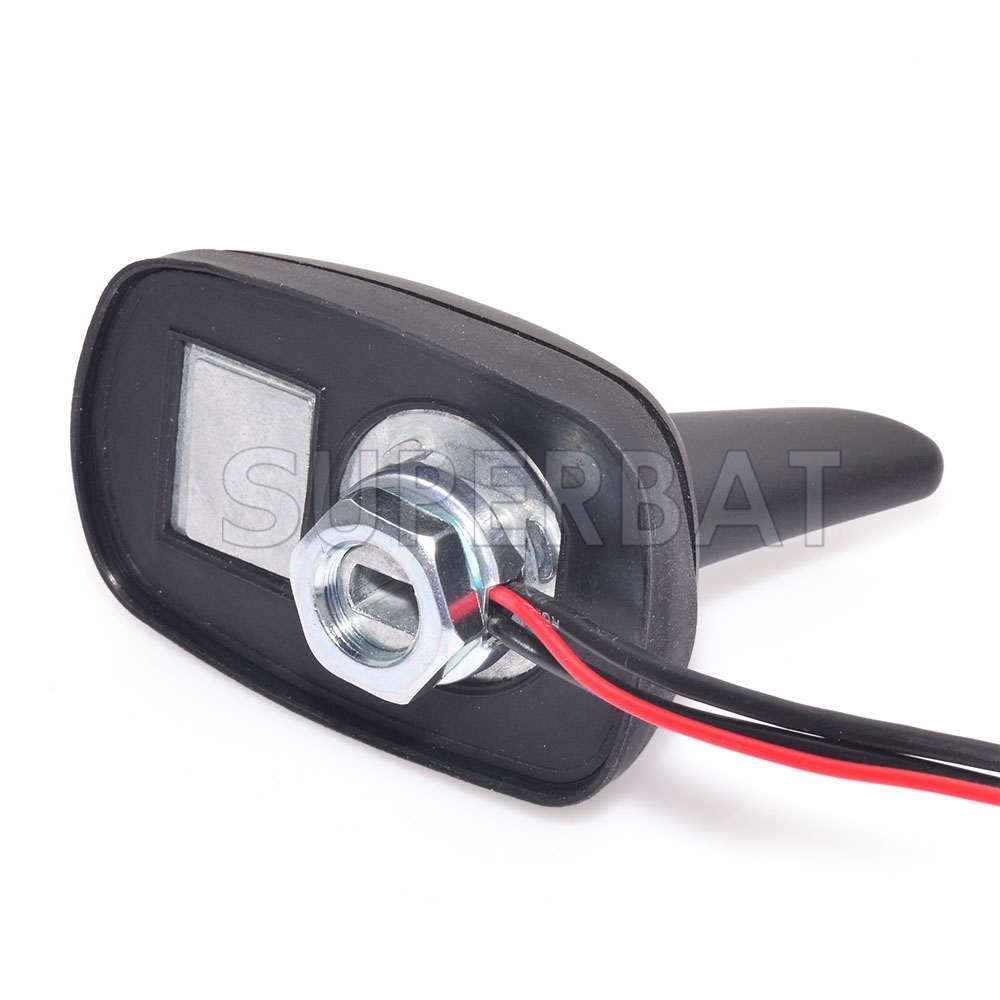

Mounting surface must be flat to within 1.5mm.

Must not be mounted on a panel whose underside is exposed to the elements.

Max panel thickness: 2.5mm
