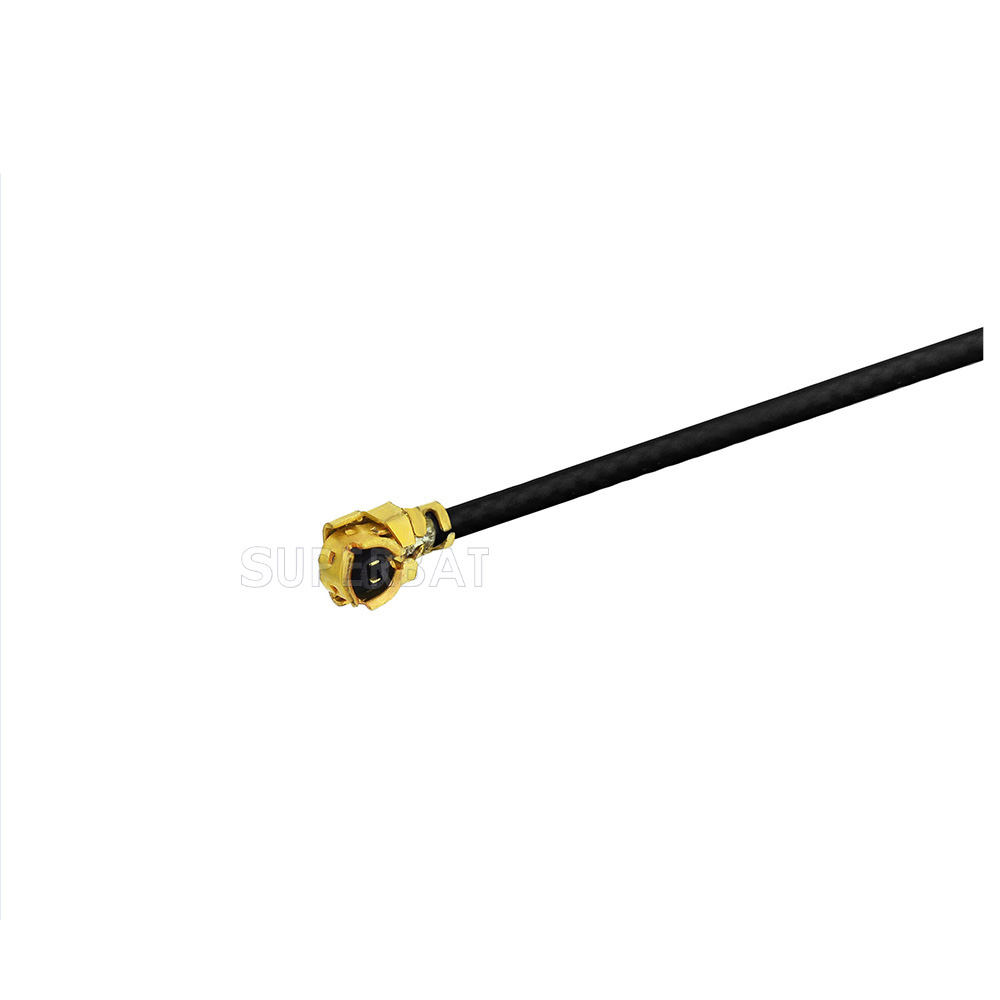

Custom RF Cable Assembly IPX/u.fl RF U.FL(IPEX/IPX) Mini PCI RF Cable Adapter Cable to exposed end /pre-made end/stripping end /RF connector
Unit Price: $5.00
sku:AC-U04RJ-F13
Real Time Availability
Stock: 10000
Quantity: Units

Connector Series 1: U.FL Connector Gender 1: Female , Jack Connector Polarity 1: Standard Connector Body Style 1: Right Angle Connector Mount Method 1: None Connector Impedance 1: 50 Ohm Connector 2 Series: SMA , SMB , N-Type , BNC , TNC , MMCX , MCX , Fakra , or Customized Cable Type: 1.13mm , 1.37mm , RG178 Length(cm): Customized

IPEX (IPX) MHF Connector is equivalent of Hirose U.FL connector. IPEX MHF is the generation one of IPEX micro RF coaxial connector. MHF connector is designed to have 2.5mm mating height and can operate 0~6GHz frequency.


Simple connection and disconnection Applications include Mobile phones, WLAN, Mini PCI, Bluetooth, PDA, GPS, electronic measuring instrument, etc.


PRODUCT FEATURES:

Product name : RF Custom Cable Assembly IPX/u.fl RF U.FL(IPEX/IPX) Mini PCI RF Cable Adapter Cable OD 1.13mm to exposed end /pre-made end/stripping end /RF connector

Connector A : IPX/u.fl

Connector B:  Customized ( exposed end /pre-made end/stripping end /RF connector according to your requirement)

Cable length : Customized (according to your requirement)

Cable type : Coaxial low loss RG-178 cable ,Cable OD 1.13mm,Cable OD1.37mm (according to your requirement)

Impedance : 50 Ω;
Operating temperature : -40°C ~ +85°C.


Welcome to build the RF cable assemblies depending your needs through our RF custom cable assembly wizard : https://www.rfsupplier.com/customcable.html
