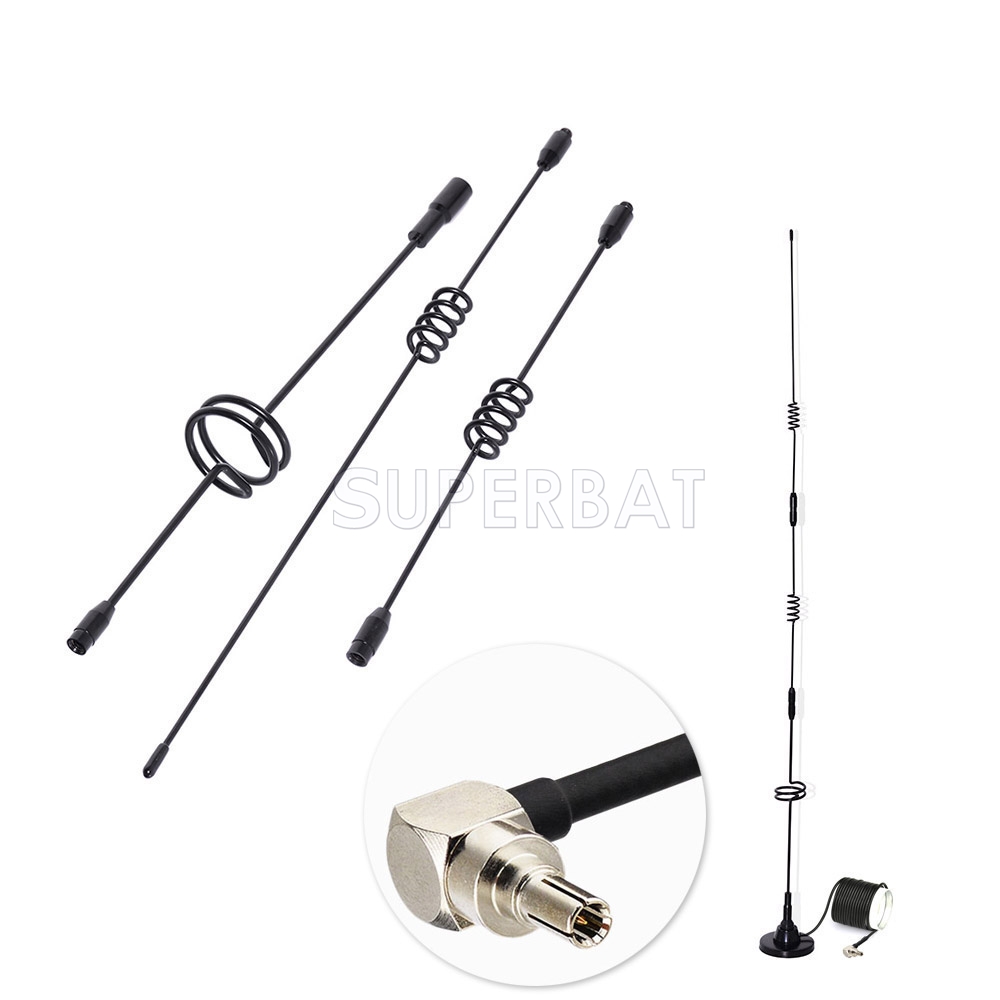

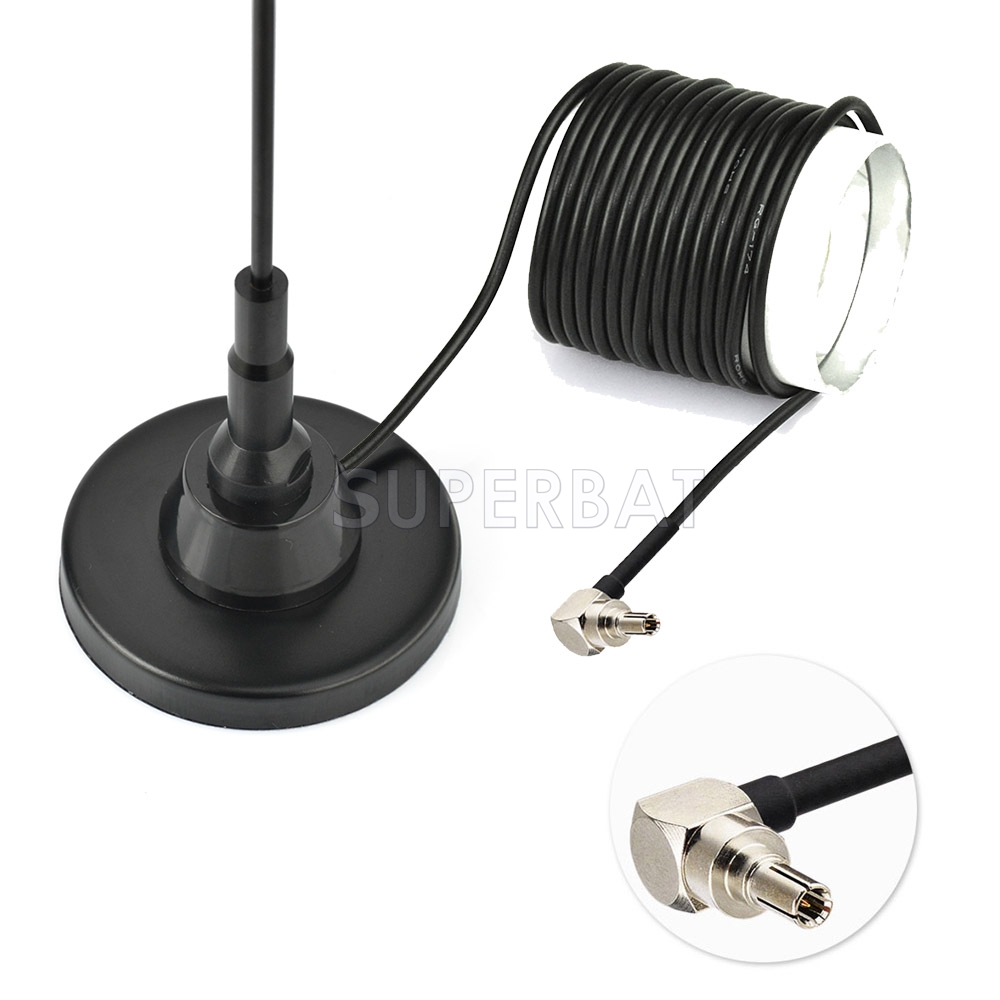

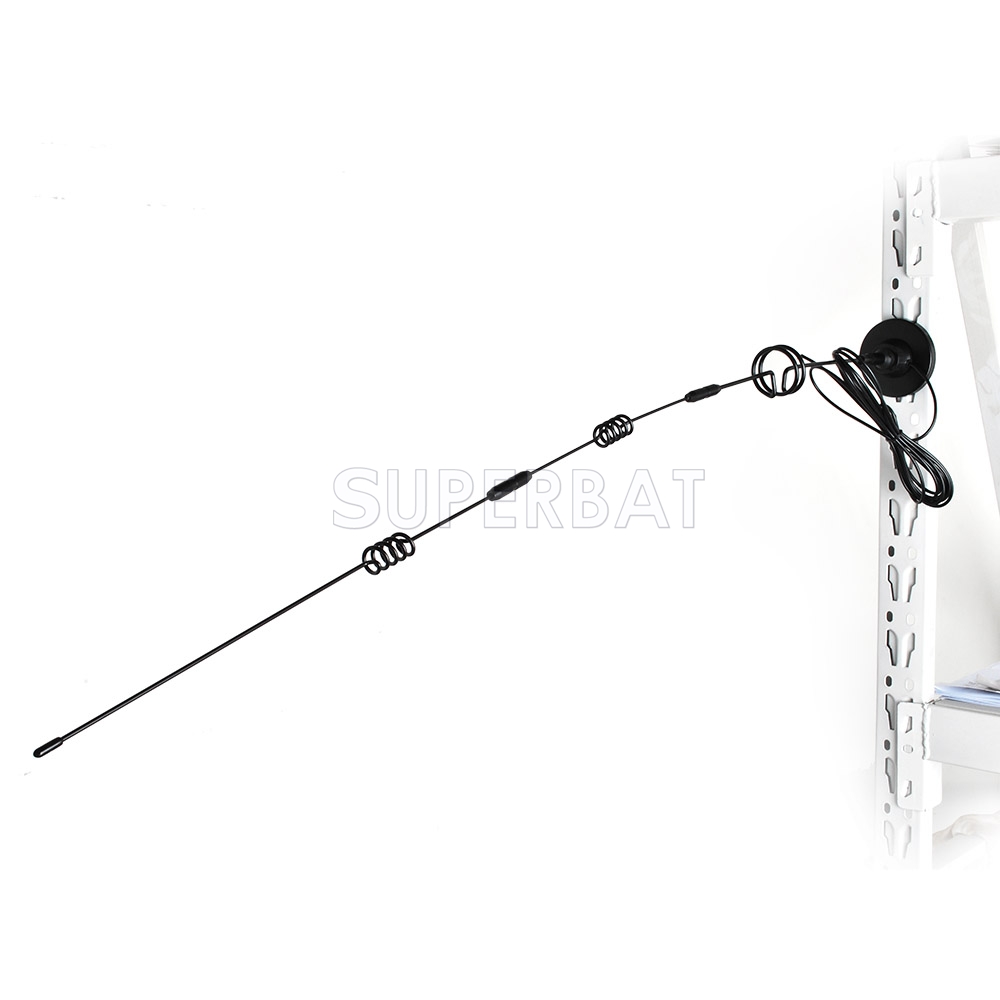

CRC9 connector GSM/UMTS/HSPA/CDMA/3G Antenna 10dB Magnetic Car antenna
Unit Price: $22.95
sku:3A1-1105-C01RA-100-300
End connector
quantity 1 - 9 10 - 49 50 - 99 100 - 999 1000+
Price Each $22.95 $20.66 $18.59 $16.75 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Magnetic Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 820-2170MHz Gain: 10dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3m Weight: 346


    Frequency Range(MHz):820-2170
    GSM/GPRS/EDGE 850/900/1800/1900MHz/2170MHz
    HSUPA/HSDPA/UMTS 2100MHz/900MHz
    CDMA 1900 MHz
    VSWR ≤1.5
    Gain: 10dbi
    Max Input power(W): 50
    Input Impedance(Ω): 50
    Polarization Type: Vertical
    Radiation: omnidirectional
    Max diameter :70mm
    Min diameter :2.5mm
    Max Wind Speed :230km/h
    Antenna Length(mm):987mm
    Cable Length(m): 3M
    Cable Type RG58 U/RG 174 default
    Connector Type : CRC9 or customized
    Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

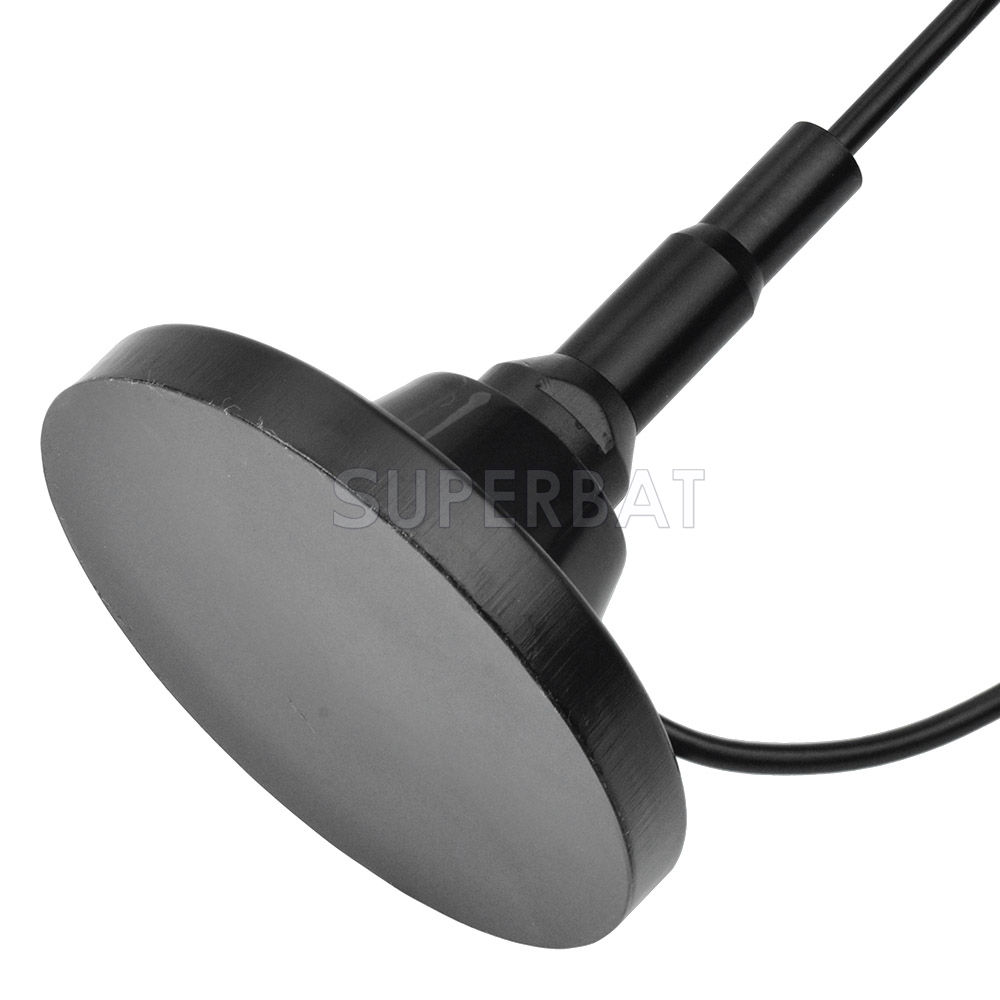

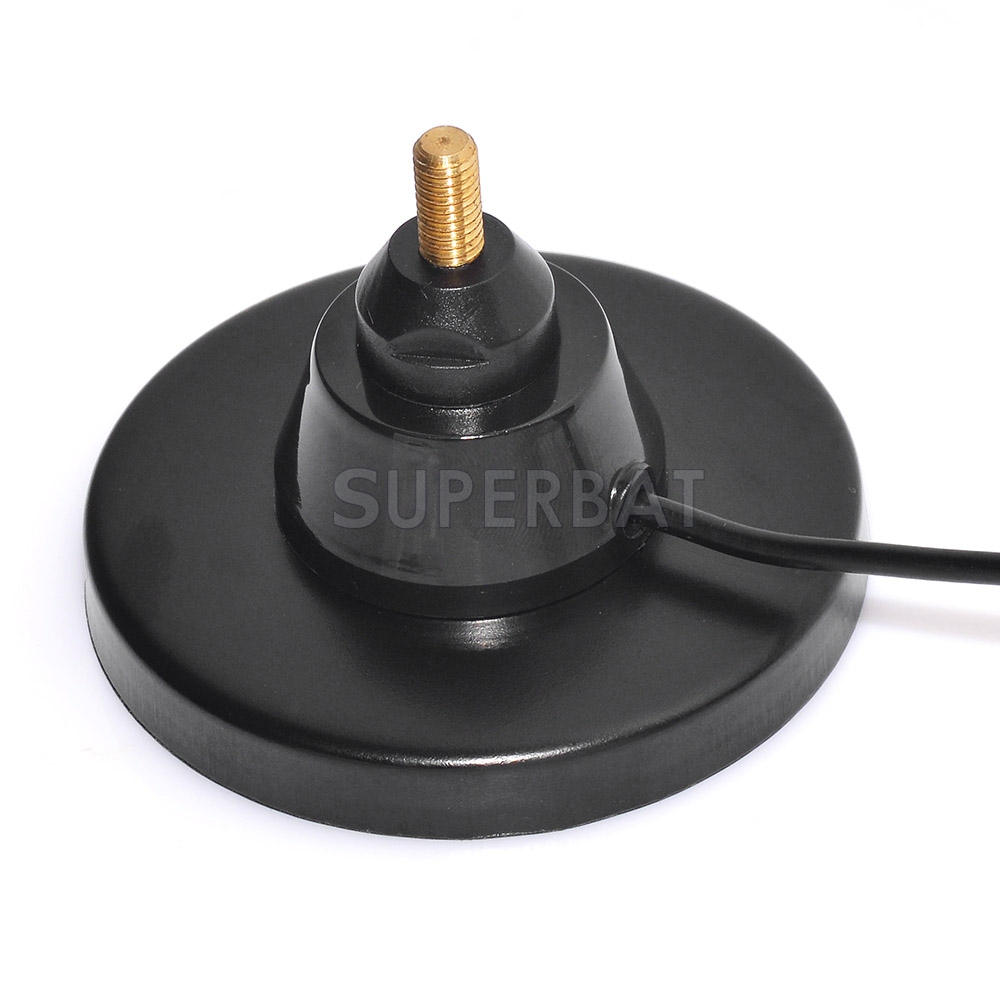

    Mounting: Magnetic
    Housing: Black
    Weight:346g

    Storage Temperature: -45'c to +75'c
    Operating Temperature: -45'c to+75'c
