Specification:

• Temperature Range: -55~+155°C (PE Cable -40~+85°C)

• Impedance: 70Ω

• VSWR: <1.2 Frequency Range: DC-3GHz

• Insertion Loss: ≤ 0.2dB/3GHz

• Withstanding Voltage: 2500V r.m.s at sea level

• Working Voltage : 1000Vr.m.s at sea level

• Insulation Resistance: ≥ 5000 MΩ

• Coupling nut retention force: 450N

• Durability: ≥ 500(cycles)

• Contact resistance:

• Center Contact: ≤1.5mΩ

• Outer Contact: ≤1mΩ

• Maximum power: 50W

• Discharge current capacity (kA@8/ 20μS): 10

• Materials and Plating: Body Brass, Nickel Plated, Teflon (PTFE) Insulators for sending Reliable Signal Every Time

• Connector: F-Female to F-Female 75 Ohm

Packing List:

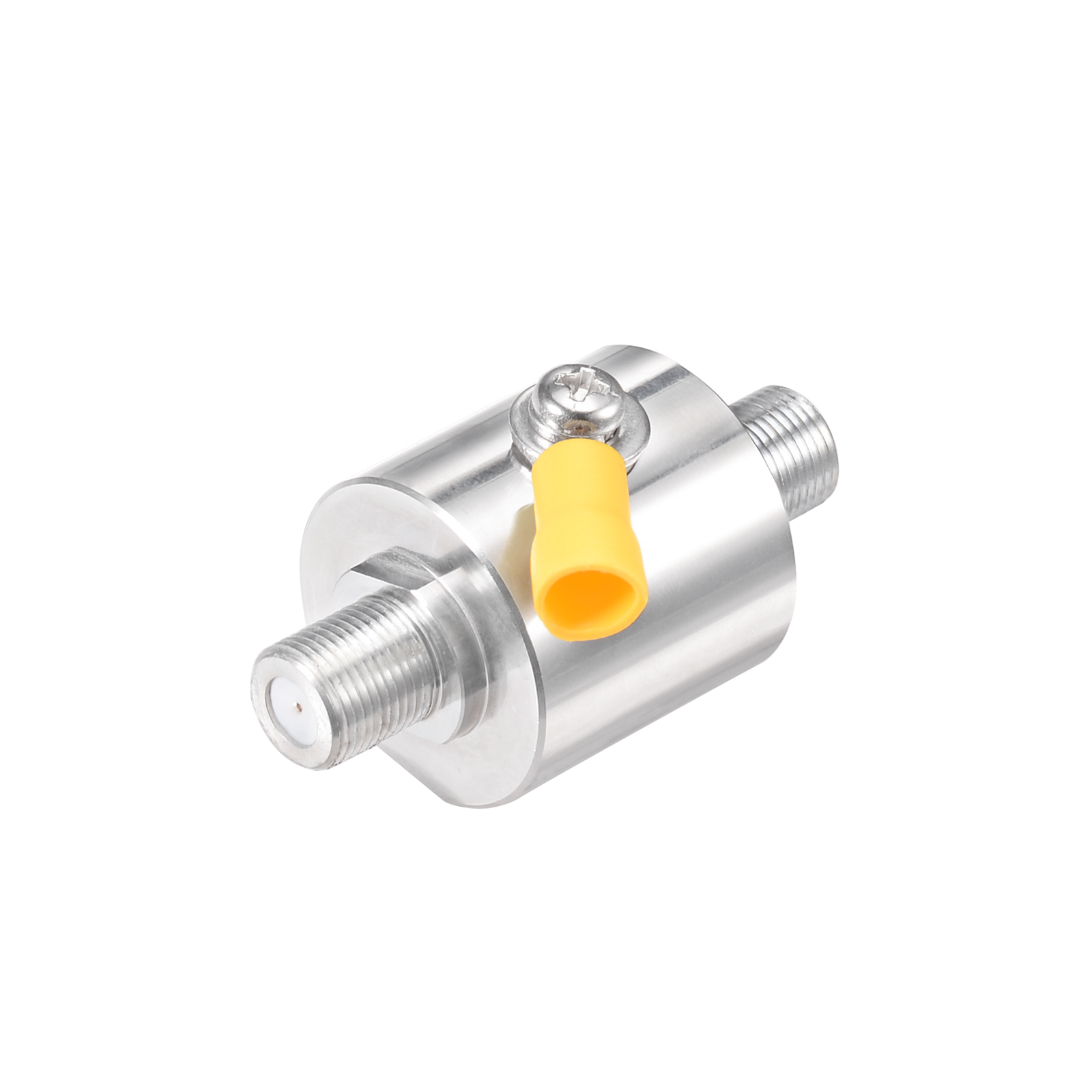

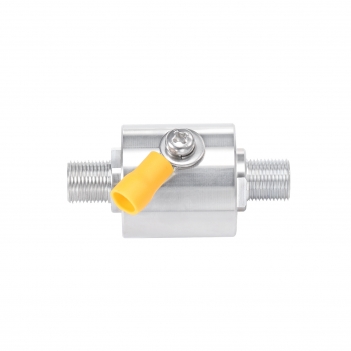

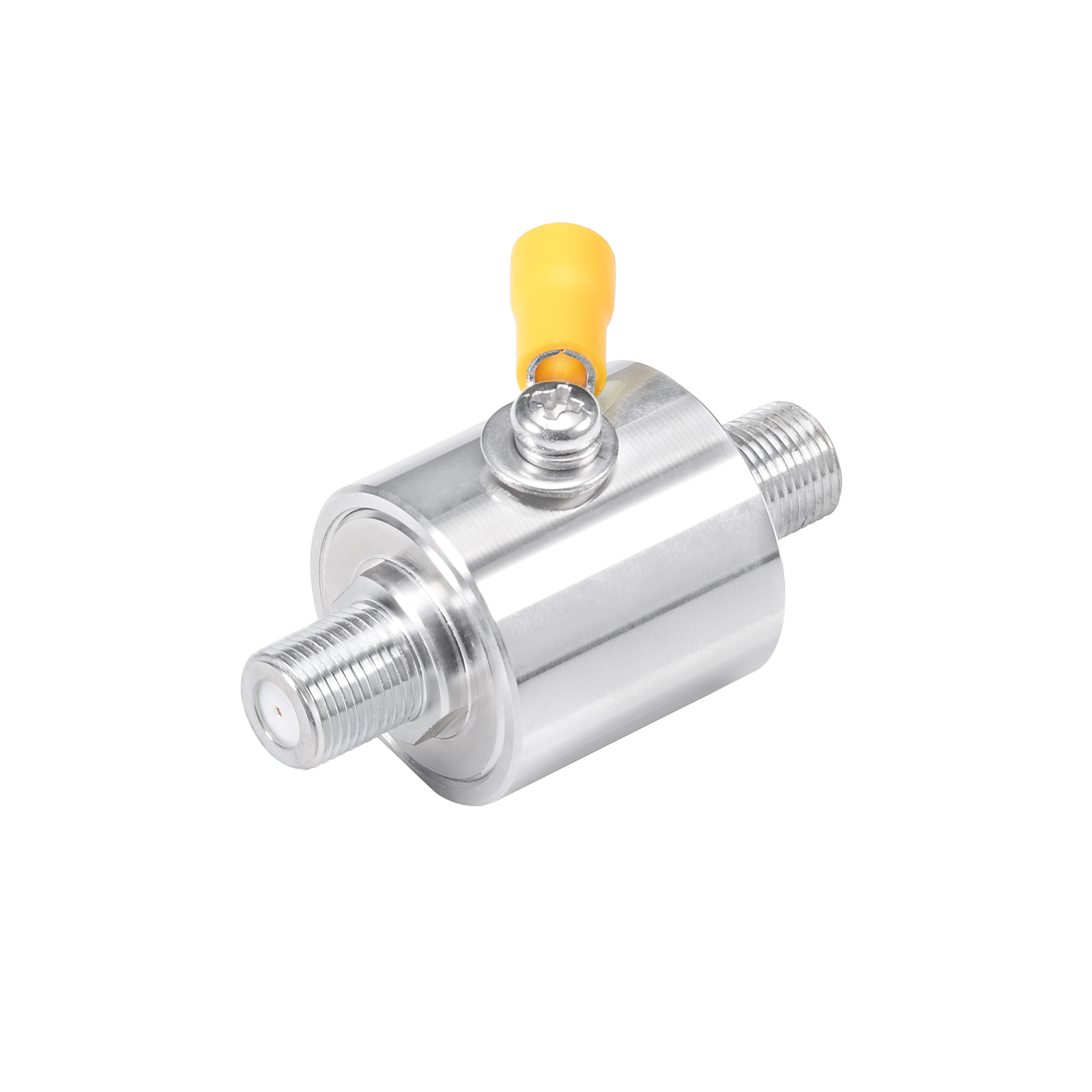

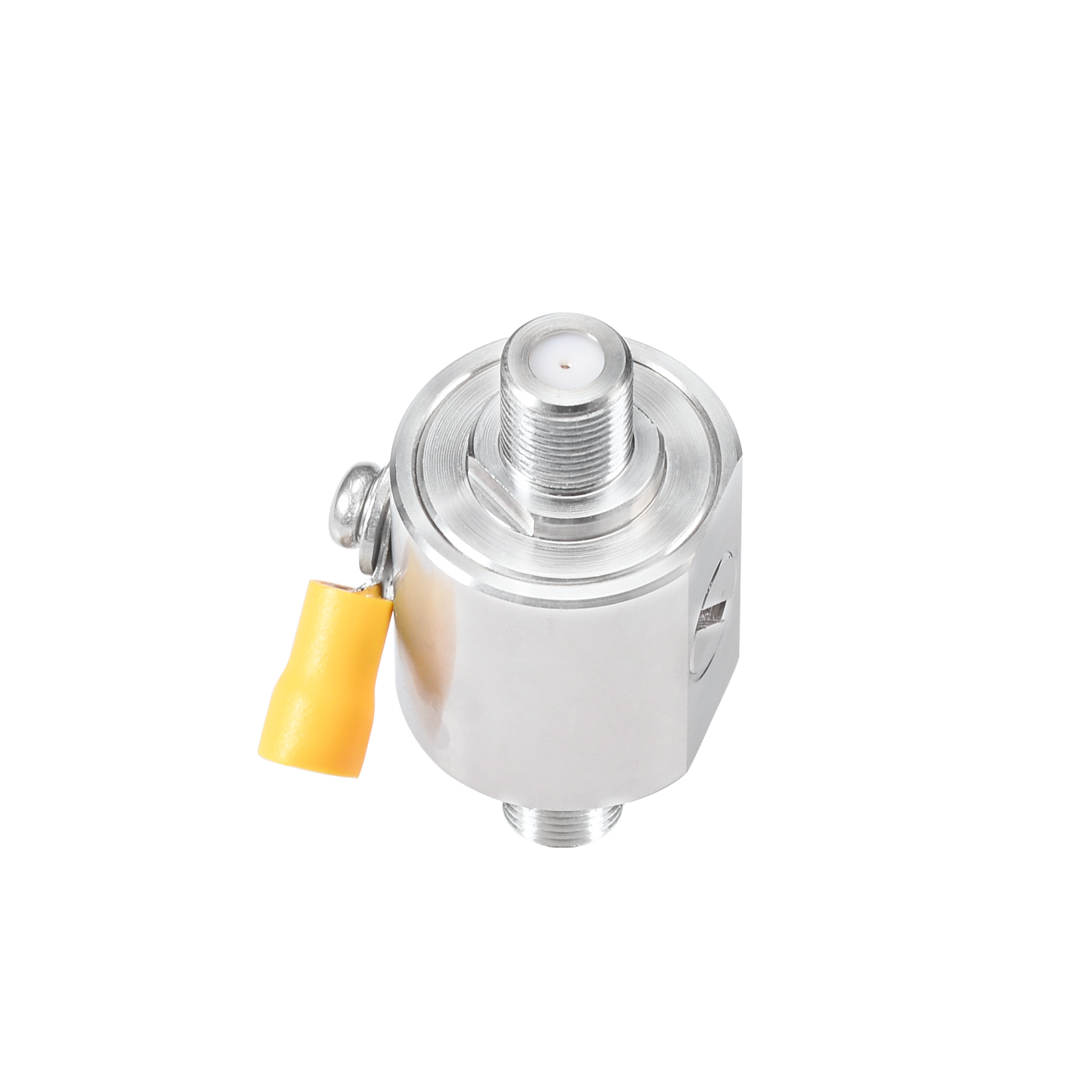

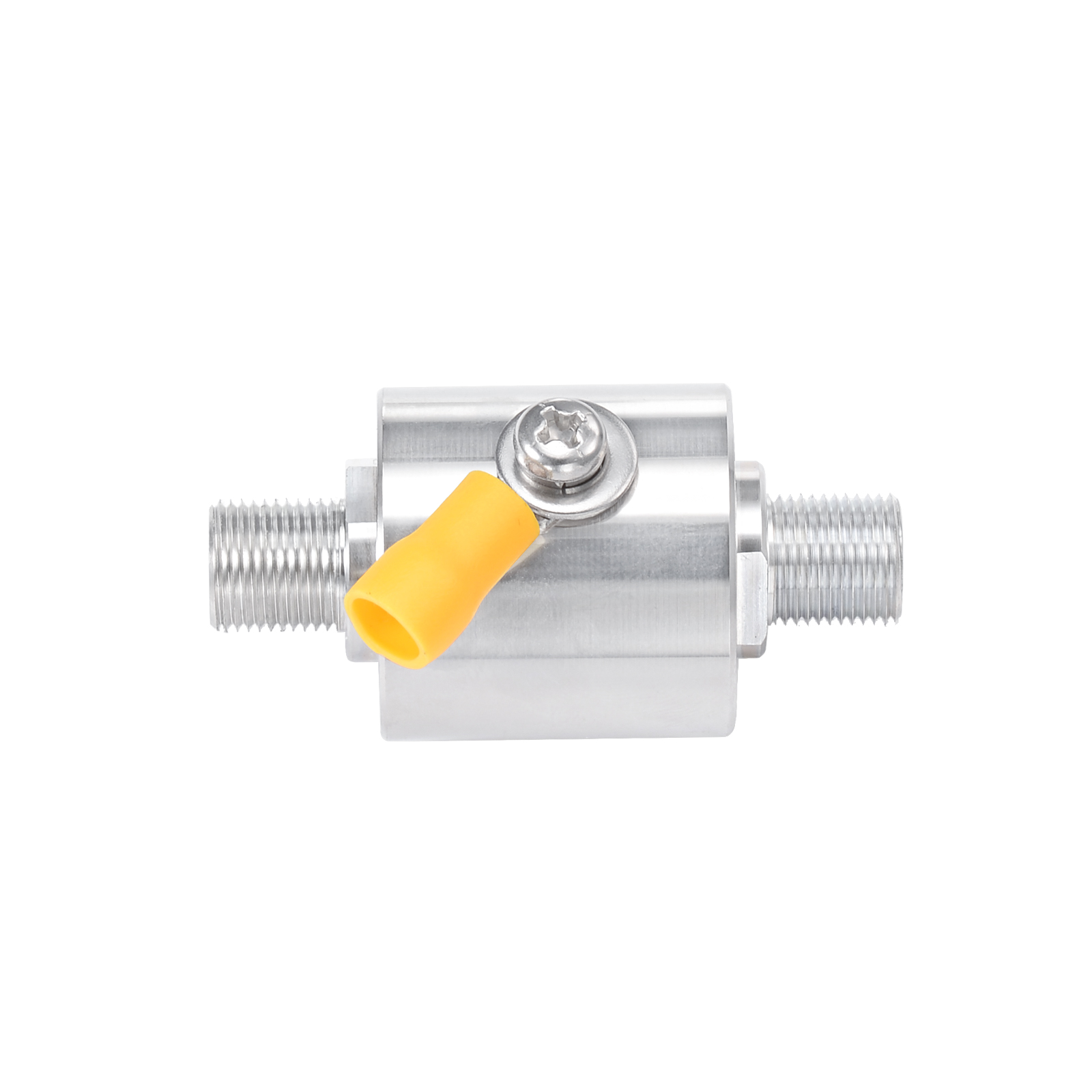

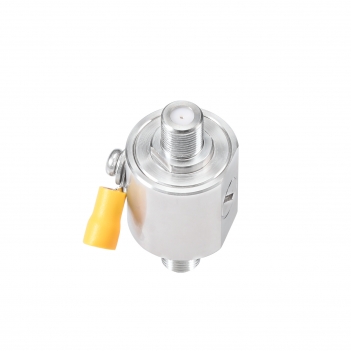

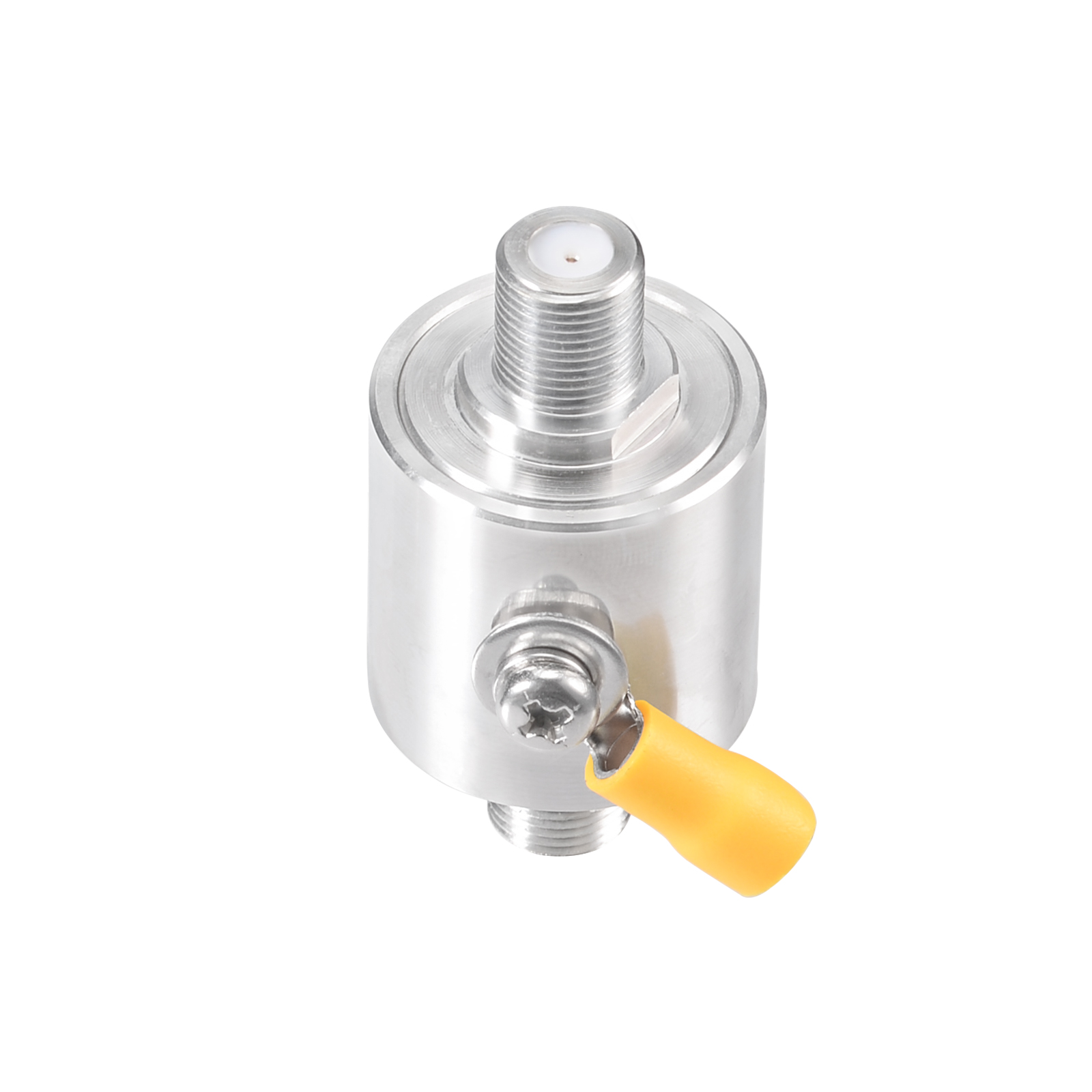

1 x Lightning Arrestor (Grounding power wire is NOT included)
