Specification:
Frequency Range: DC-3GHz
Discharge Voltage: DC90V
Impedance: 50 ohms
Insertion Loss: <0.1 dB
VSWR:1.2
Max Power: 50W
Max surge voltage let through:200 mV
Throughput Energy: 5 nJ
Max Current Load: 10A
Mechanical & Environmental:
Connector Types: SMA-Male to SMA-Female
Connector Body Material: Brass nickel plated
Pin：Body brass gold plated
Insulator Material: PTFE( Teflon)
Temperature Range: （-55℃ to +155℃）

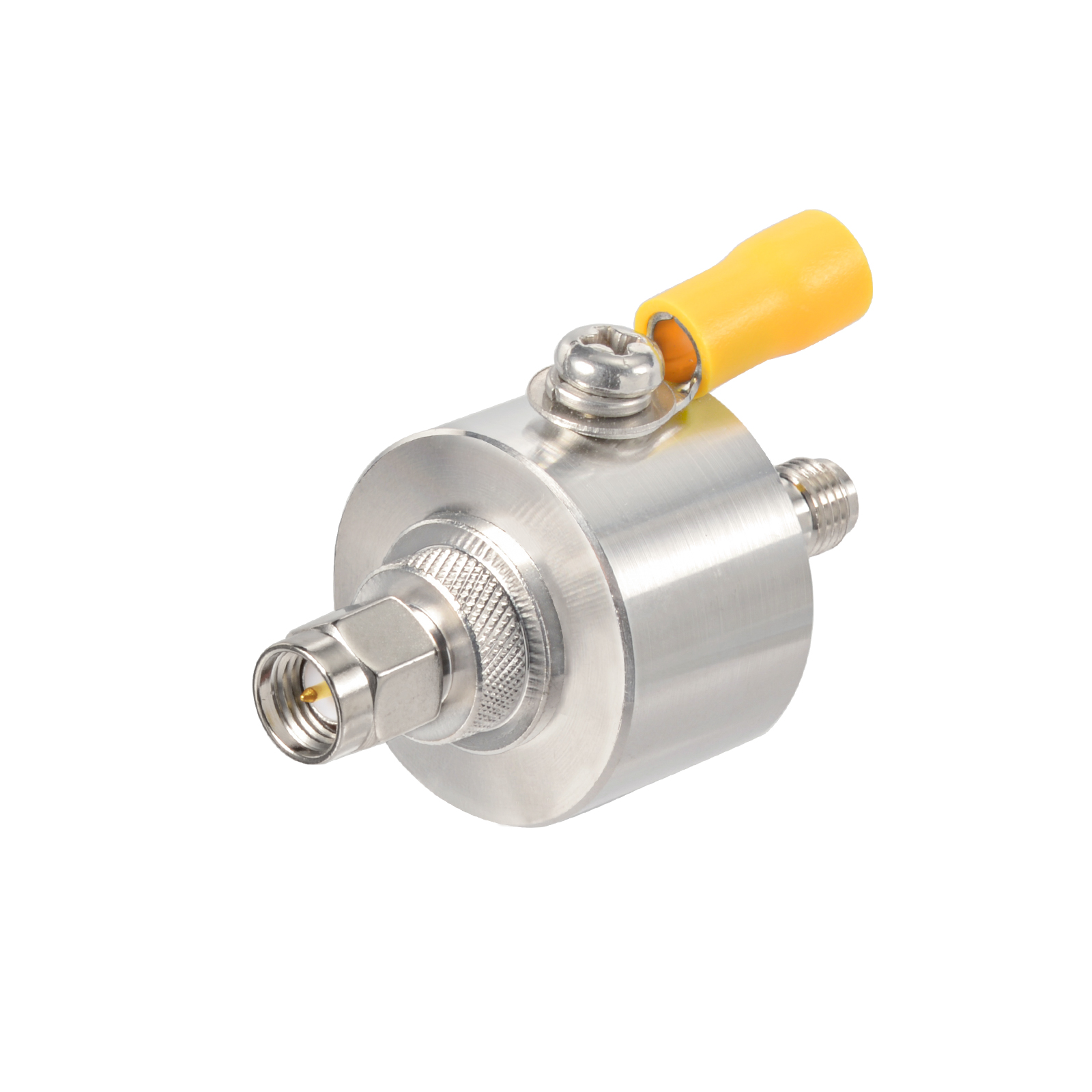

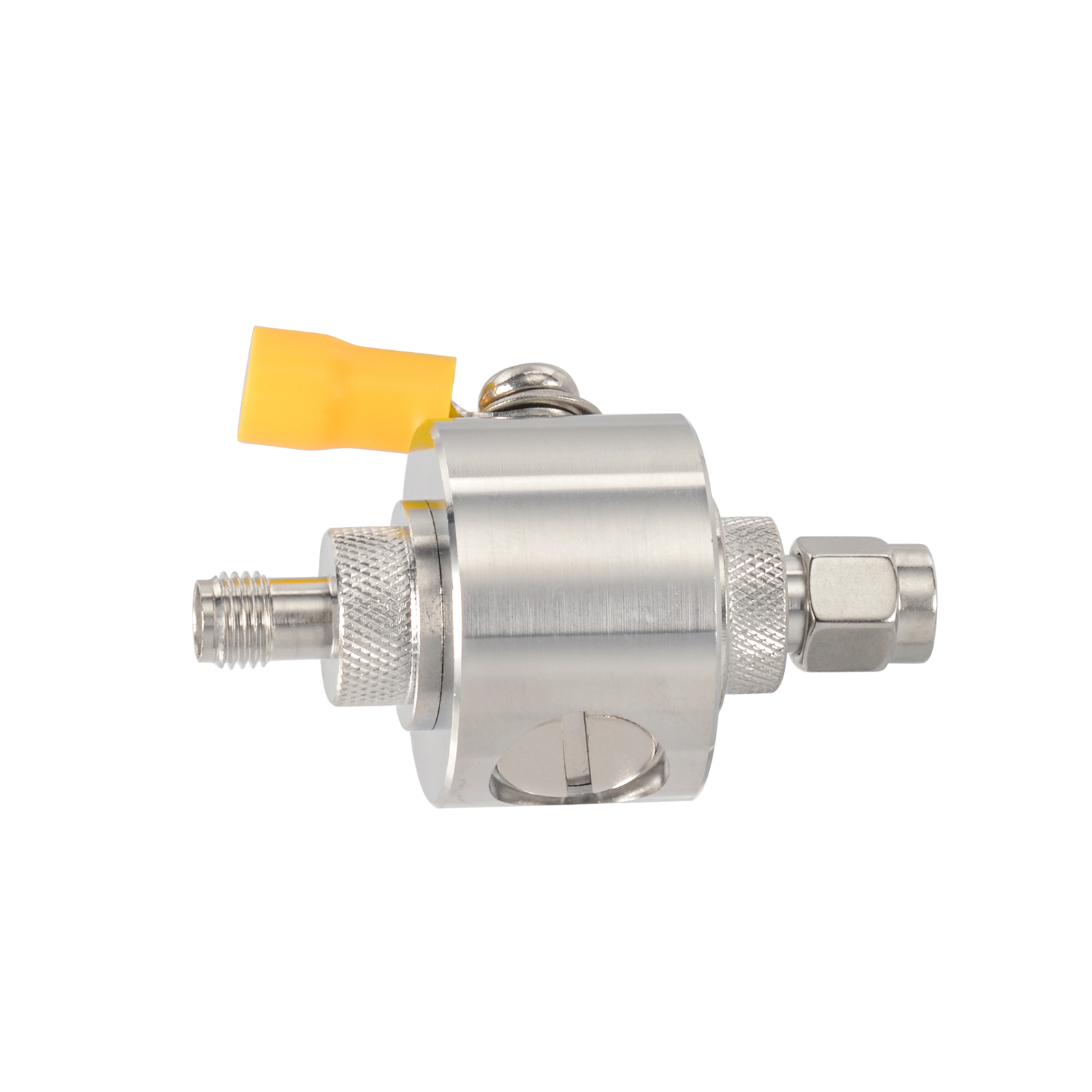

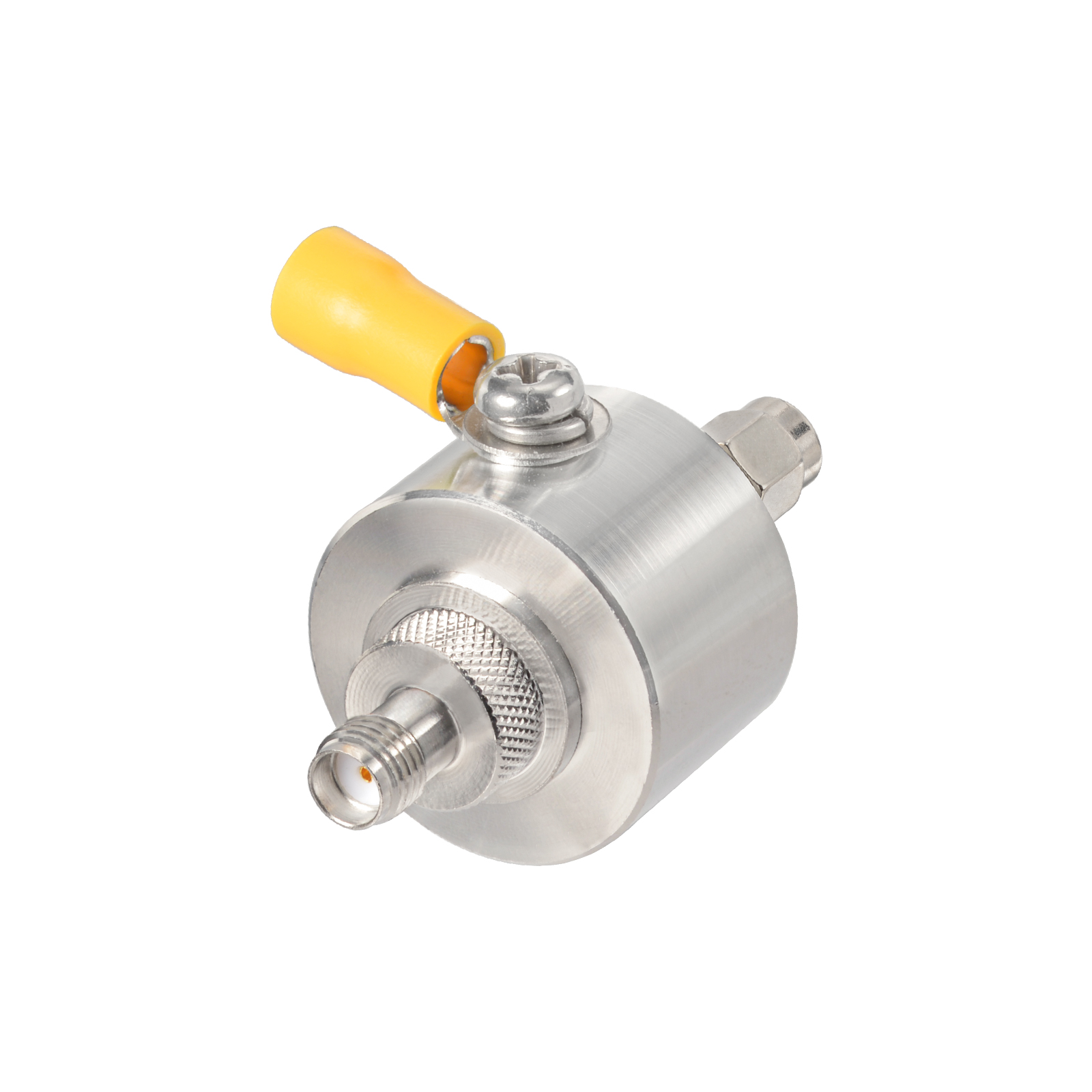

Packing : 1 x SMA Male to female lightning arrestor
