Specification

Dielectric：

XM:2320-2345mhz

VSWR：1.5:1

Bandwidth（MHz）：±5

Impedance：50ohm

Peak Gain ＞3dBi Based on 7cm×7cm ground plane

Gain Coverage ＞-4dBi at -90°＜0 ＜+90°(over 75% Volume)

Polarization：RHCP

LNA/Filter

LNA Gain (Without cable) ：28 dBi Typical

Noise Figure（dB）：1.5

Filter Out Band Attenuation (f0=1575.42 MHz)

7dB Min f0+/-20MHz;

20dB Min f0+/-50MHz;

30dB Min f0+/-100MHz

VSWR ＜2.0

DC Voltage（V）：2.7/3.0/3.3/5.0/3.0 to 5.0 etc.

DC Current（mA）：11 Max

Mechanical

Weight（gram）:131g

Size（mm）：84×53.8×62

Cable Length（m）：0.3 m (RG174)

Connector ：FAKRA curry female code K

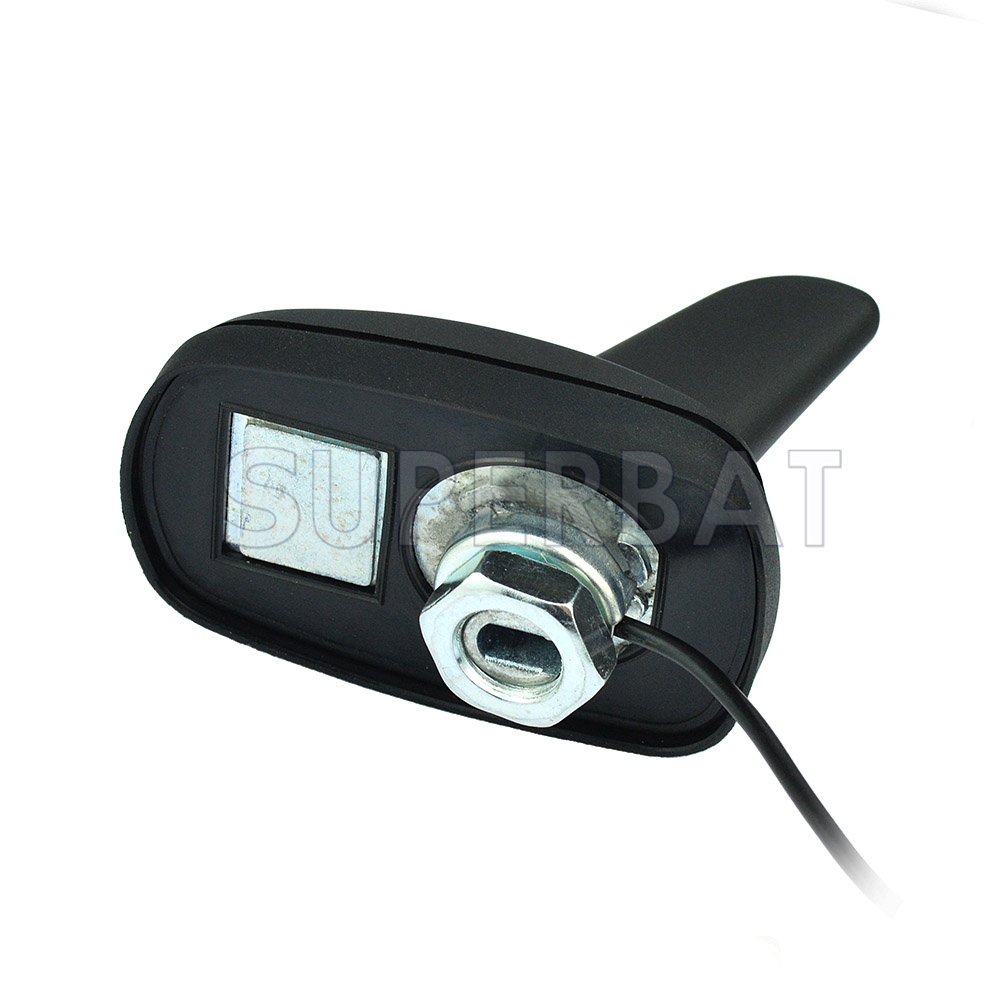

Mounting：Screw(Hole/Roof)

Housing：Black

Environmental

Working Temp：-40℃~+85℃

Storage Temp：-45℃~+100℃

Vibration：Sine sweep 1g(0-p)10~50~10Hz each axis

Humidity：Humidity95%~100%RH

Weatherproof：100%Waterproof

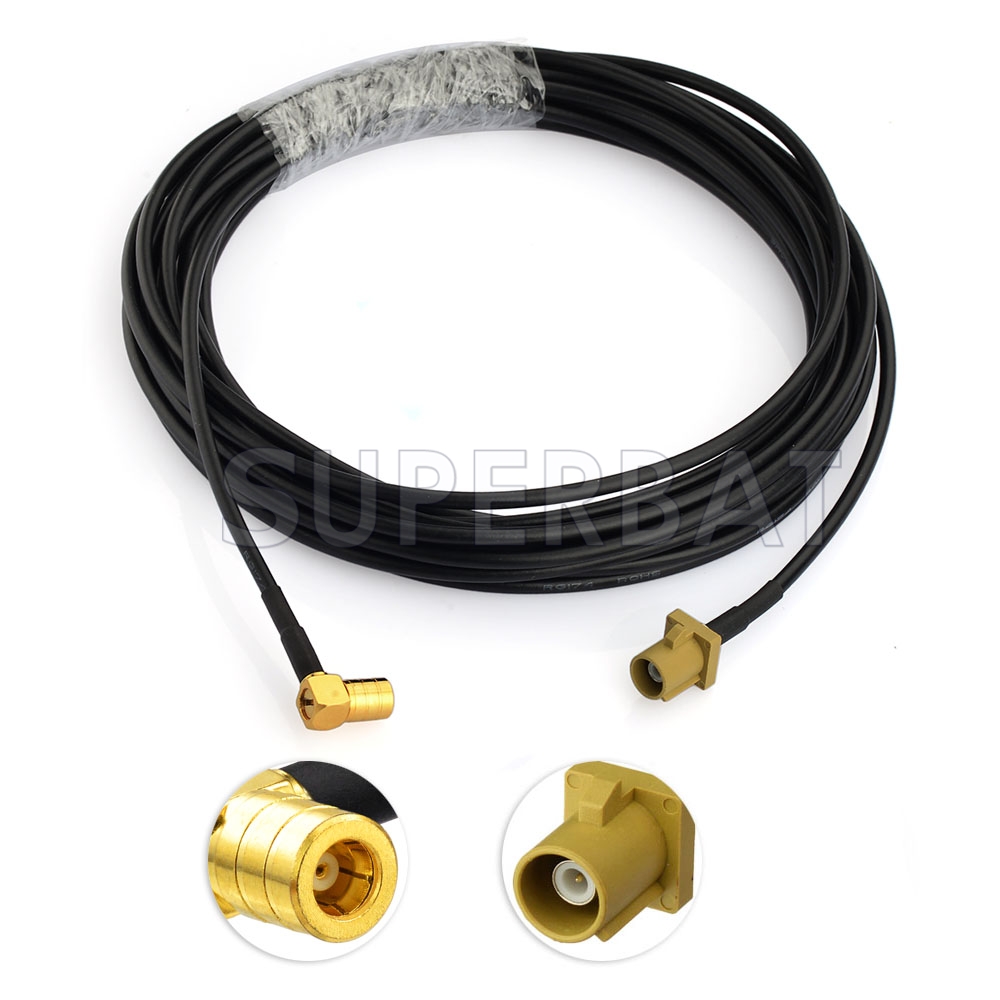

Antenna Replacement Cable

Connector:Fakra"K" male to SMB female

Cable:RG174 5M

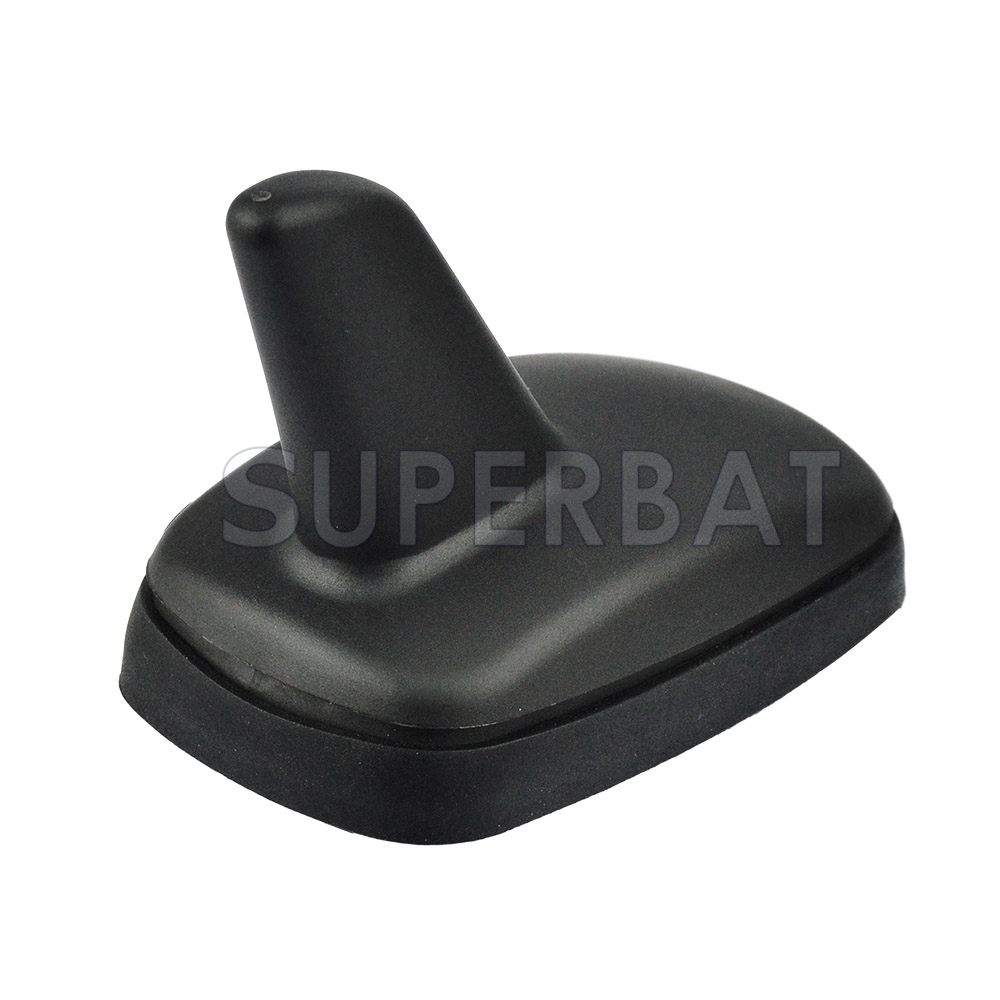

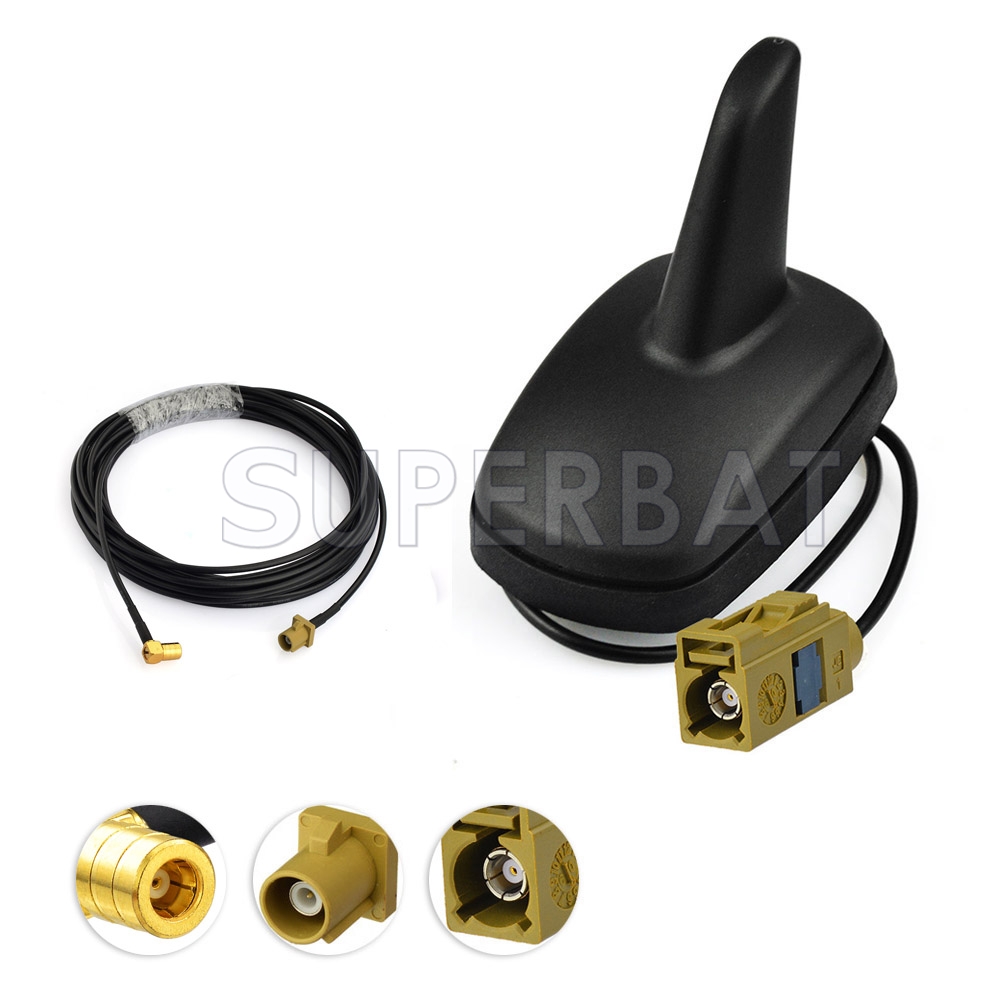

Package included:1pcs fakra Shark Fin Antenna (GA23-30-F03KSJ)

                                1pcs 5m Antenna Replacement Cable (AC-F03KSP-S05RA-174-500)

Listing Suitable for the following Satellite Radio

SiriusXM

XM

Pioneer

Audiovox

Samsung

Delphi

Giant Tao

Altec

AGT

Belkin
