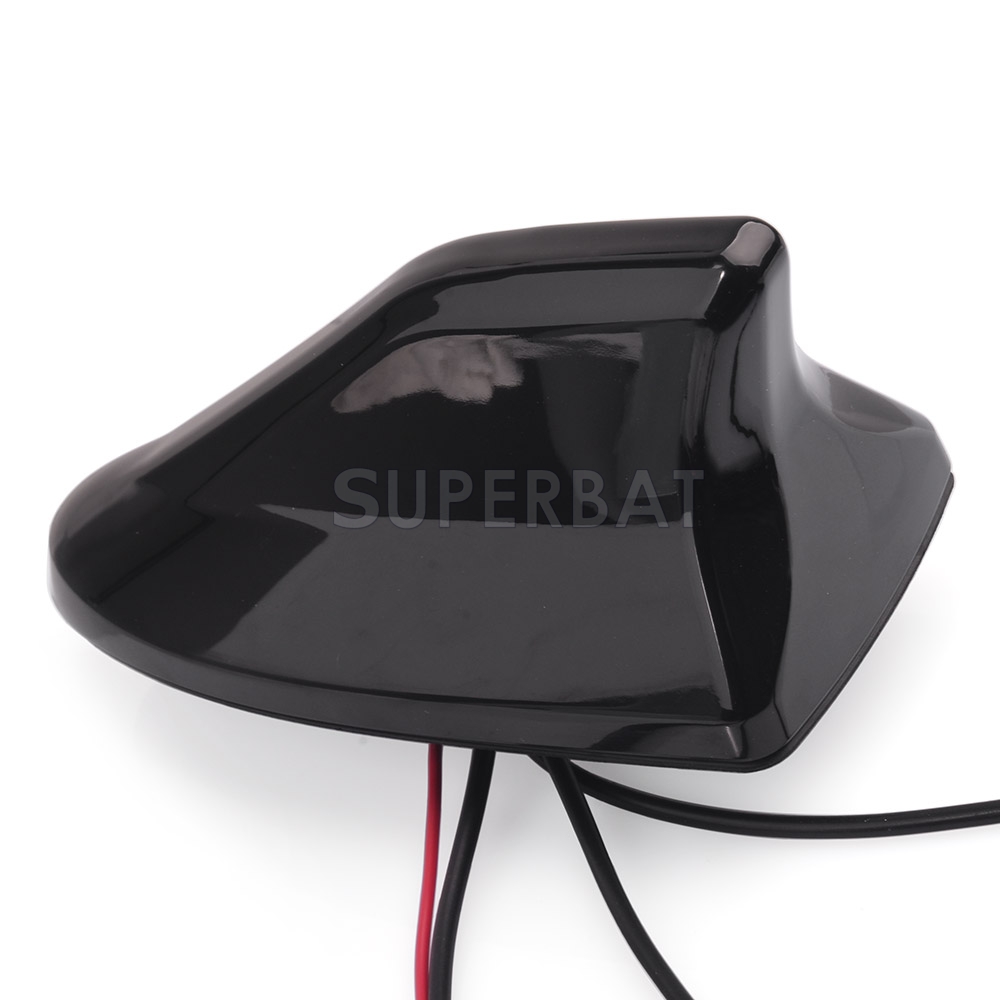

Car Roof Top Shark Fin Antenna,Vehicle In-Dash Head Unit GPS Navigation System DAB Digital Radio Car Stereo FM/AM Radio Combined Amplified Antenna
Car Roof Top Shark Fin Antenna,Vehicle In-Dash Head Unit GPS Navigation System DAB Digital Radio Car Stereo FM/AM Radio Combined Amplified Antenna
Unit Price: $58.99
sku:DB1-4609-S01SP-F04SP-S05RA-500
Real Time Availability
Stock: 9999
Quantity: Units

Feature:

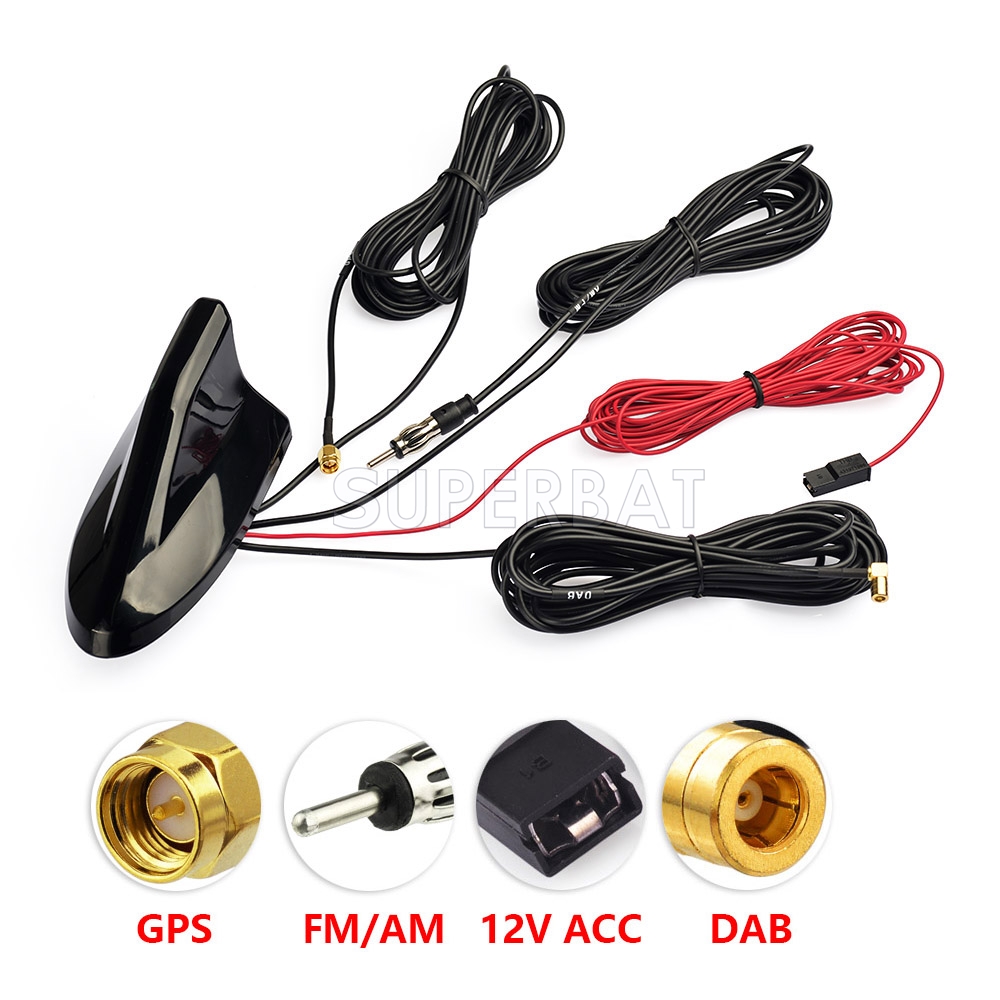

1)Combine GPS, DAB and FM/AM Antenna Application.

2)Car Top Roof Thru Hole Mount.

3)5 Meters of Antenna Adapter Cable and Signal Amplifier Power Supply Cable.

4)Apply to Normal Aftermarket Car Navigation Head Unit and In-Car DAB Digital Radio


FM/AM/DAB Radio Antenna Specification:

Working Voltage: DC 9V-16V

Working current: ≤60mA

DAB Frequency: 170MHz~240MHz (Band III), 1452MHz~1492MHz (L-Band)

FM/AM Frequency: 522~1710KHz(AM), 87.5~108MHz(FM)

Output Gain: 18dB±3dB (Band III), 8dB ±3dB (L-Band) , 13±3dB(AM), 16±3dB(FM)

Output impedance:  50Ω

V.S.W.R: ≤2.5:1 (FM/DAB)

Noise: ≤3dB(FM/DAB)

Cable length: 5 meters

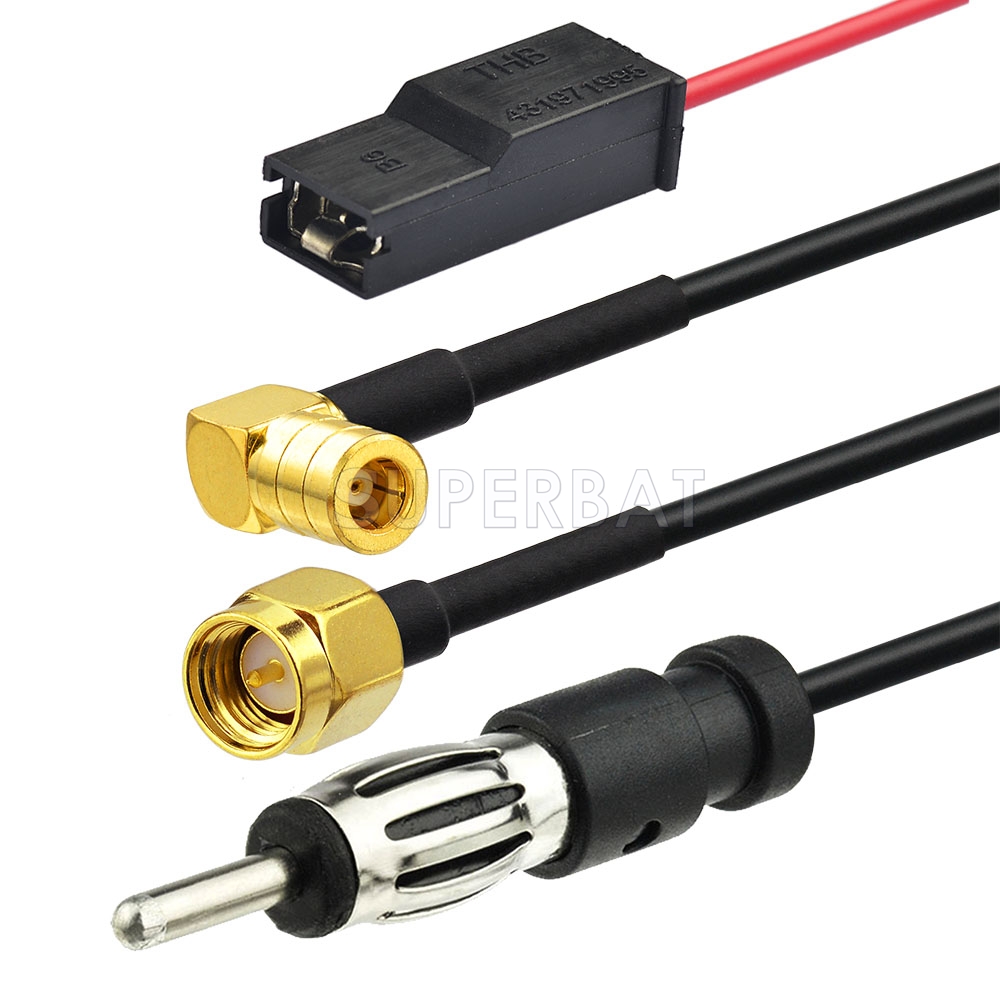

Cable Connector: Din Plug(FM/AM Radio)

                           SMB Plug Right Angle(DAB Digital Radio)


GPS Navigation Antenna Specification:

Working Voltage: DC 3V-5V

Working current: 10mA≤I≤30mA

Frequency:1575.42 ±1.023MHz

Output Gain: 28dB±3dB

Output impedance: 50Ω

V.S.W.R: ≤2.0:1

Noise: ≤1.5dB

Cable length: 5 meters

Cable Connector: SMA Male(GPS)

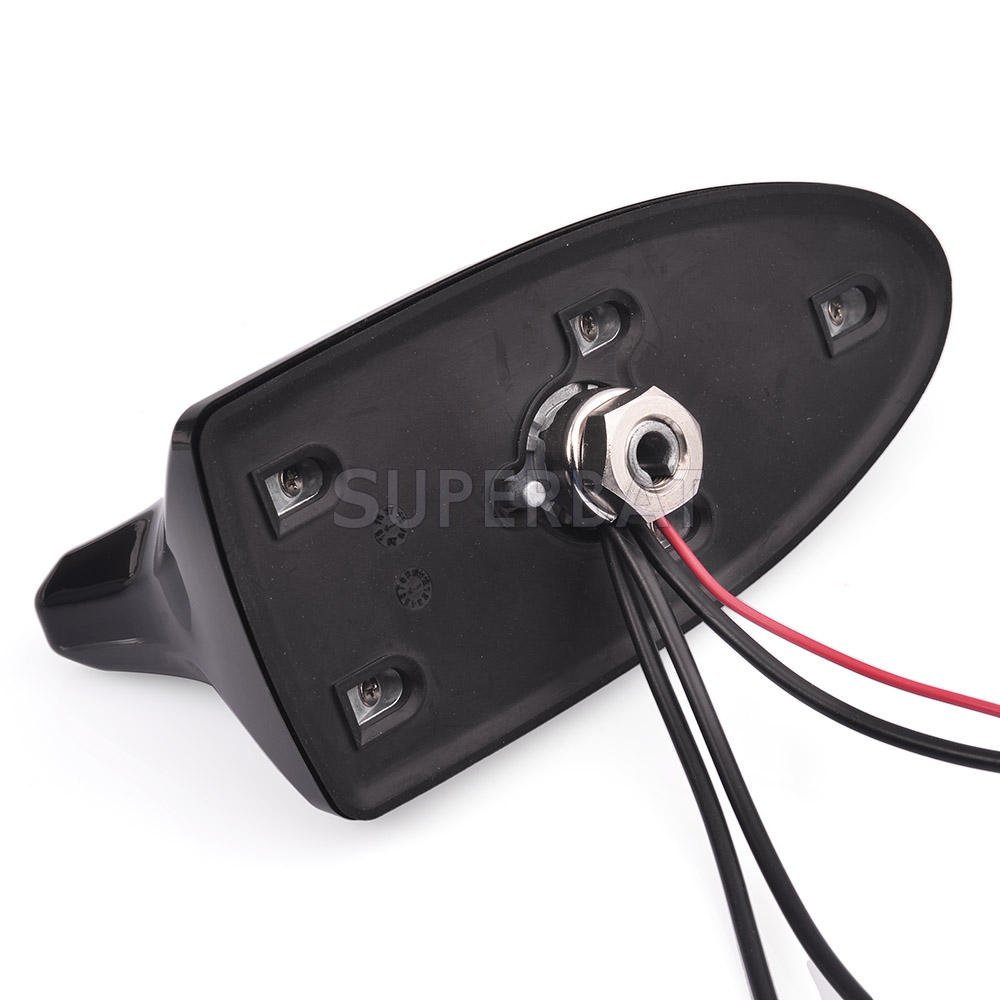

Roof Mounting: Drilling Hole Diameter 10.5mm

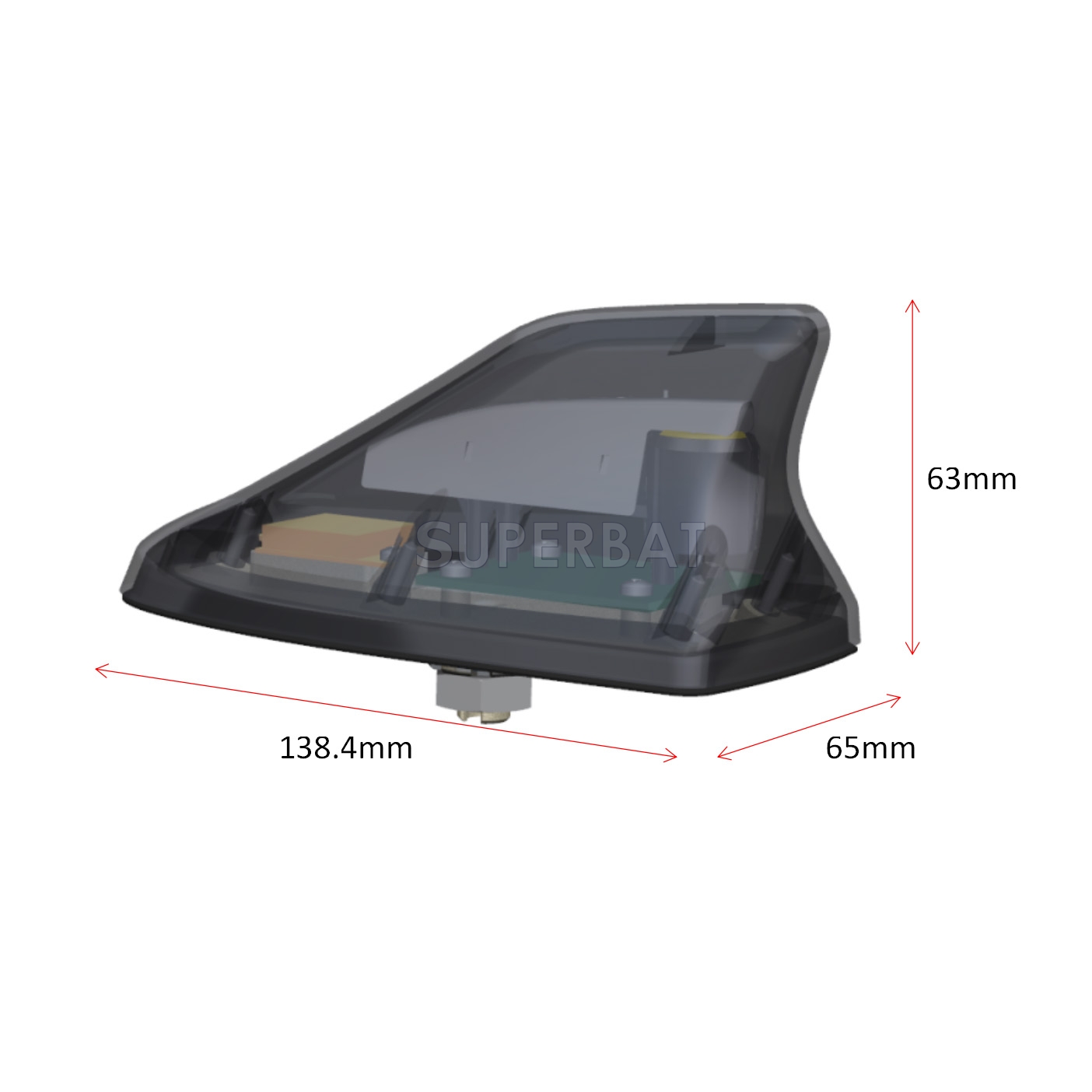

Dimensions (Length*Width*Height) :138.4mm * 65mm * 63mm

Net Weight: 505g


Packaging list:

1 x Antenna (Including Mounting Nut)
