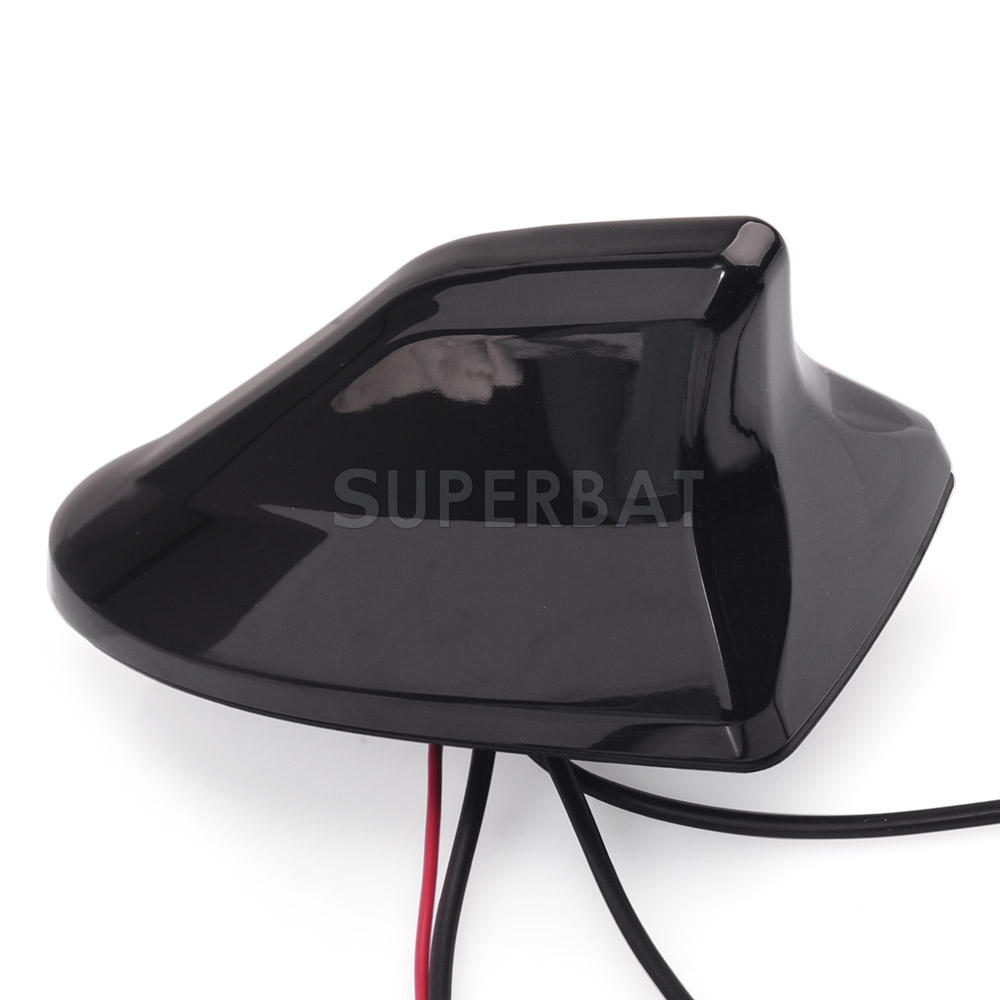

Car Roof Top Shark Fin Antenna,Vehicle GPS Navigation System DAB Digital Radio Car Stereo FM/AM Radio Combined Amplified Antenna for BMW Audi VW
Car Roof Top Shark Fin Antenna,Vehicle GPS Navigation System DAB Digital Radio Car Stereo FM/AM Radio Combined Amplified Antenna for BMW Audi VW
Unit Price: $59.99
sku:DB1-4609-F03CSJ-F03BSJ-F03ASJ-500
Real Time Availability
Stock: 1000
Quantity: Units

Feature:

1)Combine GPS, DAB and FM/AM Antenna Application.

2)Car Top Roof Thru Hole Mount.

3)5 Meters of Antenna Adapter Cable and Signal Amplifier Power Supply Cable.

4)Apply to BMW, Audi and Volkswagen Genuine DAB Module and Navigation System.


FM/AM/DAB Radio Antenna Specification:

Working Voltage: DC 9V-16V

Working current: ≤60mA

DAB Frequency: 170MHz~240MHz (Band III), 1452MHz~1492MHz (L-Band)

FM/AM Frequency: 522~1710KHz(AM), 87.5~108MHz(FM)

Output Gain: 18dB±3dB (Band III),  8dB ±3dB (L-Band) , 13±3dB(AM), 16±3dB(FM)

Output impedance:  50Ω

V.S.W.R: ≤2.5:1 (FM/DAB)

Noise: ≤3dB(FM/DAB)

Cable length: 5 meters

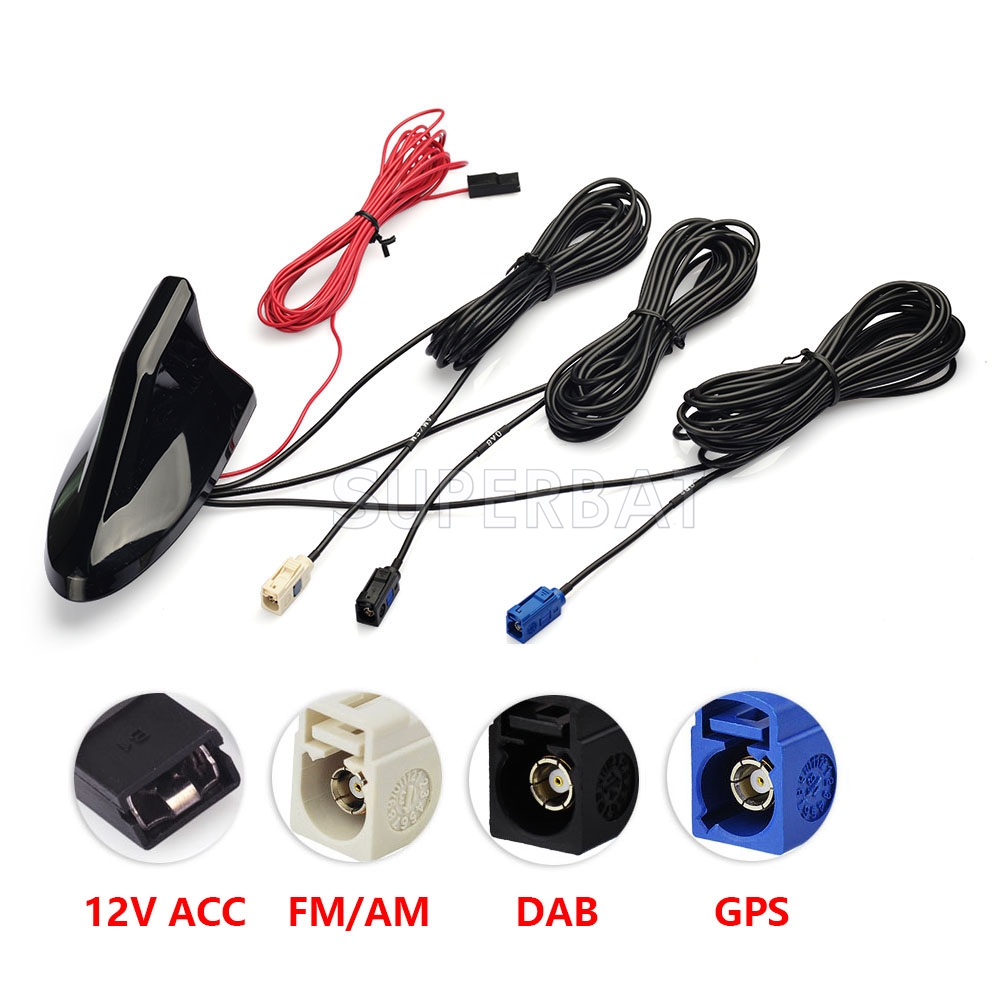

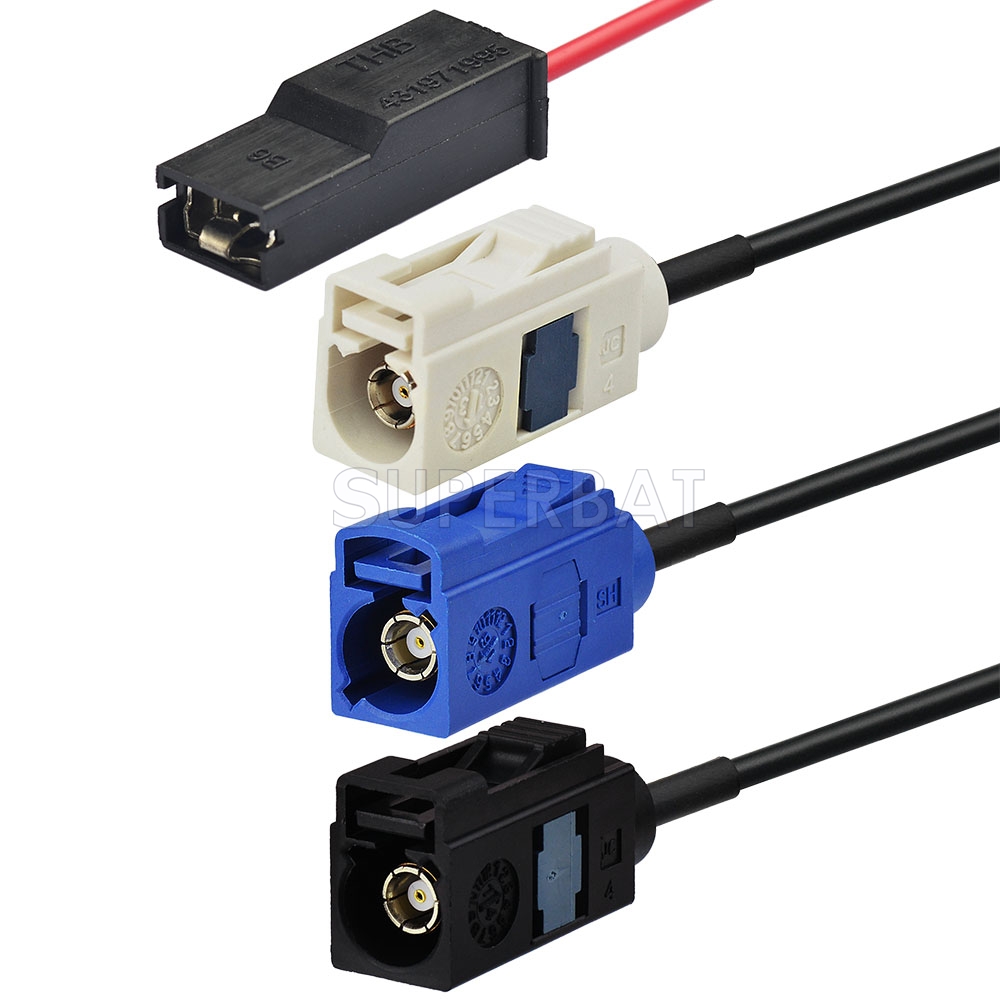

Cable Connector: Fakra B White Female(FM/AM Radio)

                           Fakra A Black Female(DAB Digital Radio)


GPS Navigation Antenna Specification:

Working Voltage: DC 3V-5V

Working current: 10mA≤I≤30mA

Frequency:1575.42 ±1.023MHz

Output Gain: 28dB±3dB

Output impedance: 50Ω

V.S.W.R: ≤2.0:1

Noise: ≤1.5dB

Cable length: 5 meters

Cable Connector: Fakra C Blue Female(GPS)

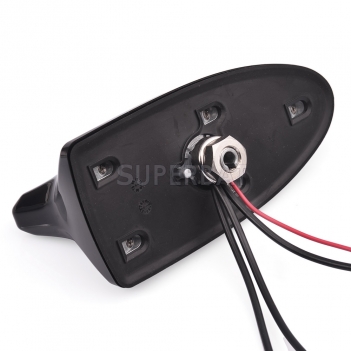

Roof Mounting: Drilling Hole Diameter 10.5mm

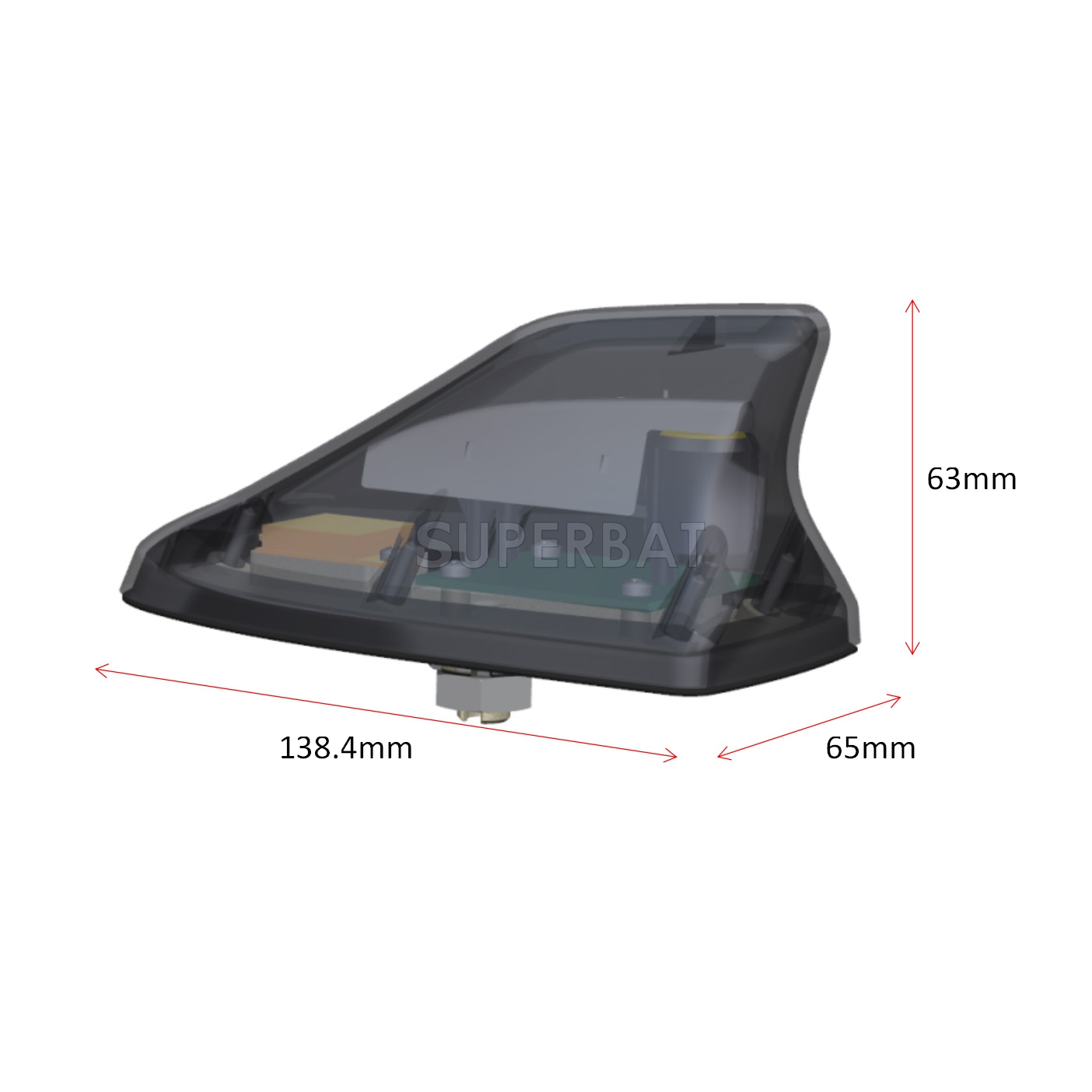

Dimensions (Length*Width*Height) :138.4mm * 65mm * 63mm

Net Weight: 505g


Packaging list:

1 x Antenna (Including Mounting Nut)
