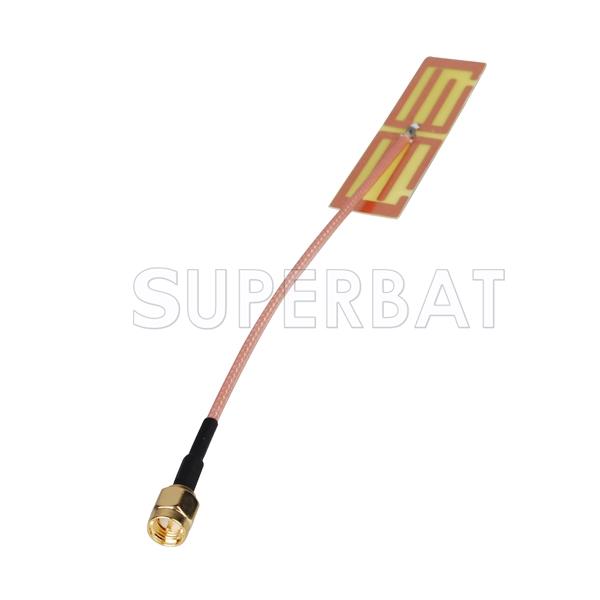

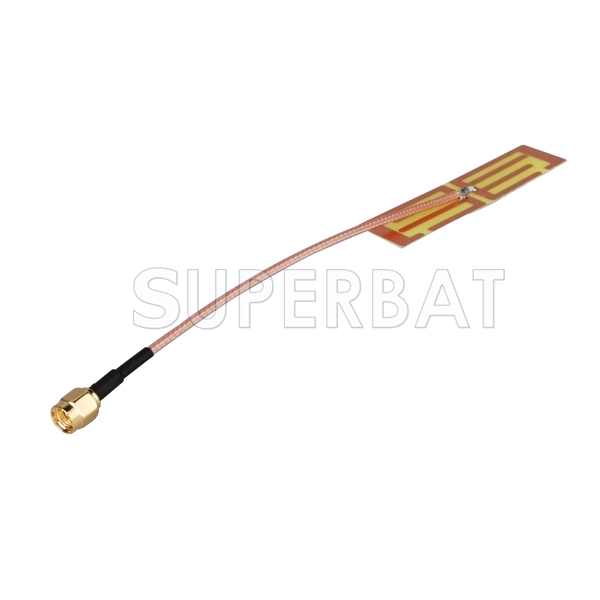

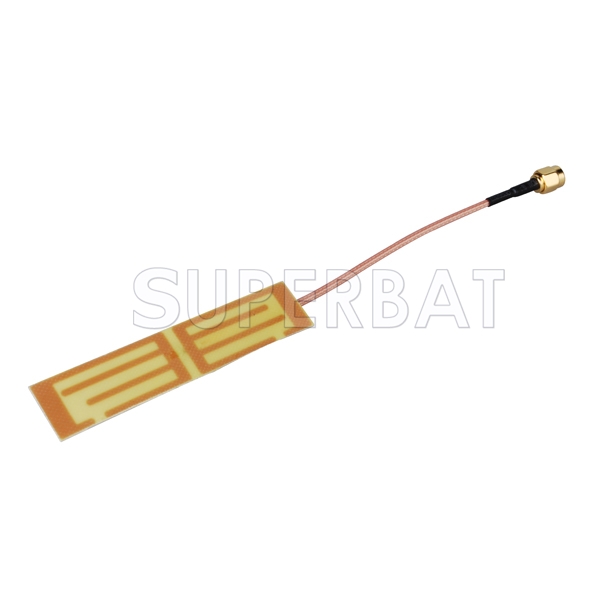

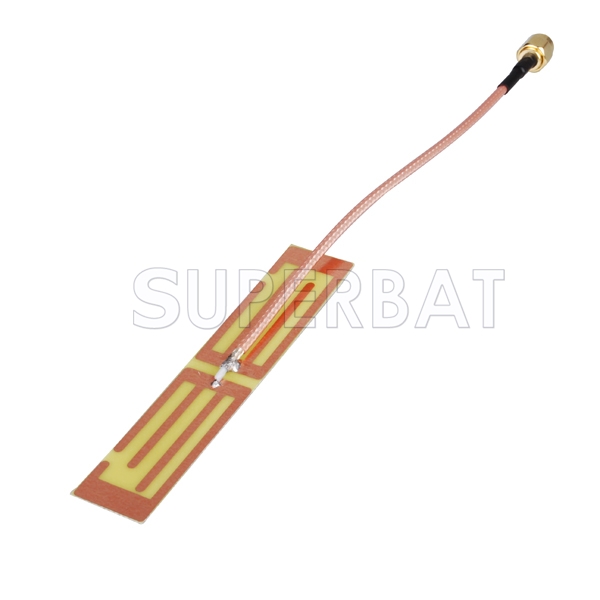

Built-in module aerial 3G 4G Internal Antenna 700-2600Mhz 5dbi SMA connector cable RG316 10cm
4G Internal Antenna 700-2600Mhz 5dbi SMA connector cable RG316 11cm
Unit Price: $4.54
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $4.54 $4.09 $3.68 $3.31 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 9936
Quantity: Units

Antenna Type: Built In Network: 4G/LTE Antenna Frequency: 700-2600Mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 5dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG316 Cable Length: 10cm Weight: 6g

Frequency(MHz): 700-2600Mhz
VSWR ≤ 2.0
Gain(dBi): 5dbi
Max Input power(W):50
Input Impedance(Ω):50
Cable Length: 10cm
Cable Type: RG316

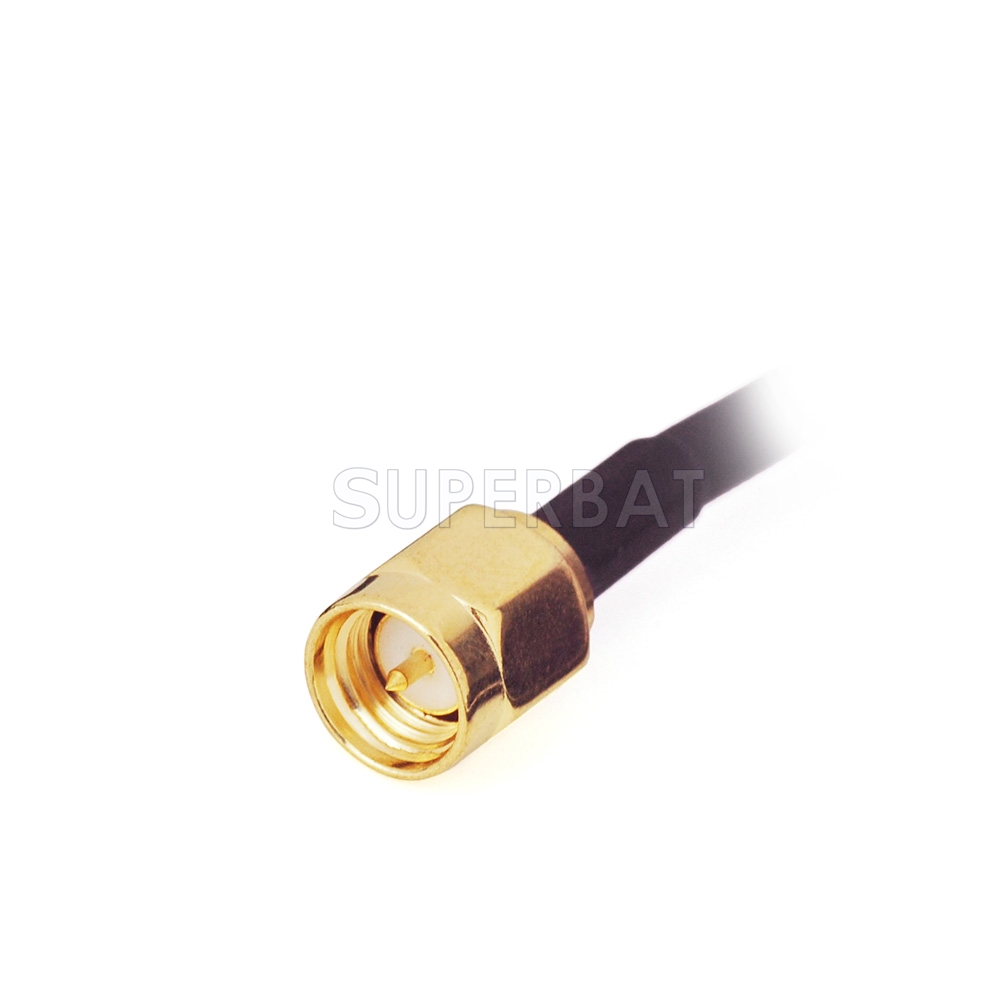

Connector: SMA male straight (default)

Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Storage Temperature:-30°C to+75°C
Operating Temperature:-30°C to+75°C
