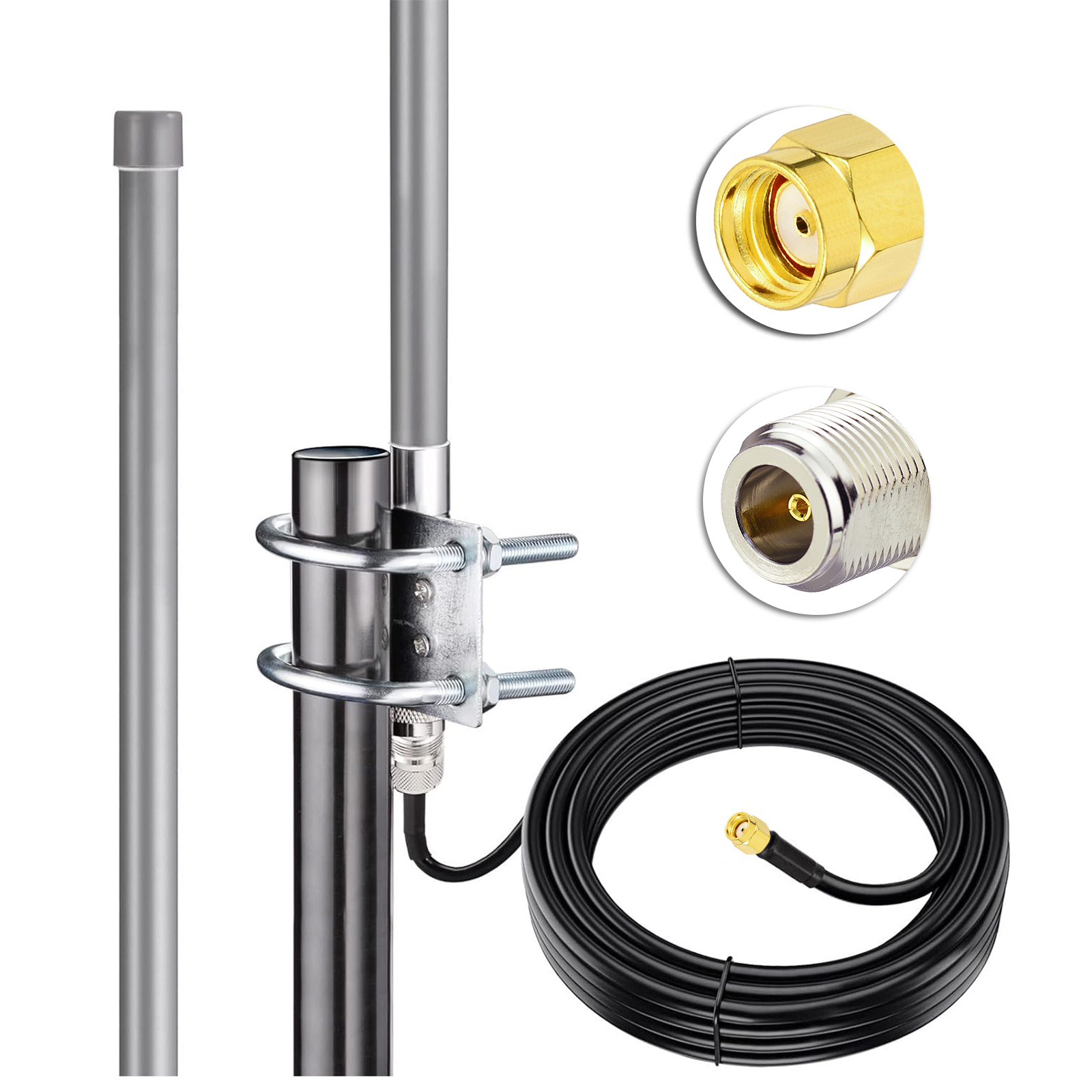

Bingfu 43.3inch 8dBi 868MHz 915MHz Lora Antenna+10ft ALSR240 Low Loss Cable for Helium HNT Miner Hotspot LoraWan Gateway
Unit Price: $75.00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $75.00 $71.25 $67.50 $63.75 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 1000
Quantity: Units

43.3 inch】 - Antenna height:43.3inch; Higher dbi rating antenna is great for long range in suburban area. [please select proper antenna gain(dbi) according to your surrounding location, if you live in an urban area or high hotspot density areas, you may consider to select a lower gain antenna (such as 2/3/4dbi antenna)]

Built in Pure copper】 - Built in inner copper oscillator, 8dBi Gain at 915mhz, Omnidirectional, Long Range, Lower VSWR

Low Signal Loss RF Cable】 - low loss extention cable offers a larger center conductor and supports better signal retention.

Application】 - Compatible with Nebra HNT Outdoor Hotspot Miner, designed for LoRa Helium miner, Low power radio: Sigfox, LPWA, LoRa, mesh networks, IoT

Packing List】 - 1 x helium antenna(N Male Connector); 1 x U-bolt (Package do not include pole and extention cable)

Frequency: 860MHz - 930MHz
Gain: 8 dBi Omnidirectional
Antenna Connector: N Male

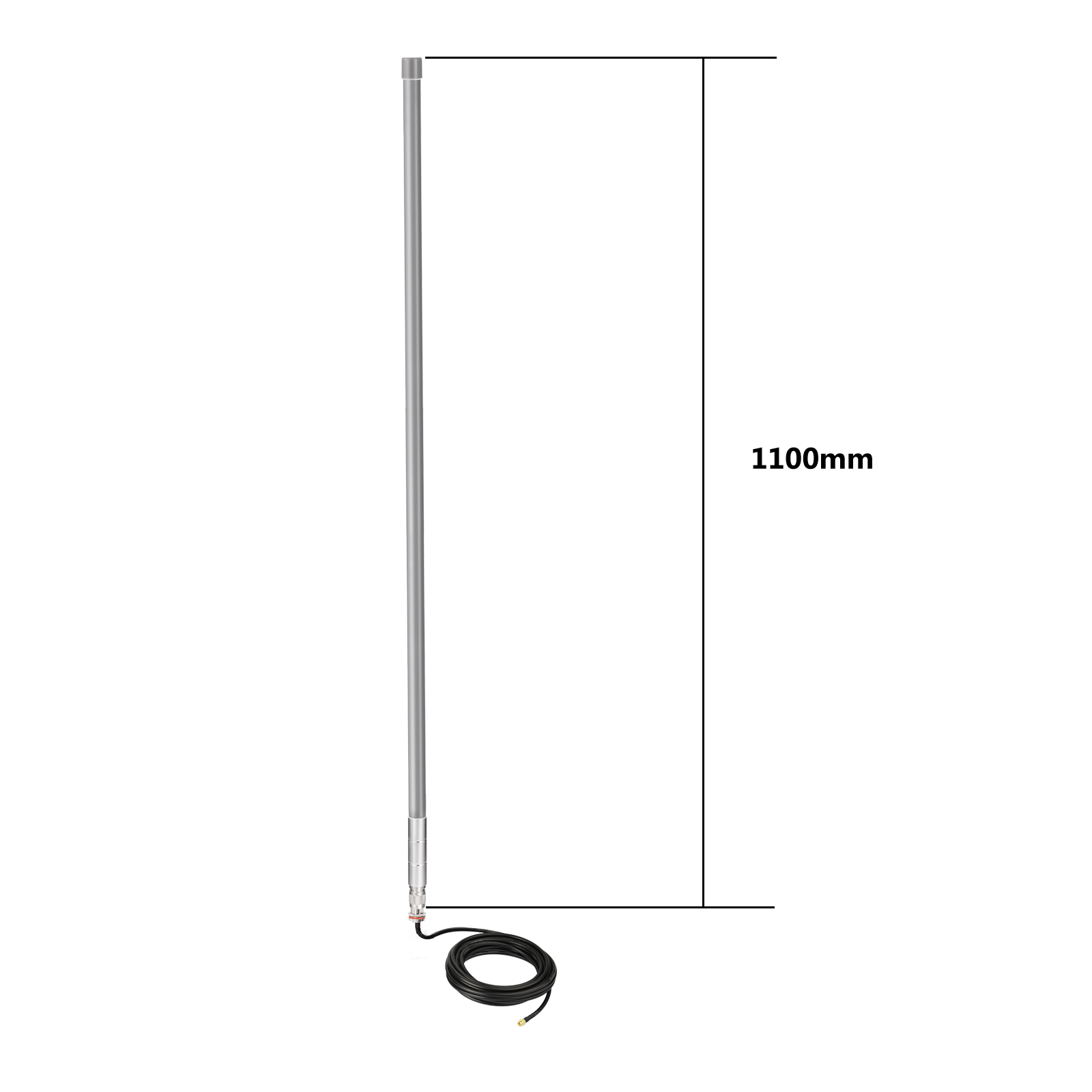

Antenna Length: 43.3inch/2750px
VSWR: <2.5
Polarization: vertical
Impedance: 50 Ohm
Aluminum alloy base: 21.8mm
Middle: 20mm
Top: 23.2mm
Installation method: Pole-holding (Pole is not included)
Hoop size: small 17-22 mm; large 22-52 mm

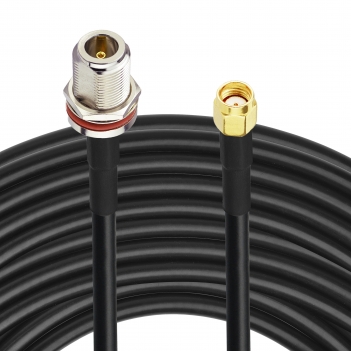

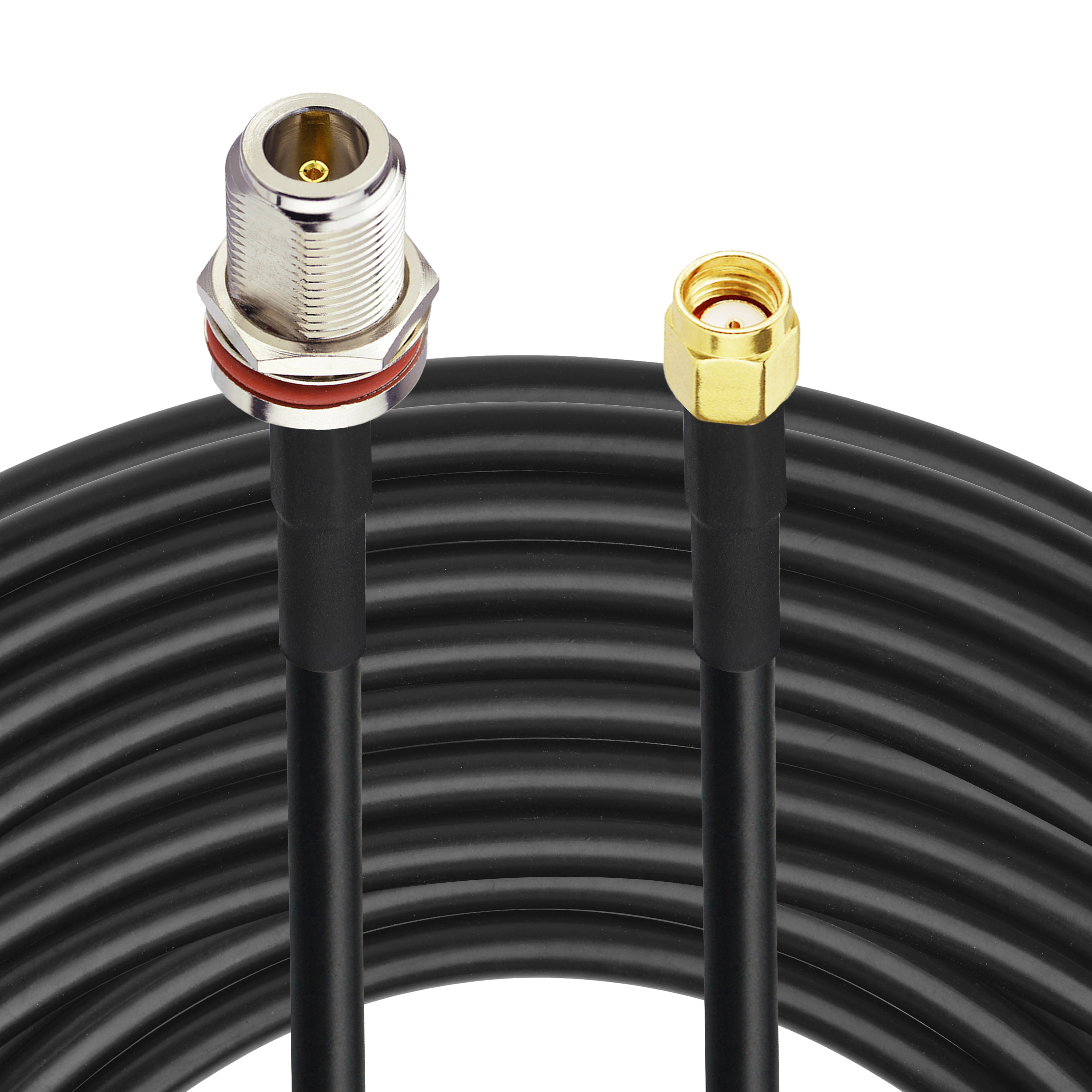

Extension Cable: N Female to RP-SMA Male With 6.1 Meter Low Loss RG58 Cable

Operating Temperature: -20°С ~ +80°С

Storage Temperature: -30°С ~ +85°С

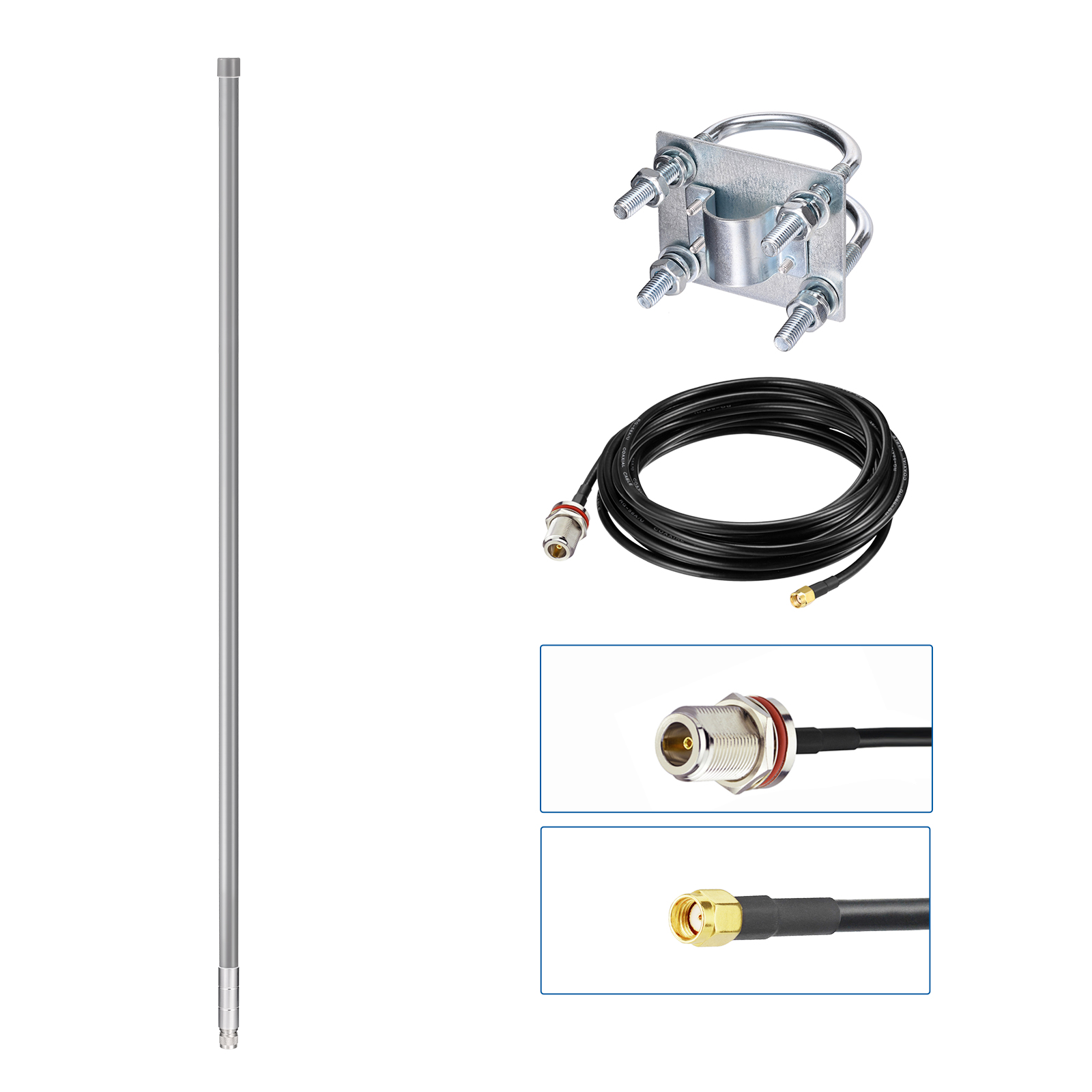

Package List:
1 x Helium antenna(N Male)

1 x Low Loss RG58 Extention Cable

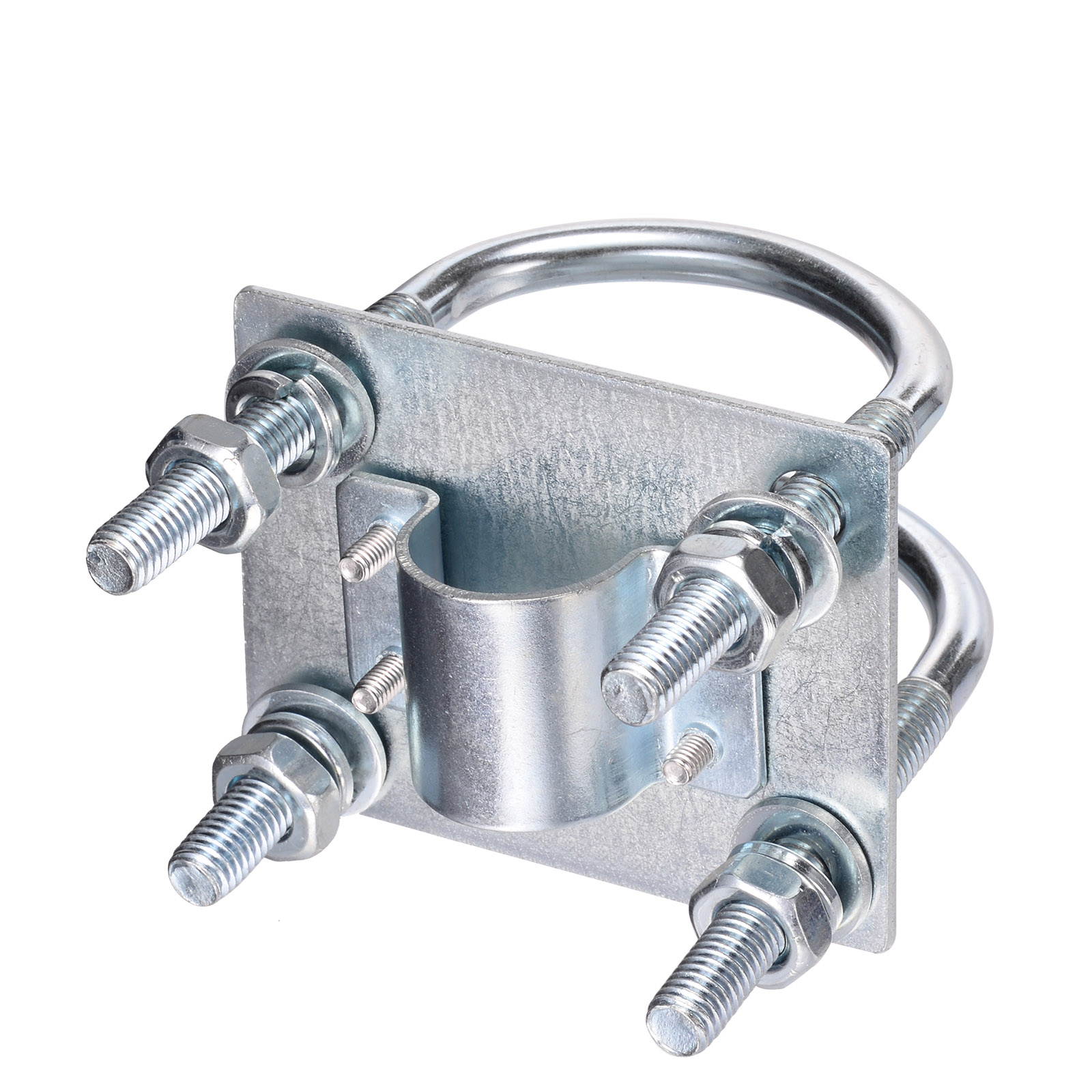

1 x Antenna U-bolt Bracket (Pole is not included)

The higher the dBi of the antenna, the higher the gain, but less of a broad field pattern, meaning that the
signal strength will go further but in a narrower direction, for better performance, please select proper dbi
according to your surrounding location.
Lower dBi is great for urban area, or high hotspot density areas.
And higher dBi is great for long range in suburban area or high area without obstacles.
