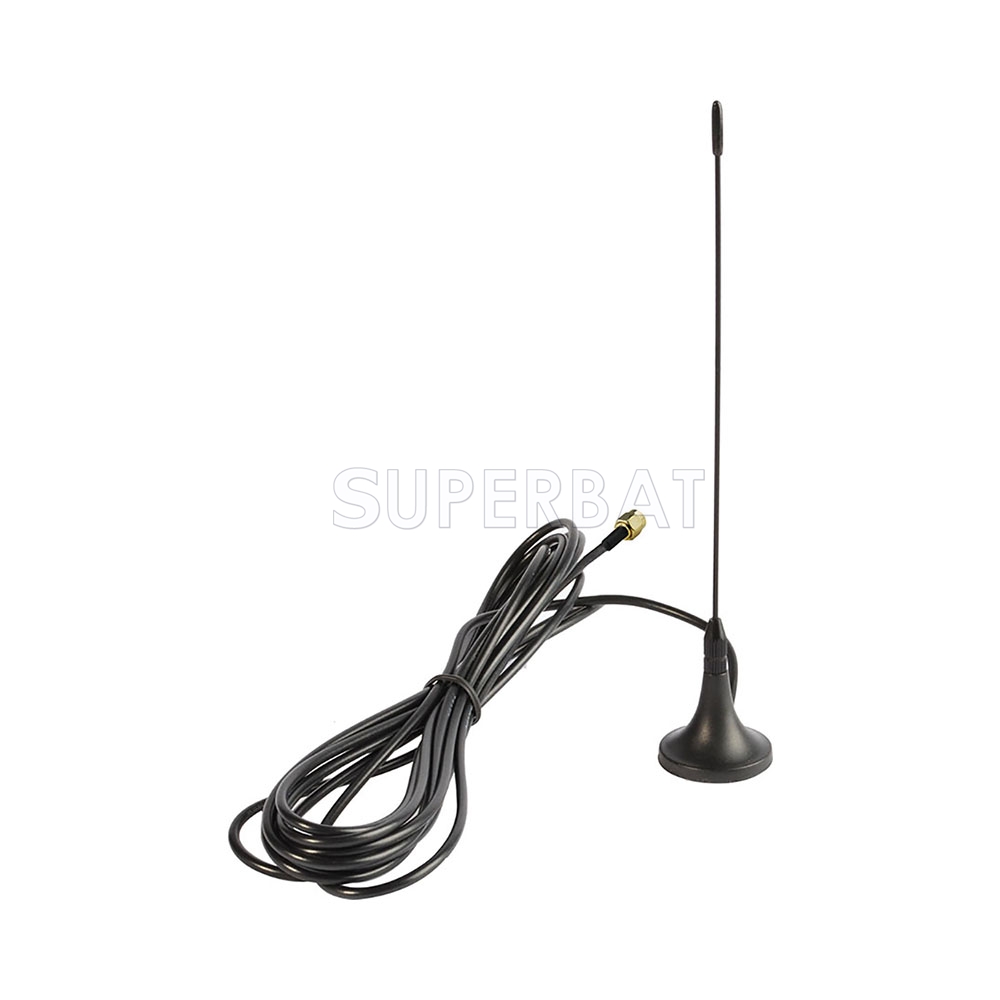

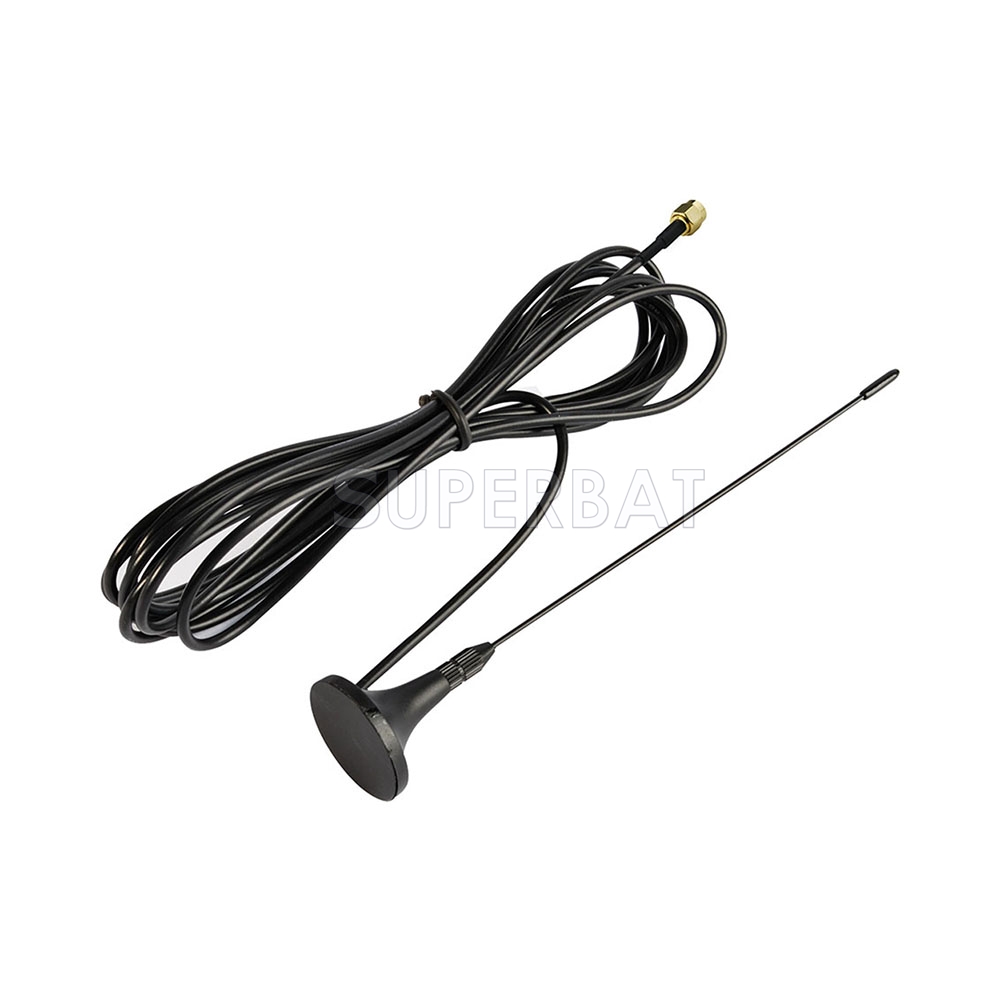

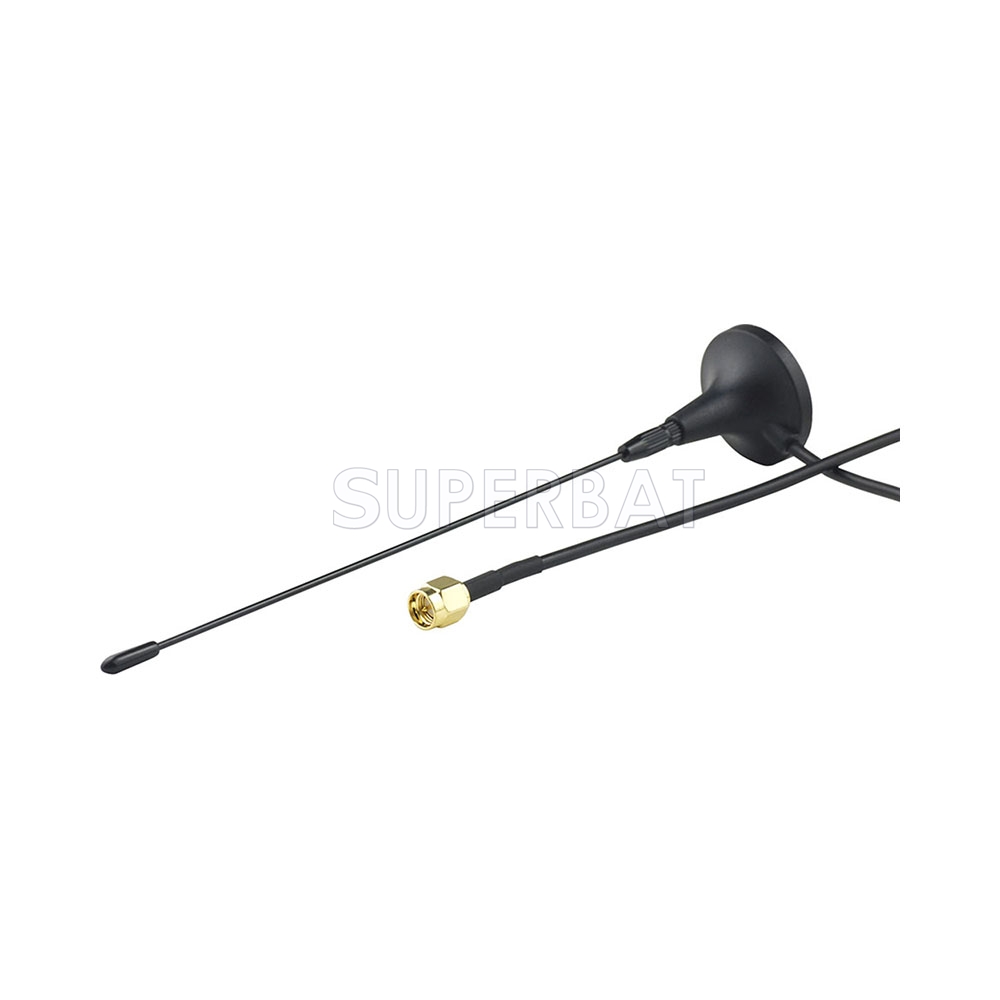

Antenna 433Mhz,3dbi SMA Plug straight with Magnetic base for Ham 5M
Antenna 433Mhz,3dbi SMA Plug straight with Magnetic base for Ham 5M
Unit Price: $4.80
sku:EA1-1626-S01SP-030-500
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $4.80 $4.32 $3.89 $3.50 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Type: 433Mhz Antenna Center Frequency: 433Mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Straight Impedance: 50 Ohm Nominal Gain: 3 dBi V.S.W.R: ≤1.5 Cable Length: 5m or others

Frequency Range(MHz) 433+/-15
Bandwidth(MHz) 30
VSWR ≤1.5
Gain(dBi) 3
Max Input power(W)50
Input Impedance(Ω) 50
Polarization Type :Vertical
Antenna High(mm) 170
Cable Length﹙mm﹚ 2000,3000,5000 or other
Cable Type RG174
Connector Type SMA Plug connector (Default )/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Mounting Magnetic
Radiation :Omni-direction
Max Diameter :30mm
Min Diameter :1.5mm
Max wind speed :200km/h
