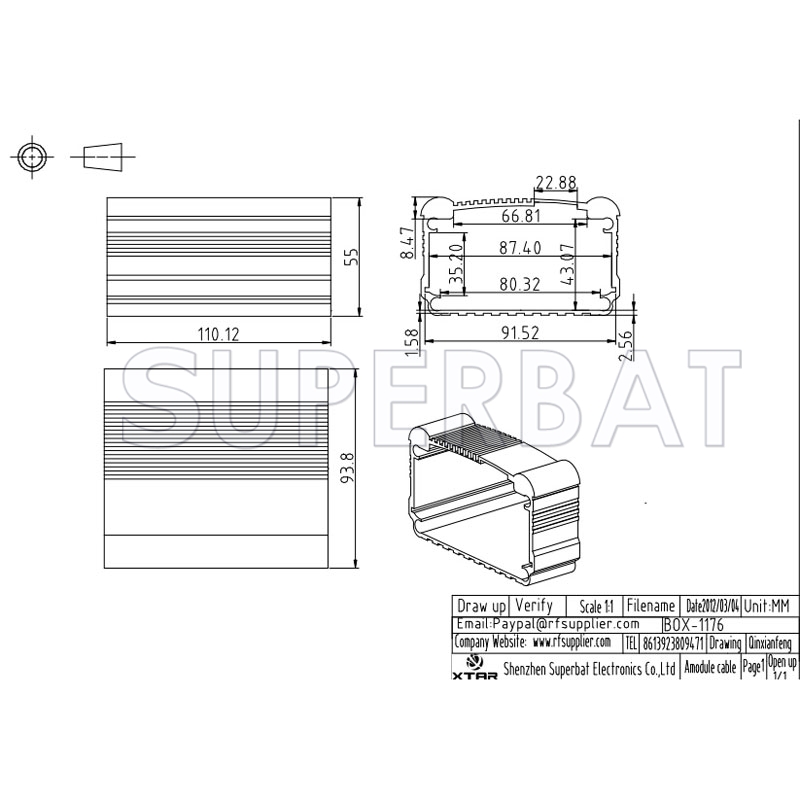

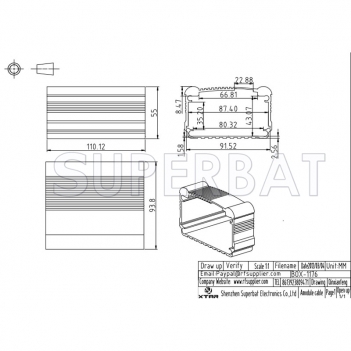

Dimensions (outer):55mm(2.17")(H)x95mm(3.73")(W)x110mm(4.33")(L)
Dimensions (inner):49mm(1.93")(H)x87mm(3.43")(W)x110mm(4.33")(L)

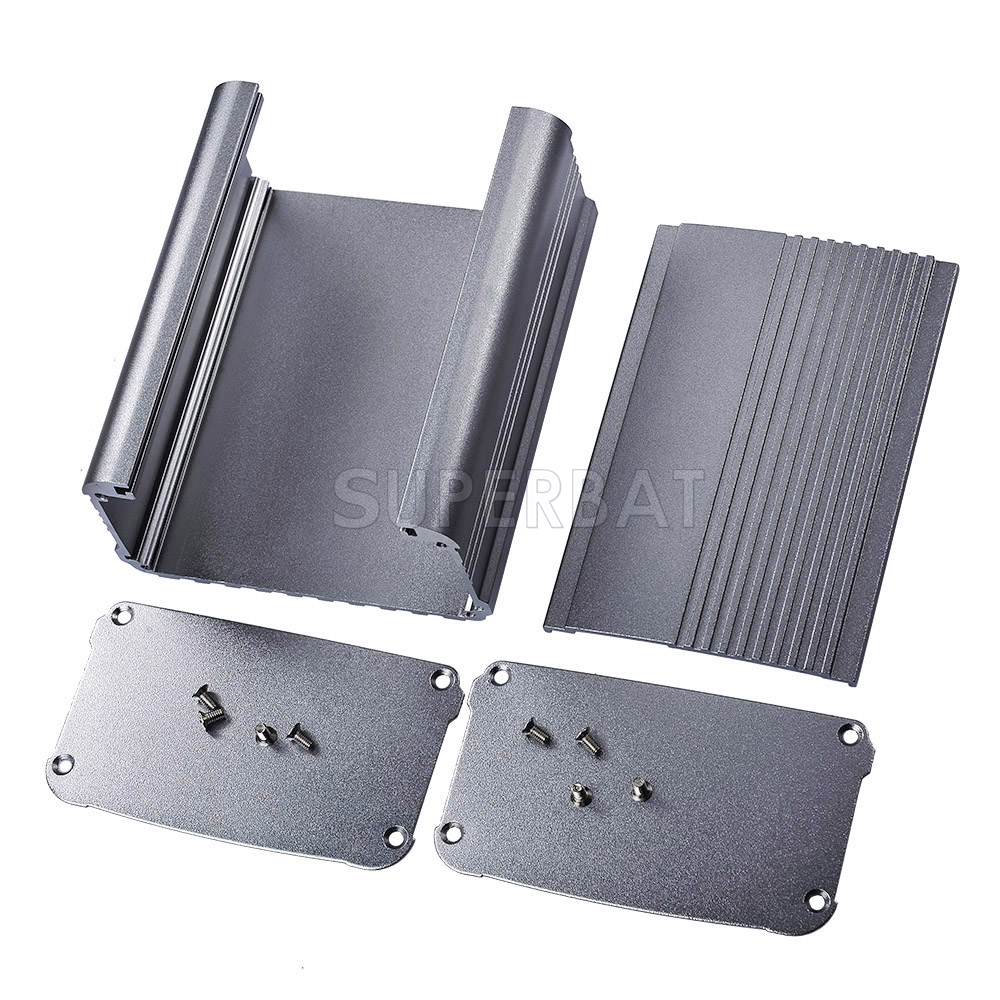

notice:screw included
just for one PCB board
weight:256g

Our enclosure can be customized to accommodate any server rack system.

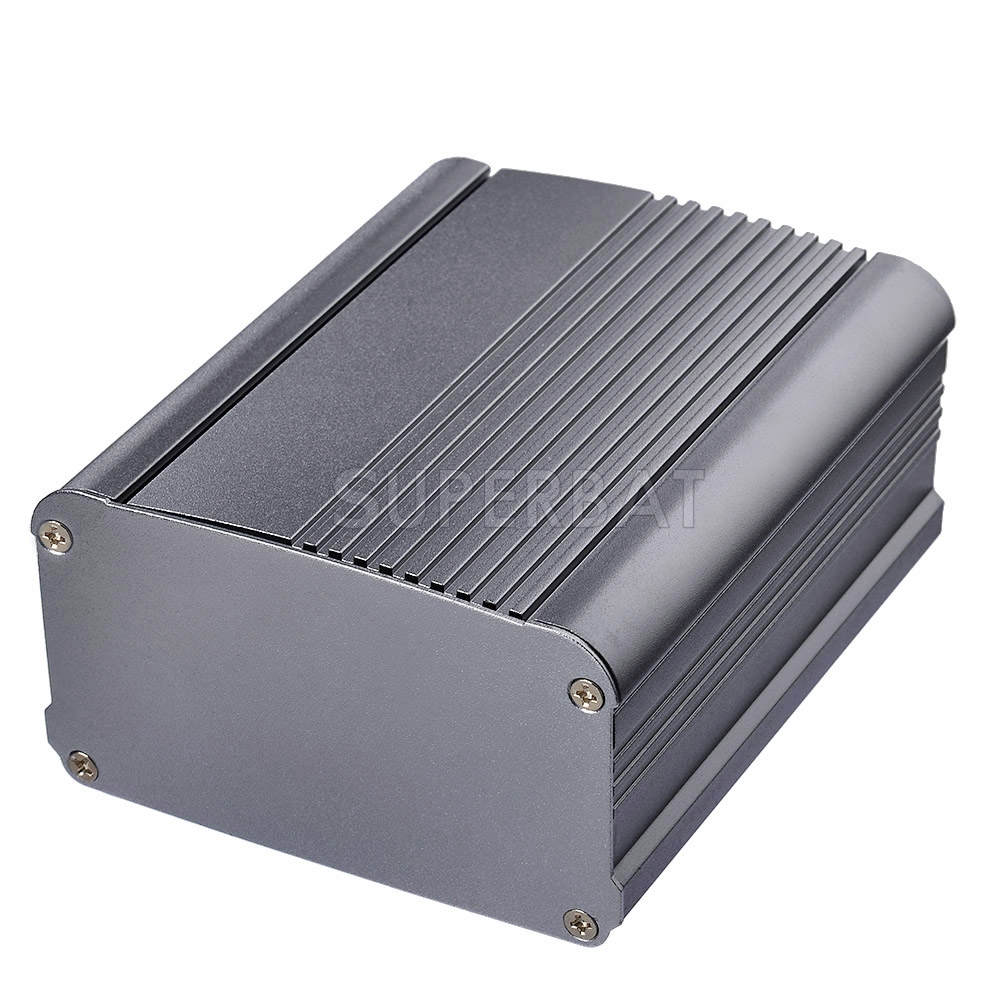

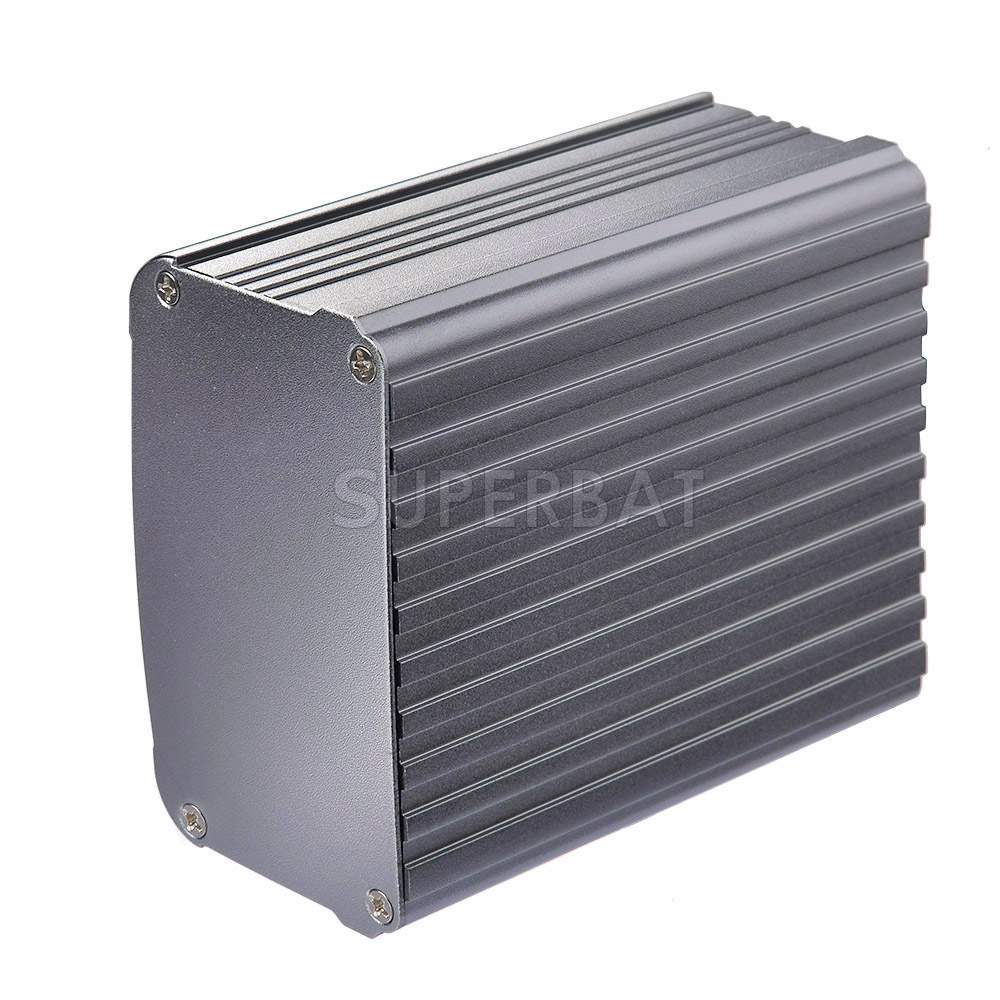

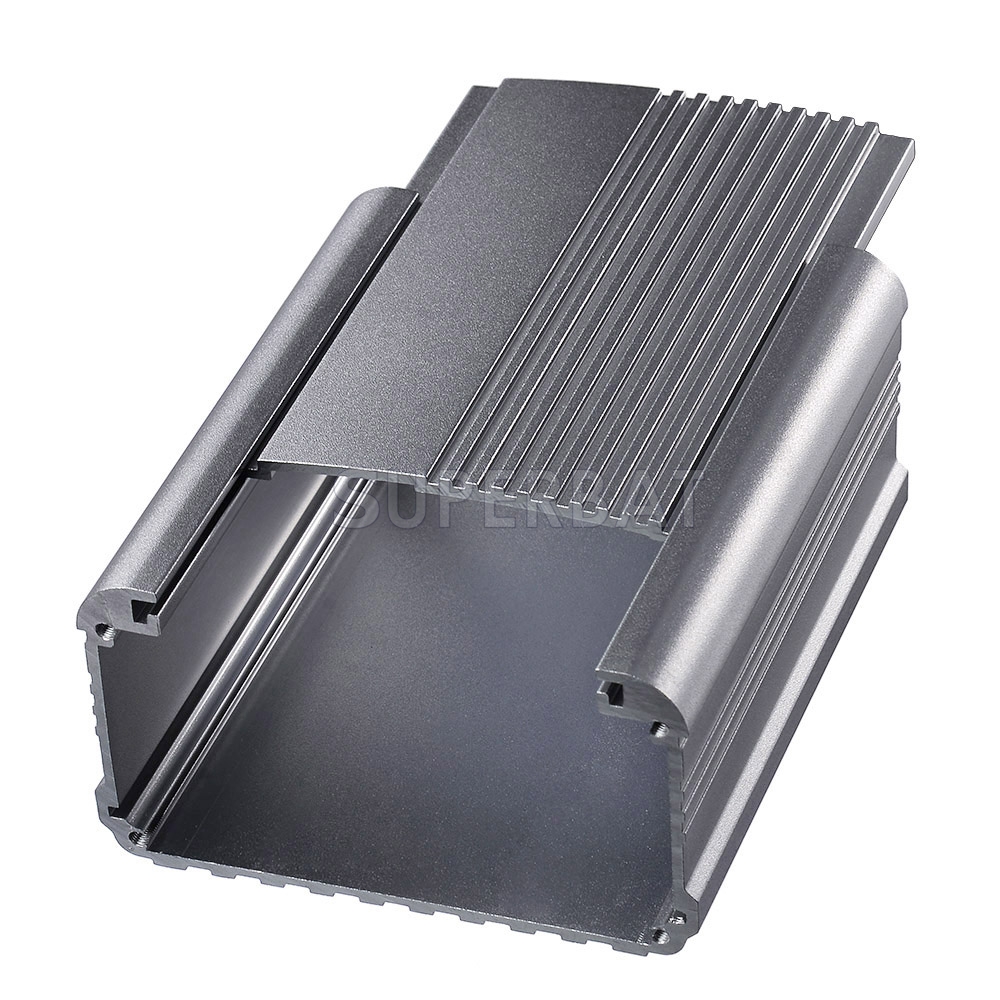

•  Chassis: Extruded Aluminum
•  Top/Bottom/Endplates: Aluminum
•  Integrated Circuit Boards Slots - PCB guides
•  Custom Lengths, and for width and depth, we need to open a new model which you need to pay the fees.
•  Custom cutouts for dials, cables, or venting.
•  Optional Handles available.

Our aluminum chassis are offered
with the highest quality finishing options.
•  Anodized
•  Laser Etching
•  Silk Screening

BOX-1176.pdf
