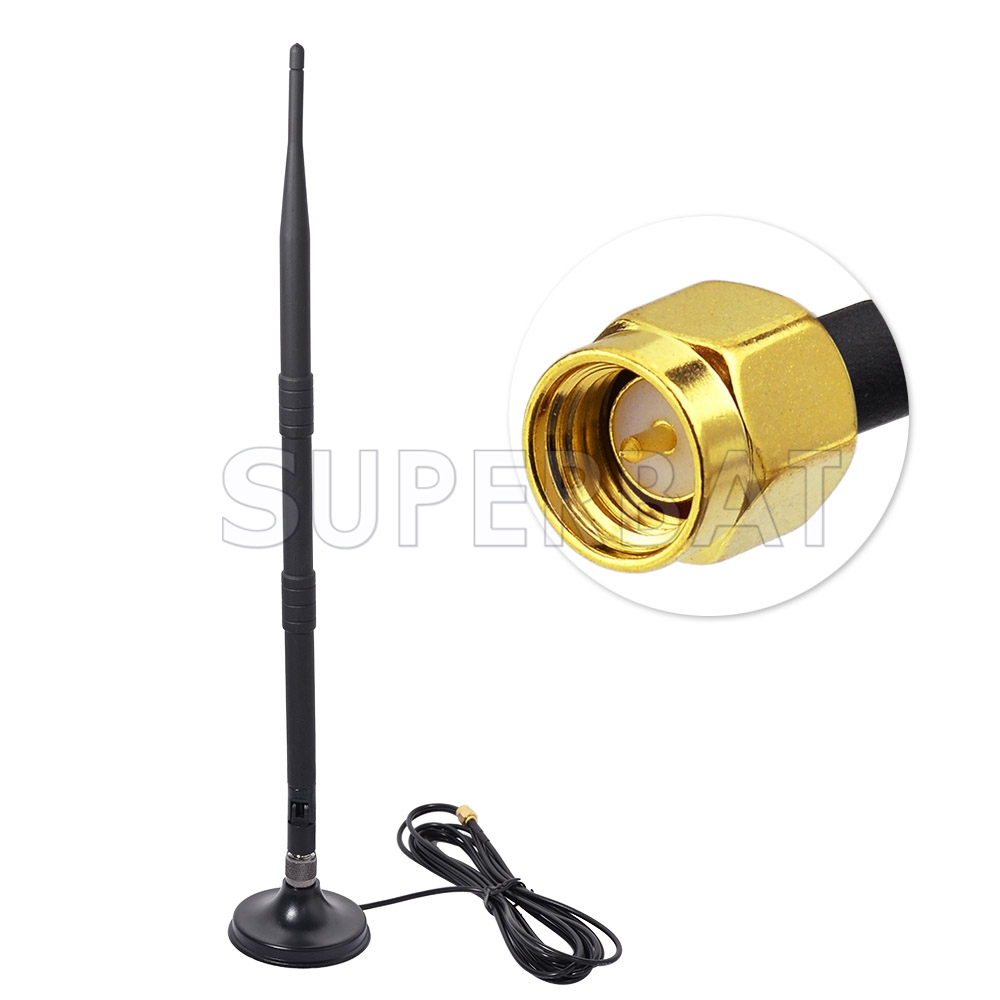

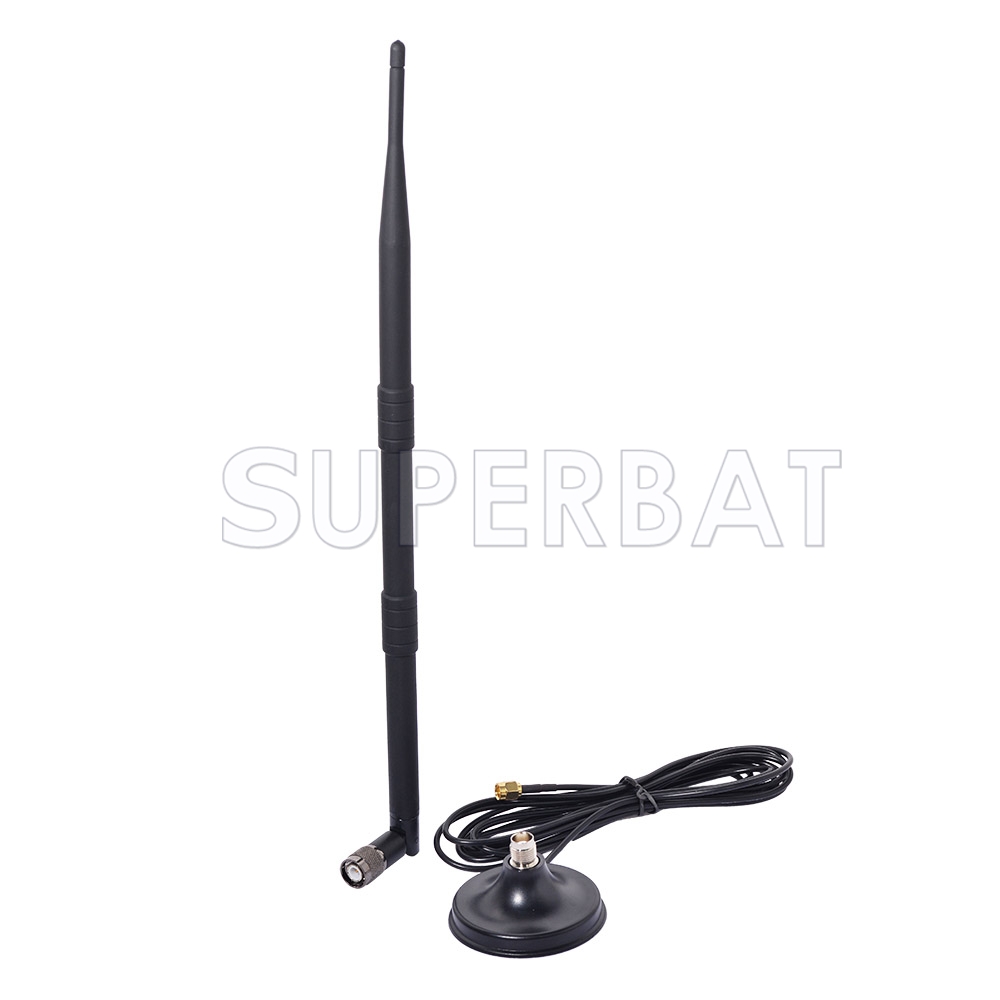

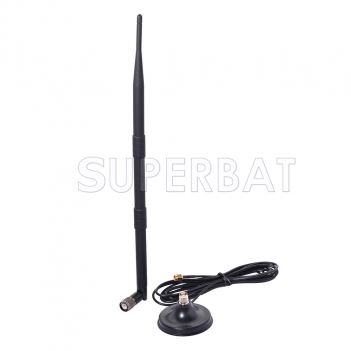

9dB magnetic 3G/UMTS/GPRS/GSM antenna SMA male connector for Broadband Router
Unit Price: $10.00
sku:3A1-1079-S01SP-090-250
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $10.00 $9.00 $8.10 $7.30 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Magnetic Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170MHz Gain: 9dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 2.5M Weight: 128g

Description:

High Quality 3G 9dB Booster SMA Antenna,can be taken apart

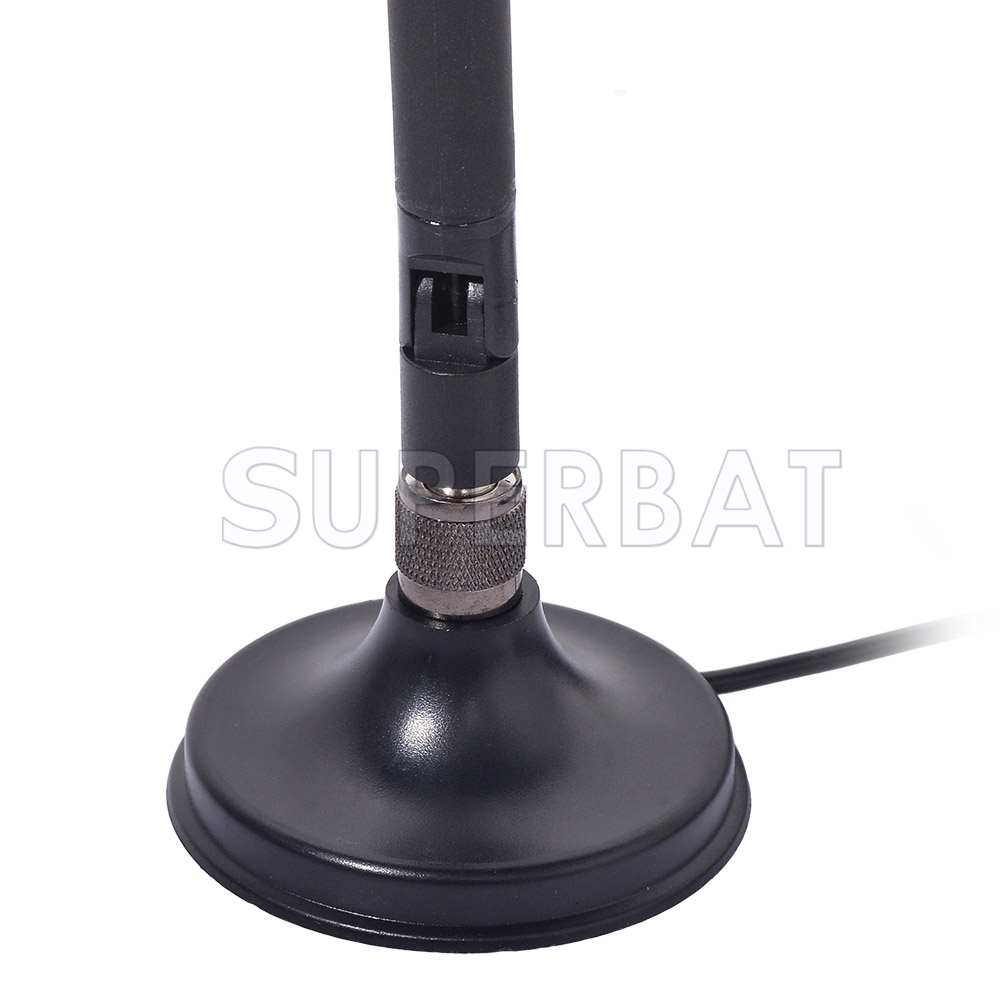

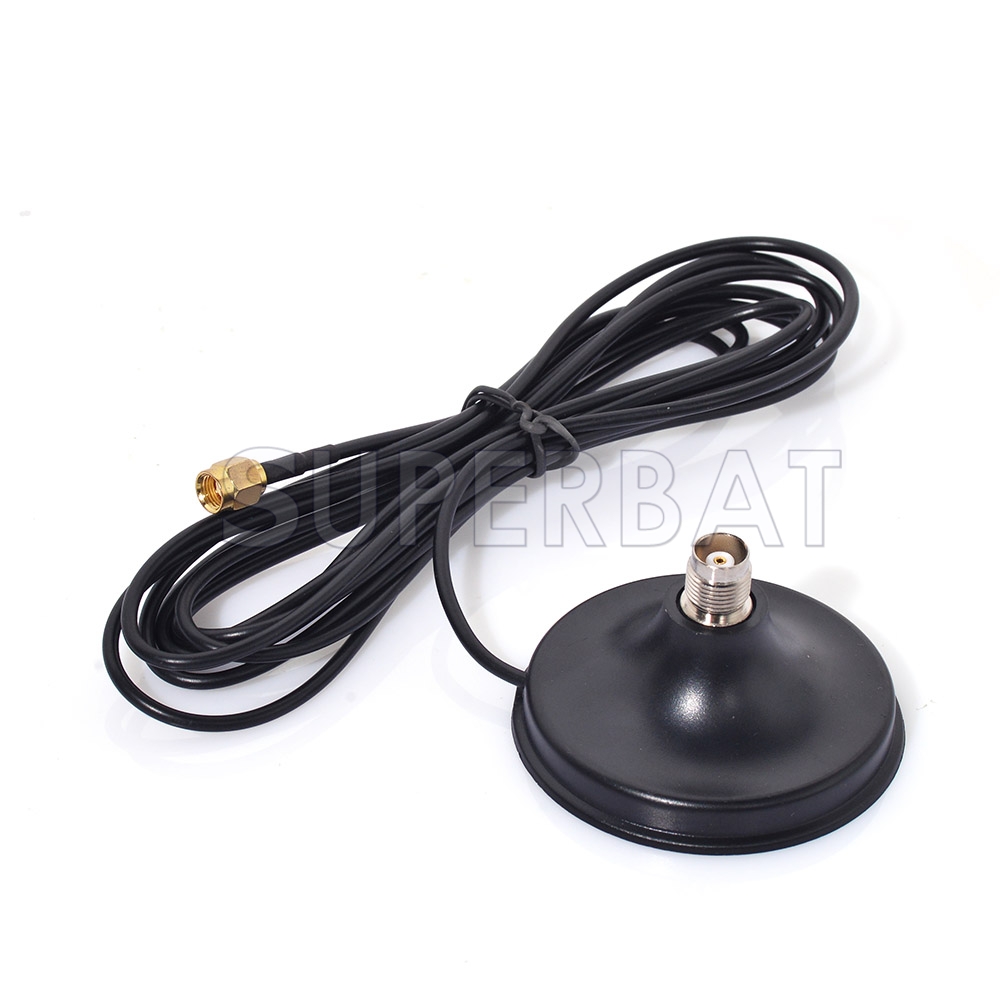

Magnetic Stand design for easy to install on window side or top of the ceiling to gain more signals


Install by simply unscrewing your current antenna, and attach this High Gain antenna in its place.


There are no drivers to install, and no modifications to your setup are necessary.


Please check if the connector does fit your router before bid!

Specification:

Frequency Range(MHz):850-960/1710-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR ≤1.5
Gain: 9dbi
VSWR< 1.5 : 1 max
Impedance 50 Ohm
Polarization Linear Vertical
Light Weight
Omnidirectional Antenna
Polarization Vertical
Diameter: 13.5mm
With 2.5 meter pigtail
Antenna Connector: SMA or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Colour: black
Mounting:Magnetic Base
Cable:RG174
Working Temperature : -20~+55 deg C

Weight: 128g
