Product Description:

This 915MHz flexible whip antenna is designed for compatible wireless communication and RF equipment operating in the 915MHz ISM band. It features a soft whip construction with 1dBi gain, 50 Ohm impedance, VSWR ≤1.25, and an SMA female connector.

Technical Specifications

Product Type: 915MHz flexible whip antenna

Frequency Range: 915MHz

Bandwidth: 10MHz

Gain: 1dBi

Impedance: 50 Ohm

V.S.W.R: ≤1.25

Polarization: Vertical

Radiation Pattern: Omnidirectional

Maximum Power: 10W

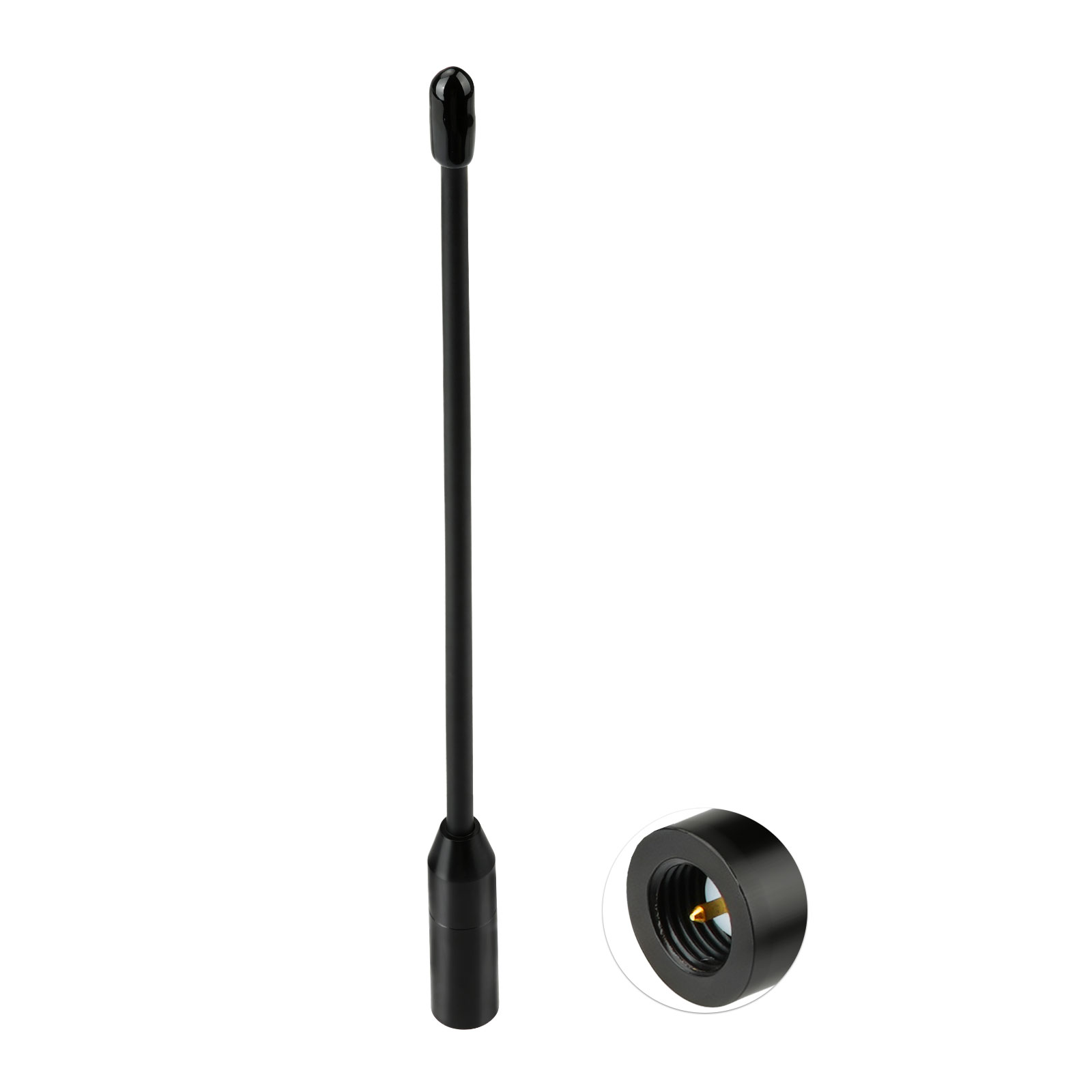

Connector Type: SMA Male

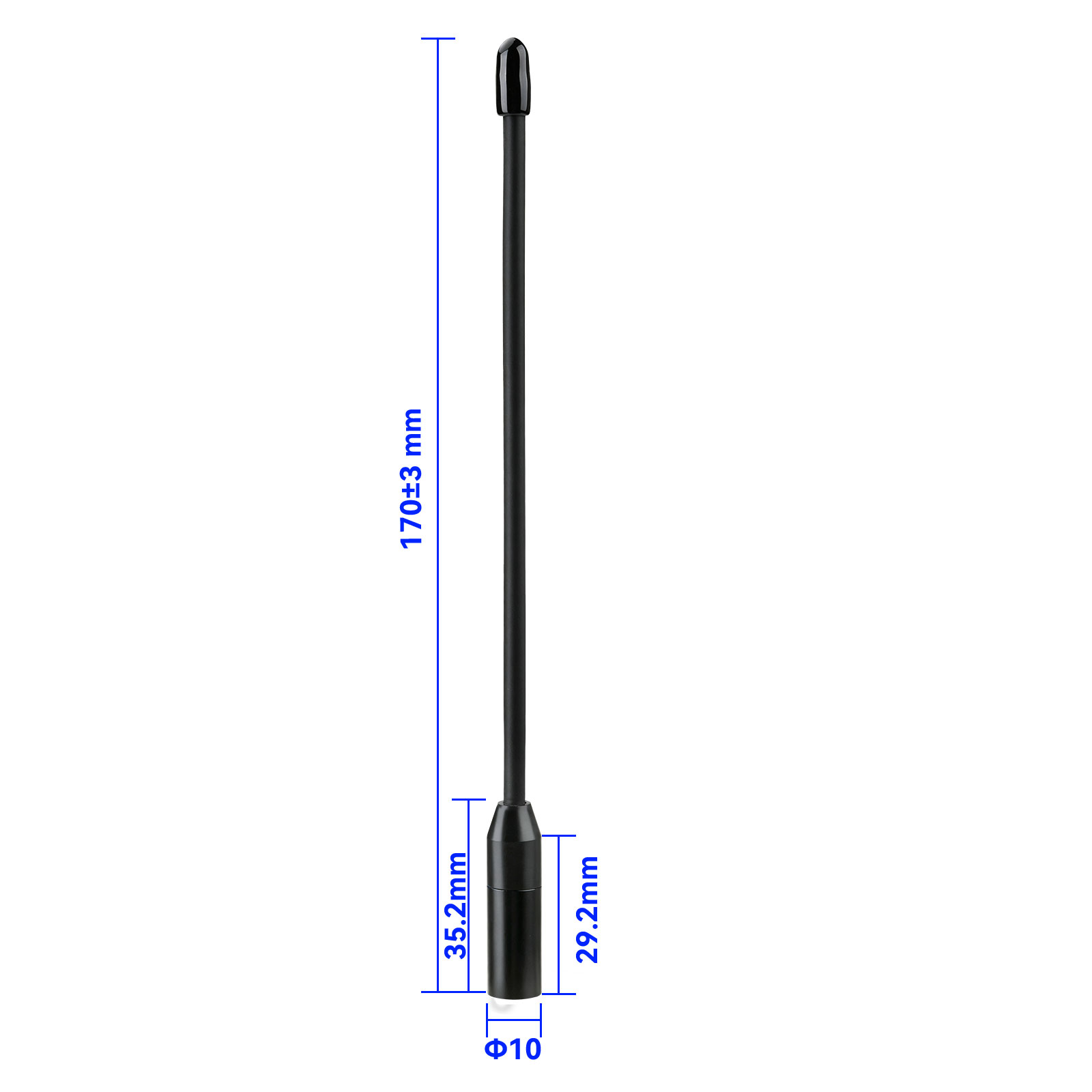

Dimensions: 170 × Ø10mm (total length 170±3mm)

Working Temperature: -30°C to 60°C

Lightning Protection: DC grounding

RoHS Compliant: Yes

Product Features

915MHz ISM band coverage for compatible wireless RF applications

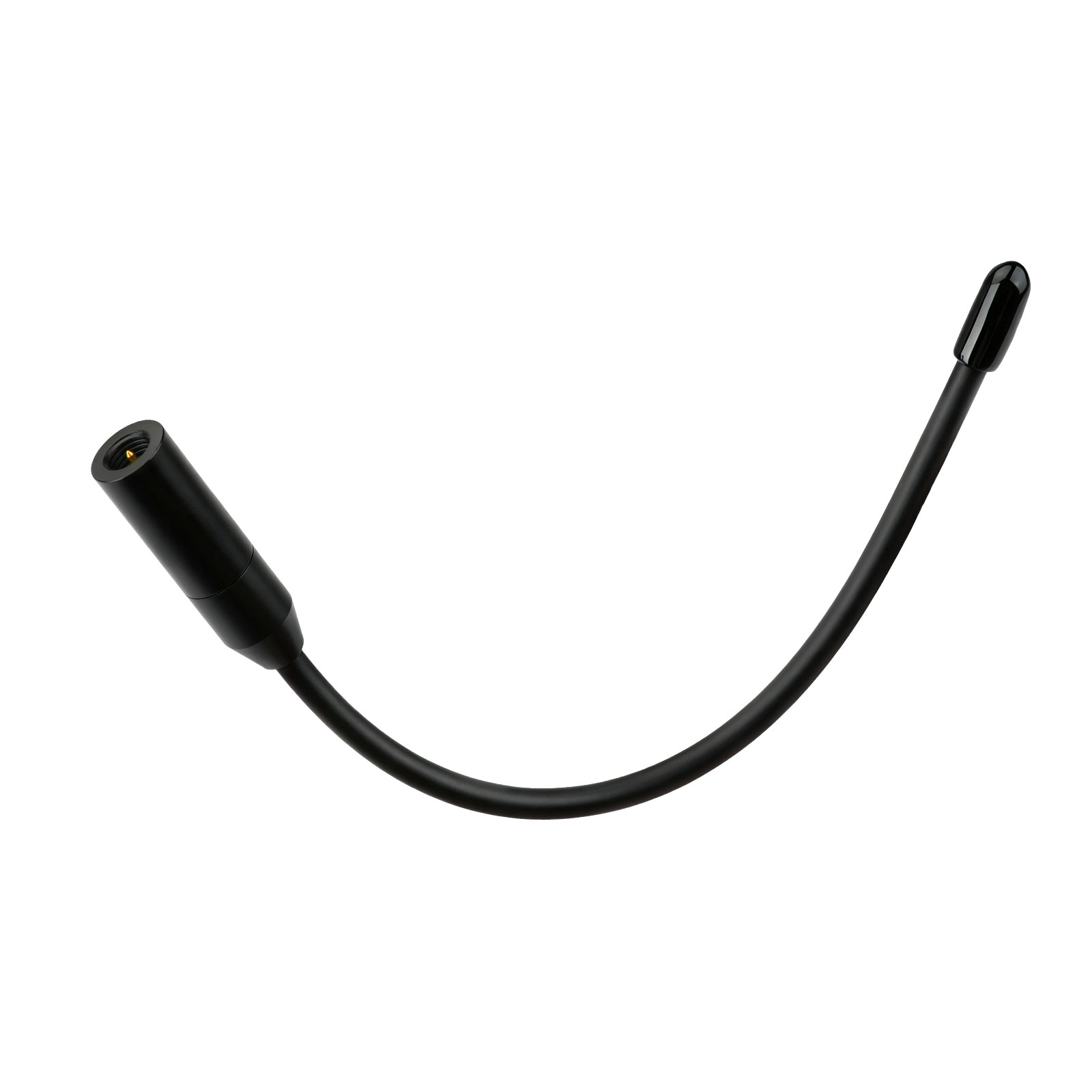

Flexible soft whip design for bendable installation in compact spaces

SMA Male connector for standard SMA male device ports

Low VSWR (≤1.25) for efficient signal transfer

10W power handling supporting TX and RX operation

DC grounding lightning protection and RoHS compliance

Applications

Compatible 915MHz wireless communication devices

LoRa and LPWAN modules operating in the 915MHz ISM band

Embedded wireless systems and RF testing

IoT devices and sensor networks using 915MHz

Other applications requiring a flexible omnidirectional 915MHz antenna with SMA Male connector

Package Contents

1x 915MHz Flexible Whip Antenna (SMA Male, 170mm)
