Product Description:

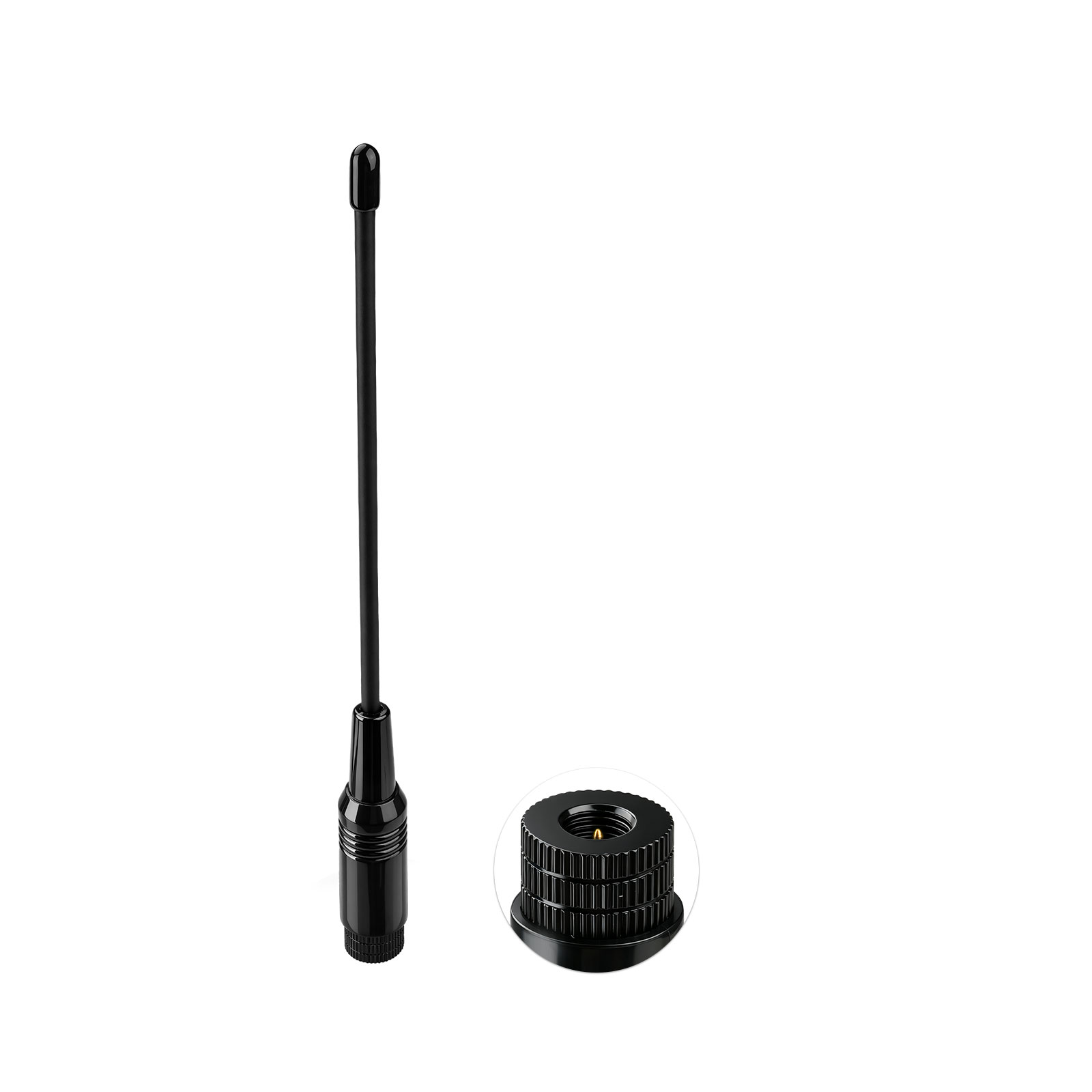

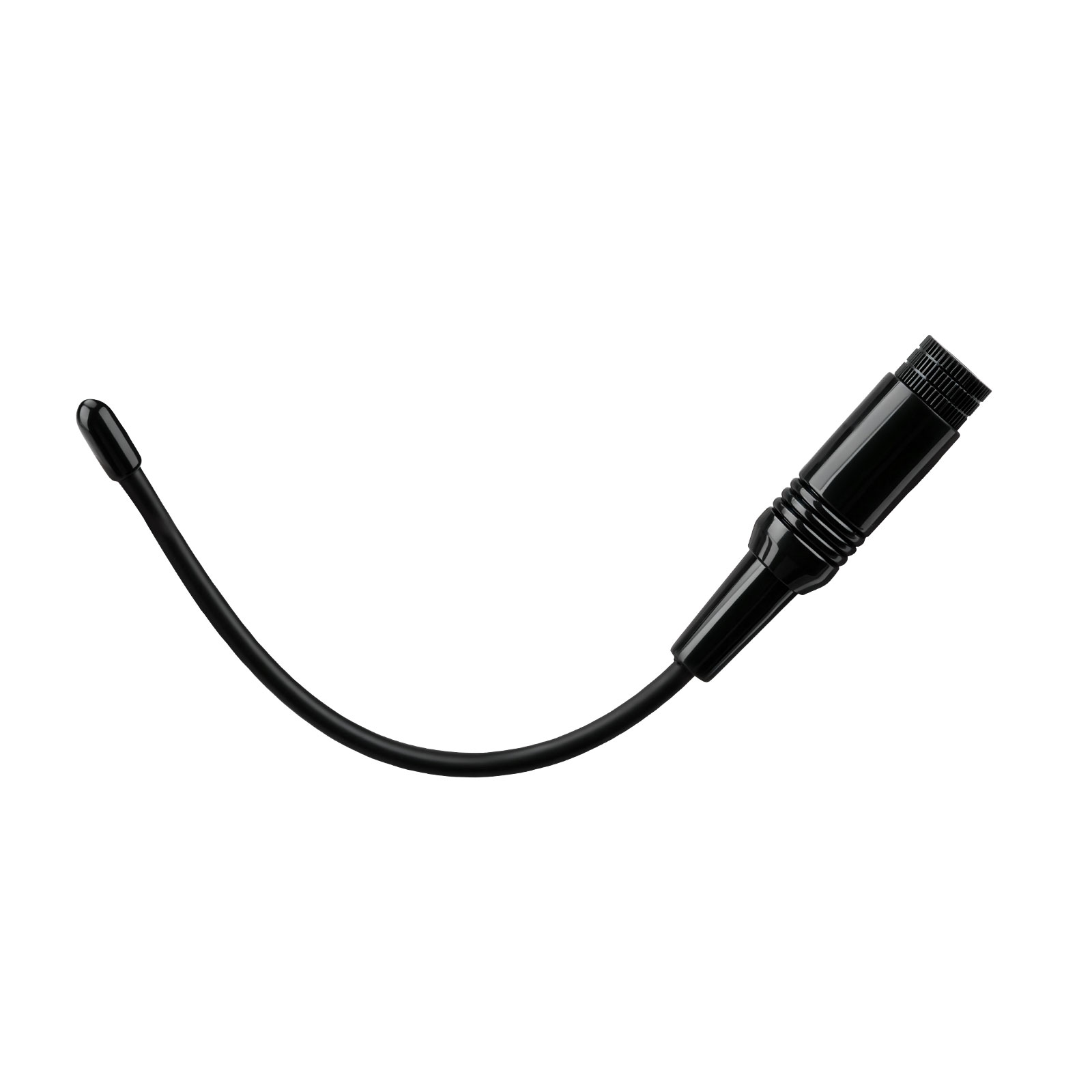

Product Overview This 915MHz rubber duck antenna is designed for LoRa and Meshtastic applications operating in the 915MHz ISM band. With 32MHz bandwidth, 1dBi gain, and an SMA male connector, it provides omnidirectional signal coverage for portable nodes, gateways, and wireless communication devices.

Technical Specifications

Product Type: 915MHz rubber duck / flexible whip antenna

Frequency Range: 915MHz

Bandwidth: 32MHz

Gain: 1dBi

Impedance: 50 Ohm

V.S.W.R: ≤2.0

Polarization: Vertical

Radiation Pattern: Omnidirectional

Maximum Power: 10W

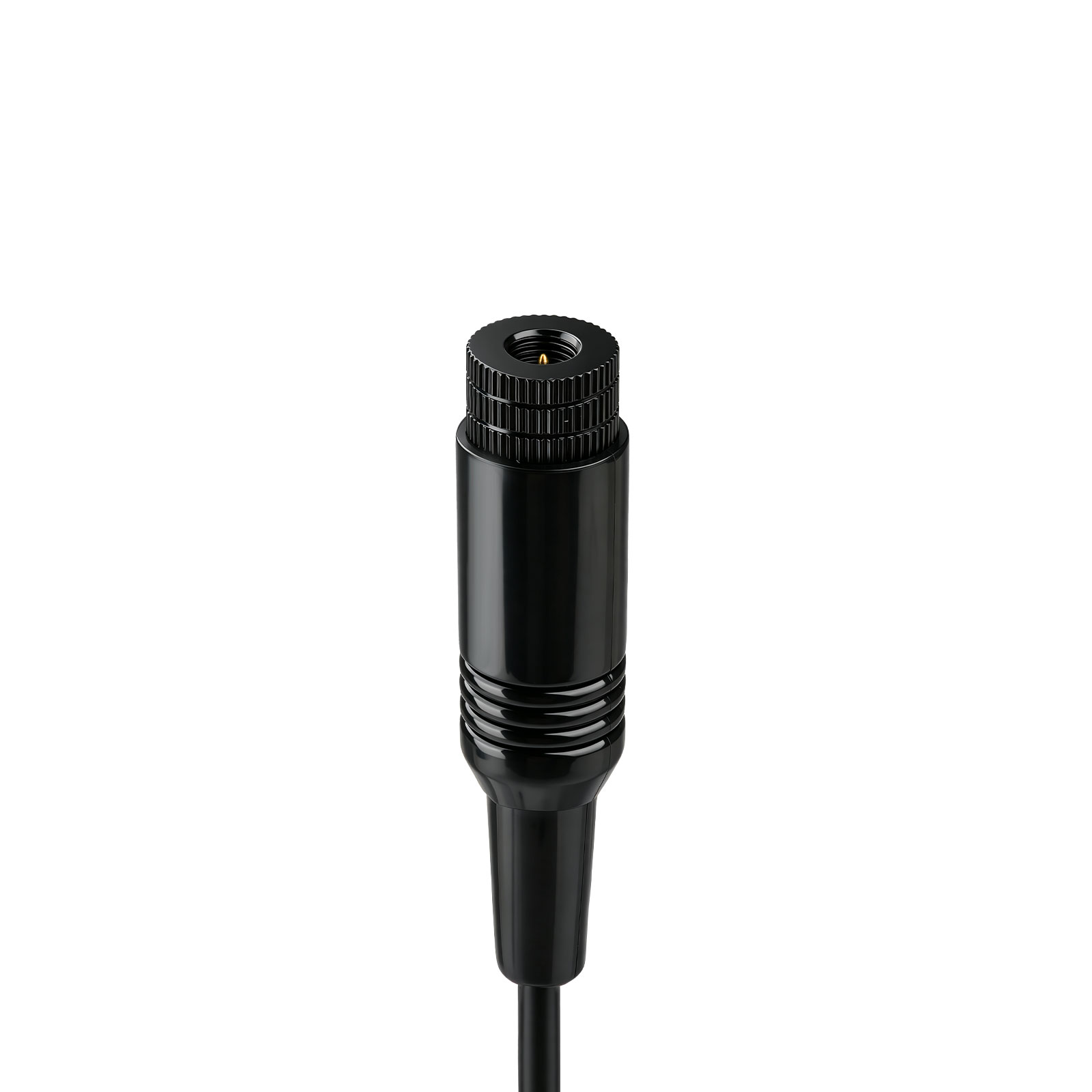

Connector Type: SMA Male (center pin)

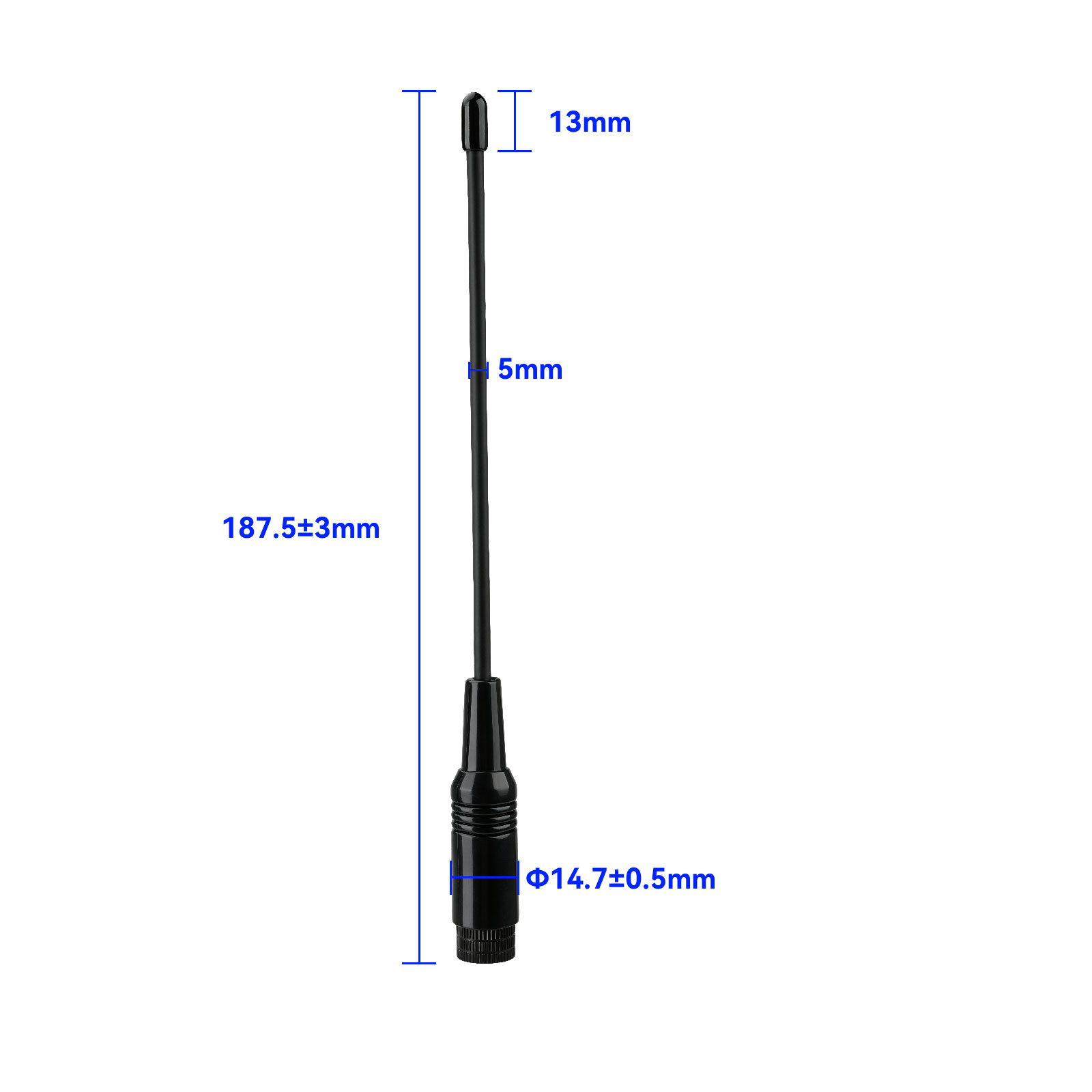

Dimensions: 187.5 × Ø14.7mm (total length 187.5±3mm)

Housing Material: ABS (black sleeve)

Working Temperature: -40°C to +85°C

RoHS Compliant: Yes

Product Features

915MHz ISM band coverage with 32MHz bandwidth for LoRa and Meshtastic

SMA male connector for standard SMA female device ports

187.5mm rubber duck design with ABS black sleeve for portable use

1dBi gain with omnidirectional pattern for 360-degree coverage

10W power handling supporting TX and RX operation

Wide -40°C to +85°C operating range for outdoor and field deployments

Applications

LoRa gateways and nodes operating at 915MHz (US915 band)

Meshtastic mesh network nodes (LILYGO T-Beam, RAK WisMesh, Heltec)

915MHz ISM band wireless communication modules

IoT sensor networks and LPWAN devices

Embedded wireless systems and RF testing

Portable and field-deployable 915MHz wireless equipment

Package Contents

1x 915MHz Rubber Duck Antenna (SMA Male, 187.5mm)
