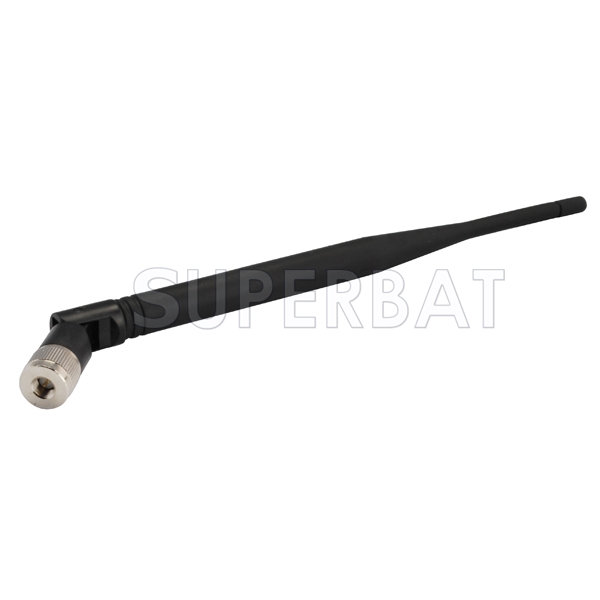

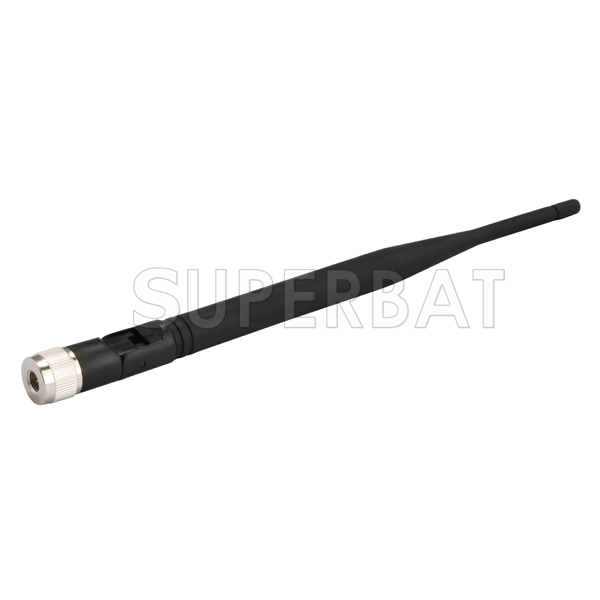

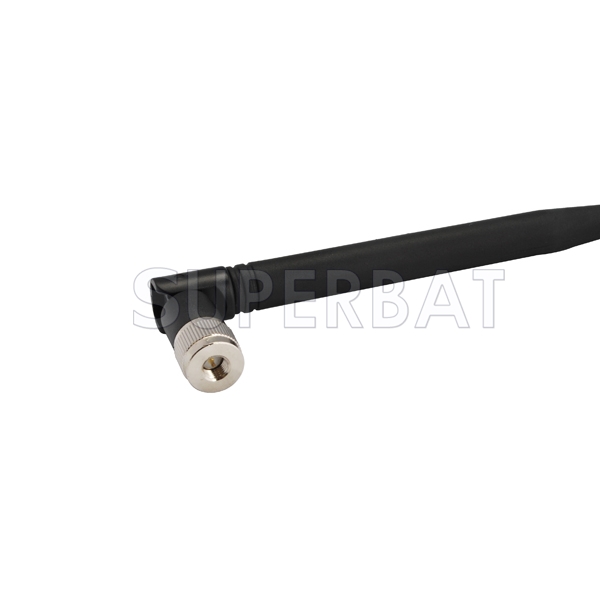

900-980Mhz GSM Antenna 3dBi tilt-and-swivel with SMA Plug
900-980Mhz GSM Omni Antenna 3 DBi tilt&swivel with SMA Plug Male Connector 210mm
Unit Price: $5.05
sku:GM2-2664-S01SP4-030
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $5.05 $4.54 $4.09 $3.68 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Rubber Duck Network: GSM/GPRS/EDGE/CDMA Antenna Frequency: 940Mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 3dbi Radiation: Omnidirectional V.S.W.R: ≤ 2 Weight: 30g

Frequency range : 900-980MHz
VSWR ≤ 2
Gain:3dBi
Power:50W
Bandwidth:64MHz
Impedance 50 Ohm
Polarization Linear Vertical
Directionality:omnidirectional
Horizontal Beam Width:360°
vertical panel Beam Width:90°
Color:Black
Connector: SMA Plug Tilt and swivel design
Notes:The default connector of the antenna is SMA male ,if you choose other connector for antenna connector ,
The extra adapter or pigtail will be included in the package to fix your devices after getting your extra payment !
Diameter: 13.5mm
Length: 205mm
weight:30g
