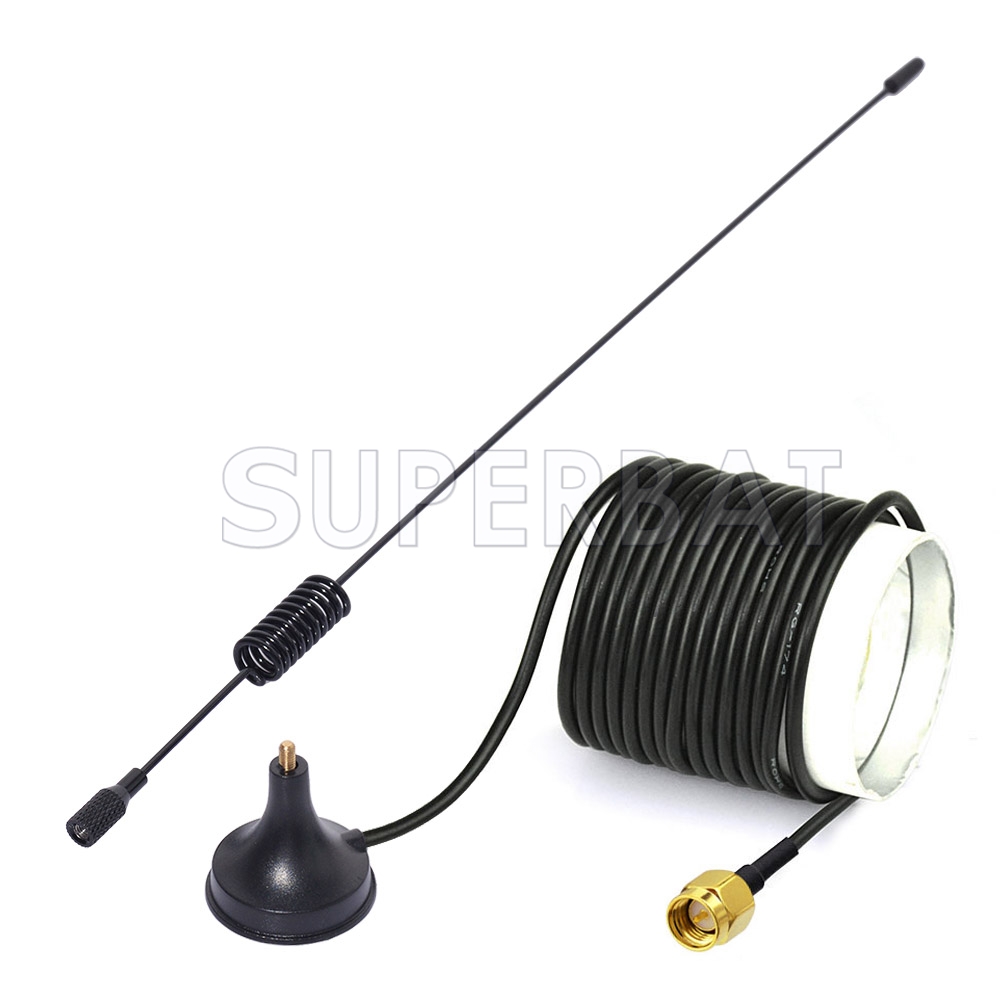

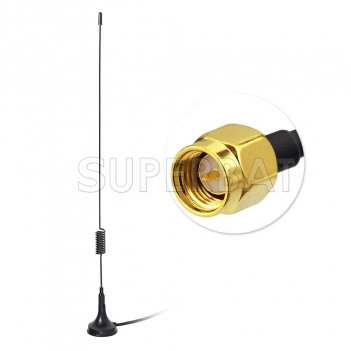

896-960Mhz 1710-1880MHz 3.5 dbi GSM Antenna SMA plug with Magnetic Base new
Unit Price: $7.53
sku:GM1-2161-S01SP-035-300
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $7.53 $7.15 $6.40 $5.50 ASK
saving% 0% 5% 15% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Magnetic Mount Network: GSM/GPRS/EDGE/CDMA Antenna Frequency: 896-960Mhz 1710-1880MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 3.5dBi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3m Weight: 47g

Product Description:


This GSM External Antenna simply screws in to replace the existing antenna to increase signal strength by 3.5dBi. It has a magnetic base so will attach to any metallic object that is magnetic.


Product feature:


  • Boosts signal of device it is plugged into. Useful in low GSM signal areas.
  • Comes with attached cable
  • Antenna volume small, the performance is stable and reliable

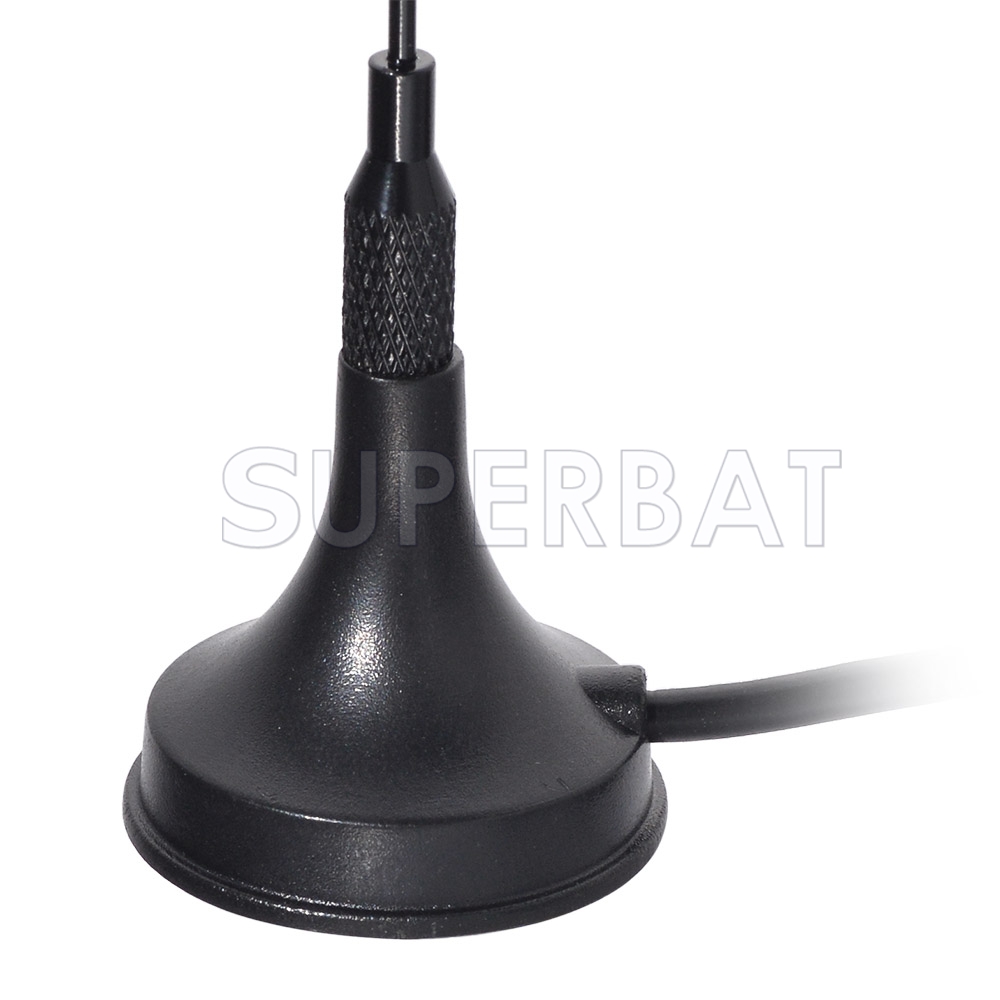

  • Magnetic base set up quickly and easily. stand for avoiding the abrasion of your table


Specification:


Frequency Range

896~960MHz,
1710~1880MHz.

bandwidth70/170
VSWR≤2
Gain3.5dBi
Horizontal Beamwidth360°
Vertical Beamwidth42°
Polarization TypeVertical
Max Input power50W
input impedance50Ω
Size

30*300mm

CableRG174 ,3meter
HousingBlack
MountingMagnetic
Weight47g
ConnectorSMA male straight default, if you need SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
