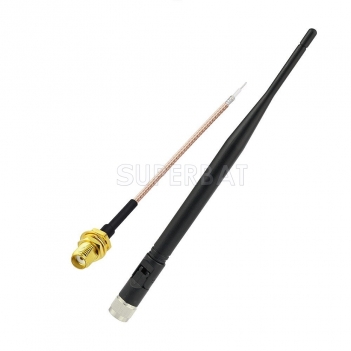

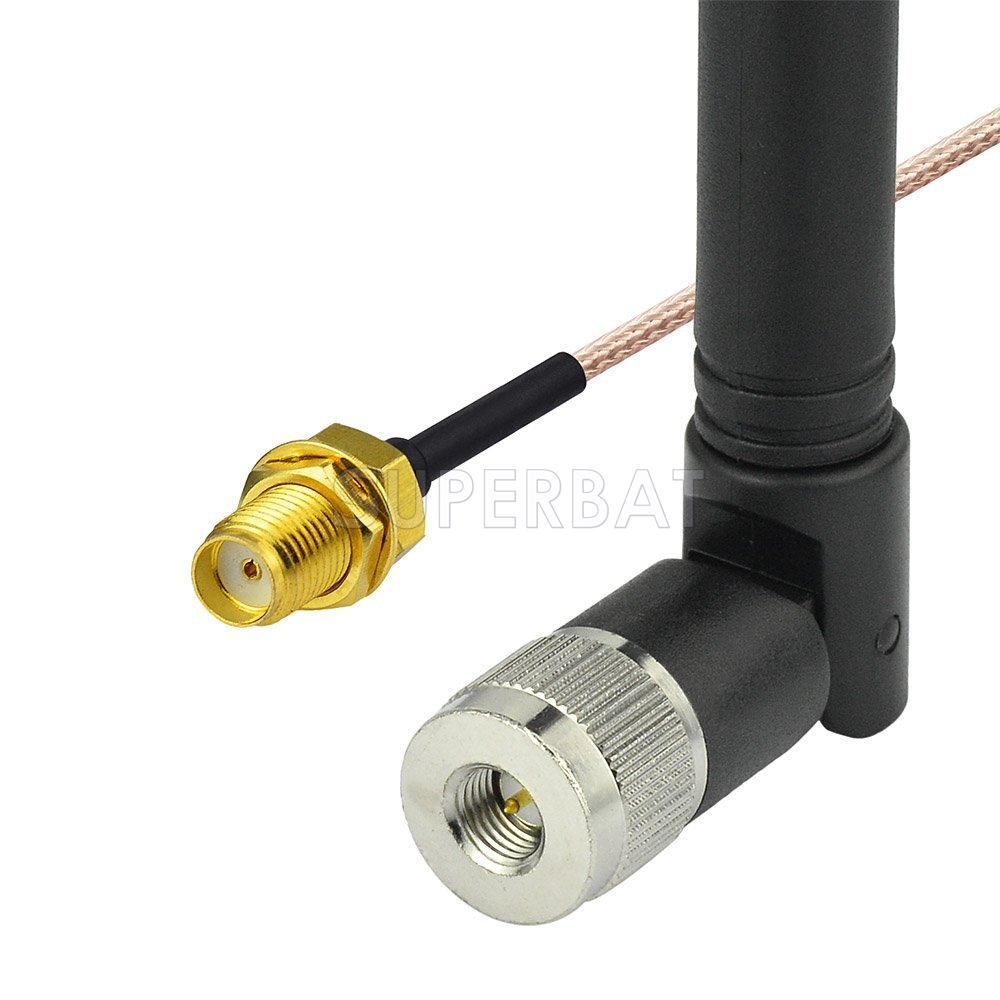

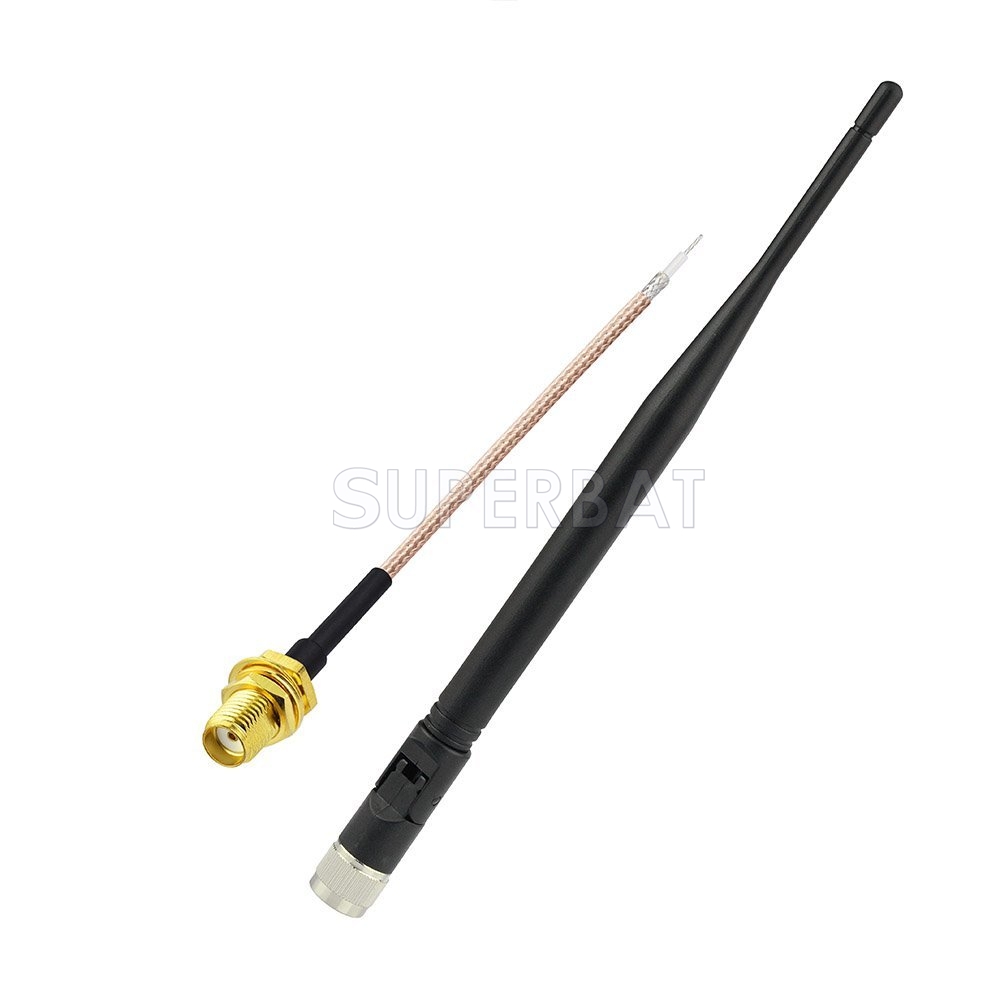

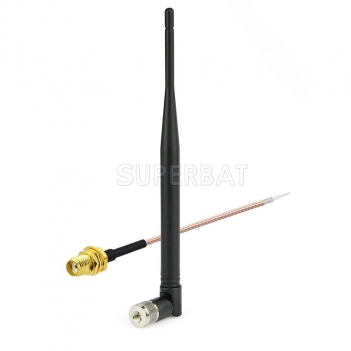

868MHz-870Mhz NFC RFID Antenne Vertical Omni Directional 868 mhz Antenne SMA Stecker SMA Buchse Pigtail Kabel RG178 6inch 15cm
GM2-2664-S01SP4-030+AC-S01BH-178-15
Unit Price: $6.30
sku:GM2-2664-KIT-1
quantity 1 - 9 10 - 99 100 - 499 500 - 9999 10000+
Price Each $6.30 $5.98 $5.67 $5.35 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 9995
Quantity: Units


Antenna Specification:

Frequency range : 900-980MHz

VSWR ≤ 2

Gain:3dBi

Power:50W

Bandwidth:64MHz

Impedance 50 Ohm

Polarization Linear Vertical

Directionality:omnidirectional

Horizontal Beam Width:360°

vertical panel Beam Width:90°

Color:Black

Connector: SMA Plug Tilt and swivel design

Diameter: 13.5mm

Length: 205mm

weight:30g


Antenna Cable Specification:

Product name: Antenna cable

Cable type: RG178.

Connector Type: SMA Connector

External material: metal.5. Used in Homematic Central CCU2

Cable length: 6inch (15cm).

Netto Weight: 6g.


Application area: Works for the current digital mobile systems.Replacement RF antenna for many access points and radios that are equipped with SMA connectors, including mobile, wireless phone numbers, fixed commercial phone, PCMCIA card, navigation device, vehicle wireless device , Etc.


Package Included:

Package Included: 1PCS 868MHz Antenna + 1PCS Pigtail Cable
