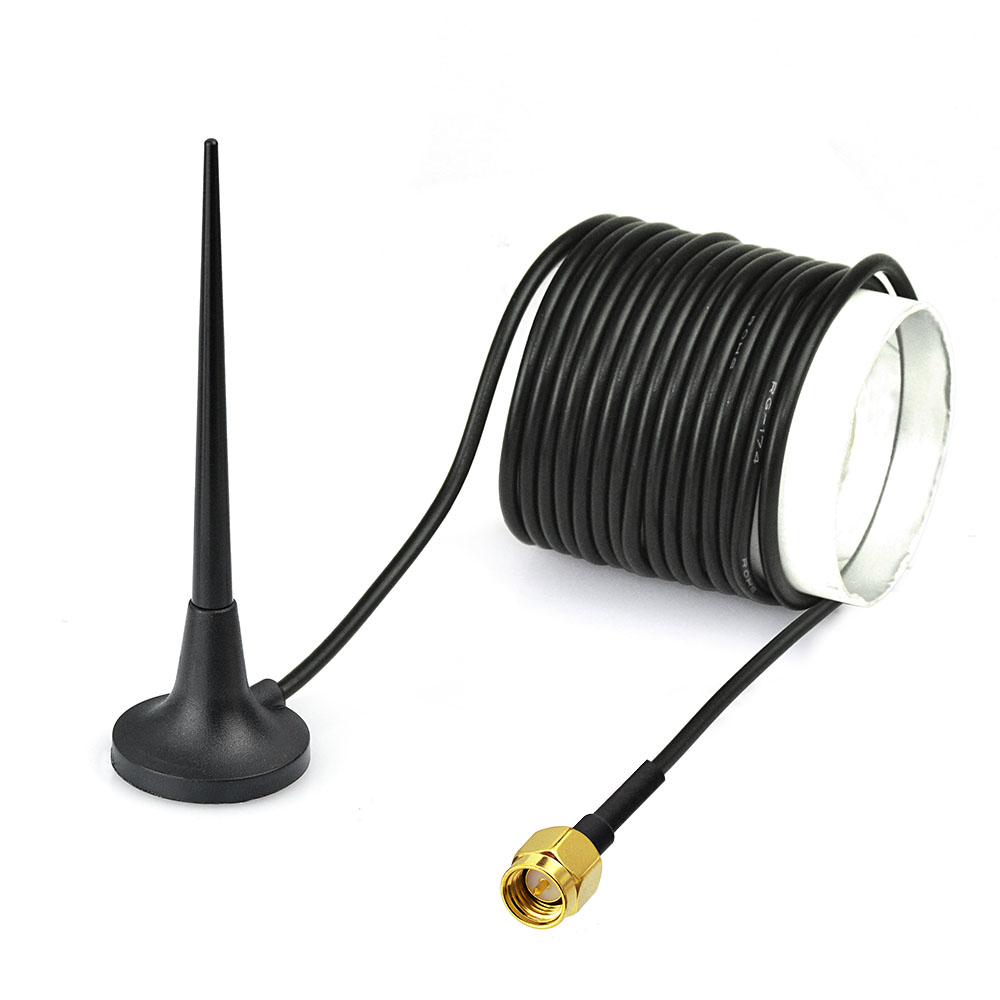

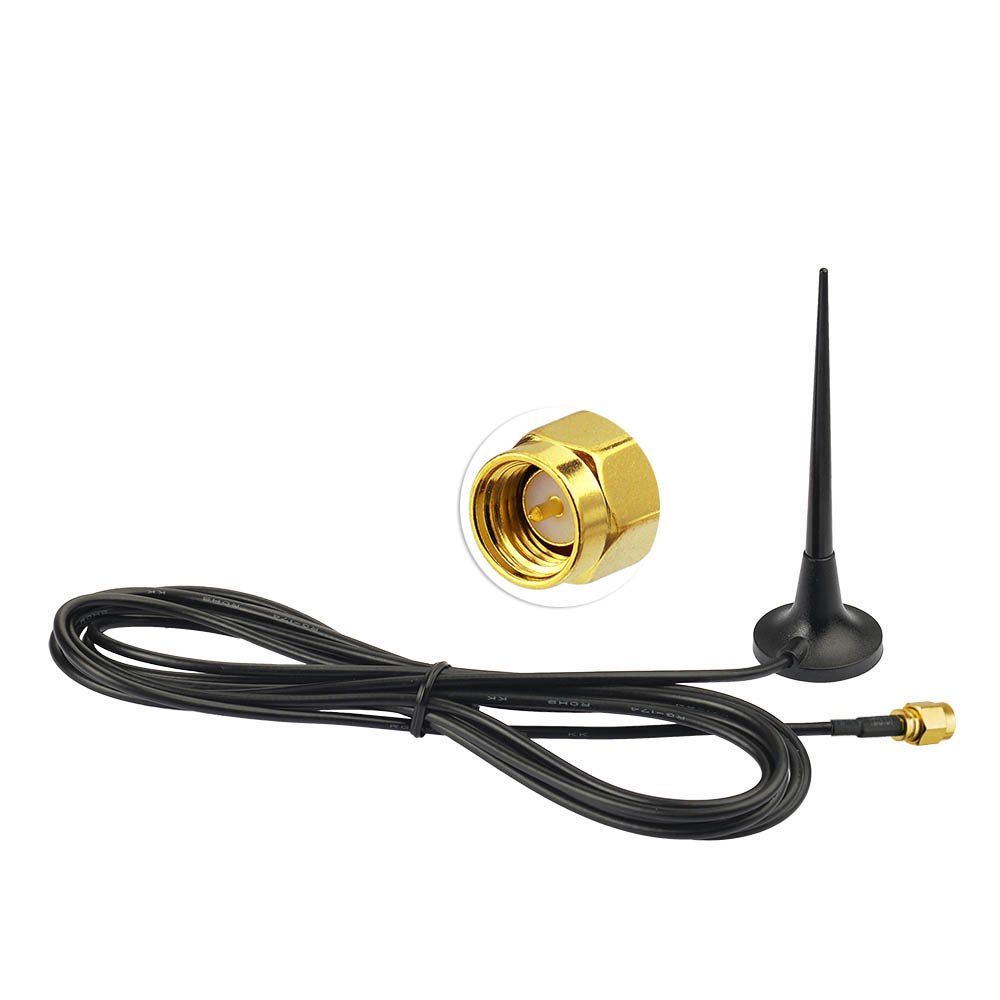

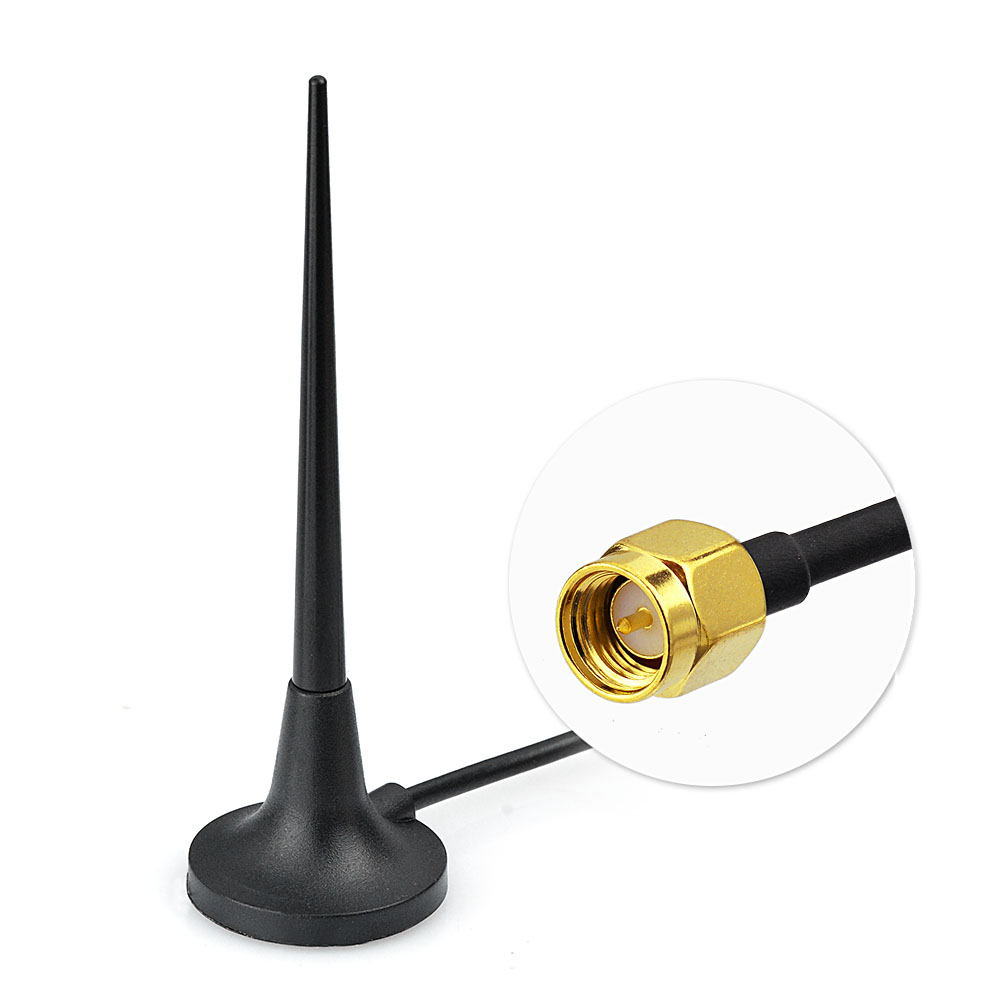

850/1900/900/1800/2100Mhz GSM/UMTS/HSPA/CDMA/3G cellular Antenna 3.5dBI SMA male
Unit Price: $6.95
sku:3A1-1107-S01SP-035-300
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $6.95 $6.60 $5.91 $5.49 ASK
saving% 0% 5% 15% 21% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Magnetic Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170 MHz Gain: 3.5dBi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3m Weight: 45g

    1.100% Brand New High Qualityl
    2.Magnetic basest and for avoiding the abrasion of your  table

    Specifications :

  • Frequency Range(MHz):850-960/1710-2170

  • GSM/GPRS/EDGE 850/900/1800/1900MHz

  • HSUPA/HSDPA/UMTS 2100MHz/900MHz

  • CDMA 1900 MHz

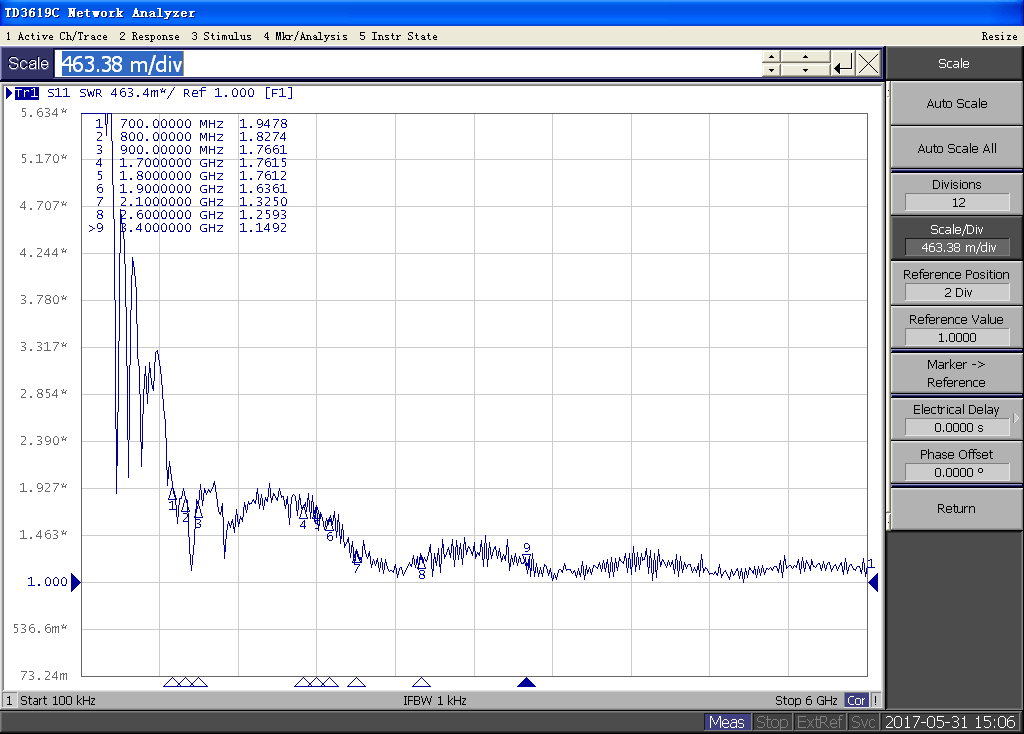

  • VSWR  ≤1.5
    Gain:  3.5dbi
    Max Input power(W): 60
    Input Impedance(Ω): 50
    Polarization Type: Vertical
    Antenna Length(mm): 90±1
    Cable Length(mm): 3M
    Cable Type: RG 174 as default
    Connector Type:
    SMA or customized

    Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors

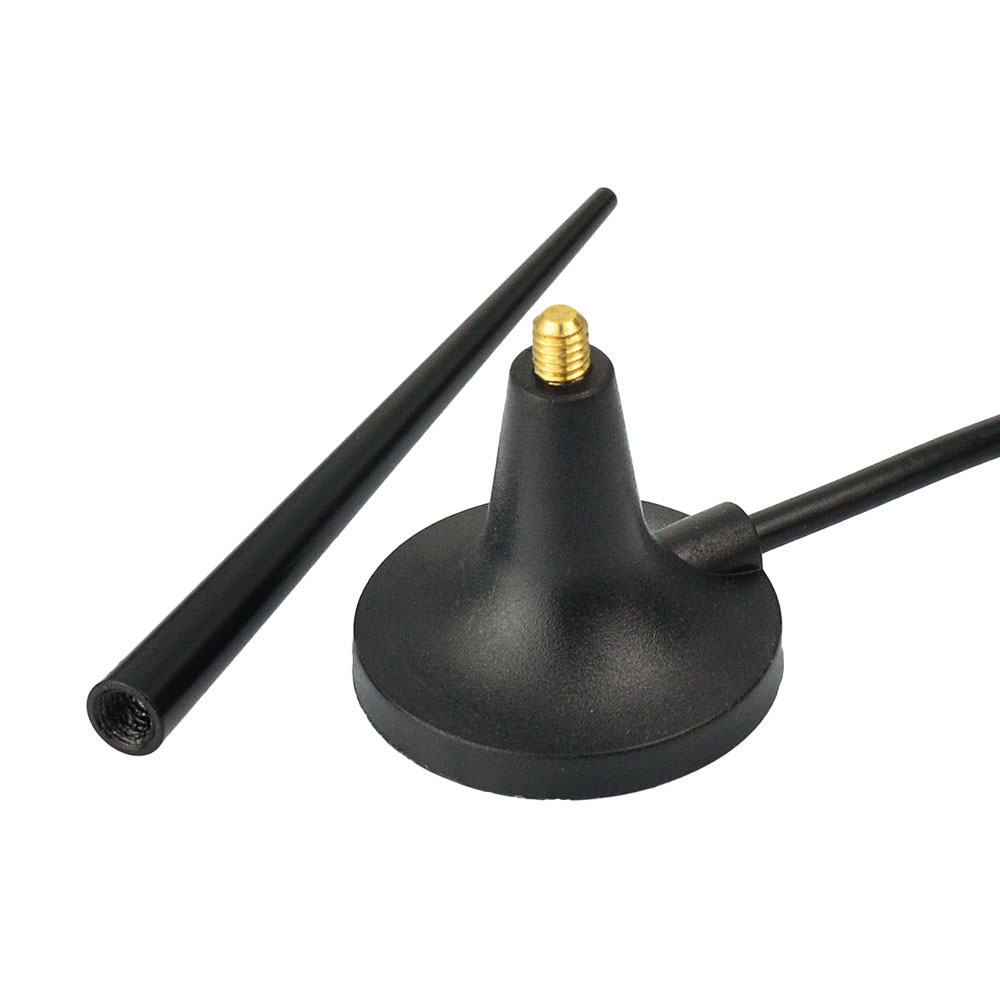

    Mounting: Magnetic
                   Housing: Black
                   Weight:45g
                   Storage Temperature: -45'c to +75'c
                 Operating Temperature: -45'c  to+75'c

  • Attention : Please check your device connector to make  sure this antenna can meet it
