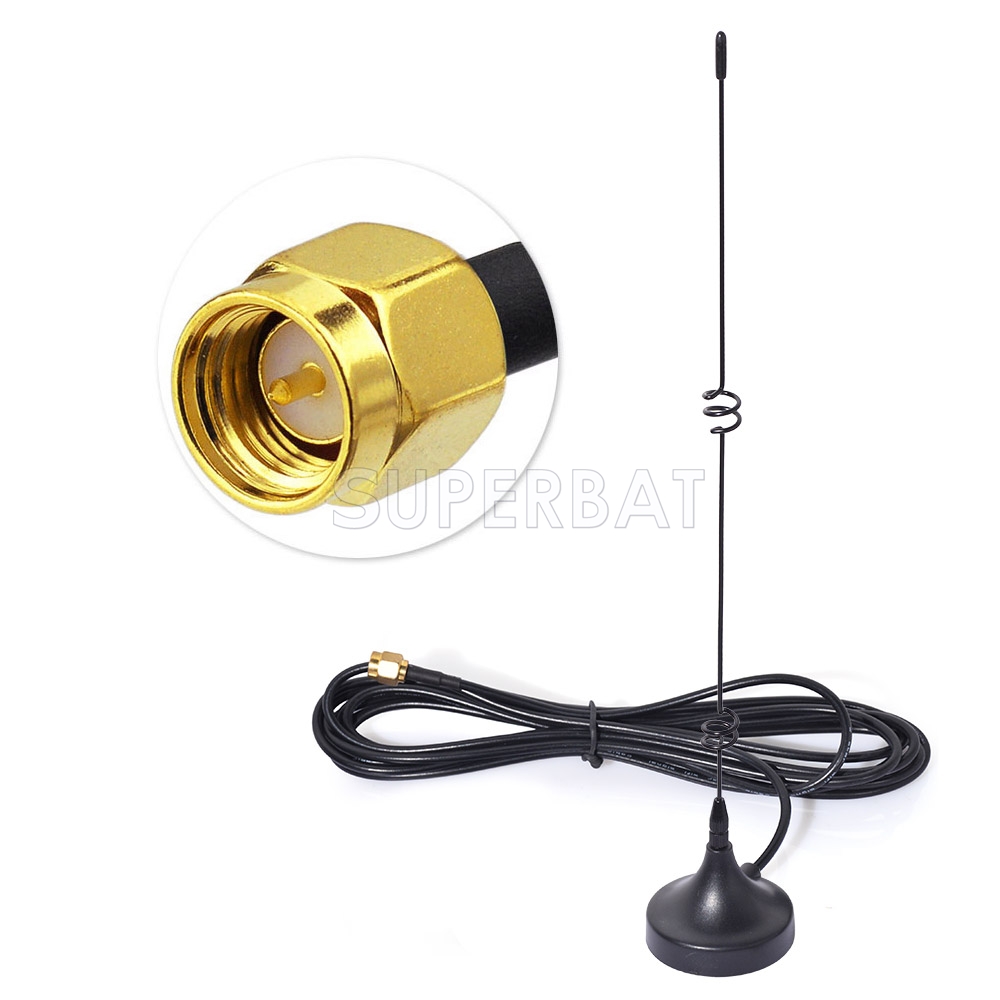

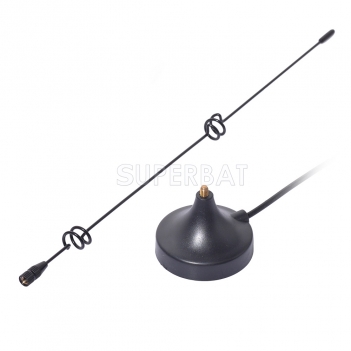

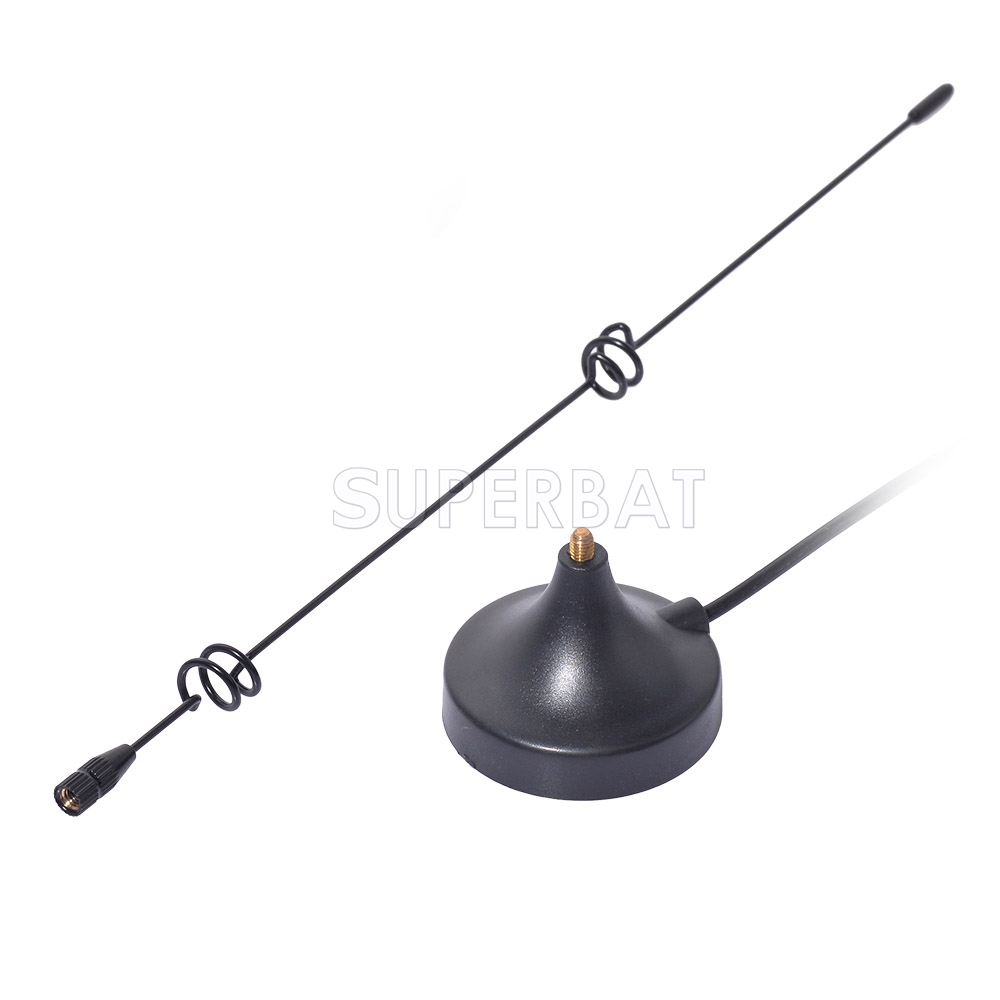

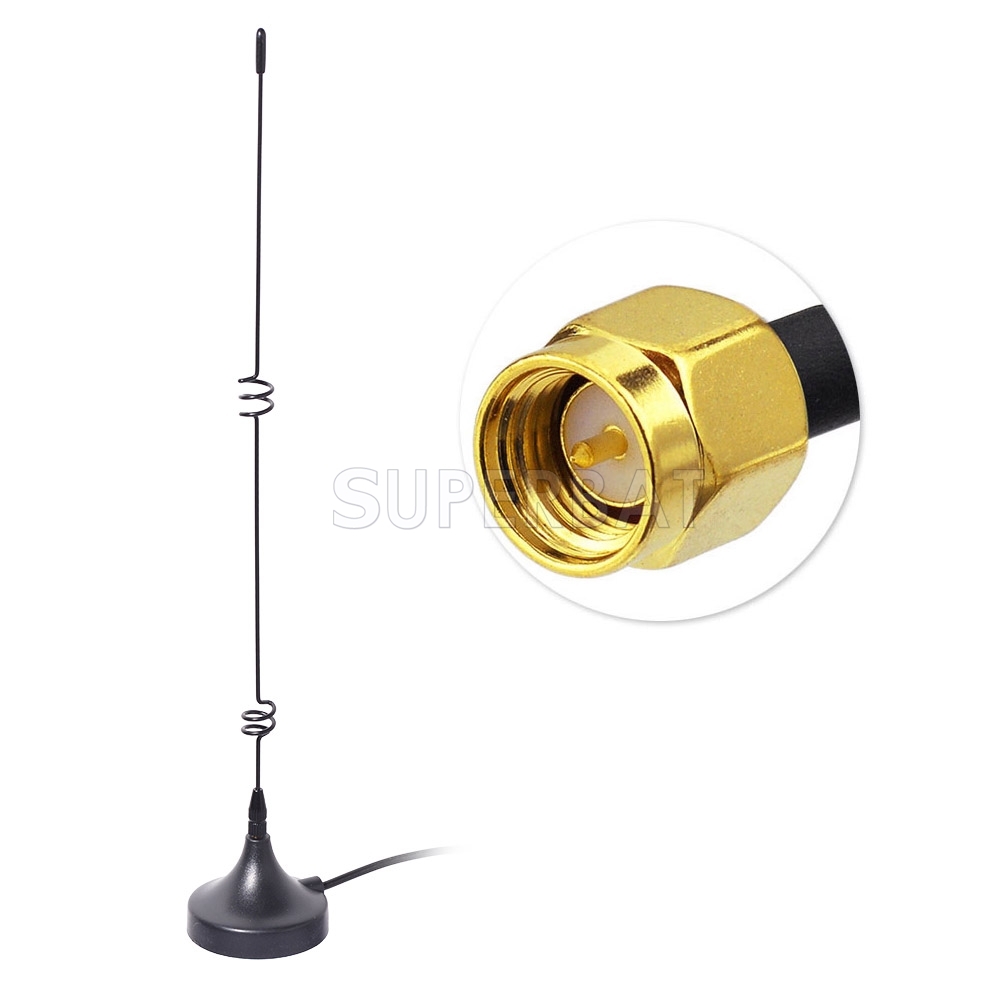

850/1900/900/1800/2100Mhz GSM/UMTS/HSPA/CDMA/3G Antenna 5dbi with SMA connector
Unit Price: $13.50
sku:3A1-1294-S01SP-050-300
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $13.50 $12.15 $10.94 $9.86 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Magnetic Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170 Mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 5dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG 174 Cable Length: 3M Weight: 65g

Product Description:

This 3G Mobile Broadband antenna is great for improving signal and transfer speeds on laptops or in vehicles. This antenna and connector assembly is all you need to make huge improvements in signal with your 3G dongle.



The mini magnetic base and whip make this antenna easy to install and remove.



Boost your 3G Mobile Broadband signal by 5dbi with this magnetic 3G signal booster antenna for Broadband dongles with CRC9/TS9/SMA/SSMB/MS147/MC-Card connection and Other Connectors Available by Request.

Features:

· Omni-Directional - Picks up signal in all directions.
   · Magnetic base can be fitted to cars, caravans, portacabins quickly and easily
   · No need for drilling or screwing.
   · 3 metres of cable included.
   · Enhances 3G & GPRS signal strength

Specification:

Frequency Range(MHz)850-960/1710-2170
   GSM/GPRS/EDGE 850/900/1800/1900MHz
   HSUPA/HSDPA/UMTS 2100MHz/900MHz
   CDMA 1900 MHz
   VSWR ≤1.5
   Gain: 5dbi
   Max Input power(W): 60
   Input Impedance(Ω): 50
   Polarization Type: Vertical
   Antenna Length(mm): 285
   Cable Length(mm): 3M
   Cable Type: RG174 as default

   Connector Type:SMA or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!
    Mounting: Magnetic
   Housing: Black
   Weight:65g
   Storage Temperature: -45'c to +75'c
   Operating Temperature: -45'c to+75'c
