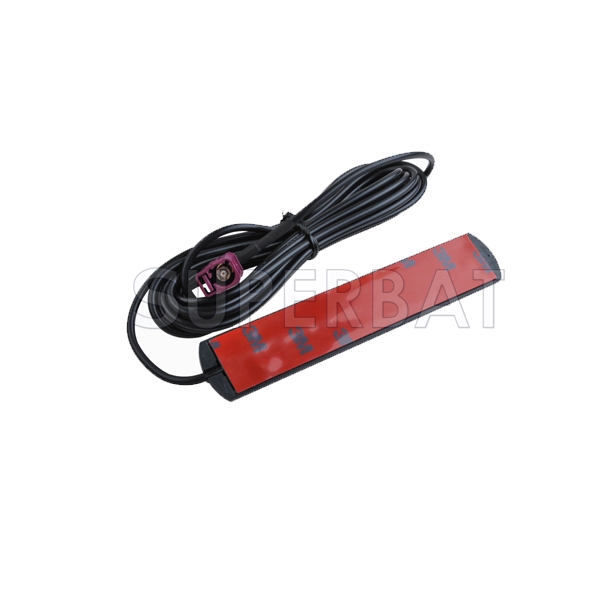

824-960Mhz 1710-1990MHz GSM/UMTS/HSPA/CDMA Antenna 2dbi Fakra D jack right angle
Unit Price: $9.00
sku:GM3-1404-F03DRJ-020-300
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $9.00 $8.10 $7.29 $6.57 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Glass Mount Network: GSM/GPRS/EDGE/CDMA Antenna Frequency: 824-960/1710-1990Mhz Connector Series: Fakra Connector Polarity: Standard Connector Gender: Jack Gain: 2dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3M Weight: 56g

Frequency Range(MHz): 824-960/1710-1990Mhz
Bandwidth(MHz): 136/280
VSWR≤1.5
Gain(dBi): 2
Max Input power(W): 60
Input Impedance(Ω): 50
Polarization Type Vertical
Antenna Length(mm): 115 x 22 x 4
weight 56g
Cable Type RG174

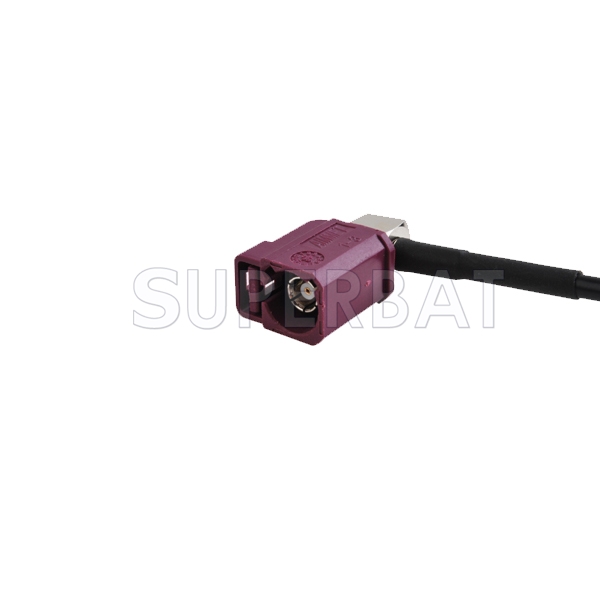

Cable Connector: Fakra D jack right angle or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Mounting Adhesive
