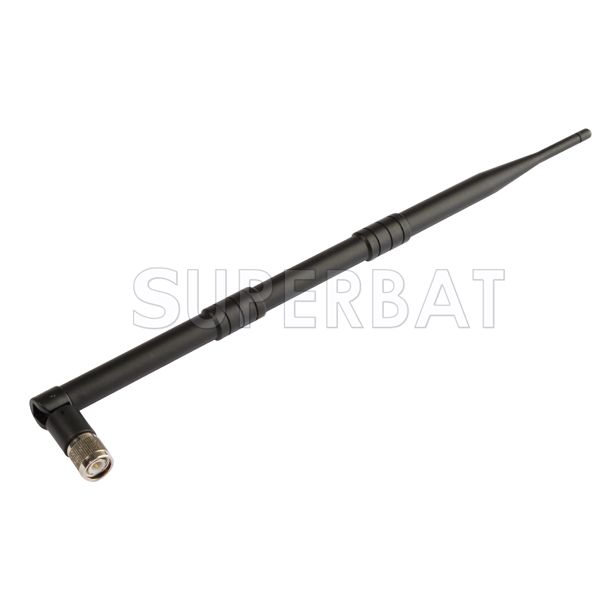

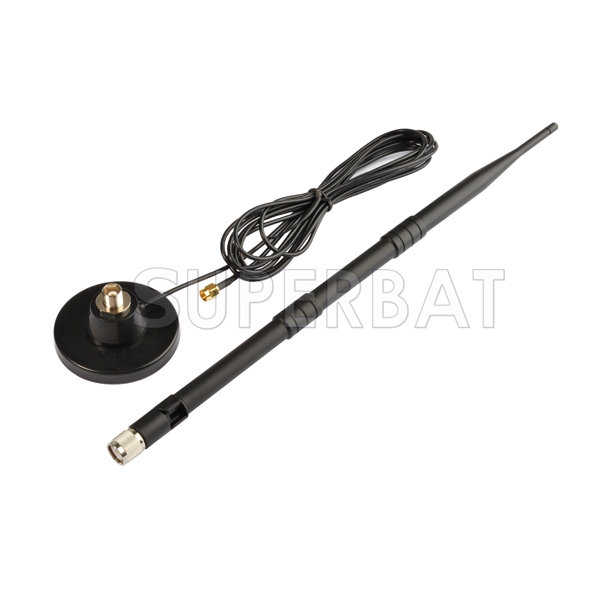

824-960/1710-2200MHz 9dB GSM/3G/UMTS/CDMA antenna strong magneti with SMA male
Unit Price: $20.00
sku:3A1-1621-S01SP-090-300
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $20.00 $18.00 $16.20 $14.60 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Magnetic Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 824-960/1710-2200MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 9dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3m Weight: 230g

Gain:9dBi
Frequency range : 824-960/1710-2200 MHz
VSWR< 1.5 : 1 max
Impedance :50 Ohm
Polarization:     Vertical
Radiation:     omnidirectional
Diameter: 13.5mm
cable length: 3m or others

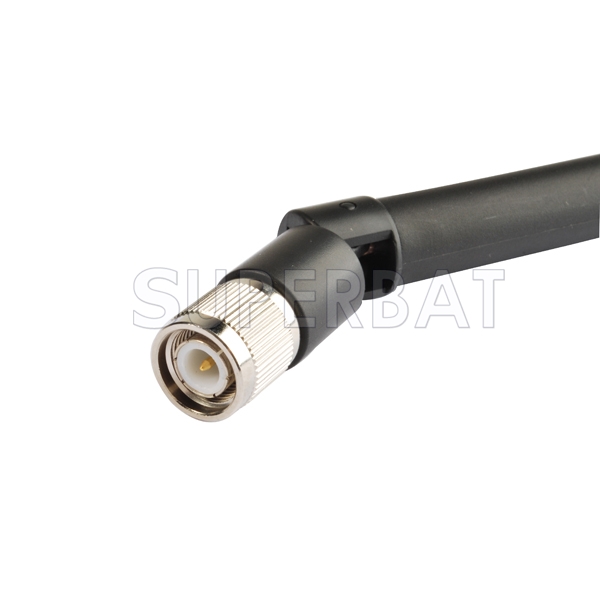

Antenna Connector: SMA male straight default
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Colour: black

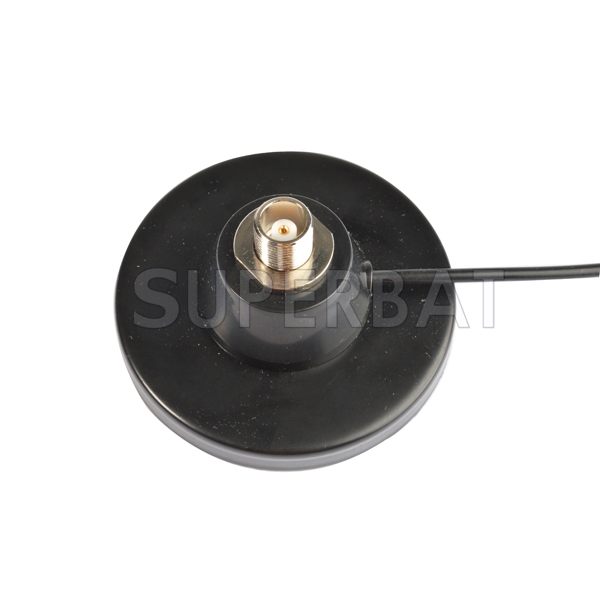

Mounting:Magnetic Base
Cable:RG174
Working Temperature : -20~+55 deg C
