Your position: Home > Others > Power Splitter
800-2500MHz 3-way Power Divider N female connector
Unit Price: $29.00
sku:PD-1537
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $29.00 $26.39 $23.78 $21.46 ASK
saving% 0% 9% 18% 26% -
Real Time Availability
Stock: 9990
Quantity: Units

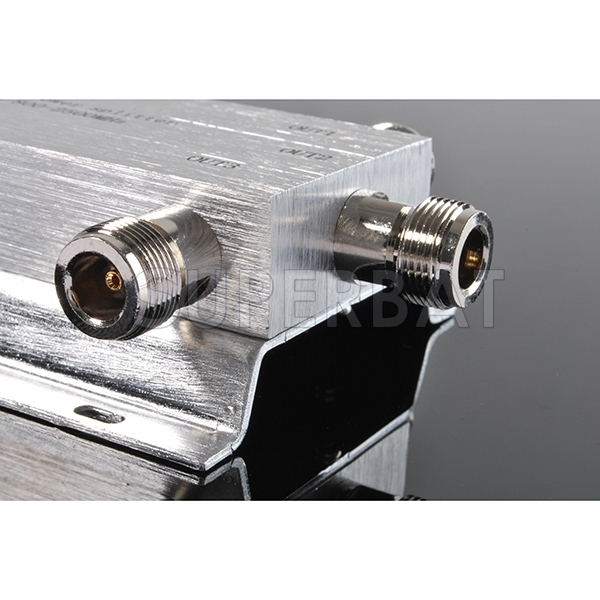

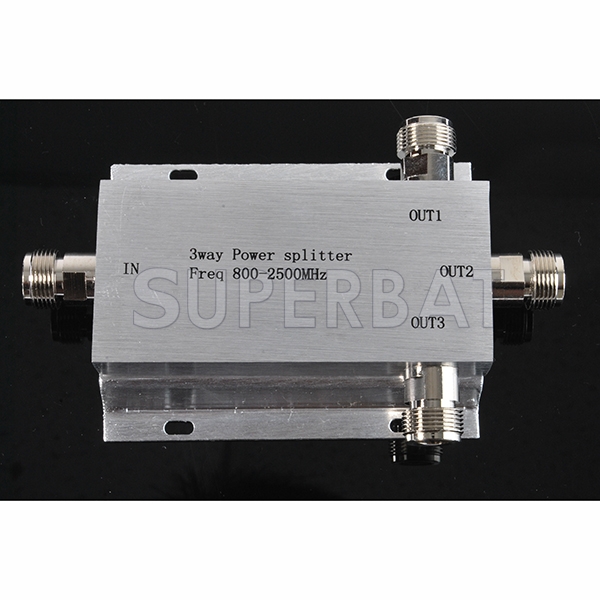

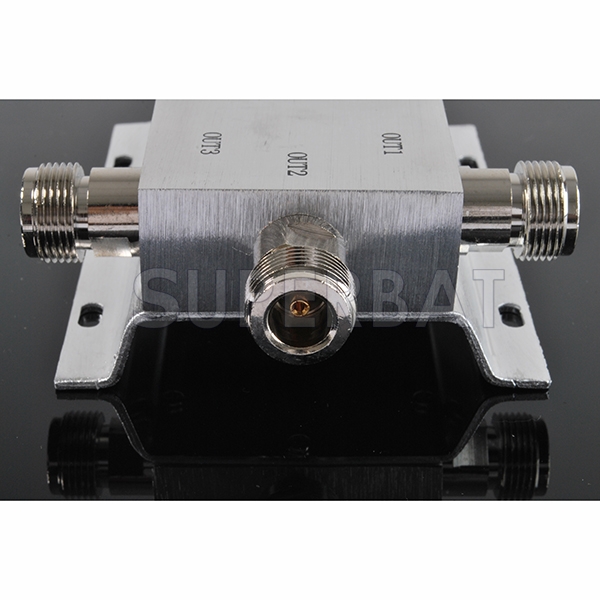

800-2500MHz 3-way Power Divider N female connector

Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.



ELECTRICAL SPECIFICATIONS:
type: 3-way Power Divider
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db:<=5.1DB
Isolation(dB): ≤27
Nominal Impedance(Ω): 50
VSWR :1:1.3
Max. Power(MAX)(W) :50
connector : N female



Mechanical Characteristics:
Environment temperature -℃ :-30+60
Relative humidity -% :5~95
Size -mm :140X85x22
Weight:282g
PS. Power splitter box body surface polishing
