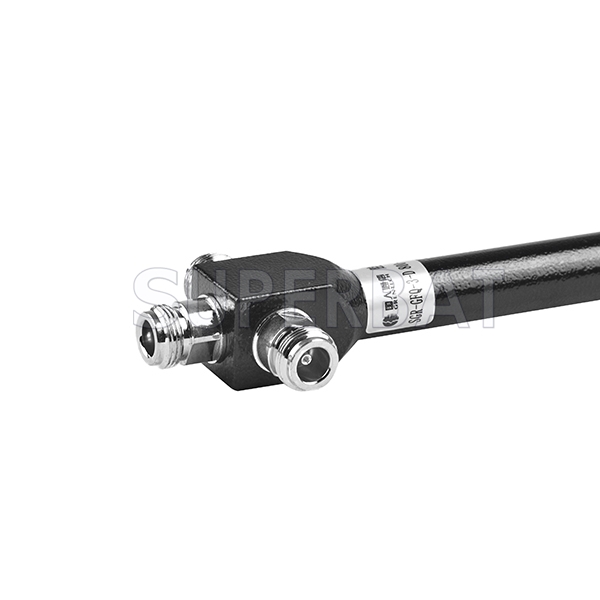

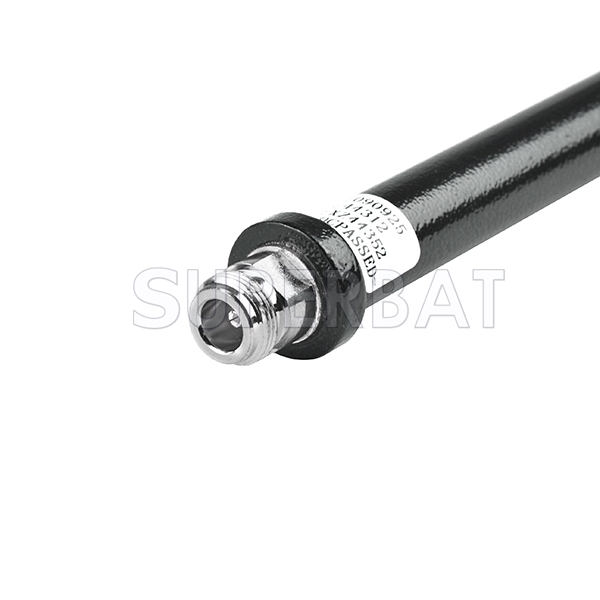

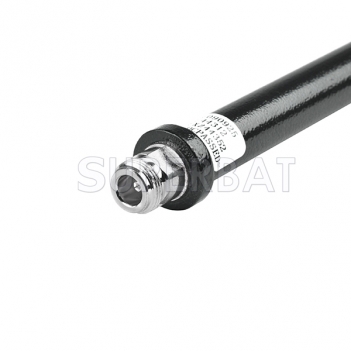

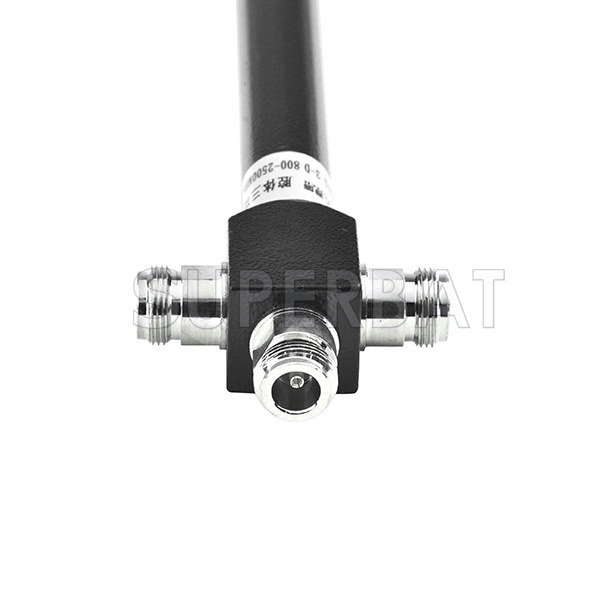

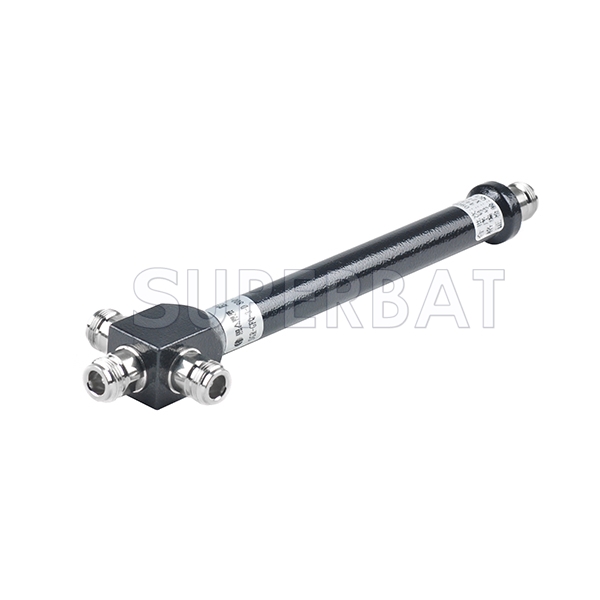

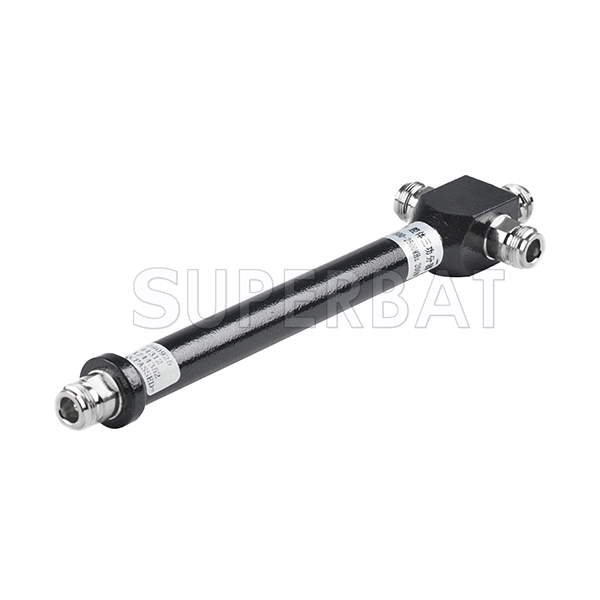

800-2500MHz 3-way Cavity RF Power Splitter/Power Divider

Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.



ELECTRICAL SPECIFICATIONS:

type: 3-way Cavity Power Divider
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db:<=5.2DB
Isolation(dB): ≤27
Nominal Impedance(Ω): 50
VSWR :1:1.2
Max. Power(MAX)(W) :50
connector :N female



Mechanical Characteristics:

Environment temperature -℃ :-25~+55
Relative humidity -% :5~95
Size -mm :235mmX60mmx25mm
Weight：207g
PS. Power splitter box body surface polishing
