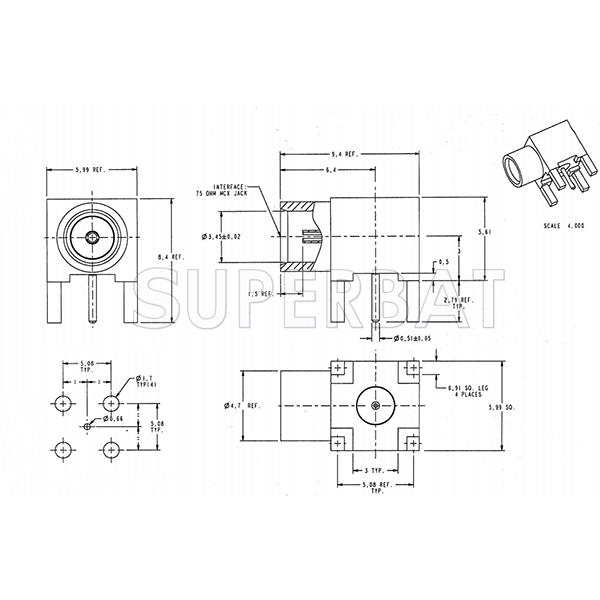

75 Ohm MCX Female Jack Right Angle Post Terminal Four Stud PCB - Through Hole Mount
75 Ohm MCX Female Jack Right Angle Post Terminal Four Stud PCB - Through Hole Mount
Unit Price: $2.99
sku:M05-RJPT4-11BS00A
Real Time Availability
Stock: CONTACT US
Quantity: Units

Series: MCX Termination Type: PCB Gender: Jack , Female Polarity: Standard Body Style: Right Angle Impedance: 75 Body Material: Brass Body Plating: Gold Frequency Range: DC-3GHz

Note: This connector is custom one ,the MOQ is 500 pcs.

The MCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It has the all features of the MCX series, including 50 Ohm impedance with a broadband capability of DC to 6 GHz and secure, fast and easy snap-on/ snap-off coupling, and a wide range of available connectors. However, MMCX connectors have a smaller foot print than the MCX series.
Like the MCX, the MMCX series conforms to the European CECC 22000 specification.
A range of connectors are available, including surface mount, edge card, and cable connectors.

Features and Benefits
Broadband performance with low reflection DC to 6 GHz, providing a high-quality solution at a low cost
Quick connect/disconnect snap-on mating reduces installation time
Conforms to European CECC 22012 specifications
Available in straight and right angle plugs and printed circuit board connectors

Applications
Antennas
Instrumentation
Satcom
Base Stations
Telecom
Broadband
GPS
