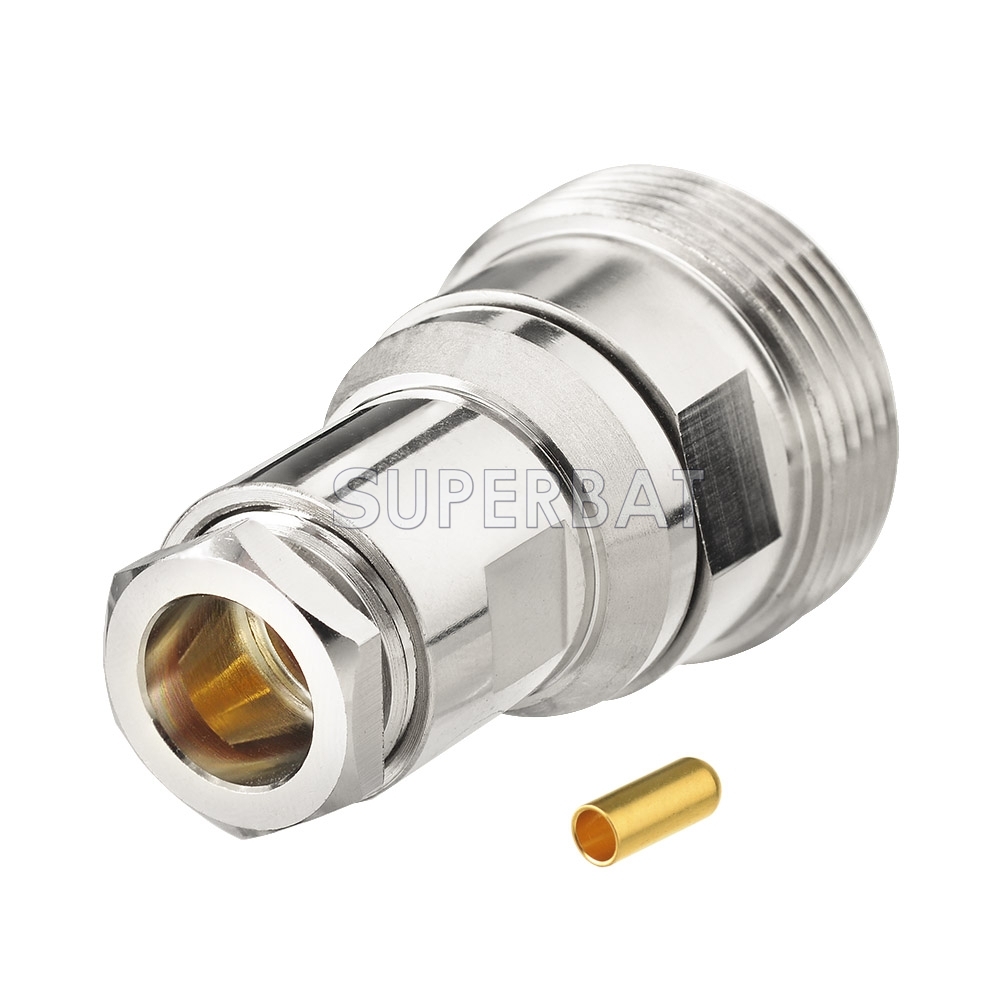

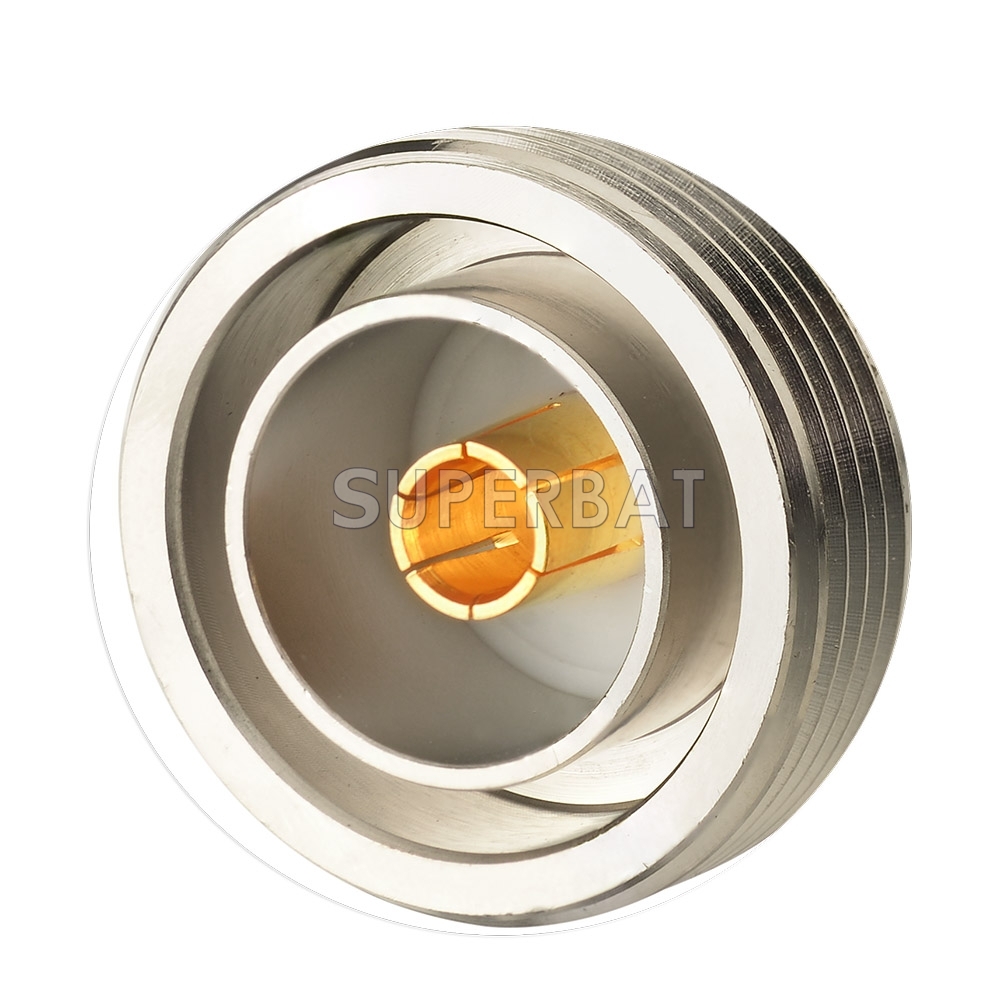

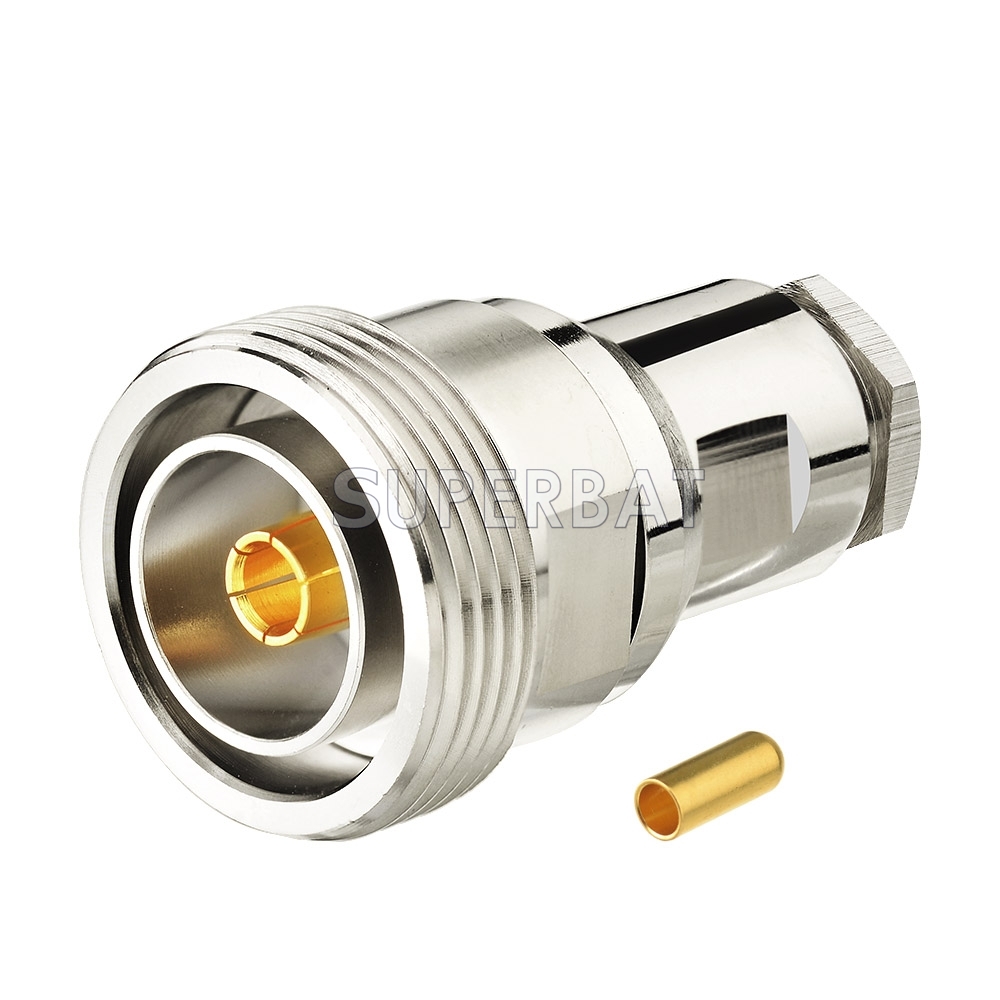

The 7/16 series name derives from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact. These connectors provide superior performance for both return loss and intermodulation distortion (IMD).
These connectors are very robust, extremely stable and mostly with waterproof specifications, making them ideal for applications where vibration resistance and environmental protection is important. Because they are designed to minimize signal distortion from intermodulation, 7/16 connectors are especially suitable for base stations and broadcast communication systems.
Features and Benefits
Low IMD and low VSWR provides improved system performance
Self-flaring design ensures ease of installation with standard hand tool

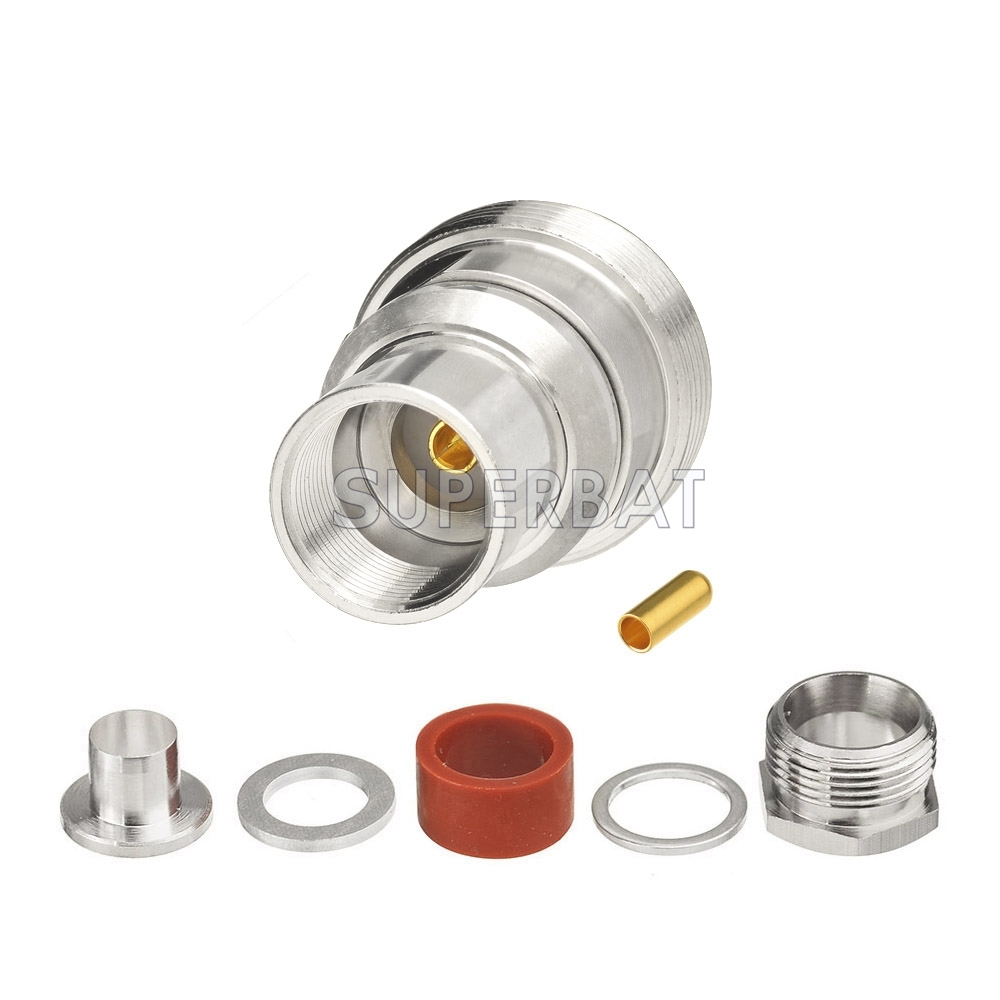

Pre-assembled gasket protects against dust (P68) and water (IP68) per IEC 182
Silver-plated contacts and silver or white bronze-plated bodies deliver a high conductivity and corrosion resistance
