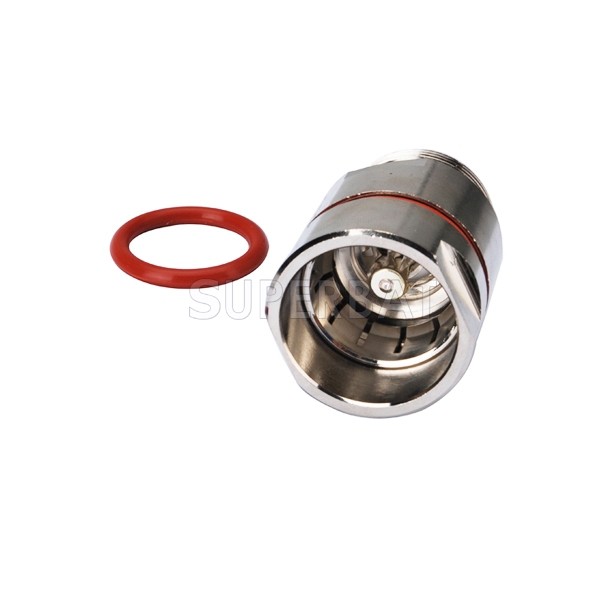

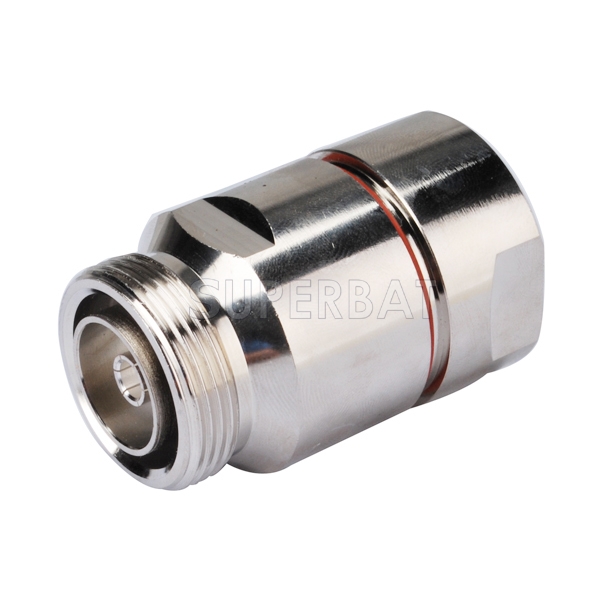

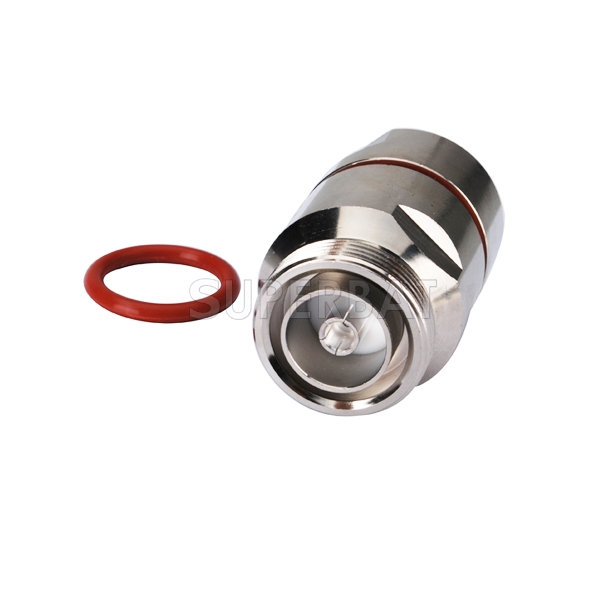

7/16 DIN Jack Female Connector Straight Clamp 7/8 inch Flexible
7/16 DIN Jack Female Connector Straight Clamp 7/8 inch Flexible
Unit Price: $18.38
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $18.38 $16.54 $14.89 $13.40 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 9998
Quantity: Units

Series: 7/16 DIN Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Interface Type: 7/8 inch Flexible Body Style: Right Angle Impedance: 50 Attachment Method: Clamp Body Material: Brass Body Plating: Gold Dielectric Type: PTFE Frequency Range: 3GHz

The 7/16 series name derives from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact. These connectors provide superior performance for both return loss and intermodulation distortion (IMD).

These connectors are very robust, extremely stable and mostly with waterproof specifications, making them ideal for applications where vibration resistance and environmental protection is important. Because they are designed to minimize signal distortion from intermodulation, 7/16 connectors are especially suitable for base stations and broadcast communication systems.

Features and Benefits

Low IMD and low VSWR provides improved system performance
Self-flaring design ensures ease of installation with standard hand tool
Pre-assembled gasket protects against dust (P68) and water (IP68) per IEC 181
Silver-plated contacts and silver or white bronze-plated bodies deliver a high conductivity and corrosion resistance


Wireless Infrastructure
Lightning Protection
Base Stations
Satellite Communications
Antenna Systems
