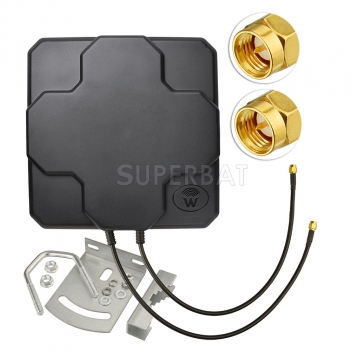

698-2690MHz 4G/LTE MIMO Panel Antenna 18dBi High Gain Outdoor for WiFi & Cell 3G 4G LTE/MIMO/Mobile Signal Booster
Unit Price: $36.49
sku:4AP-001-S01-S01
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $36.49 $34.67 $31.02 $28.83 ASK
saving% 0% 5% 15% 21% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 4G/LTE Antenna Frequency: 698-2690MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 18dbi Radiation: Directional V.S.W.R: ≤1.5 Cable Type: RG58 Cable Length: 20CM Weight: 771g

Specifications:

  • Frequency: 698-960/1710-2690 MHz - Frequency coverage for 700 MHz, 850 MHz, AWS and PCS bands | Impedance: 50 Ohm | Max Power:50W | Beamwidth:E:20 H:20 | Gain:18dbi | Radiation: Directional | V.S.W.R: ≤1.5 Cable:7.87" RG58U extension

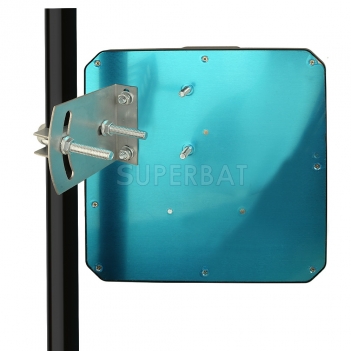

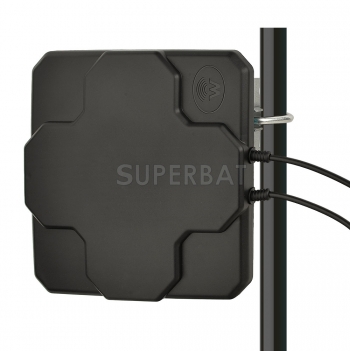

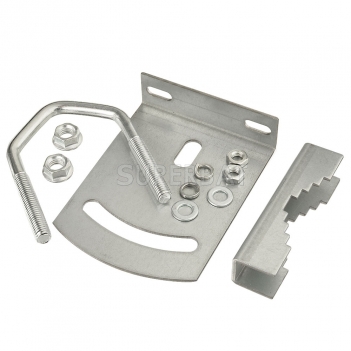

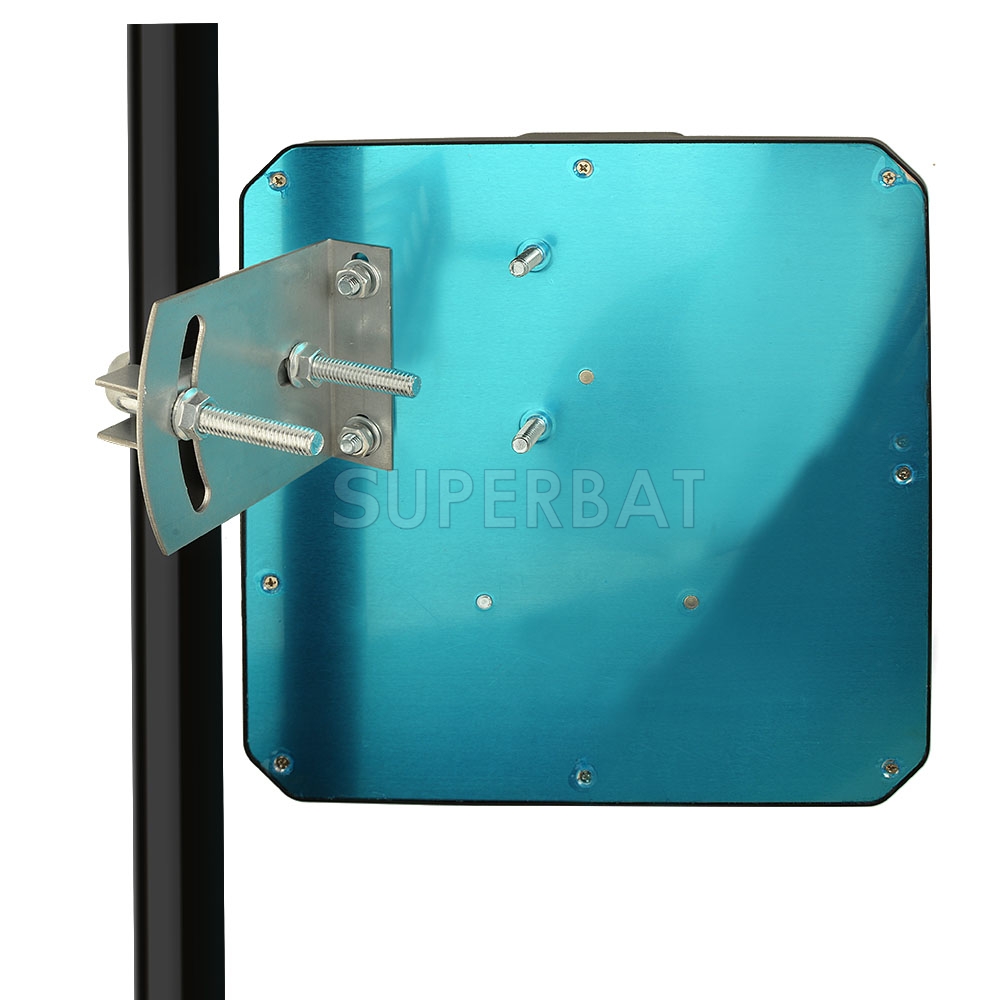

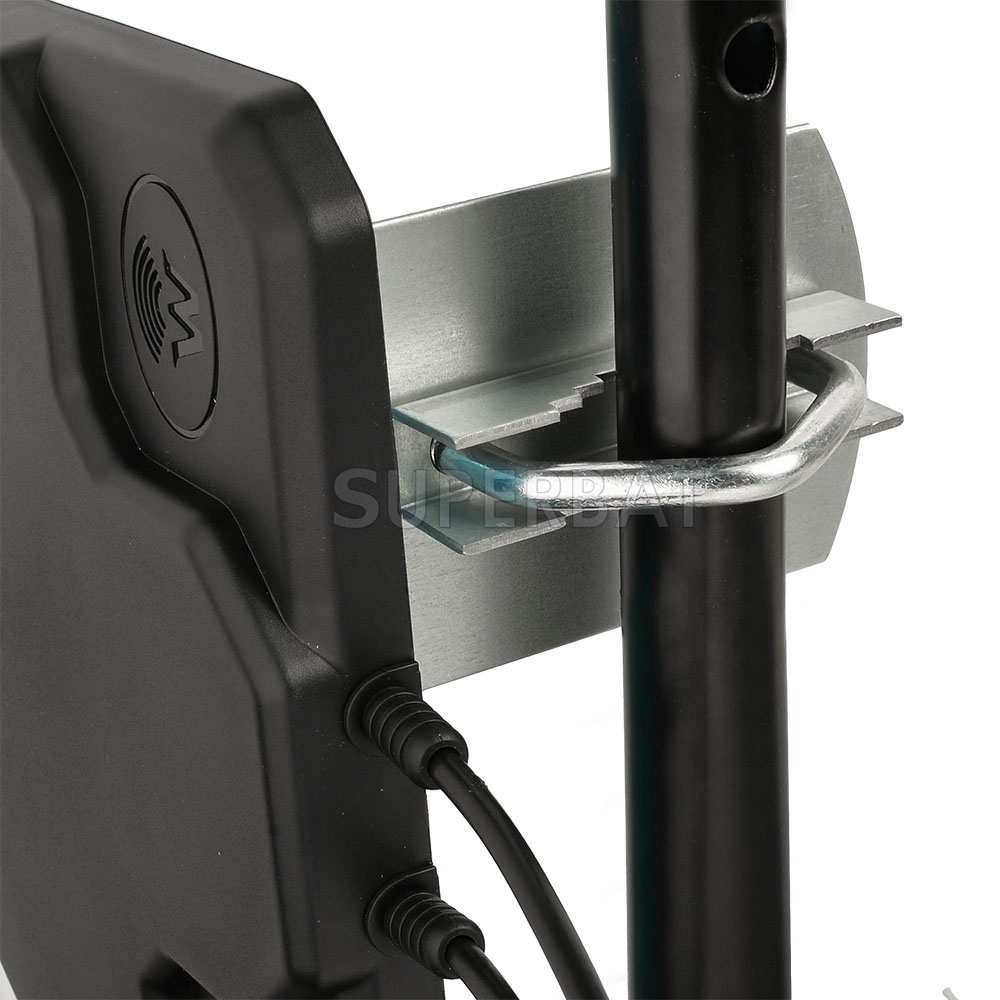

  • SMA-Male connectors default| Polarization: Vertical + Horizontal | Dimensions: 8.2 x 8.2 x 1 in | Weight:771g | Easily mounts to wall with included hardware and bracket

  • Designed for 4G/LTE cellular networks such as Verizon, AT&T, Sprint, T-Mobile, Telus, Bell Canada, Rogers, Digicel and more 18 dBi cross-polarized beamwidth MIMO design increases signal strength and data speeds for remote sites with poor cellular signal coverage | The antenna is ideal for use in large open areas such as indoor courtyards, indoor sporting venues, convention centers, and shopping malls

  • Cross Polarized-The antenna features two independent antennas with cross-polarization. This feature doubles the wireless capacity over the same channels

  • Low PIM Rated-The key to providing the best performance in a DAS application is to ensure the components used are low PIM rated. With a low PIM rating, the antenna helps meets the most demanding PIM requirements for LTE/4G bands
