Technical Specifications

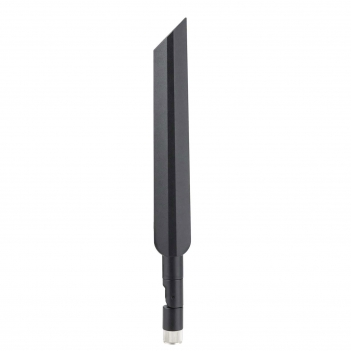

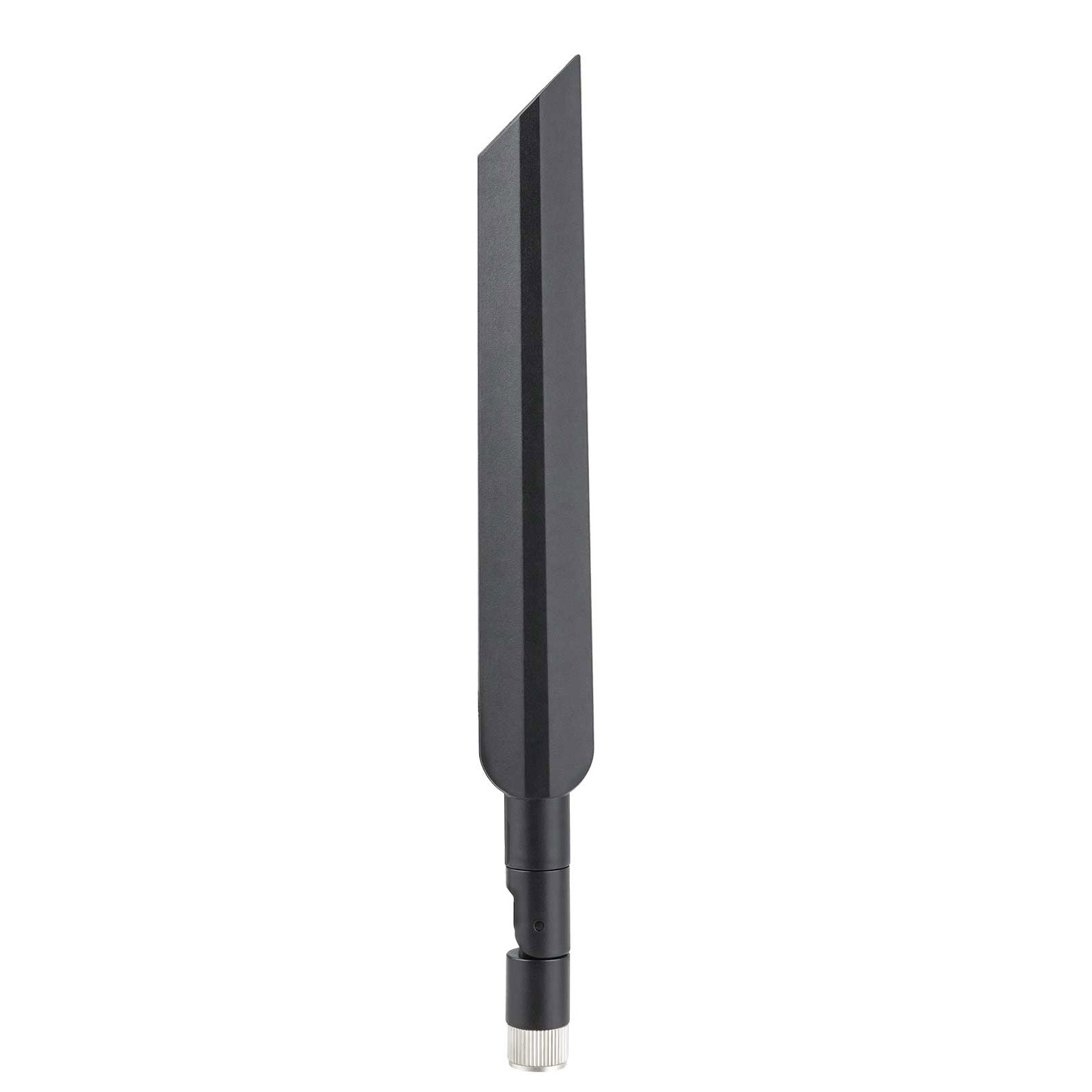

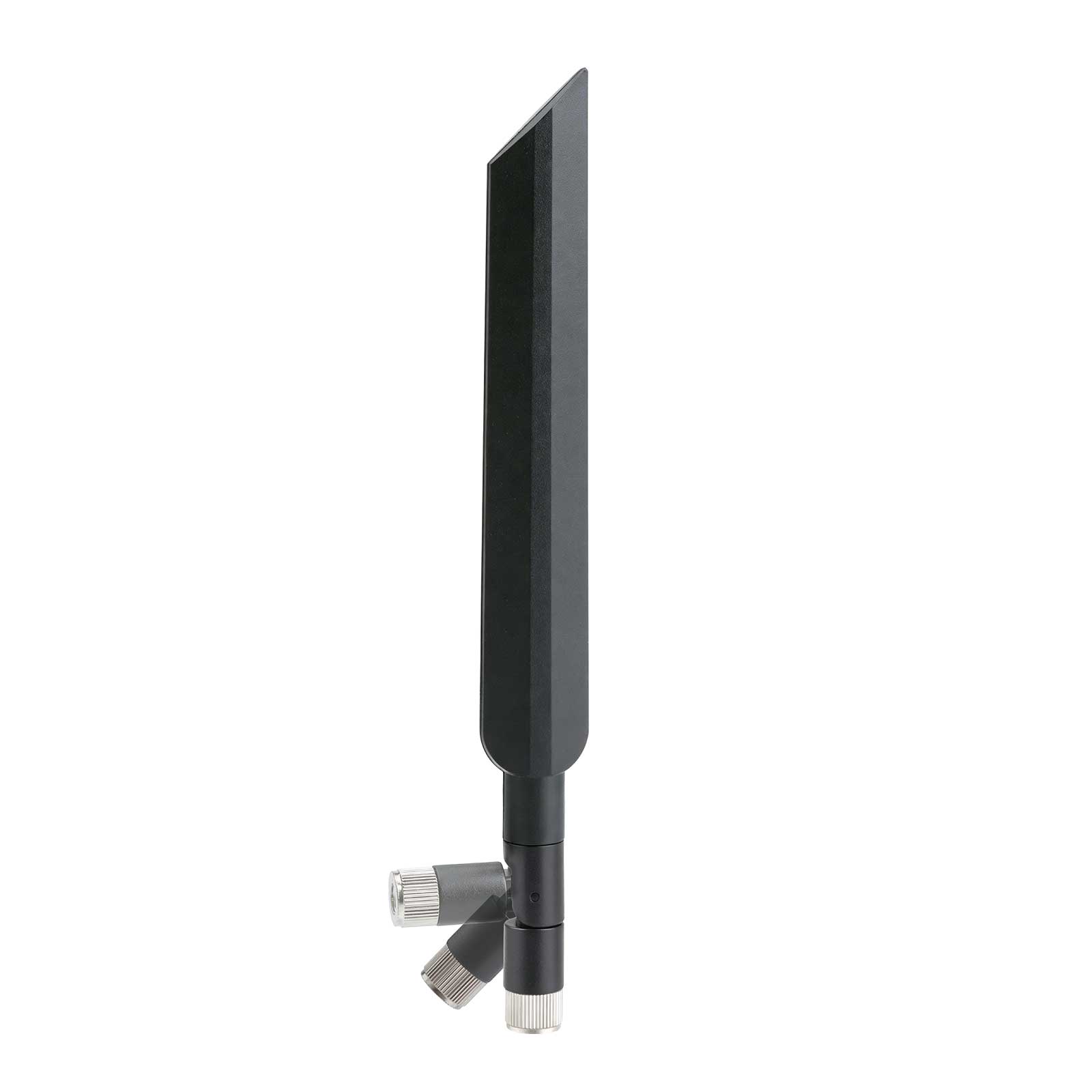

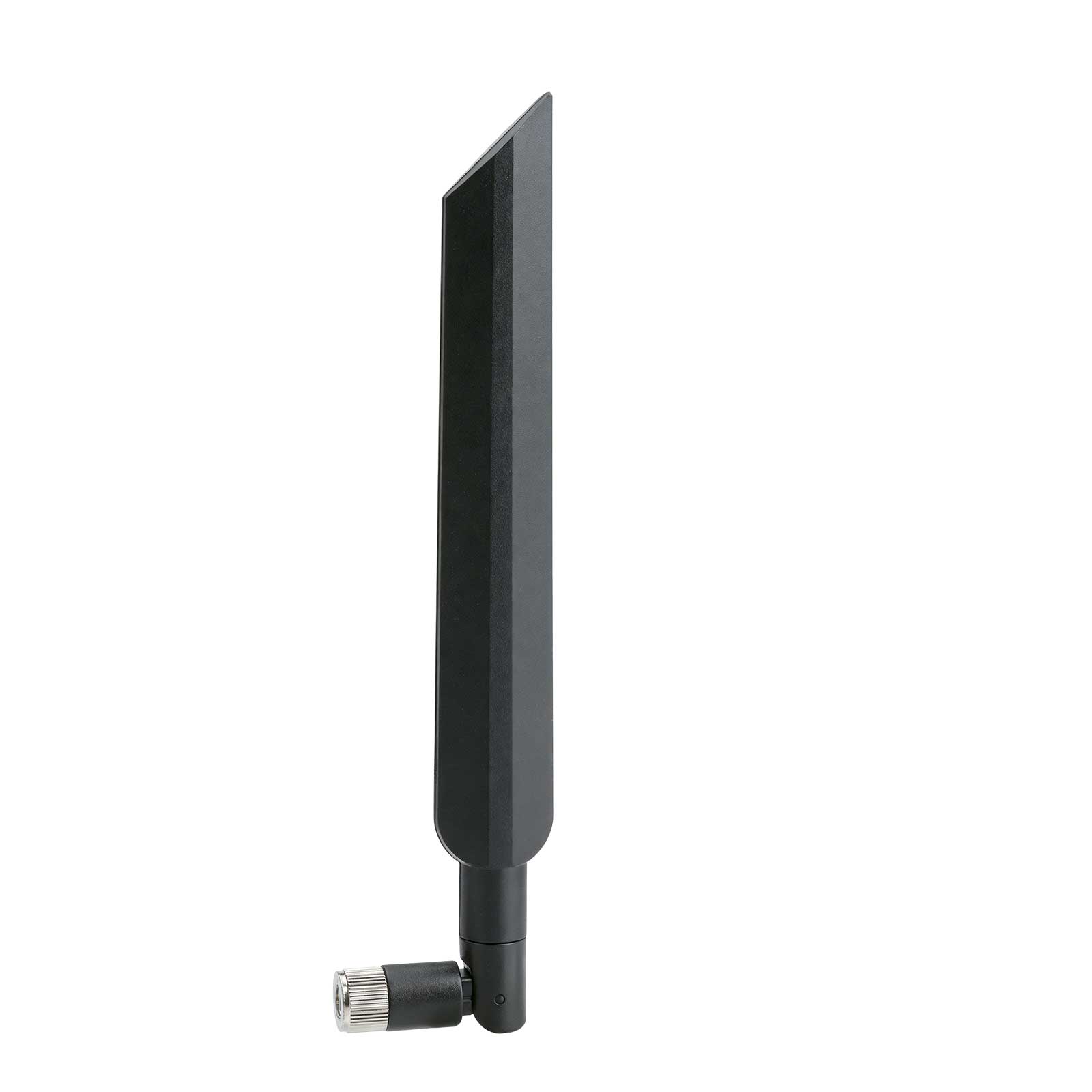

Product Type: 4G LTE/5GAntenna

Frequency Range: 600–6000 MHz

Network Support: 4G LTE / 5G NR sub-6GHz

Gain: 6 dBi

Polarization: Vertical

Impedance: 50Ω

VSWR: ≤ 1.5

Radiation Pattern: 360° Omnidirectional

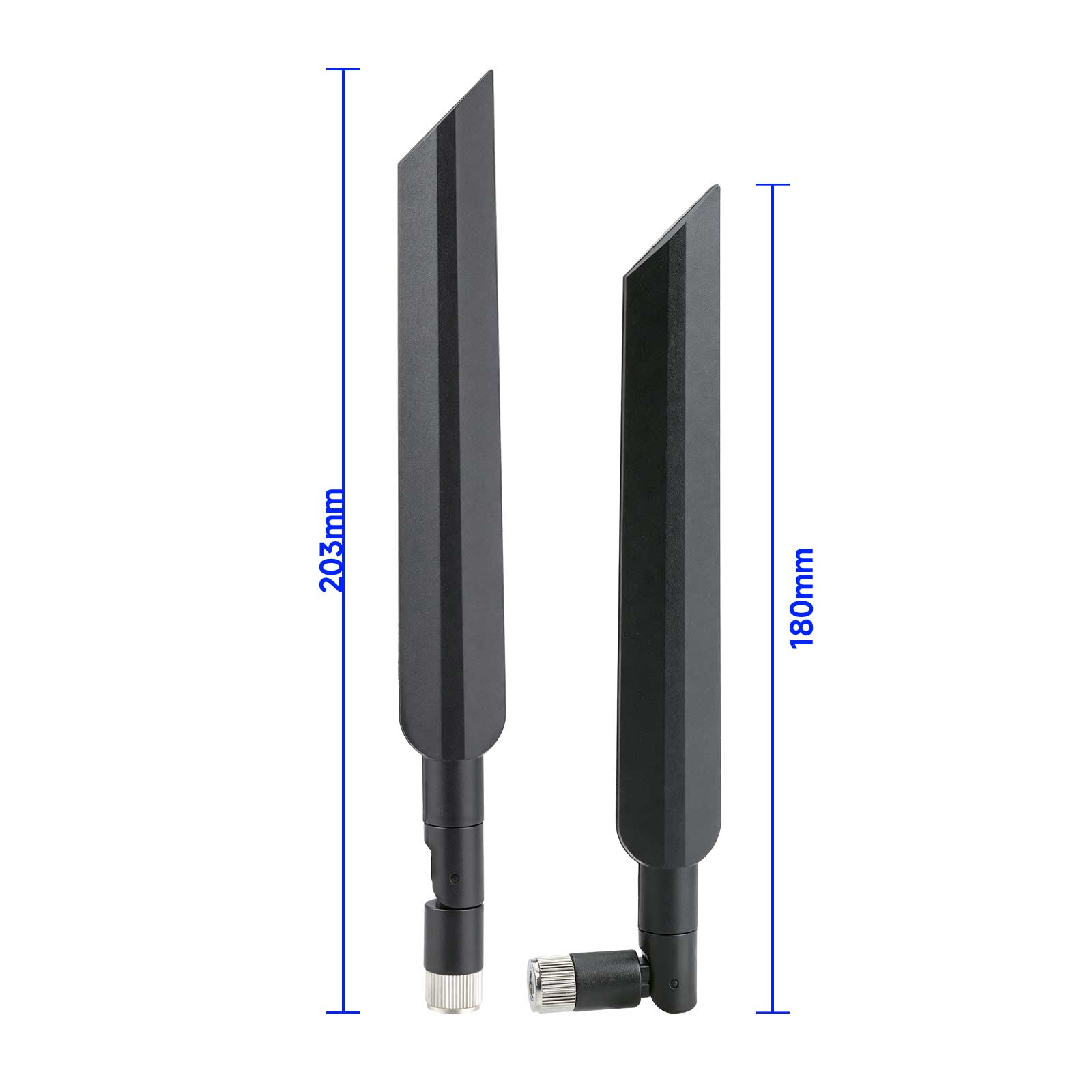

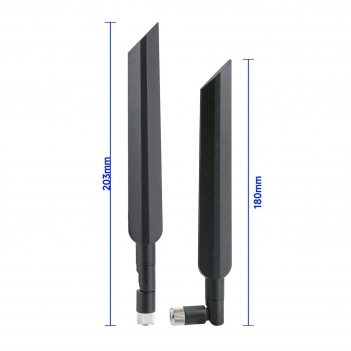

Antenna Total Length: 203mm

Housing Material: ABS

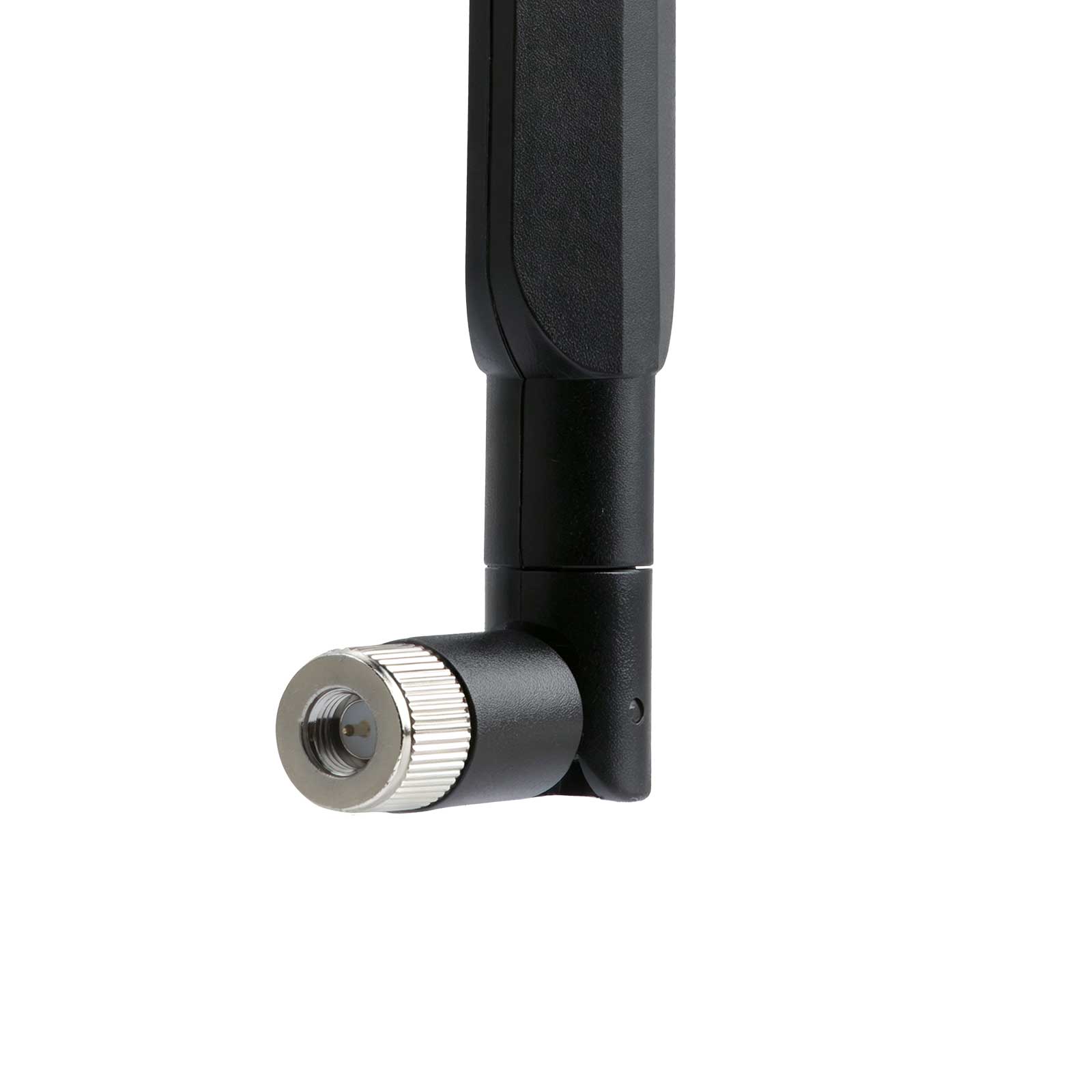

Connector: SMA Male (Center Pin)

Antenna Color: Black

Operating Temperature: -40°C ~ +85°C

Storage Temperature: -40°C ~ +85°C

Quantity: 1-Pack

Application: Receive and transmit universal

Product Features

Ultra-wideband 600–6000MHz frequency coverage

Supports both 4G LTE and 5G NR sub-6GHz networks

6dBi gain with 360° omnidirectional pattern

VSWR ≤ 1.5, 50Ω impedance

Standard SMA male connector (center pin)

1-pack for 4G/5G routers and gateways

High-impact ABS housing, lightweight design

Wide temperature tolerance: -40°C to +85°C

Screw-on installation, no tools required

Receive and transmit universal

Applications

4G LTE / 5G cellular router and modem antenna upgrade

5G NR gateway and CPE external antenna ports

Mobile hotspot and MIFI signal enhancementSignal booster and repeater antenna replacement

IoT and M2M gateway antenna

Industrial wireless data terminal

Spare or replacement antenna for SMA-female devices

Package Contents

1 × 4G LTE/5G Antenna (6dBi, SMA Male, 600-6000MHz)
